+4

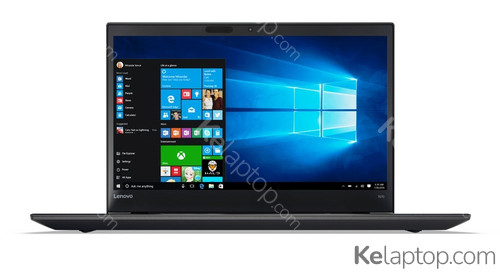

Lenovo ThinkPad T T570 20HAS00R0C
Specs
Prices
Main specs
| Processor | Intel Core i5 i5-7300U 2,6GHz |
|---|---|
| Screen | 15.6" 1920x1080 IPS |
| Hard drive | 256GB SSD |
| RAM | 8GB DDR4-SDRAM |
| Operating system | Windows 10 Pro |
| Graphics card | Intel HD Graphics 620 |
Alternatives with equal or higher power at a similar or lower price
From Lenovo
- 1
Lenovo IdeaPad 3 14ITL05 81X700FXUS
$3991033 - 2
Lenovo IdeaPad 3 14IIL05 81WD00U9US
$376531 - 3
Lenovo V V14 G4 ABP 83FG0000US
$395531 - 4
Lenovo ThinkBook 14s IWL 20RM0008US
$359529 - 5
Lenovo IdeaPad 1 15AMN7 82VG00BJUS
$3984.930 - 6
Lenovo IdeaPad 3 15IIL05 81WE011UUS
$369.994.929 - 7
Lenovo IdeaPad Slim 3 15IAN8 82XB00C2US
$335.494.830
From other brands
- 1
Acer Aspire Go 15 AG15-21P-R0RR
$389.991032 - 2
Acer Spin 5 SP513-54N-58XD
$399.951031 - 3
Acer Aspire 3 A315-24P-R7VH
$368531 - 4
ASUS Vivobook 14 X1404VA-I38128
$3884.930 - 5
ASUS Vivobook Go 15 E1504FA-AS33
$3964.930 - 6
Acer TravelMate Spin B3 TMB312RN-31-C86V
$317.84.929 - 7
Acer Aspire 3 A315-56-594W
$3954.929 - 8
Acer Aspire 3 A314-36P-3772
$3704.830 - 9
ASUS Vivobook 15 F1504ZA-AS34
$3974.829
Full specifications of Lenovo ThinkPad T T570 20HAS00R0C
| Reference / Part Number | 20HAS00R0C |
|---|---|
| Also sold as | 20H9004QUS, 20HAS12W0B-02, 20HAS04B0K-S, 20H9CTO1WW-CTO62-G, 20HAS04205-B |
| Release date | May 2018, 8 years ago |
Design
| Product type | Laptop |
|---|---|
| Product color | Black |
| Form factor | Clamshell |
| Housing material | Glass fiber |
| Market positioning | Business |
Image gallery
Screen
| Display diagonal | 15.6 " (39,6 cm) |
|---|---|
| Display resolution | 1920 x 1080 pixels |
| Touchscreen | No |
| HD type | Full HD |
| Panel type | IPS |
| LED backlight | Yes |
| Native aspect ratio | 16:9 |
| Display surface | Matt |
Processor
| Processor family | Intel® Core™ i5 |
|---|---|
| Processor manufacturer | Intel |
| Processor model | i5-7300U |
| Processor frequency | 2,6 GHz |
| Generación del procesador | Intel Core i5-7xxx |
| Processor cores | 2 |
| Processor threads | 4 |
| Processor boost frequency | 3,5 GHz |
| System bus rate | 4 GT/s |
| Processor cache | 3 MB |
| Processor cache type | Smart Cache |
| Processor socket | BGA 1356 |
| Processor lithography | 14 nm |
| Processor operating modes | 64-bit |
| Processor series | Intel Core i5-7300 Mobile Series |
| Processor codename | Kaby Lake |
| Bus type | OPI |
| Stepping | H0 |
| Thermal Design Power (TDP) | 15 W |
| Configurable TDP-up frequency | 2,7 GHz |
| Configurable TDP-up | 25 W |
| Configurable TDP-down | 7,5 W |
| Configurable TDP-down frequency | 0,8 GHz |
| Tjunction | 100 °C |
| Maximum number of PCI Express lanes | 12 |
| PCI Express slots version | 3.0 |
| PCI Express configurations | 1x2+2x1,1x4,2x2,4x1 |
| ECC supported by processor | No |
Memory
| Internal memory | 8 GB |
|---|---|
| Maximum internal memory | 32 GB |
| Internal memory type | DDR4-SDRAM |
| Memory clock speed | 2133 MHz |
| Memory form factor | SO-DIMM |
| Memory layout (slots x size) | 1 x 8 GB |
| Memory slots | 2x SO-DIMM |
Storage
| Total storage capacity | 256 GB |
|---|---|
| Storage media | SSD |
| Optical drive type | No |
| Number of SSDs installed | 1 |
| SSD capacity | 256 GB |
| Card reader integrated | Yes |
| Compatible memory cards | MMC,SD,SDHC,SDXC |
Graphics
| On-board graphics card | Yes |
|---|---|
| On-board graphics card model | Intel® HD Graphics 620 |
| On-board graphics card family | Intel® HD Graphics |
| On-board graphics card base frequency | 300 MHz |
| On-board graphics card dynamic frequency (max) | 1100 MHz |
| Maximum on-board graphics card memory | 32 GB |
| On-board graphics card DirectX version | 12.0 |
| On-board graphics card OpenGL version | 4.4 |
| On-board graphics card ID | 0x5916 |
Audio
| Audio chip | Realtek ALC3268 |
|---|---|
| Number of built-in speakers | 2 |
| Speaker power | 2 W |
| Built-in microphone | Yes |
Camera
| Front camera | Yes |
|---|---|
| Front camera resolution | 1280 x 720 pixels |
| Front camera signal format | 720p |
| Front camera HD type | HD |
Network
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
|---|---|
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a,Wi-Fi 5 (802.11ac),802.11b,802.11g,Wi-Fi 4 (802.11n) |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Bluetooth | Yes |
| Bluetooth version | 4.1 |
Ports & interfaces
| USB 2.0 ports quantity | 0 |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| HDMI ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI version | 1.4b |
| DisplayPorts quantity | 0 |
| Mini DisplayPorts quantity | 1 |
| Thunderbolt 3 ports quantity | 0 |
| Combo headphone/mic port | Yes |
| Docking connector | Yes |
| USB Sleep-and-Charge | Yes |
| USB Sleep-and-Charge ports | 1 |
Keyboard
| Numeric keypad | Yes |
|---|---|
| Pointing device | ThinkPad UltraNav |
| Keyboard backlit | Yes |
| Spill-resistant keyboard | Yes |
| Full-size keyboard | Yes |
| Windows keys | Yes |
Software
| Operating system installed | Windows 10 Pro |
|---|---|
| Operating system architecture | 64-bit |
Processor special features
| Intel® My WiFi Technology (Intel® MWT) | Yes |
|---|---|
| Intel® Smart Response Technology | Yes |
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel® Clear Video HD Technology (Intel® CVT HD) | Yes |
| Intel Clear Video Technology | Yes |
| Intel® InTru™ 3D Technology | Yes |
| Intel® Quick Sync Video Technology | Yes |
| Intel Flex Memory Access | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel Trusted Execution Technology | Yes |
| Intel Enhanced Halt State | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel® Secure Key | Yes |
| Intel TSX-NI | Yes |
| Intel Stable Image Platform Program (SIPP) | Yes |
| Intel® OS Guard | Yes |
| Intel Software Guard Extensions (Intel SGX) | Yes |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | Yes |
| Intel 64 | Yes |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Thermal Monitoring Technologies | Yes |
| Processor package size | 42 X 24 mm |
| Supported instruction sets | AVX 2.0,SSE4.1,SSE4.2 |
| Processor code | SR340 |
| CPU configuration (max) | 1 |
| Embedded options available | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel Identity Protection Technology version | 1.00 |
| Intel Smart Response Technology version | 1.00 |
| Intel Stable Image Platform Program (SIPP) version | 1.00 |
| Intel Secure Key Technology version | 1.00 |
| Intel TSX-NI version | 1.00 |
| Intel Virtualization Technology (VT-x) | Yes |
| Processor ARK ID | 97472 |
| Conflict-Free processor | Yes |
Power
| AC adapter power | 45 W |
|---|---|
| AC adapter frequency | 50 - 60 Hz |
| AC adapter input voltage | 100 - 240 V |
| DC-in jack | Yes |
Security
| Cable lock slot | Yes |
|---|---|
| Fingerprint reader | Yes |
| Trusted Platform Module (TPM) | Yes |
| Password protection | Yes |
| Password protection type | HDD,Power on,Supervisor |
Aprobaciones reguladoras
| Certificados de conformidad | RoHS |
|---|
Sustainability
| Sustainability certificates | ENERGY STAR |
|---|
Weight & dimensions
| Weight | 4.3 lbs (1,97 kg) |
|---|---|
| Width | 14.4 " (365,8 mm) |
| Depth | 10 " (252,8 mm) |
| Height (front) | 0.8 " (2 cm) |
| Height (rear) | 0.8 " (2,02 cm) |
Packaging content
| AC adapter included | Yes |
|---|---|
| Manual | Yes |
| Quick start guide | Yes |
| Warranty card | Yes |
| Power cord included | Yes |
Other features
| Maximum internal memory (64-bit) | 32 GB |
|---|
Frequently asked questions
Is the Lenovo ThinkPad T T570 20HAS00R0C good for gaming?
This laptop was not built for gaming: it relies on the integrated Intel HD Graphics 620. Its card's page shows what level it handles current games at.
What is the screen of the Lenovo ThinkPad T T570 20HAS00R0C like?
It carries a 15.6" 1920x1080 IPS display.
Which processor and graphics card does the Lenovo ThinkPad T T570 20HAS00R0C have?
It runs on the Intel Core i5 i5-7300U processor with the Intel HD Graphics 620 graphics. Their pages carry their benchmarks, ranking position and alternatives.
Can the RAM of the Lenovo ThinkPad T T570 20HAS00R0C be upgraded?
Yes: it has 2 memory slots and takes up to 32 GB according to the manufacturer (it ships with 8GB).
Which operating system does the Lenovo ThinkPad T T570 20HAS00R0C come with?
It comes with Windows 10 Pro preinstalled.
Which ports does the Lenovo ThinkPad T T570 20HAS00R0C have?
According to its spec sheet: 1 × USB-C, 3 × USB-A, 1 × HDMI, Ethernet (RJ-45), card reader, headphone jack (3.5 mm).
Does the Lenovo ThinkPad T T570 20HAS00R0C have a backlit keyboard?
Yes, according to its spec sheet the keyboard is backlit.
Does the Lenovo ThinkPad T T570 20HAS00R0C have a touch screen?
No, according to its spec sheet the screen is not a touch screen.
What material is the Lenovo ThinkPad T T570 20HAS00R0C made of?
Its housing is made of Glass fiber.
How much does the Lenovo ThinkPad T T570 20HAS00R0C weigh?
It weighs 1,97 kg, a normal weight for its size: easy enough to move around.
When was the Lenovo ThinkPad T T570 20HAS00R0C released?
Its release date is May 2018, 8 years ago.
