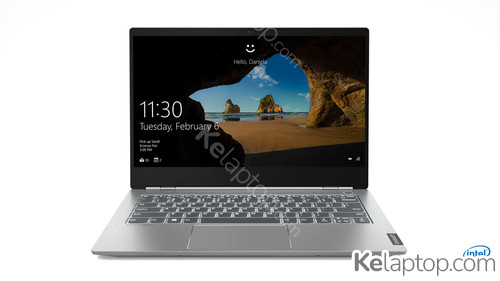

Lenovo ThinkBook 14s IWL 20RM0008US
Specs
Prices
Main specs
| Processor | Intel Core i7-8565U 1,8GHz |
|---|---|
| Screen | 14" 1920x1080 IPS 250 nits |
| Hard drive | 256GB SSD |
| RAM | 8GB DDR4-SDRAM |
| Operating system | Windows 10 Pro |
| Graphics card | AMD Radeon 540X 2GB GDDR5 |
Alternatives with equal or better features at a better price
From Lenovo
From other brands
Full specifications of Lenovo ThinkBook 14s IWL 20RM0008US
| Reference / Part Number | 20RM0008US |
|---|---|
| Release date | May 2019, 7 years ago |
Design
| Product type | Laptop |
|---|---|
| Product colour | Grey |
| Form factor | Clamshell |
| Housing material | Aluminium |
| Market positioning | Business |
Image gallery
Screen
| Display diagonal | 35,6 cm |
|---|---|
| Display resolution | 1920 x 1080 pixels |
| Touchscreen | No |
| HD type | Full HD |
| Panel type | IPS |
| LED backlight | Yes |
| Native aspect ratio | 16:9 |
| Display brightness | 250 cd/m² |
| Dual-screen | No |
| Contrast ratio (typical) | 800:1 |
Processor
| Processor family | Intel® Core™ i7 |
|---|---|
| Processor manufacturer | Intel |
| Processor model | i7-8565U |
| Processor frequency | 1,8 GHz |
| Processor generation | 8th gen Intel® Core™ i7 |
| Processor cores | 4 |
| Processor threads | 8 |
| Processor boost frequency | 4,6 GHz |
| System bus rate | 4 GT/s |
| Processor cache | 8 MB |
| Processor cache type | Smart Cache |
| Processor socket | BGA 1528 |
| Processor lithography | 14 nm |
| Processor operating modes | 64-bit |
| Processor codename | Whiskey Lake |
| Bus type | OPI |
| Thermal Design Power (TDP) | 15 W |
| Configurable TDP-up frequency | 2 GHz |
| Configurable TDP-up | 25 W |
| Configurable TDP-down | 10 W |
| Configurable TDP-down frequency | 0,8 GHz |
| Tjunction | 100 °C |
| Maximum number of PCI Express lanes | 16 |
| PCI Express slots version | 3.0 |
| PCI Express configurations | 1x4,2x2 |
| ECC supported by processor | No |
Memory
| Internal memory | 8 GB |
|---|---|
| Maximum internal memory | 16 GB |
| Internal memory type | DDR4-SDRAM |
| Memory clock speed | 2400 MHz |
| Memory form factor | SO-DIMM |
| Memory layout (slots x size) | 1 x 8 GB |
| Memory slots | 1x SO-DIMM |
Storage
| Total storage capacity | 256 GB |
|---|---|
| Storage media | SSD |
| Optical drive type | No |
| Total SSDs capacity | 256 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 256 GB |
| Card reader integrated | No |
Graphics
| On-board graphics card | Yes |
|---|---|
| Discrete graphics card | Yes |
| Discrete graphics card model | AMD Radeon 540X |
| On-board graphics card model | Intel® UHD Graphics |
| Discrete graphics card memory | 2 GB |
| Discrete graphics memory type | GDDR5 |
| On-board graphics card family | Intel® UHD Graphics |
| On-board graphics card base frequency | 300 MHz |
| On-board graphics card dynamic frequency (max) | 1150 MHz |
| Maximum on-board graphics card memory | 32 GB |
| On-board graphics card DirectX version | 12.0 |
| On-board graphics card OpenGL version | 4.5 |
| On-board graphics card ID | 0x3EA0 |
Audio
| Audio chip | Realtek ALC3287 |
|---|---|
| Number of built-in speakers | 2 |
| Speaker power | 2 W |
| Built-in microphone | Yes |
Camera
| Front camera | Yes |
|---|---|
| Front camera signal format | 720p |
| Front camera HD type | HD |
Network
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
|---|---|
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a,Wi-Fi 5 (802.11ac),802.11b,802.11g,Wi-Fi 4 (802.11n) |
| Antenna type | 2x2 |
| Bluetooth | Yes |
| Bluetooth version | 5.0 |
Ports & interfaces
| USB 2.0 ports quantity | 0 |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| HDMI ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| HDMI version | 1.4b |
| DisplayPorts quantity | 0 |
| Thunderbolt 3 ports quantity | 0 |
| Combo headphone/mic port | Yes |
| USB Type-C DisplayPort Alternate Mode | Yes |
| USB Sleep-and-Charge | Yes |
| USB Sleep-and-Charge ports | 1 |
Keyboard
| Numeric keypad | No |
|---|---|
| Pointing device | ThinkPad UltraNav |
| Spill-resistant keyboard | Yes |
Software
| Operating system installed | Windows 10 Pro |
|---|---|
| Operating system architecture | 64-bit |
Processor special features
| Intel® My WiFi Technology (Intel® MWT) | Yes |
|---|---|
| Intel® Smart Response Technology | Yes |
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel® Clear Video HD Technology (Intel® CVT HD) | Yes |
| Intel Clear Video Technology | Yes |
| Intel® Quick Sync Video Technology | Yes |
| Intel Flex Memory Access | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel Trusted Execution Technology | No |
| Intel Enhanced Halt State | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel® Secure Key | Yes |
| Intel TSX-NI | No |
| Intel® OS Guard | Yes |
| Intel Software Guard Extensions (Intel SGX) | Yes |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | Yes |
| Intel 64 | Yes |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Thermal Monitoring Technologies | Yes |
| Processor package size | 46x24 mm |
| Supported instruction sets | AVX 2.0,SSE4.1,SSE4.2 |
| CPU configuration (max) | 1 |
| Embedded options available | No |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel Identity Protection Technology version | 1.00 |
| Intel Smart Response Technology version | 1.00 |
| Intel Secure Key Technology version | 1.00 |
| Intel TSX-NI version | 0.00 |
| Intel Virtualization Technology (VT-x) | Yes |
| Processor ARK ID | 149091 |
Battery
| Battery capacity | 45 Wh |
|---|---|
| Battery technology | Lithium-Ion (Li-Ion) |
| Battery life (max) | 11 h |
| Fast charging | Yes |
| Fast charging time (50%) | 30 min |
Power
| AC adapter power | 65 W |
|---|
Security
| Fingerprint reader | Yes |
|---|---|
| Trusted Platform Module (TPM) | Yes |
| Password protection | Yes |
| Password protection type | HDD,Power on,Supervisor |
Certificates
| Compliance certificates | RoHS |
|---|
Sustainability
| Sustainability certificates | ENERGY STAR |
|---|
Weight & dimensions
| Weight | 1,49 kg |
|---|---|
| Width | 322,5 mm |
| Depth | 222,8 mm |
| Height | 16,5 mm |
Packaging content
| AC adapter included | Yes |
|---|
Frequently asked questions
Is the Lenovo ThinkBook 14s IWL 20RM0008US good for gaming?
You can game on it, though this laptop was not built for it: it carries the dedicated AMD Radeon 540X. Its card's page shows what level it handles current games at.
How long does the battery of the Lenovo ThinkBook 14s IWL 20RM0008US last?
The manufacturer declares up to 11 h of battery life. Real duration depends on brightness, workload and battery health.
What is the screen of the Lenovo ThinkBook 14s IWL 20RM0008US like?
It carries a 14" 1920x1080 IPS 250 nits display.
Which processor and graphics card does the Lenovo ThinkBook 14s IWL 20RM0008US have?
It runs on the Intel Core i7-8565U processor with the AMD Radeon 540X graphics. Their pages carry their benchmarks, ranking position and alternatives.
Can the RAM of the Lenovo ThinkBook 14s IWL 20RM0008US be upgraded?
Yes: it has 1 memory slot and takes up to 16 GB according to the manufacturer (it ships with 8GB).
Which operating system does the Lenovo ThinkBook 14s IWL 20RM0008US come with?
It comes with Windows 10 Pro preinstalled.
Which ports does the Lenovo ThinkBook 14s IWL 20RM0008US have?
According to its spec sheet: 1 × USB-C, 2 × USB-A, 1 × HDMI, headphone jack (3.5 mm).
Does the Lenovo ThinkBook 14s IWL 20RM0008US have a touch screen?
No, according to its spec sheet the screen is not a touch screen.
What material is the Lenovo ThinkBook 14s IWL 20RM0008US made of?
Its housing is made of Aluminium.
How much does the Lenovo ThinkBook 14s IWL 20RM0008US weigh?
It weighs 1,49 kg: one of the light ones, easy to carry every day.
When was the Lenovo ThinkBook 14s IWL 20RM0008US released?
Its release date is May 2019, 7 years ago.
