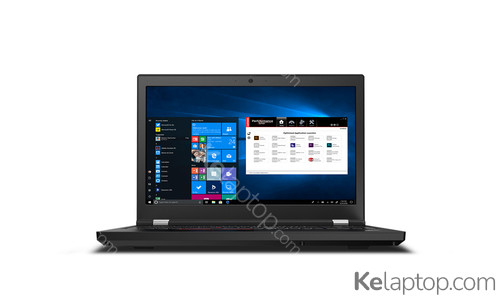

Lenovo ThinkPad P P15 Gen 1 20ST008AFR
Specs
Prices
Main specs
| Processor | Intel Core i5-10400H 2,6GHz |
|---|---|
| Screen | 15.6" 1920x1080 IPS 500 nits 72% NTSC |
| Hard drive | 512GB SSD M.2 |
| RAM | 16GB DDR4-SDRAM |
| Operating system | No OS installed |
| Graphics card | NVIDIA Quadro RTX 5000 Max-Q 16GB GDDR6 |
| Other | Keyboard French. |
Other configurations of this model
| Score | Power | Price ▲ | Processor | Graphics card | Screen | RAM | Hard drive |
|---|---|---|---|---|---|---|---|
| 5.4 | 49 | $1729.99 | Intel Core i7-10750H | NVIDIA Quadro T1000 4GB | IPS | 16GB | 512GB |
| 6.6 | 53 | $1839.99 | Intel Core i7-10750H | NVIDIA Quadro T1000 4GB | WVA | 32GB | 1TB |
| 6.6 | 58 | $2499 | Intel Core i9-10885H | NVIDIA Quadro RTX 4000 Max-Q 8GB | IPS | 32GB | 1TB |
| 5.7 | 52 | $2499.99 | Intel Core i7-10850H | NVIDIA Quadro T2000 4GB | IPS | 32GB | 1TB |
| 5.6 | 52 | $3399 | Intel Core i9-10885H | NVIDIA Quadro T2000 4GB | IPS | 32GB | 512GB |
Full specifications of Lenovo ThinkPad P P15 Gen 1 20ST008AFR
| Reference / Part Number | 20ST008AFR |
|---|---|
| Release date | March 2023, 3 years ago |
Design
| Product type | Mobile workstation |
|---|---|
| Product color | Black |
| Form factor | Clamshell |
Image gallery
Screen
| Display diagonal | 15.6 " (39,6 cm) |
|---|---|
| Display resolution | 1920 x 1080 pixels |
| Touchscreen | No |
| HD type | Full HD |
| Panel type | IPS |
| LED backlight | Yes |
| Native aspect ratio | 16:9 |
| Anti-glare screen | Yes |
| Display brightness | 500 cd/m² |
| RGB color space | NTSC |
| Color gamut | 72 % |
| Contrast ratio (typical) | 1200:1 |
| High Dynamic Range (HDR) supported | Yes |
| High Dynamic Range (HDR) technology | Dolby Vision |
Processor
| Processor family | Intel® Core™ i5 |
|---|---|
| Processor manufacturer | Intel |
| Processor model | i5-10400H |
| Processor frequency | 2,6 GHz |
| Generación del procesador | Intel Core i5-10xxx |
| Processor cores | 4 |
| Processor boost frequency | 4,6 GHz |
| Processor cache | 8 MB |
| Processor cache type | Smart Cache |
| Configurable TDP-down | 35 W |
Memory
| Internal memory | 16 GB |
|---|---|
| Maximum internal memory | 128 GB |
| Internal memory type | DDR4-SDRAM |
| Memory clock speed | 2933 MHz |
| Memory form factor | SO-DIMM |
| Memory layout (slots x size) | 1 x 16 GB |
| Memory slots | 4x SO-DIMM |
| Memory channels | Dual-channel |
| Non-ECC | Yes |
Storage
| Total storage capacity | 512 GB |
|---|---|
| Storage media | SSD |
| Optical drive type | No |
| Total SSDs capacity | 512 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 512 GB |
| SSD interface | PCI Express |
| NVMe | Yes |
| SSD form factor | M.2 |
| Card reader integrated | Yes |
| Compatible memory cards | SD |
Graphics
| On-board graphics card | Yes |
|---|---|
| Discrete graphics card | Yes |
| Discrete graphics card model | NVIDIA Quadro RTX 5000 Max-Q |
| On-board graphics card model | Intel® UHD Graphics |
| Discrete GPU manufacturer | NVIDIA |
| Discrete graphics card memory | 16 GB |
| Discrete graphics memory type | GDDR6 |
| Fabricante de GPU (unidad de procesamiento gráfico) integrada | Intel |
| NVIDIA Max-Q | Yes |
Audio
| Audio chip | Realtek ALC3286 |
|---|---|
| Audio system | Dolby Atmos |
| Number of built-in speakers | 2 |
| Built-in microphone | Yes |
| Number of microphones | 2 |
Camera
| Front camera | Yes |
|---|---|
| Front camera resolution | 1280 x 720 pixels |
| Front camera HD type | HD |
| Infrared (IR) camera | Yes |
| Privacy camera | Yes |
| Privacy type | Privacy shutter |
Network
| Mobile network connection | No |
|---|---|
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Wi-Fi standards | Wi-Fi 6 (802.11ax) |
| Antenna type | 2x2 |
| WLAN controller model | Intel Wi-Fi 6 AX201 |
| WLAN controller manufacturer | Intel |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 100,1000 Mbit/s |
| Bluetooth | Yes |
| Bluetooth version | 5.1 |
| WWAN | Upgradable |
Ports & interfaces
| USB 2.0 ports quantity | 0 |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI version | 2.0 |
| Thunderbolt 3 ports quantity | 2 |
| Combo headphone/mic port | Yes |
| USB Type-C DisplayPort Alternate Mode | Yes |
| USB Sleep-and-Charge | Yes |
| USB Sleep-and-Charge ports | 1 |
Performance
| Motherboard chipset | Intel WM490 |
|---|
Keyboard
| Numeric keypad | Yes |
|---|---|
| Pointing device | ThinkPad UltraNav |
| Keyboard backlit | Yes |
| Spill-resistant keyboard | Yes |
| Keyboard language | French |
Software
| Operating system installed | No |
|---|
Processor special features
| Enhanced Intel SpeedStep Technology | Yes |
|---|---|
| Intel Flex Memory Access | Yes |
| Intel Trusted Execution Technology | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Stable Image Platform Program (SIPP) | Yes |
| Intel Software Guard Extensions (Intel SGX) | Yes |
| Intel 64 | Yes |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| CPU configuration (max) | 1 |
| Embedded options available | No |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
Battery
| Battery capacity | 94 Wh |
|---|---|
| Battery technology | Lithium Polymer (LiPo) |
| Battery life (max) | 16,4 h |
Power
| AC adapter power | 230 W |
|---|---|
| AC adapter frequency | 50 - 60 Hz |
| AC adapter input voltage | 100 - 240 V |
| USB Power Delivery | Yes |
Security
| Cable lock slot | Yes |
|---|---|
| Cable lock slot type | Kensington |
| Fingerprint reader | Yes |
| Smart card reader | Yes |
| Trusted Platform Module (TPM) | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
| Password protection | Yes |
| Password protection type | HDD,Power on,Supervisor |
Operational conditions
| Operating temperature (T-T) | 5 - 35 °C |
|---|---|
| Storage temperature (T-T) | 5 - 43 °C |
| Operating relative humidity (H-H) | 8 - 95 % |
| Storage relative humidity (H-H) | 5 - 95 % |
| Maximum shipping altitude | 3048 m |
Aprobaciones reguladoras
| Certificados de conformidad | RoHS |
|---|---|
| Certification | MIL-STD-810G |
Sustainability
| Sustainability certificates | ENERGY STAR,EPEAT Gold |
|---|
Weight & dimensions
| Weight | 6 lbs (2,74 kg) |
|---|---|
| Width | 14.8 " (375,4 mm) |
| Depth | 9.9 " (252,3 mm) |
| Height (front) | 1 " (2,45 cm) |
| Height (rear) | 1.2 " (3,15 cm) |
Alternatives with equal or higher power at a similar or lower price
Frequently asked questions
Is the Lenovo ThinkPad P P15 Gen 1 20ST008AFR good for gaming?
You can game on it, though this laptop was not built for it: it carries the dedicated NVIDIA Quadro RTX 5000 Max-Q. Its card's page shows what level it handles current games at.
How long does the battery of the Lenovo ThinkPad P P15 Gen 1 20ST008AFR last?
The manufacturer declares up to 16,4 h of battery life. Real duration depends on brightness, workload and battery health.
What is the screen of the Lenovo ThinkPad P P15 Gen 1 20ST008AFR like?
It carries a 15.6" 1920x1080 IPS 500 nits 72% NTSC display.
Which processor and graphics card does the Lenovo ThinkPad P P15 Gen 1 20ST008AFR have?
It runs on the Intel Core i5-10400H processor with the NVIDIA Quadro RTX 5000 Max-Q graphics. Their pages carry their benchmarks, ranking position and alternatives.
Can the RAM of the Lenovo ThinkPad P P15 Gen 1 20ST008AFR be upgraded?
Yes: it has 4 memory slots and takes up to 128 GB according to the manufacturer (it ships with 16GB).
Which operating system does the Lenovo ThinkPad P P15 Gen 1 20ST008AFR come with?
It comes with no operating system installed: the price does not include a license and you will have to install one yourself.
Which ports does the Lenovo ThinkPad P P15 Gen 1 20ST008AFR have?
According to its spec sheet: 2 × Thunderbolt 3, 1 × USB-C, 2 × USB-A, 1 × HDMI, Ethernet (RJ-45), card reader, headphone jack (3.5 mm).
Does the Lenovo ThinkPad P P15 Gen 1 20ST008AFR have a backlit keyboard?
Yes, according to its spec sheet the keyboard is backlit.
Does the Lenovo ThinkPad P P15 Gen 1 20ST008AFR have a touch screen?
No, according to its spec sheet the screen is not a touch screen.
How much does the Lenovo ThinkPad P P15 Gen 1 20ST008AFR weigh?
It weighs 2,74 kg: one of the heavy ones, more of a desk machine than a daily commuter.
When was the Lenovo ThinkPad P P15 Gen 1 20ST008AFR released?
Its release date is March 2023, 3 years ago.
