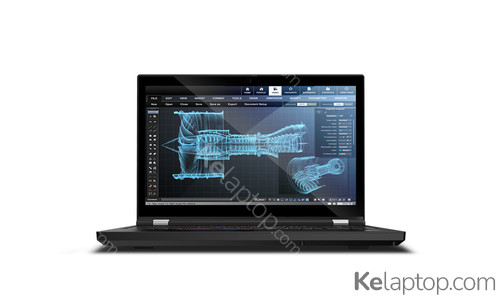

Lenovo ThinkPad P P15 Gen 1 20ST004EUS
Price, score and specs

Lenovo ThinkPad P P15 Gen 1 20ST004EUS Price, score and specs
 +13
  • Family

    ThinkPad

    412 From $179.77

  • Series

    P

    116 From $808.99

Main specs

Processor

Intel Core i7-10750H 2,6GHz

Screen 15.6" 1920x1080 WVA
Hard drive 1TB SSD M.2
RAM 32GB DDR4-SDRAM
Operating system Windows 10 Pro
Graphics card

NVIDIA Quadro T1000 4GB GDDR6

Prices
In 1 store
Prices

Ships from United States

See price
Video, design & 3D 7.6
6.3
Processor
7.4
Graphics
5
Resolution
10
RAM
10
Storage
 Power and specifications 53%
18
Processor
27
Graphics
70
Resolution
100
RAM
95
Storage

Full specifications of Lenovo ThinkPad P P15 Gen 1 20ST004EUS

Reference / Part Number

20ST004EUS

Release date

July 2020, 6 years ago

Design

Product type Mobile workstation
Product color Black
Form factor Clamshell

Image gallery

  • Lenovo ThinkPad P P15 Gen 1 20ST004EUS Price, score and specs
  • Lenovo ThinkPad P P15 Gen 1 20ST004EUS Price, score and specs
  • Lenovo ThinkPad P P15 Gen 1 20ST004EUS Price, score and specs
  • Lenovo ThinkPad P P15 Gen 1 20ST004EUS Price, score and specs
  • Lenovo ThinkPad P P15 Gen 1 20ST004EUS Price, score and specs
  • Lenovo ThinkPad P P15 Gen 1 20ST004EUS Price, score and specs
  • Lenovo ThinkPad P P15 Gen 1 20ST004EUS Price, score and specs
  • Lenovo ThinkPad P P15 Gen 1 20ST004EUS Price, score and specs
  • Lenovo ThinkPad P P15 Gen 1 20ST004EUS Price, score and specs
  • Lenovo ThinkPad P P15 Gen 1 20ST004EUS Price, score and specs
  • Lenovo ThinkPad P P15 Gen 1 20ST004EUS Price, score and specs
  • Lenovo ThinkPad P P15 Gen 1 20ST004EUS Price, score and specs
  • Lenovo ThinkPad P P15 Gen 1 20ST004EUS Price, score and specs
  • Lenovo ThinkPad P P15 Gen 1 20ST004EUS Price, score and specs
  • Lenovo ThinkPad P P15 Gen 1 20ST004EUS Price, score and specs
  • Lenovo ThinkPad P P15 Gen 1 20ST004EUS Price, score and specs

Screen

Display diagonal 15.6 " (39,6 cm)
Display resolution 1920 x 1080 pixels
Touchscreen No
HD type Full HD
Panel type WVA
LED backlight Yes
Native aspect ratio 16:9
Display brightness 500 cd/m²
RGB color space NTSC
Color gamut 72 %
Contrast ratio (typical) 1200:1
High Dynamic Range (HDR) technology Dolby Vision

Processor

Processor family Intel® Core™ i7
Processor manufacturer Intel
Processor model i7-10750H
Processor frequency 2,6 GHz
Generación del procesador Intel Core i7-10xxx
Processor cores 6
Processor threads 12
Processor boost frequency 5 GHz
System bus rate 8 GT/s
Processor cache 12 MB
Processor cache type Smart Cache
Processor socket BGA 1440
Processor lithography 14 nm
Processor operating modes 64-bit
Processor codename Comet Lake
Thermal Design Power (TDP) 45 W
Configurable TDP-down 35 W
Tjunction 100 °C
Maximum number of PCI Express lanes 16
PCI Express slots version 3.0
PCI Express configurations 1x16,2x8,1x8+2x4

Memory

Internal memory 32 GB
Maximum internal memory 128 GB
Internal memory type DDR4-SDRAM
Memory clock speed 3200 MHz
Memory form factor SO-DIMM
Memory layout (slots x size) 2 x 16 GB
Memory slots 4x SO-DIMM

Storage

Total storage capacity 1 TB
Storage media SSD
Optical drive type No
Total SSDs capacity 1 TB
Number of SSDs installed 1
SSD capacity 1 TB
SSD interface NVMe,PCI Express
NVMe Yes
SSD form factor M.2
Card reader integrated Yes
Compatible memory cards SD

Graphics

On-board graphics card Yes
Discrete graphics card Yes
Discrete graphics card model NVIDIA Quadro T1000
On-board graphics card model Intel® UHD Graphics
Discrete graphics card memory 4 GB
Discrete graphics memory type GDDR6
Fabricante de GPU (unidad de procesamiento gráfico) integrada Intel
On-board graphics card base frequency 350 MHz
On-board graphics card dynamic frequency (max) 1150 MHz
On-board graphics card DirectX version 12.0
On-board graphics card OpenGL version 4.5
On-board graphics card ID 0x9BC4

Audio

Audio chip Realtek ALC3286
Audio system Dolby Atmos
Number of built-in speakers 2
Speaker power 2 W
Built-in microphone Yes
Number of microphones 2

Camera

Front camera Yes
Front camera HD type HD
Infrared (IR) camera Yes
Privacy camera Yes
Privacy type Privacy shutter

Network

Mobile network connection No
Top Wi-Fi standard Wi-Fi 6 (802.11ax)
Wi-Fi standards 802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n),Wi-Fi 5 (802.11ac),Wi-Fi 6 (802.11ax)
Antenna type 2x2
WLAN controller model Intel Wi-Fi 6 AX201
WLAN controller manufacturer Intel
Ethernet LAN Yes
Ethernet LAN data rates 100,1000 Mbit/s
Bluetooth Yes
Bluetooth version 5.1

Ports & interfaces

USB 2.0 ports quantity 0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity 1
HDMI ports quantity 1
Ethernet LAN (RJ-45) ports 1
HDMI version 2.0
Thunderbolt 3 ports quantity 2
Combo headphone/mic port Yes
USB Type-C DisplayPort Alternate Mode Yes
USB Sleep-and-Charge Yes
USB Sleep-and-Charge ports 1

Performance

Motherboard chipset Intel WM490

Keyboard

Numeric keypad Yes
Pointing device ThinkPad UltraNav
Keyboard backlit Yes
Spill-resistant keyboard Yes

Software

Operating system installed Windows 10 Pro
Operating system architecture 64-bit

Processor special features

Intel® Identity Protection Technology (Intel® IPT) Yes
Intel® Hyper Threading Technology (Intel® HT Technology) Yes
Enhanced Intel SpeedStep Technology Yes
Intel® Quick Sync Video Technology Yes
Intel Flex Memory Access Yes
Intel® AES New Instructions (Intel® AES-NI) Yes
Intel Trusted Execution Technology No
Intel VT-x with Extended Page Tables (EPT) Yes
Intel® Secure Key Yes
Intel Stable Image Platform Program (SIPP) No
Intel® OS Guard Yes
Intel Software Guard Extensions (Intel SGX) Yes
Intel 64 Yes
Execute Disable Bit Yes
Idle States Yes
Thermal Monitoring Technologies Yes
Processor package size 42 x 28 mm
Supported instruction sets SSE4.1,SSE4.2,AVX 2.0
CPU configuration (max) 1
Embedded options available No
Intel Virtualization Technology for Directed I/O (VT-d) Yes
Intel Virtualization Technology (VT-x) Yes
Processor ARK ID 201837

Battery

Battery capacity 94 Wh
Battery technology Lithium Polymer (LiPo)
Battery life (max) 16,4 h

Power

AC adapter power 170 W
DC-in jack Yes
USB Power Delivery Yes

Security

Cable lock slot Yes
Cable lock slot type Kensington
Fingerprint reader Yes
Trusted Platform Module (TPM) Yes
Password protection Yes
Password protection type HDD,Power on,Supervisor

Aprobaciones reguladoras

Certificados de conformidad RoHS
Certification MIL-STD-810G

Sustainability

Sustainability certificates EPEAT Gold,ENERGY STAR

Weight & dimensions

Weight 6 lbs (2,74 kg)
Width 14.8 " (375,4 mm)
Depth 9.9 " (252,3 mm)
Height (front) 1 " (2,45 cm)
Height (rear) 1.2 " (3,15 cm)
