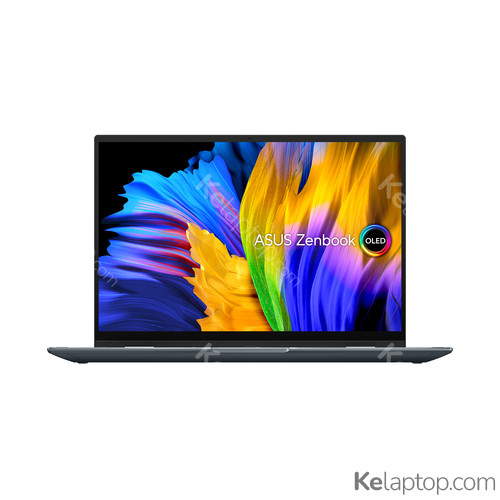

ASUS Zenbook 14 Flip OLED UP5401ZA-KN011W 90NB0XL1-M002T0
Specs
Prices
Main specs
| Processor | |
|---|---|
| Screen | 14" 2880x1800 OLED 90Hz 100% DCI-P3 |
| Hard drive | 1TB SSD M.2 |
| RAM | 16GB LPDDR5-SDRAM |
| Operating system | Windows 11 Home |
| Graphics card |
Alternatives with equal or higher power at a similar or lower price
From ASUS
From other brands
Full specifications of ASUS Zenbook 14 Flip OLED UP5401ZA-KN011W 90NB0XL1-M002T0
| Reference / Part Number | 90NB0XL1-M002T0 |
|---|---|
| Release date | June 2022, 4 years ago |
Design
| Product type | Hybrid (2-in-1) |
|---|---|
| Product color | Gray |
| Form factor | Convertible (Folder) |
| Color name | Pine Grey |
| Housing material | Aluminum |
| Market positioning | Home |
Image gallery
Screen
| Display diagonal | 14 " (35,6 cm) |
|---|---|
| Display resolution | 2880 x 1800 pixels |
| Touchscreen | Yes |
| HD type | 2.8K |
| Panel type | OLED |
| Native aspect ratio | 16:10 |
| Display surface | Gloss |
| RGB color space | DCI-P3 |
| Color gamut | 100 % |
| Maximum refresh rate | 90 Hz |
| High Dynamic Range (HDR) supported | Yes |
| High Dynamic Range (HDR) technology | HDR True Black 500 |
Processor
| Processor family | Intel® Core™ i7 |
|---|---|
| Processor manufacturer | Intel |
| Processor model | i7-12700H |
| Generación del procesador | Intel Core i7-12xxx |
| Processor cores | 14 |
| Processor cache | 24 MB |
| Configurable TDP-down | 35 W |
Memory
| Internal memory | 16 GB |
|---|---|
| Maximum internal memory | 16 GB |
| Internal memory type | LPDDR5-SDRAM |
| Memory form factor | On-board |
Storage
| Total storage capacity | 1 TB |
|---|---|
| Storage media | SSD |
| Optical drive type | No |
| Total SSDs capacity | 1 TB |
| Number of SSDs installed | 1 |
| SSD capacity | 1 TB |
| SSD interface | PCI Express 4.0 |
| NVMe | Yes |
| SSD form factor | M.2 |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash) |
Graphics
| On-board graphics card | Yes |
|---|---|
| Discrete graphics card | No |
| Discrete graphics card model | Not available |
| On-board graphics card model | Intel Iris Xe Graphics |
| Fabricante de GPU (unidad de procesamiento gráfico) integrada | Intel |
Audio
| Built-in microphone | Yes |
|---|
Camera
| Front camera | Yes |
|---|---|
| Front camera HD type | HD |
| Privacy camera | Yes |
| Privacy type | Privacy shutter |
Network
| Mobile network connection | No |
|---|---|
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Wi-Fi standards | Wi-Fi 6E (802.11ax) |
| Antenna type | 2x2 |
| Ethernet LAN | No |
| Bluetooth | Yes |
| Bluetooth version | 5.0 |
Ports & interfaces
| USB 2.0 ports quantity | 0 |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| HDMI ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| HDMI version | 2.1 |
| Número de puertos Thunderbolt 4 | 2 |
| Intel® Thunderbolt 4 | Yes |
| Combo headphone/mic port | Yes |
| USB Type-C DisplayPort Alternate Mode | Yes |
Keyboard
| Numeric keypad | No |
|---|---|
| Pointing device | Touchpad |
| Keyboard backlit | Yes |
| Keyboard layout | QWERTY |
Software
| Operating system installed | Windows 11 Home |
|---|---|
| Operating system architecture | 64-bit |
Processor special features
| Intel Flex Memory Access | Yes |
|---|---|
| Intel Trusted Execution Technology | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Execute Disable Bit | Yes |
| CPU configuration (max) | 1 |
| Embedded options available | No |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
Battery
| Battery capacity | 63 Wh |
|---|---|
| Battery technology | Lithium-Ion (Li-Ion) |
| Number of battery cells | 3 |
Control de energía
| Puerto de carga USB tipo C | Yes |
|---|---|
| AC adapter power | 100 W |
| AC adapter frequency | 50 - 60 Hz |
| AC adapter input voltage | 100 - 240 V |
| AC adapter output current | 5 A |
| AC adapter output voltage | 20 V |
| USB Power Delivery | Yes |
Security
| Fingerprint reader | Yes |
|---|---|
| Trusted Platform Module (TPM) | Yes |
| Password protection | Yes |
| Password protection type | BIOS,User |
Weight & dimensions
| Weight | 3.1 lbs (1,4 kg) |
|---|---|
| Width | 12.2 " (311 mm) |
| Depth | 8.8 " (223 mm) |
| Height | 0.6 " (15,9 mm) |
Frequently asked questions
Is the ASUS Zenbook 14 Flip OLED UP5401ZA-KN011W 90NB0XL1-M002T0 good for gaming?
This laptop was not built for gaming: it relies on the integrated Intel Iris Xe Graphics. Its card's page shows what level it handles current games at.
What is the screen of the ASUS Zenbook 14 Flip OLED UP5401ZA-KN011W 90NB0XL1-M002T0 like?
It carries a 14" 2880x1800 OLED 90Hz 100% DCI-P3 display.
Which processor and graphics card does the ASUS Zenbook 14 Flip OLED UP5401ZA-KN011W 90NB0XL1-M002T0 have?
It runs on the Intel Core i7-12700H processor with the Intel Iris Xe Graphics graphics. Their pages carry their benchmarks, ranking position and alternatives.
Which operating system does the ASUS Zenbook 14 Flip OLED UP5401ZA-KN011W 90NB0XL1-M002T0 come with?
It comes with Windows 11 Home preinstalled.
Which ports does the ASUS Zenbook 14 Flip OLED UP5401ZA-KN011W 90NB0XL1-M002T0 have?
According to its spec sheet: 2 × Thunderbolt 4, 1 × USB-A, 1 × HDMI, card reader, headphone jack (3.5 mm).
Does the ASUS Zenbook 14 Flip OLED UP5401ZA-KN011W 90NB0XL1-M002T0 have a backlit keyboard?
Yes, according to its spec sheet the keyboard is backlit.
Does the ASUS Zenbook 14 Flip OLED UP5401ZA-KN011W 90NB0XL1-M002T0 have a touch screen?
Yes, according to its spec sheet the screen is a touch screen.
What material is the ASUS Zenbook 14 Flip OLED UP5401ZA-KN011W 90NB0XL1-M002T0 made of?
Its housing is made of Aluminum.
How much does the ASUS Zenbook 14 Flip OLED UP5401ZA-KN011W 90NB0XL1-M002T0 weigh?
It weighs 1,4 kg: one of the light ones, easy to carry every day.
When was the ASUS Zenbook 14 Flip OLED UP5401ZA-KN011W 90NB0XL1-M002T0 released?
Its release date is June 2022, 4 years ago.
