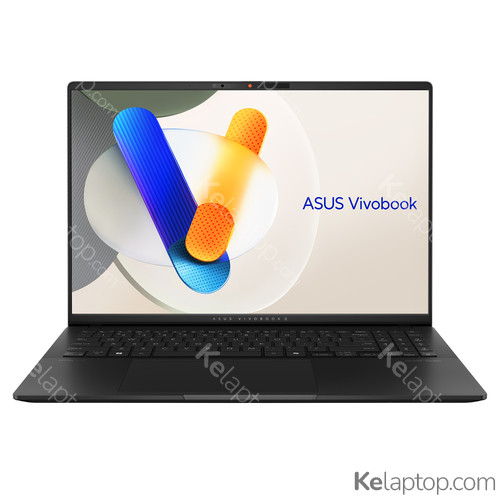

ASUS Vivobook S 16 OLED S5606MA-DS96
Price and specs
+6
Main specs
| Processor | |
|---|---|
| Screen | 16" 3200x2000 OLED 120Hz |
| Hard drive | 1TB SSD M.2 |
| RAM | 16GB LPDDR5x-SDRAM |
| Operating system | Windows 11 Home |
| Graphics card |
Prices
In 1 stores
In 1 stores
Prices
Ships from United States
Full specifications of ASUS Vivobook S 16 OLED S5606MA-DS96
Reference / Part Number
S5606MA-DS96
Release date
March 2024, 2 years ago
Design
| Product type | Laptop |
|---|---|
| Product color | Black |
| Form factor | Clamshell |
| Color name | Neutral Black |
| Housing material | Aluminum |
| Market positioning | Home |
| Año de introducción | 2024 |
Image gallery
Screen
| Display diagonal | 16 " (40,6 cm) |
|---|---|
| Display resolution | 3200 x 2000 pixels |
| Touchscreen | No |
| HD type | 3.2K |
| Panel type | OLED |
| Display number of colors | 1.073 billion colors |
| Native aspect ratio | 16:10 |
| Display surface | Gloss |
| Display brightness | 400 cd/m² |
| Maximum display brightness (HDR) | 600 cd/m² |
| RGB color space | DCI-P3 |
| Color gamut | 100 % |
| Maximum refresh rate | 120 Hz |
| Contrast ratio (typical) | 1000000:1 |
| High Dynamic Range (HDR) supported | Yes |
| High Dynamic Range (HDR) technology | HDR True Black 600 |
Processor
| Processor family | Intel Core Ultra 9 |
|---|---|
| Processor manufacturer | Intel |
| Processor model | 185H |
| Generación del procesador | Intel Core Ultra (Series 1) |
| Processor cores | 16 |
| Processor threads | 22 |
| Processor boost frequency | 5,1 GHz |
| Núcleos de rendimiento | 6 |
| Núcleos de eficiencia | 8 |
| Núcleos de eficiencia de baja potencia | 2 |
| Frecuencia turbo máxima del núcleo de rendimiento | 5.1 |
| Frecuencia turbo máxima del núcleo de eficiencia | 3.8 |
| Frecuencia turbo máxima del núcleo de eficiencia de baja potencia | 2.5 |
| Frecuencia base de núcleo de rendimiento | 2.3 |
| Frecuencia base de núcleo eficiente | 1.8 |
| Frecuencia base del núcleo de eficiencia de baja potencia | 1000 |
| Processor cache | 24 MB |
| Processor cache type | Smart Cache |
| Potencia base del procesador | 45 |
| Potencia turbo máxima | 115 |
Unidad de procesamiento neuronal (NPU)
| Unidad de procesamiento neuronal (NPU) | Intel AI Boost |
|---|---|
| Máxima frecuencia del núcleo NPU | 1.4 |
| Soporte de dispersión | Yes |
| Soporte de efectos de Windows Studio | Yes |
| Soporte de tipos de datos de IA en el núcleo NPU | FP16,FP32,Int8 |
| Entornos de trabajo de software de IA compatibles con el núcleo NPU | DirectML,ONNX RT,OpenVINO,Windows ML |
Memory
| Internal memory | 16 GB |
|---|---|
| Maximum internal memory | 16 GB |
| Internal memory type | LPDDR5x-SDRAM |
| Memory form factor | On-board |
Storage
| Total storage capacity | 1 TB |
|---|---|
| Storage media | SSD |
| Optical drive type | No |
| Total SSDs capacity | 1 TB |
| Number of SSDs installed | 1 |
| SSD capacity | 1 TB |
| SSD interface | PCI Express 4.0 |
| NVMe | Yes |
| SSD form factor | M.2 |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash) |
Graphics
| On-board graphics card | Yes |
|---|---|
| Discrete graphics card | No |
| Discrete graphics card model | Not available |
| On-board graphics card model | Intel Arc Graphics |
| Fabricante de GPU (unidad de procesamiento gráfico) integrada | Intel |
| On-board graphics card family | Intel Arc Graphics |
Audio
| Audio system | Smart Amp |
|---|---|
| Speakers manufacturer | Harman Kardon |
| Built-in microphone | Yes |
Camera
| Front camera | Yes |
|---|---|
| Front camera resolution | 1920 x 1080 pixels |
| Front camera HD type | Full HD |
| Infrared (IR) camera | Yes |
| Privacy camera | Yes |
| Privacy type | Privacy shutter |
Network
| Mobile network connection | No |
|---|---|
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Wi-Fi standards | Wi-Fi 6E (802.11ax) |
| Antenna type | 2x2 |
| Ethernet LAN | No |
| Bluetooth | Yes |
| Bluetooth version | 5.3 |
Ports & interfaces
| USB 2.0 ports quantity | 0 |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| Número de puertos Thunderbolt 4 | 2 |
| Intel® Thunderbolt 4 | Yes |
| Combo headphone/mic port | Yes |
| USB Type-C DisplayPort Alternate Mode | Yes |
Performance
| Repairability index | 8.1 |
|---|
Keyboard
| Numeric keypad | Yes |
|---|---|
| Pointing device | Touchpad |
| Keyboard backlit | Yes |
| Keyboard backlit color | RGB |
| Zona retroiluminada del teclado | 1-zone RGB |
Software
| Operating system installed | Windows 11 Home |
|---|---|
| Operating system architecture | 64-bit |
| Trial software | 1-month trial for new Microsoft 365 customers. Credit card required, McAfee |
Processor special features
| Intel® Evo™ Platform Verified | Yes |
|---|
Battery
| Battery capacity | 75 Wh |
|---|---|
| Battery technology | Lithium-Ion (Li-Ion) |
| Number of battery cells | 4 |
Control de energía
| Puerto de carga USB tipo C | Yes |
|---|---|
| AC adapter power | 90 W |
| AC adapter frequency | 50 - 60 Hz |
| AC adapter input voltage | 100 - 240 V |
| AC adapter output current | 4,5 A |
| AC adapter output voltage | 20 V |
| USB Power Delivery | Yes |
Security
| Face recognition | Yes |
|---|---|
| Windows Hello | Yes |
| Trusted Platform Module (TPM) | Yes |
| Password protection | Yes |
| Password protection type | BIOS,User |
Aprobaciones reguladoras
| Certificados de conformidad | REACH |
|---|
Sustainability
| Sustainability certificates | ENERGY STAR |
|---|---|
| Sustainability compliance | Yes |
Weight & dimensions
| Weight | 3.3 lbs (1,5 kg) |
|---|---|
| Width | 13.9 " (353,6 mm) |
| Depth | 9.7 " (246,9 mm) |
| Height (front) | 0.5 " (1,39 cm) |
| Height (rear) | 0.6 " (1,59 cm) |
