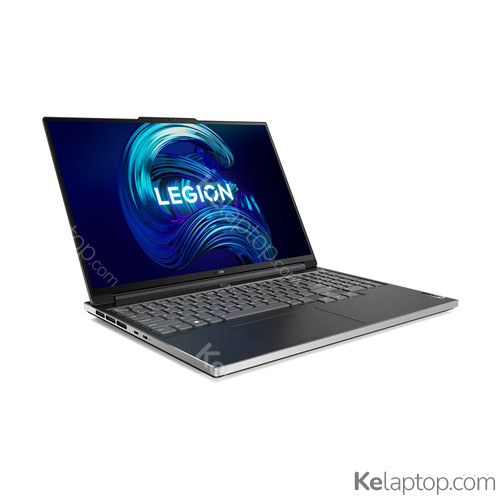

Lenovo Legion S7 16IAH7 82TF0017UK
Specs
Prices
Main specs
| Processor | |
|---|---|
| Screen | 16" 2560x1600 IPS 165Hz 500 nits 100% sRGB |
| Hard drive | 1TB SSD M.2 |
| RAM | 16GB DDR5-SDRAM |
| Operating system | Windows 11 Home |
| Graphics card | NVIDIA GeForce RTX 3070 8GB GDDR6 |
| Other | Keyboard UK English. |
Alternatives with equal or higher power at a similar or lower price
From other brands
Full specifications of Lenovo Legion S7 16IAH7 82TF0017UK
| Reference / Part Number | 82TF0017UK |
|---|---|
| Release date | March 2022, 4 years ago |
Design
| Product type | Laptop |
|---|---|
| Product colour | Grey |
| Form factor | Clamshell |
| Colour name | Onyx Grey |
| Housing material | Aluminium |
Image gallery
Screen
| Display diagonal | 40,6 cm |
|---|---|
| Display resolution | 2560 x 1600 pixels |
| Touchscreen | No |
| HD type | WQXGA |
| Panel type | IPS |
| LED backlight | Yes |
| Native aspect ratio | 16:10 |
| Anti-glare screen | Yes |
| Display brightness | 500 cd/m² |
| RGB colour space | sRGB |
| Colour gamut | 100 % |
| Maximum refresh rate | 165 Hz |
| High Dynamic Range (HDR) supported | Yes |
| High Dynamic Range (HDR) technology | DisplayHDR 400,Dolby Vision |
Processor
| Processor family | Intel® Core™ i7 |
|---|---|
| Processor manufacturer | Intel |
| Processor model | i7-12700H |
| Processor generation | 12th gen Intel® Core™ i7 |
| Processor cores | 14 |
| Processor boost frequency | 4,7 GHz |
| Efficient-core boost frequency | 3,5 GHz |
| Processor cache | 24 MB |
| Processor cache type | Smart Cache |
| Configurable TDP-down | 35 W |
Memory
| Internal memory | 16 GB |
|---|---|
| Maximum internal memory | 24 GB |
| Internal memory type | DDR5-SDRAM |
| Memory clock speed | 4800 MHz |
| Memory form factor | On-board + SO-DIMM |
| Memory slots | 1x SO-DIMM |
| Memory channels | Dual-channel |
Storage
| Total storage capacity | 1 TB |
|---|---|
| Storage media | SSD |
| Optical drive type | No |
| Total SSDs capacity | 1 TB |
| Number of SSDs installed | 1 |
| SSD capacity | 1 TB |
| SSD interface | NVMe,PCI Express 4.0 |
| NVMe | Yes |
| SSD form factor | M.2 |
| Card reader integrated | Yes |
| Compatible memory cards | SD,SDHC,SDXC,MMC |
Graphics
| On-board graphics card | Yes |
|---|---|
| Discrete graphics card | Yes |
| Discrete graphics card model | NVIDIA GeForce RTX 3070 |
| On-board graphics card model | Intel Iris Xe Graphics |
| Discrete GPU manufacturer | NVIDIA |
| Discrete graphics card memory | 8 GB |
| Discrete graphics memory type | GDDR6 |
| On-board GPU manufacturer | Intel |
| On-board graphics card family | Intel Iris Xe Graphics |
Audio
| Audio chip | Realtek ALC3306 |
|---|---|
| Audio system | Nahimic Audio |
| Number of built-in speakers | 2 |
| Speaker power | 2 W |
| Built-in microphone | Yes |
| Number of microphones | 2 |
Camera
| Front camera | Yes |
|---|---|
| Front camera resolution | 1920 x 1080 pixels |
| Front camera HD type | Full HD |
| Privacy camera | Yes |
| Privacy type | Privacy shutter |
Network
| Mobile network connection | No |
|---|---|
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Wi-Fi standards | Wi-Fi 6E (802.11ax) |
| Antenna type | 2x2 |
| WLAN controller model | Killer Wi-Fi 6E 1675i |
| WLAN controller manufacturer | Killer |
| Ethernet LAN | No |
| Bluetooth | Yes |
| Bluetooth version | 5.2 |
| WWAN | Not installed |
Ports & interfaces
| USB 2.0 ports quantity | 0 |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| HDMI ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| Thunderbolt 4 ports quantity | 1 |
| Intel® Thunderbolt 4 | Yes |
| Combo headphone/mic port | Yes |
| USB Type-C DisplayPort Alternate Mode | Yes |
| USB Sleep-and-Charge | Yes |
| USB Sleep-and-Charge ports | 1 |
Performance
| Motherboard chipset | Intel SoC |
|---|
Keyboard
| Numeric keypad | Yes |
|---|---|
| Pointing device | Touchpad |
| Keyboard backlit | Yes |
| Keyboard language | UK English |
Software
| Operating system installed | Windows 11 Home |
|---|---|
| Operating system architecture | 64-bit |
| Operating system language | English |
| Trial software | Office |
Processor special features
| Intel Flex Memory Access | Yes |
|---|---|
| Intel Trusted Execution Technology | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Execute Disable Bit | Yes |
| CPU configuration (max) | 1 |
| Embedded options available | No |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
Battery
| Battery capacity | 99,99 Wh |
|---|---|
| Battery technology | Lithium Polymer (LiPo) |
| Battery life (max) | 8,6 h |
| Fast charging | Yes |
Power
| AC adapter power | 230 W |
|---|---|
| AC adapter frequency | 50 - 60 Hz |
| AC adapter input voltage | 100 - 240 V |
| USB Power Delivery (USB PD) | Yes |
Security
| Fingerprint reader | Yes |
|---|---|
| Trusted Platform Module (TPM) | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
| Password protection | Yes |
| Password protection type | Power on,Supervisor,HDD |
Operational conditions
| Operating temperature (T-T) | 5 - 35 °C |
|---|---|
| Storage temperature (T-T) | 5 - 43 °C |
| Operating relative humidity (H-H) | 8 - 95 % |
| Storage relative humidity (H-H) | 5 - 95 % |
| Maximum shipping altitude | 3048 m |
Certificates
| Compliance certificates | RoHS |
|---|---|
| Certification | ErP Lot 3 RoHS compliant |
Sustainability
| Sustainability certificates | ErP |
|---|
Weight & dimensions
| Weight | 2,23 kg |
|---|---|
| Width | 357,7 mm |
| Depth | 260 mm |
| Height | 16,9 mm |
Frequently asked questions
Is the Lenovo Legion S7 16IAH7 82TF0017UK good for gaming?
You can game on it, though this laptop was not built for it: it carries the dedicated NVIDIA GeForce RTX 3070. Its card's page shows what level it handles current games at.
How long does the battery of the Lenovo Legion S7 16IAH7 82TF0017UK last?
The manufacturer declares up to 8,6 h of battery life. Real duration depends on brightness, workload and battery health.
What is the screen of the Lenovo Legion S7 16IAH7 82TF0017UK like?
It carries a 16" 2560x1600 IPS 165Hz 500 nits 100% sRGB display.
Which processor and graphics card does the Lenovo Legion S7 16IAH7 82TF0017UK have?
It runs on the Intel Core i7-12700H processor with the NVIDIA GeForce RTX 3070 graphics. Their pages carry their benchmarks, ranking position and alternatives.
Can the RAM of the Lenovo Legion S7 16IAH7 82TF0017UK be upgraded?
Yes: it has 1 memory slot and takes up to 24 GB according to the manufacturer (it ships with 16GB).
Which operating system does the Lenovo Legion S7 16IAH7 82TF0017UK come with?
It comes with Windows 11 Home preinstalled.
Which ports does the Lenovo Legion S7 16IAH7 82TF0017UK have?
According to its spec sheet: 1 × Thunderbolt 4, 1 × USB-C, 3 × USB-A, 1 × HDMI, card reader, headphone jack (3.5 mm).
Does the Lenovo Legion S7 16IAH7 82TF0017UK have a backlit keyboard?
Yes, according to its spec sheet the keyboard is backlit.
Does the Lenovo Legion S7 16IAH7 82TF0017UK have a touch screen?
No, according to its spec sheet the screen is not a touch screen.
What material is the Lenovo Legion S7 16IAH7 82TF0017UK made of?
Its housing is made of Aluminium.
How much does the Lenovo Legion S7 16IAH7 82TF0017UK weigh?
It weighs 2,23 kg, a normal weight for its size: easy enough to move around.
When was the Lenovo Legion S7 16IAH7 82TF0017UK released?
Its release date is March 2022, 4 years ago.
