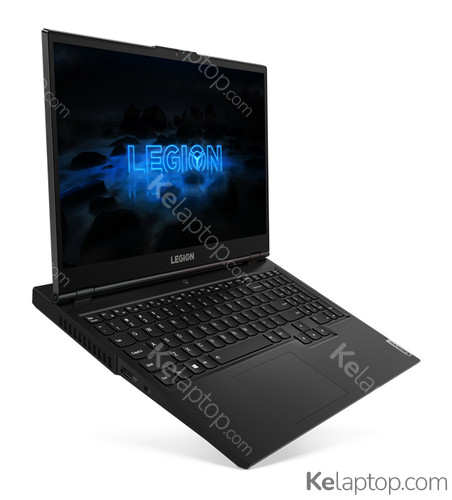

Lenovo Legion 5 15IMH05H 81Y600TCUS
Specs
+7
Main specs
| Processor | Intel Core i7-10750H 2,6GHz |
|---|---|
| Screen | 15.6" 1920x1080 IPS 240Hz |
| Hard drive | 1,51TB HDD+SSD M.2 |
| RAM | 16GB DDR4-SDRAM |
| Operating system | Windows 10 Home |
| Graphics card | NVIDIA GeForce RTX 2060 6GB GDDR6 |
Prices
Alternatives with equal or better features at a better price
From Lenovo
From other brands
Full specifications of Lenovo Legion 5 15IMH05H 81Y600TCUS
Reference / Part Number
81Y600TCUS
Release date
March 2022, 4 years ago
Design
| Product type | Laptop |
|---|---|
| Product colour | Black |
| Form factor | Clamshell |
Image gallery
Screen
| Display diagonal | 39,6 cm |
|---|---|
| Display resolution | 1920 x 1080 pixels |
| Touchscreen | No |
| HD type | Full HD |
| Panel type | IPS |
| LED backlight | Yes |
| Native aspect ratio | 16:9 |
| Display brightness | 500 cd/m² |
| RGB colour space | sRGB |
| Colour gamut | 100 % |
| Maximum refresh rate | 240 Hz |
Processor
| Processor family | Intel® Core™ i7 |
|---|---|
| Processor manufacturer | Intel |
| Processor model | i7-10750H |
| Processor frequency | 2,6 GHz |
| Processor generation | 10th gen Intel® Core™ i7 |
| Processor cores | 6 |
| Processor boost frequency | 5 GHz |
| Processor cache | 12 MB |
| Configurable TDP-down | 35 W |
Memory
| Internal memory | 16 GB |
|---|---|
| Maximum internal memory | 32 GB |
| Internal memory type | DDR4-SDRAM |
| Memory clock speed | 2933 MHz |
| Memory form factor | SO-DIMM |
| Memory slots | 2x SO-DIMM |
Storage
| Total storage capacity | 1,51 TB |
|---|---|
| Storage media | HDD+SSD |
| Optical drive type | No |
| Total HDDs capacity | 1 TB |
| Number of HDDs installed | 1 |
| HDD capacity | 1 TB |
| HDD interface | SATA III |
| HDD speed | 7200 RPM |
| HDD size | 2.5 " |
| Total SSDs capacity | 512 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 512 GB |
| SSD interface | PCI Express 3.0 |
| NVMe | Yes |
| SSD form factor | M.2 |
| Card reader integrated | No |
Graphics
| On-board graphics card | Yes |
|---|---|
| Discrete graphics card | Yes |
| Discrete graphics card model | NVIDIA® GeForce RTX™ 2060 |
| On-board graphics card model | Intel® UHD Graphics |
| Discrete graphics card memory | 6 GB |
| Discrete graphics memory type | GDDR6 |
Audio
| Audio chip | Realtek ALC3287 |
|---|---|
| Audio system | Dolby Atmos |
| Number of built-in speakers | 2 |
| Speaker power | 2 W |
| Built-in subwoofer | No |
| Built-in microphone | Yes |
| Number of microphones | 2 |
Camera
| Front camera | Yes |
|---|---|
| Front camera resolution | 1280 x 720 pixels |
| Front camera HD type | HD |
| Privacy camera | Yes |
| Privacy type | Privacy shutter |
Network
| Mobile network connection | No |
|---|---|
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Wi-Fi standards | Wi-Fi 6 (802.11ax) |
| Antenna type | 2x2 |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 100,1000 Mbit/s |
| Bluetooth | Yes |
| Bluetooth version | 5.0 |
| WWAN | Not installed |
Ports & interfaces
| USB 2.0 ports quantity | 0 |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI version | 2.0 |
| Combo headphone/mic port | Yes |
| USB Sleep-and-Charge | Yes |
Performance
| Motherboard chipset | Intel HM470 |
|---|
Keyboard
| Numeric keypad | Yes |
|---|---|
| Pointing device | Touchpad |
| Keyboard backlit | Yes |
| Keyboard language | US English |
Software
| Operating system installed | Windows 10 Home |
|---|---|
| Operating system architecture | 64-bit |
| Operating system language | English |
Processor special features
| Enhanced Intel SpeedStep Technology | Yes |
|---|---|
| Intel Flex Memory Access | Yes |
| Intel Trusted Execution Technology | No |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Stable Image Platform Program (SIPP) | No |
| Intel Software Guard Extensions (Intel SGX) | Yes |
| Intel 64 | Yes |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| CPU configuration (max) | 1 |
| Embedded options available | No |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
Battery
| Battery capacity | 60 Wh |
|---|---|
| Battery technology | Lithium Polymer (LiPo) |
| Battery life (max) | 5,9 h |
| Fast charging | Yes |
| Fast charging time (50%) | 30 min |
Power
| AC adapter power | 230 W |
|---|---|
| DC-in jack | Yes |
Security
| Cable lock slot | Yes |
|---|---|
| Fingerprint reader | No |
| Trusted Platform Module (TPM) | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
| Password protection | Yes |
| Password protection type | HDD,Power on,Supervisor |
Operational conditions
| Operating temperature (T-T) | 5 - 35 °C |
|---|---|
| Storage temperature (T-T) | 5 - 43 °C |
| Operating relative humidity (H-H) | 8 - 95 % |
| Storage relative humidity (H-H) | 5 - 95 % |
Certificates
| Certification | ErP lot3 |
|---|
Weight & dimensions
| Weight | 2,46 kg |
|---|---|
| Width | 363,1 mm |
| Depth | 259,6 mm |
| Height (front) | 2,36 cm |
| Height (rear) | 2,61 cm |
