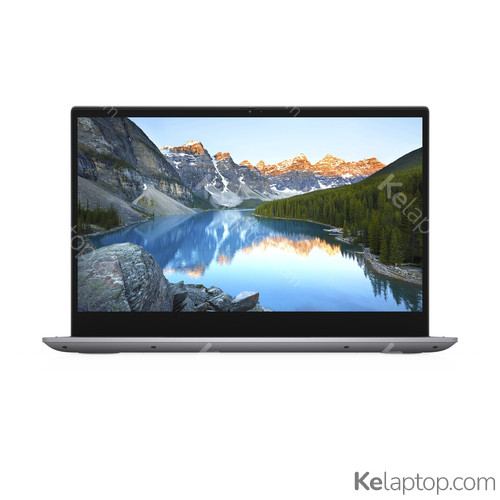

DELL Inspiron 5000 5406 CN54010 Specs
 +10

DELL Inspiron 5000 5406 CN54010
Specs

Prices
See price

Main specs

Processor

Intel Core i3-1115G4

Screen 14" 1920x1080 WVA 60Hz 220 nits
Hard drive 256GB SSD M.2
RAM 4GB DDR4-SDRAM
Operating system Windows 10 Home in S mode
Graphics card

Intel UHD Graphics

Alternatives with equal or higher power at a similar or lower price

From DELL

From other brands


Full specifications of DELL Inspiron 5000 5406 CN54010

Reference / Part Number CN54010
Release date November 2020, 5 years ago

Design

Product type Hybrid (2-in-1)
Product colour Grey
Form factor Convertible (Folder)

Image gallery

  • DELL Inspiron 5000 5406 CN54010 Specs
  • DELL Inspiron 5000 5406 CN54010 Specs
  • DELL Inspiron 5000 5406 CN54010 Specs
  • DELL Inspiron 5000 5406 CN54010 Specs
  • DELL Inspiron 5000 5406 CN54010 Specs
  • DELL Inspiron 5000 5406 CN54010 Specs
  • DELL Inspiron 5000 5406 CN54010 Specs
  • DELL Inspiron 5000 5406 CN54010 Specs
  • DELL Inspiron 5000 5406 CN54010 Specs
  • DELL Inspiron 5000 5406 CN54010 Specs
  • DELL Inspiron 5000 5406 CN54010 Specs
  • DELL Inspiron 5000 5406 CN54010 Specs
  • DELL Inspiron 5000 5406 CN54010 Specs

Screen

Display diagonal 35,6 cm
Display resolution 1920 x 1080 pixels
Touchscreen Yes
HD type Full HD
Panel type WVA
LED backlight Yes
Native aspect ratio 16:9
Display brightness 220 cd/m²
Pixel pitch 0,16 x 0,16 mm
Pixel density 157 ppi
Display response rise/fall 35 ms
Maximum refresh rate 60 Hz

Processor

Processor family Intel® Core™ i3
Processor manufacturer Intel
Processor model i3-1115G4
Processor generation 11th gen Intel® Core™ i3
Processor cores 2
Processor boost frequency 4,1 GHz
Processor cache 6 MB
Processor cache type Smart Cache
Configurable TDP-up frequency 3 GHz
Configurable TDP-up 28 W
Configurable TDP-down 12 W
Configurable TDP-down frequency 1,7 GHz

Memory

Internal memory 4 GB
Maximum internal memory 16 GB
Internal memory type DDR4-SDRAM
Memory clock speed 3200 MHz
Memory form factor SO-DIMM
Memory layout (slots x size) 1 x 4 GB
Memory slots 2x SO-DIMM

Storage

Total storage capacity 256 GB
Storage media SSD
Optical drive type No
Total SSDs capacity 256 GB
Number of SSDs installed 1
SSD capacity 256 GB
SSD interface NVMe,PCI Express
NVMe Yes
SSD form factor M.2
Card reader integrated Yes
Compatible memory cards SD,SDHC,SDXC

Graphics

On-board graphics card Yes
Discrete graphics card No
Discrete graphics card model Not available
On-board graphics card model Intel® UHD Graphics

Audio

Audio chip Realtek ALC3204
Audio system MaxxAudio Pro
Number of built-in speakers 2
Speaker power 2 W
Built-in microphone Yes
Number of microphones 2

Camera

Front camera Yes
Front camera resolution (numeric) 0,92 MP
Front camera resolution 1280 x 720 pixels
Front camera HD type HD
Video capturing speed 30 fps

Network

Mobile network connection No
Top Wi-Fi standard Wi-Fi 6 (802.11ax)
Wi-Fi standards 802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n),Wi-Fi 5 (802.11ac),Wi-Fi 6 (802.11ax)
WLAN controller model Intel Wi-Fi 6 AX201
WLAN controller manufacturer Intel
Ethernet LAN No
Bluetooth Yes
Bluetooth version 5.1

Ports & interfaces

USB 2.0 ports quantity 0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity 0
HDMI ports quantity 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity 1
HDMI version 1.4
Combo headphone/mic port Yes
USB Type-C DisplayPort Alternate Mode Yes

Keyboard

Numeric keypad No
Pointing device Touchpad

Software

Operating system installed Windows 10 Home in S mode
Operating system architecture 64-bit

Processor special features

Intel Trusted Execution Technology No
Intel VT-x with Extended Page Tables (EPT) Yes
Intel Stable Image Platform Program (SIPP) No
Intel Software Guard Extensions (Intel SGX) No
Idle States Yes
CPU configuration (max) 1
Embedded options available No
Intel Virtualization Technology for Directed I/O (VT-d) Yes
Intel Virtualization Technology (VT-x) Yes

Battery

Battery capacity 40 Wh
Battery technology Lithium-Ion (Li-Ion)
Number of battery cells 3
Battery voltage 11,4 V
Battery weight 180 g

Power

AC adapter frequency 50 - 60 Hz
AC adapter input voltage 100 - 240 V
AC adapter output voltage 19.5 V
DC-in jack Yes

Security

Cable lock slot Yes
Cable lock slot type Noble
Password protection Yes

Operational conditions

Operating temperature (T-T) 0 - 35 °C
Storage temperature (T-T) -40 - 65 °C
Operating relative humidity (H-H) 10 - 90 %
Storage relative humidity (H-H) 0 - 95 %
Operating altitude -15,2 - 3048 m
Non-operating altitude -15,2 - 10668 m
Operating shock 110 G
Non-operating shock 160 G
Operating vibration 0,66 G
Non-operating vibration 1,3 G

Weight & dimensions

Weight 1,72 kg
Width 324,3 mm
Depth 222,9 mm
Height (front) 1,7 cm
Height (rear) 1,89 cm

Frequently asked questions

Is the DELL Inspiron 5000 5406 CN54010 good for gaming?

This laptop was not built for gaming: it relies on the integrated Intel UHD Graphics. Its card's page shows what level it handles current games at.

What is the screen of the DELL Inspiron 5000 5406 CN54010 like?

It carries a 14" 1920x1080 WVA 60Hz 220 nits display.

Which processor and graphics card does the DELL Inspiron 5000 5406 CN54010 have?

It runs on the Intel Core i3-1115G4 processor with the Intel UHD Graphics graphics. Their pages carry their benchmarks, ranking position and alternatives.

Can the RAM of the DELL Inspiron 5000 5406 CN54010 be upgraded?

Yes: it has 2 memory slots and takes up to 16 GB according to the manufacturer (it ships with 4GB).

Which operating system does the DELL Inspiron 5000 5406 CN54010 come with?

It comes with Windows 10 Home in S mode preinstalled.

Which ports does the DELL Inspiron 5000 5406 CN54010 have?

According to its spec sheet: 1 × USB-C, 2 × USB-A, 1 × HDMI, card reader, headphone jack (3.5 mm).

Does the DELL Inspiron 5000 5406 CN54010 have a touch screen?

Yes, according to its spec sheet the screen is a touch screen.

How much does the DELL Inspiron 5000 5406 CN54010 weigh?

It weighs 1,72 kg, a normal weight for its size: easy enough to move around.

When was the DELL Inspiron 5000 5406 CN54010 released?

Its release date is November 2020, 5 years ago.
