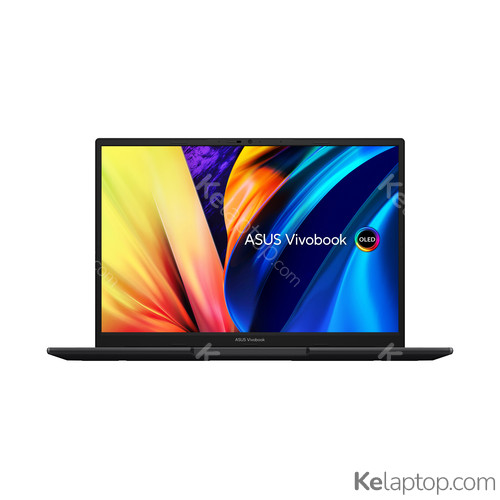

ASUS VivoBook S 14 OLED K3402ZA-DB74
Price and specs
Main specs
| Processor | Intel Core i7-12700H 2,3GHz |
|---|---|
| Screen | 14" 2880x1800 OLED 90Hz |
| Hard drive | 512GB SSD M.2 |
| RAM | 16GB DDR4-SDRAM |
| Operating system | Windows 11 Home |
| Graphics card | Intel Iris Xe Graphics |
Prices
Full specifications
Reference
90NB0WE2-M00190
Release date
07-2022, 1 year ago
Design
Product type
Laptop
Product color
Black
Form factor
Clamshell
Color name
Indie Black
Housing material
Aluminium,Plastic
Market positioning
Home
Display
Display diagonal
14 " (35,6 cm)
Display resolution
2880 x 1800 pixels
Touchscreen
No
HD type
2.8K
Panel type
OLED
Native aspect ratio
16:10
Display surface
Gloss
Display brightness
400 cd/m²
RGB color space
DCI-P3
Color gamut
100 %
Maximum refresh rate
90 Hz
Processor
Processor family
Intel® Core™ i7
Processor manufacturer
Intel
Processor model
i7-12700H
Processor frequency
2,3 GHz
Generación del procesador
Intel Core i7-12xxx
Processor boost frequency
4,7 GHz
Processor cores
14
Processor cache
24 MB
Configurable TDP-down
35 W
Memory
Internal memory
16 GB
Maximum internal memory
16 GB
Internal memory type
DDR4-SDRAM
Memory form factor
On-board + SO-DIMM
Memory slots
1x SO-DIMM
Storage
Total storage capacity
512 GB
Storage media
SSD
Optical drive type
No
Total SSDs capacity
512 GB
Number of SSDs installed
1
SSD capacity
512 GB
SSD interface
NVMe,PCI Express 4.0
NVMe
Yes
SSD form factor
M.2
Graphics
On-board graphics card
Yes
Discrete graphics card
No
Discrete graphics card model
Not available
On-board graphics card model
Intel Iris Xe Graphics
Fabricante de GPU (unidad de procesamiento gráfico) integrada
Intel
Audio
Built-in microphone
Yes
Camera
Front camera
Yes
Front camera HD type
HD
Privacy camera
Yes
Privacy type
Privacy shutter
Network
Mobile network connection
No
Top Wi-Fi standard
Wi-Fi 6E (802.11ax)
Wi-Fi standards
Wi-Fi 6E (802.11ax)
Antenna type
2x2
Ethernet LAN
No
Bluetooth
Yes
Bluetooth version
5.2
Ports & interfaces
USB 2.0 ports quantity
1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
1
HDMI ports quantity
1
HDMI version
2.0b
Número de puertos Thunderbolt 4
2
Intel® Thunderbolt 4
Yes
Combo headphone/mic port
Yes
USB Type-C DisplayPort Alternate Mode
Yes
USB Power Delivery
Yes
Keyboard
Numeric keypad
No
Pointing device
NumberPad
Keyboard backlit
Yes
Software
Operating system installed
Windows 11 Home
Operating system architecture
64-bit
Processor special features
Intel Flex Memory Access
Yes
Intel Trusted Execution Technology
Yes
Intel VT-x with Extended Page Tables (EPT)
Yes
Execute Disable Bit
Yes
CPU configuration (max)
1
Embedded options available
No
Intel Virtualization Technology for Directed I/O (VT-d)
Yes
Intel Virtualization Technology (VT-x)
Yes
Battery
Battery capacity
70 Wh
Battery technology
Lithium-Ion (Li-Ion)
Number of battery cells
3
Power
AC adapter power
90 W
AC adapter frequency
50 - 60 Hz
AC adapter input voltage
100 - 240 V
AC adapter output current
4,5 A
AC adapter output voltage
20 V
Security
Trusted Platform Module (TPM)
Yes
Password protection
Yes
Password protection type
BIOS,User
Weight & dimensions
Weight
3.3 lbs (1,5 kg)
Width
12.5 " (316,4 mm)
Depth
8.8 " (224,5 mm)
Height
0.7 " (18,9 mm)
