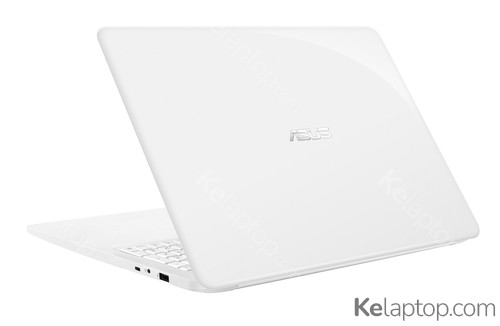

ASUS Vivobook E502NA-DM006
Specs
Prices
Main specs
| Processor | Intel Celeron N3350 1,1GHz |
|---|---|
| Screen | 15.6" 1920x1080 |
| Hard drive | 128GB SSD |
| RAM | 4GB |
| Operating system | No OS installed |
| Graphics card |
Alternatives with equal or higher power at a similar or lower price
From ASUS
Full specifications of ASUS Vivobook E502NA-DM006
| Reference / Part Number | E502NA-DM006 |
|---|---|
| Release date | June 2017, 9 years ago |
Design
| Product type | Laptop |
|---|---|
| Product color | White |
| Form factor | Clamshell |
Image gallery
Screen
| Display diagonal | 15.6 " (39,6 cm) |
|---|---|
| Display resolution | 1920 x 1080 pixels |
| Touchscreen | No |
| HD type | Full HD |
| LED backlight | Yes |
| Native aspect ratio | 16:9 |
Processor
| Processor family | Intel® Celeron® |
|---|---|
| Processor manufacturer | Intel |
| Processor model | N3350 |
| Processor frequency | 1,1 GHz |
| Processor cores | 2 |
| Processor threads | 2 |
| Processor boost frequency | 2,4 GHz |
| System bus rate | 5 GT/s |
| Processor cache | 2 MB |
| Processor cache type | L2 |
| Processor socket | BGA 1296 |
| Processor lithography | 14 nm |
| Processor operating modes | 64-bit |
| Processor series | Intel Celeron N3000 series |
| Processor codename | Apollo Lake |
| Thermal Design Power (TDP) | 6 W |
| Scenario Design Power (SDP) | 4 W |
| Tjunction | 105 °C |
| Maximum number of PCI Express lanes | 6 |
| PCI Express slots version | 2.0 |
| PCI Express configurations | 1x2+2x1,4x1 |
| ECC supported by processor | No |
Memory
| Internal memory | 4 GB |
|---|---|
| Maximum internal memory | 8 GB |
| Memory form factor | On-board |
Storage
| Total storage capacity | 128 GB |
|---|---|
| Storage media | SSD |
| Optical drive type | No |
| SSD capacity | 128 GB |
| Card reader integrated | Yes |
Graphics
| On-board graphics card | Yes |
|---|---|
| Discrete graphics card | No |
| Discrete graphics card model | Not available |
| On-board graphics card model | Intel® HD Graphics 500 |
| On-board graphics card base frequency | 200 MHz |
| On-board graphics card burst frequency | 650 MHz |
| On-board graphics card dynamic frequency (max) | 650 MHz |
| Maximum on-board graphics card memory | 8 GB |
| Number of execution units | 12 |
| On-board graphics card ID | 0x5A85 |
Audio
| Audio system | SonicMaster |
|---|---|
| Built-in microphone | Yes |
Camera
| Front camera | Yes |
|---|
Network
| Wi-Fi | Yes |
|---|---|
| Wi-Fi standards | 802.11b,802.11g,Wi-Fi 4 (802.11n) |
| Ethernet LAN | Yes |
Ports & interfaces
| USB 2.0 ports quantity | 1 |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| HDMI ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 1 |
| DisplayPorts quantity | 0 |
| DVI port | No |
| VGA (D-Sub) ports quantity | 0 |
| Thunderbolt ports quantity | 0 |
| Thunderbolt 2 ports quantity | 0 |
| Thunderbolt 3 ports quantity | 0 |
| Headphone outputs | 0 |
| Combo headphone/mic port | Yes |
| Docking connector | No |
Keyboard
| Numeric keypad | Yes |
|---|---|
| Pointing device | Touchpad |
| Windows keys | Yes |
Software
| Operating system installed | No |
|---|
Processor special features
| Intel® Wireless Display (Intel® WiDi) | No |
|---|---|
| Intel Smart Connect Technology | No |
| Intel® Anti-Theft Technology (Intel® AT) | No |
| Intel® Smart Response Technology | No |
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | No |
| Intel® Turbo Boost Technology | No |
| Intel® Small Business Advantage (Intel® SBA) | No |
| Intel® High Definition Audio (Intel® HD Audio) | Yes |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel® Clear Video HD Technology (Intel® CVT HD) | Yes |
| Intel Clear Video Technology | Yes |
| Intel® InTru™ 3D Technology | No |
| Intel® Insider™ | No |
| Intel® Quick Sync Video Technology | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel Trusted Execution Technology | No |
| Intel Enhanced Halt State | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel® Secure Key | Yes |
| Intel Stable Image Platform Program (SIPP) | No |
| Intel® OS Guard | Yes |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | Yes |
| Intel 64 | Yes |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Thermal Monitoring Technologies | Yes |
| Processor package size | 24 x 31 mm |
| CPU configuration (max) | 1 |
| Embedded options available | Yes |
| UART | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel Smart Idle Technology | No |
| Intel Secure Boot | Yes |
| Intel Smart Connect Technology version | 0.00 |
| Intel Identity Protection Technology version | 1.00 |
| Intel Smart Response Technology version | 0.00 |
| Intel Secure Boot Technology version | 1.00 |
| Intel Stable Image Platform Program (SIPP) version | 0.00 |
| Intel Secure Key Technology version | 1.00 |
| Intel Small Business Advantage (SBA) version | 0.00 |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Rapid Storage Technology | No |
| Processor ARK ID | 95598 |
| Conflict-Free processor | Yes |
Battery
| Battery technology | Lithium Polymer (LiPo) |
|---|---|
| Number of battery cells | 2 |
Power
| AC adapter power | 33 W |
|---|---|
| AC adapter frequency | 50 - 60 Hz |
| AC adapter input voltage | 100 - 240 V |
| AC adapter output current | 3,42 A |
| AC adapter output voltage | 19 V |
| DC-in jack | Yes |
Security
| Trusted Platform Module (TPM) | Yes |
|---|---|
| Password protection | Yes |
| Password protection type | BIOS,User |
Weight & dimensions
| Weight | 3.6 lbs (1,65 kg) |
|---|---|
| Width | 13.3 " (339 mm) |
| Depth | 9.3 " (235 mm) |
| Height | 0.9 " (21,9 mm) |
Packaging content
| AC adapter included | Yes |
|---|---|
| Manual | Yes |
| Power cord included | Yes |
Frequently asked questions
Is the ASUS Vivobook E502NA-DM006 good for gaming?
This laptop was not built for gaming: it relies on the integrated Intel HD Graphics 500. Its card's page shows what level it handles current games at.
What is the screen of the ASUS Vivobook E502NA-DM006 like?
It carries a 15.6" 1920x1080 display.
Which processor and graphics card does the ASUS Vivobook E502NA-DM006 have?
It runs on the Intel Celeron N3350 processor with the Intel HD Graphics 500 graphics. Their pages carry their benchmarks, ranking position and alternatives.
Which operating system does the ASUS Vivobook E502NA-DM006 come with?
It comes with no operating system installed: the price does not include a license and you will have to install one yourself.
Which ports does the ASUS Vivobook E502NA-DM006 have?
According to its spec sheet: 1 × USB-C, 1 × USB-A, 1 × HDMI, Ethernet (RJ-45), card reader, headphone jack (3.5 mm).
Does the ASUS Vivobook E502NA-DM006 have a touch screen?
No, according to its spec sheet the screen is not a touch screen.
How much does the ASUS Vivobook E502NA-DM006 weigh?
It weighs 1,65 kg, a normal weight for its size: easy enough to move around.
When was the ASUS Vivobook E502NA-DM006 released?
Its release date is June 2017, 9 years ago.
