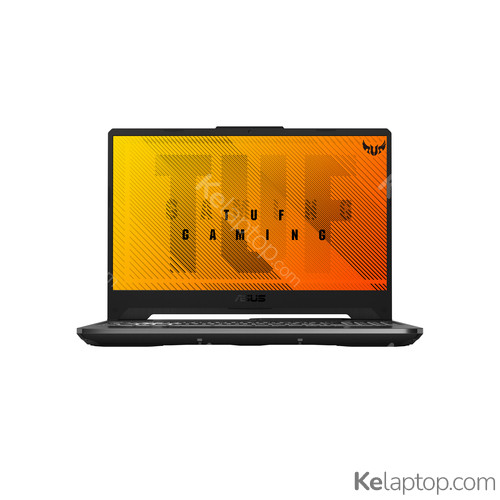

ASUS TUF Gaming FA506II-4800
Specs
Prices
Main specs
| Processor | AMD Ryzen 7 4800H 2,9GHz |
|---|---|
| Screen | 15.6" 1920x1080 IPS |
| Hard drive | 512GB SSD |
| RAM | 32GB DDR4-SDRAM |
| Operating system | Windows 10 Pro |
| Graphics card | NVIDIA GeForce GTX 1660 Ti 4GB GDDR5 |
Alternatives with equal or higher power at a similar or lower price
From ASUS
From other brands
Full specifications of ASUS TUF Gaming FA506II-4800
| Reference / Part Number | FA506II-4800 |
|---|---|
| Release date | December 2020, 5 years ago |
Design
| Product type | Laptop |
|---|---|
| Product color | Black |
| Form factor | Clamshell |
| Market positioning | Gaming |
Image gallery
Screen
| Display diagonal | 15.6 " (39,6 cm) |
|---|---|
| Display resolution | 1920 x 1080 pixels |
| Touchscreen | No |
| HD type | Full HD |
| Panel type | IPS |
| LED backlight | Yes |
| Native aspect ratio | 16:9 |
| Display surface | Matt |
Processor
| Processor family | AMD Ryzen™ 7 |
|---|---|
| Processor manufacturer | AMD |
| Processor model | 4800H |
| Processor frequency | 2,9 GHz |
| Generación del procesador | AMD Ryzen 4000 Series |
| Processor cores | 8 |
| Processor boost frequency | 4,2 GHz |
| Processor cache | 8 MB |
Memory
| Internal memory | 32 GB |
|---|---|
| Maximum internal memory | 32 GB |
| Internal memory type | DDR4-SDRAM |
| Memory clock speed | 3200 MHz |
| Memory form factor | SO-DIMM |
| Memory slots | 2x SO-DIMM |
Storage
| Total storage capacity | 512 GB |
|---|---|
| Storage media | SSD |
| Optical drive type | No |
| Total SSDs capacity | 512 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 512 GB |
Graphics
| On-board graphics card | Yes |
|---|---|
| Discrete graphics card | Yes |
| Discrete graphics card model | NVIDIA® GeForce® GTX 1660 Ti |
| On-board graphics card model | AMD Radeon Graphics |
| Discrete GPU manufacturer | NVIDIA |
| Discrete graphics card memory | 4 GB |
| Discrete graphics memory type | GDDR5 |
Audio
| Built-in microphone | Yes |
|---|
Camera
| Front camera | Yes |
|---|---|
| Front camera HD type | HD |
Network
| Mobile network connection | No |
|---|---|
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Wi-Fi standards | 802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n),Wi-Fi 5 (802.11ac) |
| Antenna type | 2x2 |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Bluetooth | Yes |
| Bluetooth version | 5.0 |
Ports & interfaces
| USB 2.0 ports quantity | 1 |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| HDMI ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI version | 2.0b |
| Combo headphone/mic port | Yes |
Performance
| Repairability index | 6.1 |
|---|
Keyboard
| Numeric keypad | Yes |
|---|---|
| Pointing device | Touchpad |
Software
| Operating system installed | Windows 10 Pro |
|---|
Battery
| Battery technology | Lithium Polymer (LiPo) |
|---|
Power
| AC adapter power | 180 W |
|---|---|
| AC adapter frequency | 50/60 Hz |
| AC adapter input voltage | 100 - 240 V |
Security
| Cable lock slot | Yes |
|---|---|
| Cable lock slot type | Kensington |
| Trusted Platform Module (TPM) | Yes |
Weight & dimensions
| Weight | 5.1 lbs (2,3 kg) |
|---|---|
| Width | 14.2 " (359,8 mm) |
| Depth | 10.1 " (256 mm) |
| Height (front) | 0.9 " (2,28 cm) |
| Height (rear) | 1 " (2,47 cm) |
Frequently asked questions
Is the ASUS TUF Gaming FA506II-4800 good for gaming?
You can game on it, though this laptop was not built for it: it carries the dedicated NVIDIA GeForce GTX 1660 Ti. Its card's page shows what level it handles current games at.
What is the screen of the ASUS TUF Gaming FA506II-4800 like?
It carries a 15.6" 1920x1080 IPS display.
Which processor and graphics card does the ASUS TUF Gaming FA506II-4800 have?
It runs on the AMD Ryzen 7 4800H processor with the NVIDIA GeForce GTX 1660 Ti graphics. Their pages carry their benchmarks, ranking position and alternatives.
Can the RAM of the ASUS TUF Gaming FA506II-4800 be upgraded?
It has 2 memory slots, but it already ships with the maximum it takes (32 GB).
Which operating system does the ASUS TUF Gaming FA506II-4800 come with?
It comes with Windows 10 Pro preinstalled.
Which ports does the ASUS TUF Gaming FA506II-4800 have?
According to its spec sheet: 1 × USB-C, 2 × USB-A, 1 × HDMI, Ethernet (RJ-45), headphone jack (3.5 mm).
Does the ASUS TUF Gaming FA506II-4800 have a touch screen?
No, according to its spec sheet the screen is not a touch screen.
How much does the ASUS TUF Gaming FA506II-4800 weigh?
It weighs 2,3 kg, a normal weight for its size: easy enough to move around.
When was the ASUS TUF Gaming FA506II-4800 released?
Its release date is December 2020, 5 years ago.
