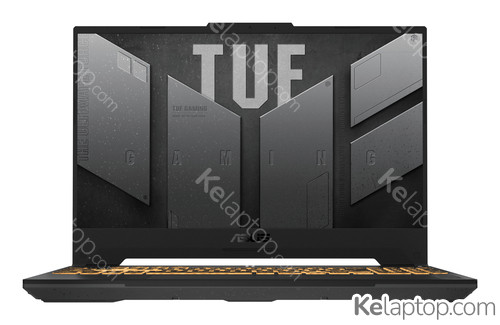

ASUS TUF Gaming F15 FX507VU-ES53
Specs
Prices
Main specs
| Processor | |
|---|---|
| Screen | 15.6" 1920x1080 IPS 144Hz 100% sRGB |
| Hard drive | 512GB SSD M.2 |
| RAM | 16GB DDR4-SDRAM |
| Operating system | Windows 11 Home |
| Graphics card | NVIDIA GeForce RTX 4050 6GB GDDR6 |
Alternatives with equal or higher power at a similar or lower price
Full specifications of ASUS TUF Gaming F15 FX507VU-ES53
| Reference / Part Number | FX507VU-ES53 |
|---|---|
| Release date | May 2023, 3 years ago |
Design
| Product type | Laptop |
|---|---|
| Product colour | Black,Grey |
| Form factor | Clamshell |
| Colour name | Mecha Gray |
| Market positioning | Gaming |
Image gallery
Screen
| Display diagonal | 39,6 cm |
|---|---|
| Display resolution | 1920 x 1080 pixels |
| Touchscreen | No |
| HD type | Full HD |
| Panel type | IPS |
| Native aspect ratio | 16:9 |
| Anti-glare screen | Yes |
| RGB colour space | sRGB |
| Colour gamut | 100 % |
| Maximum refresh rate | 144 Hz |
Processor
| Processor family | Intel® Core™ i5 |
|---|---|
| Processor manufacturer | Intel |
| Processor model | i5-13500H |
| Processor generation | 13th gen Intel® Core™ i5 |
| Processor cores | 12 |
| Processor boost frequency | 4,7 GHz |
| Performance cores | 4 |
| Efficient cores | 8 |
| Performance-core Max Turbo Frequency | 4,7 GHz |
| Efficient-core Max Turbo Frequency | 3,5 GHz |
| Processor cache | 18 MB |
| Processor cache type | Smart Cache |
| Processor base power | 45 W |
| Maximum turbo power | 95 W |
Memory
| Internal memory | 16 GB |
|---|---|
| Maximum internal memory | 24 GB |
| Internal memory type | DDR4-SDRAM |
| Memory clock speed | 3200 MHz |
| Memory form factor | SO-DIMM |
| Memory layout (slots x size) | 2 x 8 GB |
| Memory slots | 2x SO-DIMM |
| Memory channels | Dual-channel |
Storage
| Total storage capacity | 512 GB |
|---|---|
| Storage media | SSD |
| Optical drive type | No |
| Total SSDs capacity | 512 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 512 GB |
| SSD interface | PCI Express 4.0 |
| NVMe | Yes |
| SSD form factor | M.2 |
Graphics
| On-board graphics card | Yes |
|---|---|
| Discrete graphics card | Yes |
| Discrete graphics card model | NVIDIA GeForce RTX 4050 |
| On-board graphics card model | Intel Iris Xe Graphics |
| Discrete GPU manufacturer | NVIDIA |
| Discrete graphics card memory | 6 GB |
| Discrete graphics memory type | GDDR6 |
| On-board GPU manufacturer | Intel |
| On-board graphics card family | Intel Iris Xe Graphics |
| NVIDIA G-SYNC | Yes |
Audio
| Audio system | Dolby Atmos |
|---|---|
| Number of built-in speakers | 2 |
| Built-in microphone | Yes |
Camera
| Front camera | Yes |
|---|---|
| Front camera resolution | 1280 x 720 pixels |
| Front camera HD type | HD |
Network
| Mobile network connection | No |
|---|---|
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Wi-Fi standards | Wi-Fi 6 (802.11ax) |
| Antenna type | 2x2 |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Bluetooth | Yes |
| Bluetooth version | 5.2 |
Ports & interfaces
| USB 2.0 ports quantity | 0 |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| HDMI ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI version | 2.1 |
| Thunderbolt 4 ports quantity | 1 |
| Intel® Thunderbolt 4 | Yes |
| Combo headphone/mic port | Yes |
| USB Type-C DisplayPort Alternate Mode | Yes |
Performance
| Repairability index | 8.4 |
|---|
Keyboard
| Numeric keypad | Yes |
|---|---|
| Pointing device | Touchpad |
| Keyboard backlit | Yes |
| Keyboard backlit colour | RGB |
| Keyboard backlit zone | 1-zone RGB |
Software
| Operating system installed | Windows 11 Home |
|---|---|
| Operating system architecture | 64-bit |
Battery
| Battery capacity | 90 Wh |
|---|---|
| Battery technology | Lithium-Ion (Li-Ion) |
| Number of battery cells | 4 |
Power
| AC adapter power | 240 W |
|---|---|
| AC adapter frequency | 50 - 60 Hz |
| AC adapter input voltage | 100 - 240 V |
| AC adapter output current | 12 A |
| AC adapter output voltage | 20 V |
| USB Power Delivery (USB PD) | Yes |
Security
| Cable lock slot | Yes |
|---|---|
| Cable lock slot type | Kensington |
| Trusted Platform Module (TPM) | Yes |
| Password protection | Yes |
| Password protection type | BIOS,User |
Weight & dimensions
| Weight | 2,2 kg |
|---|---|
| Width | 354 mm |
| Depth | 251 mm |
| Height (front) | 2,24 cm |
| Height (rear) | 2,49 cm |
Frequently asked questions
Is the ASUS TUF Gaming F15 FX507VU-ES53 good for gaming?
You can game on it, though this laptop was not built for it: it carries the dedicated NVIDIA GeForce RTX 4050. Its card's page shows what level it handles current games at.
What is the screen of the ASUS TUF Gaming F15 FX507VU-ES53 like?
It carries a 15.6" 1920x1080 IPS 144Hz 100% sRGB display.
Which processor and graphics card does the ASUS TUF Gaming F15 FX507VU-ES53 have?
It runs on the Intel Core i5-13500H processor with the NVIDIA GeForce RTX 4050 graphics. Their pages carry their benchmarks, ranking position and alternatives.
Can the RAM of the ASUS TUF Gaming F15 FX507VU-ES53 be upgraded?
Yes: it has 2 memory slots and takes up to 24 GB according to the manufacturer (it ships with 16GB).
Which operating system does the ASUS TUF Gaming F15 FX507VU-ES53 come with?
It comes with Windows 11 Home preinstalled.
Which ports does the ASUS TUF Gaming F15 FX507VU-ES53 have?
According to its spec sheet: 1 × Thunderbolt 4, 1 × USB-C, 2 × USB-A, 1 × HDMI, Ethernet (RJ-45), headphone jack (3.5 mm).
Does the ASUS TUF Gaming F15 FX507VU-ES53 have a backlit keyboard?
Yes, according to its spec sheet the keyboard is backlit.
Does the ASUS TUF Gaming F15 FX507VU-ES53 have a touch screen?
No, according to its spec sheet the screen is not a touch screen.
How much does the ASUS TUF Gaming F15 FX507VU-ES53 weigh?
It weighs 2,2 kg, a normal weight for its size: easy enough to move around.
When was the ASUS TUF Gaming F15 FX507VU-ES53 released?
Its release date is May 2023, 3 years ago.
