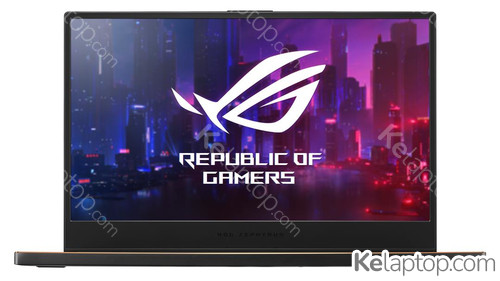

ASUS ROG Zephyrus S GX701GXR-H6097T 90NR02J1-M01810
Specs
Prices
Main specs
| Processor | Intel Core i7-9750H 2,6GHz |
|---|---|
| Screen | 17.3" 1920x1080 IPS 240Hz 300 nits 72% NTSC |
| Hard drive | 1TB SSD M.2 |
| RAM | 32GB DDR4-SDRAM |
| Operating system | Windows 10 Home |
| Graphics card | NVIDIA GeForce RTX 2080 Max-Q 8GB GDDR6 |
Alternatives with equal or higher power at a similar or lower price
From ASUS
Full specifications of ASUS ROG Zephyrus S GX701GXR-H6097T 90NR02J1-M01810
| Reference / Part Number | 90NR02J1-M01810 |
|---|---|
| Release date | February 2020, 6 years ago |
Design
| Product type | Laptop |
|---|---|
| Product color | Black |
| Form factor | Clamshell |
| Color name | Black |
| Market positioning | Gaming |
| Año de introducción | 2019 |
Image gallery
Screen
| Display diagonal | 17.3 " (43,9 cm) |
|---|---|
| Display resolution | 1920 x 1080 pixels |
| Touchscreen | No |
| HD type | Full HD |
| Panel type | IPS |
| LED backlight | Yes |
| Native aspect ratio | 16:9 |
| Anti-glare screen | Yes |
| Display brightness | 300 cd/m² |
| RGB color space | NTSC |
| Color gamut | 72 % |
| Maximum refresh rate | 240 Hz |
Processor
| Processor family | Intel® Core™ i7 |
|---|---|
| Processor manufacturer | Intel |
| Processor model | i7-9750H |
| Processor frequency | 2,6 GHz |
| Generación del procesador | Intel Core i7-9xxx |
| Processor boost frequency | 4,5 GHz |
| Processor cores | 6 |
| Processor cache | 12 MB |
| Configurable TDP-down | 35 W |
Memory
| Internal memory | 32 GB |
|---|---|
| Internal memory type | DDR4-SDRAM |
| Memory clock speed | 2666 MHz |
| Memory form factor | On-board + SO-DIMM |
Storage
| Total storage capacity | 1 TB |
|---|---|
| Storage media | SSD |
| Optical drive type | No |
| Total SSDs capacity | 1 TB |
| Number of SSDs installed | 1 |
| SSD capacity | 1 TB |
| SSD interface | PCI Express 3.0 |
| NVMe | Yes |
| SSD form factor | M.2 |
Graphics
| On-board graphics card | Yes |
|---|---|
| Discrete graphics card | Yes |
| Discrete graphics card model | NVIDIA® GeForce RTX™ 2080 Max-Q |
| On-board graphics card model | Intel® UHD Graphics 630 |
| Discrete GPU manufacturer | NVIDIA |
| Fabricante de GPU (unidad de procesamiento gráfico) integrada | Intel |
| Discrete graphics card memory | 8 GB |
| Discrete graphics memory type | GDDR6 |
| NVIDIA G-SYNC | Yes |
Audio
| Audio system | Smart Amp |
|---|---|
| Number of built-in speakers | 2 |
| Speaker power | 2,5 W |
| Built-in microphone | Yes |
Network
| Mobile network connection | No |
|---|---|
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Wi-Fi standards | Wi-Fi 5 (802.11ac) |
| Antenna type | 2x2 |
| Ethernet LAN | No |
| Bluetooth | Yes |
| Bluetooth version | 5.0 |
Ports & interfaces
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| HDMI ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI version | 2.1 |
| Combo headphone/mic port | Yes |
| Power adapter barrel connector | 0.2 " (6.0 mm) |
| USB Type-C DisplayPort Alternate Mode | Yes |
| USB Power Delivery | Yes |
Keyboard
| Numeric keypad | No |
|---|---|
| Pointing device | NumberPad |
| Keyboard backlit | Yes |
| Keyboard backlit color | RGB |
| Zona retroiluminada del teclado | Per-key RGB |
Software
| Operating system installed | Windows 10 Home |
|---|---|
| Operating system architecture | 64-bit |
| Trial software | 1-month trial for new Microsoft 365 customers. Credit card required. |
Processor special features
| Enhanced Intel SpeedStep Technology | Yes |
|---|---|
| Intel Clear Video Technology | Yes |
| Intel Flex Memory Access | Yes |
| Intel Trusted Execution Technology | No |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel TSX-NI | No |
| Intel Stable Image Platform Program (SIPP) | No |
| Intel Software Guard Extensions (Intel SGX) | Yes |
| Intel 64 | Yes |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| CPU configuration (max) | 1 |
| Embedded options available | No |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
Battery
| Battery capacity | 76 Wh |
|---|---|
| Battery technology | Lithium-Ion (Li-Ion) |
| Number of battery cells | 4 |
Power
| AC adapter power | 230 W |
|---|---|
| AC adapter frequency | 50 - 60 Hz |
| AC adapter input voltage | 100 - 240 V |
| AC adapter output current | 11,8 A |
| AC adapter output voltage | 19.5 V |
Security
| Cable lock slot | Yes |
|---|---|
| Cable lock slot type | Kensington |
| Password protection | Yes |
| Password protection type | BIOS,User |
Weight & dimensions
| Weight | 5.7 lbs (2,6 kg) |
|---|---|
| Width | 15.7 " (399 mm) |
| Depth | 10.7 " (272 mm) |
| Height | 0.7 " (18,7 mm) |
Packaging data
| Package width | 22.7 " (577 mm) |
|---|---|
| Package depth | 4.5 " (114 mm) |
| Package height | 14.7 " (373 mm) |
| Package weight | 11.5 lbs (5,21 kg) |
Frequently asked questions
Is the ASUS ROG Zephyrus S GX701GXR-H6097T 90NR02J1-M01810 good for gaming?
You can game on it, though this laptop was not built for it: it carries the dedicated NVIDIA GeForce RTX 2080 Max-Q. Its card's page shows what level it handles current games at.
What is the screen of the ASUS ROG Zephyrus S GX701GXR-H6097T 90NR02J1-M01810 like?
It carries a 17.3" 1920x1080 IPS 240Hz 300 nits 72% NTSC display.
Which processor and graphics card does the ASUS ROG Zephyrus S GX701GXR-H6097T 90NR02J1-M01810 have?
It runs on the Intel Core i7-9750H processor with the NVIDIA GeForce RTX 2080 Max-Q graphics. Their pages carry their benchmarks, ranking position and alternatives.
Which operating system does the ASUS ROG Zephyrus S GX701GXR-H6097T 90NR02J1-M01810 come with?
It comes with Windows 10 Home preinstalled.
Which ports does the ASUS ROG Zephyrus S GX701GXR-H6097T 90NR02J1-M01810 have?
According to its spec sheet: 2 × USB-C, 3 × USB-A, 1 × HDMI, headphone jack (3.5 mm).
Does the ASUS ROG Zephyrus S GX701GXR-H6097T 90NR02J1-M01810 have a backlit keyboard?
Yes, according to its spec sheet the keyboard is backlit.
Does the ASUS ROG Zephyrus S GX701GXR-H6097T 90NR02J1-M01810 have a touch screen?
No, according to its spec sheet the screen is not a touch screen.
How much does the ASUS ROG Zephyrus S GX701GXR-H6097T 90NR02J1-M01810 weigh?
It weighs 2,6 kg: one of the heavy ones, more of a desk machine than a daily commuter.
When was the ASUS ROG Zephyrus S GX701GXR-H6097T 90NR02J1-M01810 released?
Its release date is February 2020, 6 years ago.
