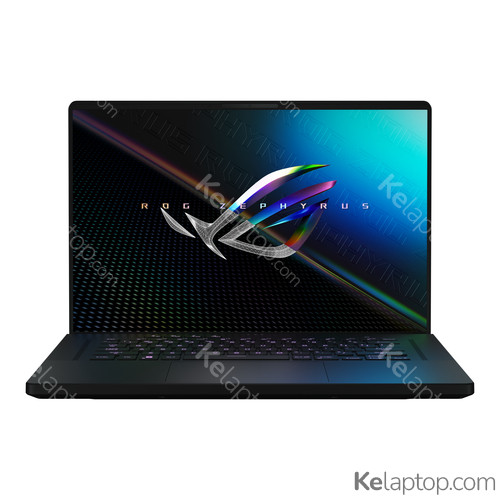

ASUS ROG Zephyrus M16 GU603ZE-LS032W 90NR0941-M001T0
Specs
Prices
Main specs
| Processor | |
|---|---|
| Screen | 16" 1920x1200 IPS 165Hz 500 nits 72% NTSC |
| Hard drive | 512GB SSD M.2 |
| RAM | 16GB DDR5-SDRAM |
| Operating system | Windows 11 Home |
| Graphics card | NVIDIA GeForce RTX 3050 Ti 4GB GDDR6 |
Alternatives with equal or higher power at a similar or lower price
From other brands
Full specifications of ASUS ROG Zephyrus M16 GU603ZE-LS032W 90NR0941-M001T0
| Reference / Part Number | 90NR0941-M001T0 |
|---|---|
| Release date | January 2022, 4 years ago |
Design
| Product type | Laptop |
|---|---|
| Product color | Black |
| Form factor | Clamshell |
| Color name | Off Black |
| Market positioning | Gaming |
Image gallery
Screen
| Display diagonal | 16 " (40,6 cm) |
|---|---|
| Display resolution | 1920 x 1200 pixels |
| Touchscreen | No |
| HD type | WUXGA |
| Panel type | IPS |
| Native aspect ratio | 16:10 |
| Anti-glare screen | Yes |
| Display brightness | 500 cd/m² |
| RGB color space | NTSC |
| Color gamut | 72 % |
| Display response rise/fall | 3 ms |
| Maximum refresh rate | 165 Hz |
| Contrast ratio (typical) | 1200:1 |
Processor
| Processor family | Intel® Core™ i7 |
|---|---|
| Processor manufacturer | Intel |
| Processor model | i7-12700H |
| Generación del procesador | Intel Core i7-12xxx |
| Processor cores | 14 |
| Processor cache | 24 MB |
| Configurable TDP-down | 35 W |
Memory
| Internal memory | 16 GB |
|---|---|
| Maximum internal memory | 40 GB |
| Internal memory type | DDR5-SDRAM |
| Memory clock speed | 4800 MHz |
| Memory form factor | On-board + SO-DIMM |
| Memory slots | 1x SO-DIMM |
Storage
| Total storage capacity | 512 GB |
|---|---|
| Storage media | SSD |
| Optical drive type | No |
| Total SSDs capacity | 512 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 512 GB |
| SSD interface | NVMe,PCI Express 4.0 |
| NVMe | Yes |
| SSD form factor | M.2 |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash) |
Graphics
| On-board graphics card | Yes |
|---|---|
| Discrete graphics card | Yes |
| Discrete graphics card model | NVIDIA GeForce RTX 3050 Ti |
| On-board graphics card model | Intel Iris Xe Graphics |
| Fabricante de GPU (unidad de procesamiento gráfico) integrada | Intel |
| Discrete graphics card memory | 4 GB |
| Discrete graphics memory type | GDDR6 |
Audio
| Audio system | Dolby Atmos |
|---|---|
| Built-in microphone | Yes |
Camera
| Front camera | Yes |
|---|---|
| Front camera HD type | HD |
| Infrared (IR) camera | Yes |
Network
| Mobile network connection | No |
|---|---|
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Wi-Fi standards | Wi-Fi 6E (802.11ax) |
| Antenna type | 2x2 |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000,2500 Mbit/s |
| Bluetooth | Yes |
| Bluetooth version | 5.2 |
Ports & interfaces
| HDMI ports quantity | 1 |
|---|---|
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI version | 2.0b |
| Número de puertos Thunderbolt 4 | 1 |
| Intel® Thunderbolt 4 | Yes |
| Combo headphone/mic port | Yes |
| USB Type-C DisplayPort Alternate Mode | Yes |
| USB Power Delivery | Yes |
Keyboard
| Numeric keypad | No |
|---|---|
| Pointing device | Touchpad |
| Keyboard backlit | Yes |
| Keyboard backlit color | RGB |
Software
| Operating system installed | Windows 11 Home |
|---|---|
| Operating system architecture | 64-bit |
Processor special features
| Intel Flex Memory Access | Yes |
|---|---|
| Intel Trusted Execution Technology | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Execute Disable Bit | Yes |
| CPU configuration (max) | 1 |
| Embedded options available | No |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
Battery
| Battery capacity | 90 Wh |
|---|---|
| Battery technology | Lithium-Ion (Li-Ion) |
| Number of battery cells | 4 |
Power
| AC adapter power | 240 W |
|---|---|
| AC adapter frequency | 50 - 60 Hz |
| AC adapter input voltage | 100 - 240 V |
| AC adapter output current | 12 A |
| AC adapter output voltage | 20 V |
Security
| Face recognition | Yes |
|---|---|
| Windows Hello | Yes |
| Password protection | Yes |
| Password protection type | BIOS,User |
Weight & dimensions
| Weight | 4.4 lbs (2 kg) |
|---|---|
| Width | 14 " (355 mm) |
| Depth | 9.6 " (243 mm) |
| Height | 0.8 " (19,9 mm) |
Frequently asked questions
Is the ASUS ROG Zephyrus M16 GU603ZE-LS032W 90NR0941-M001T0 good for gaming?
You can game on it, though this laptop was not built for it: it carries the dedicated NVIDIA GeForce RTX 3050 Ti. Its card's page shows what level it handles current games at.
What is the screen of the ASUS ROG Zephyrus M16 GU603ZE-LS032W 90NR0941-M001T0 like?
It carries a 16" 1920x1200 IPS 165Hz 500 nits 72% NTSC display.
Which processor and graphics card does the ASUS ROG Zephyrus M16 GU603ZE-LS032W 90NR0941-M001T0 have?
It runs on the Intel Core i7-12700H processor with the NVIDIA GeForce RTX 3050 Ti graphics. Their pages carry their benchmarks, ranking position and alternatives.
Can the RAM of the ASUS ROG Zephyrus M16 GU603ZE-LS032W 90NR0941-M001T0 be upgraded?
Yes: it has 1 memory slot and takes up to 40 GB according to the manufacturer (it ships with 16GB).
Which operating system does the ASUS ROG Zephyrus M16 GU603ZE-LS032W 90NR0941-M001T0 come with?
It comes with Windows 11 Home preinstalled.
Which ports does the ASUS ROG Zephyrus M16 GU603ZE-LS032W 90NR0941-M001T0 have?
According to its spec sheet: 1 × Thunderbolt 4, 1 × USB-C, 2 × USB-A, 1 × HDMI, Ethernet (RJ-45), card reader, headphone jack (3.5 mm).
Does the ASUS ROG Zephyrus M16 GU603ZE-LS032W 90NR0941-M001T0 have a backlit keyboard?
Yes, according to its spec sheet the keyboard is backlit.
Does the ASUS ROG Zephyrus M16 GU603ZE-LS032W 90NR0941-M001T0 have a touch screen?
No, according to its spec sheet the screen is not a touch screen.
How much does the ASUS ROG Zephyrus M16 GU603ZE-LS032W 90NR0941-M001T0 weigh?
It weighs 2 kg, a normal weight for its size: easy enough to move around.
When was the ASUS ROG Zephyrus M16 GU603ZE-LS032W 90NR0941-M001T0 released?
Its release date is January 2022, 4 years ago.
