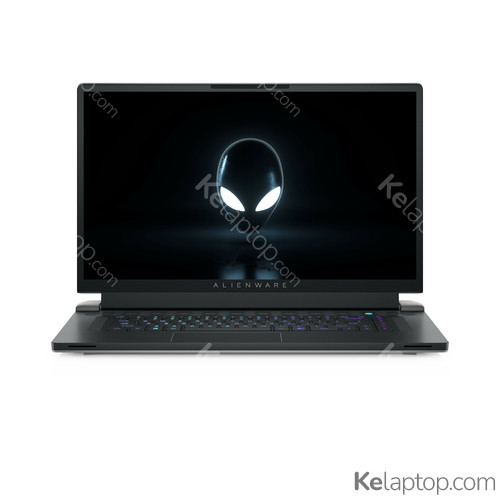

Alienware x17 R1 J22Y5
Specs
Prices
Main specs
| Processor | |
|---|---|
| Screen | 17.3" 1920x1080 WVA 360Hz 300 nits 100% sRGB |
| Hard drive | 1TB SSD M.2 |
| RAM | 16GB DDR4-SDRAM |
| Operating system | Windows 11 Home |
| Graphics card | NVIDIA GeForce RTX 3060 6GB GDDR6 |
Alternatives with equal or higher power at a similar or lower price
From Alienware
Full specifications of Alienware x17 R1 J22Y5
| Reference / Part Number | J22Y5 |
|---|---|
| Also sold as | AWX17R1-7989WHT-PUS |
| Release date | April 2022, 4 years ago |
Design
| Product type | Laptop |
|---|---|
| Product color | Silver |
| Form factor | Clamshell |
| Market positioning | Gaming |
Image gallery
Screen
| Display diagonal | 17.3 " (43,9 cm) |
|---|---|
| Display resolution | 1920 x 1080 pixels |
| Touchscreen | No |
| HD type | Full HD |
| Panel type | WVA |
| LED backlight | Yes |
| Native aspect ratio | 16:9 |
| Anti-glare screen | Yes |
| Display brightness | 300 cd/m² |
| Pixel density | 127 ppi |
| RGB color space | sRGB |
| Color gamut | 100 % |
| Maximum refresh rate | 360 Hz |
| Contrast ratio (typical) | 800:1 |
Processor
| Processor family | Intel® Core™ i7 |
|---|---|
| Processor manufacturer | Intel |
| Processor model | i7-11800H |
| Generación del procesador | Intel Core i7-11xxx |
| Processor cores | 8 |
| Processor boost frequency | 4,6 GHz |
| Processor cache | 24 MB |
Memory
| Internal memory | 16 GB |
|---|---|
| Maximum internal memory | 64 GB |
| Internal memory type | DDR4-SDRAM |
| Memory form factor | SO-DIMM |
| Memory slots | 2x SO-DIMM |
Storage
| Total storage capacity | 1 TB |
|---|---|
| Storage media | SSD |
| Optical drive type | No |
| Total SSDs capacity | 1 TB |
| Number of SSDs installed | 1 |
| SSD capacity | 1 TB |
| SSD interface | NVMe,PCI Express |
| NVMe | Yes |
| SSD form factor | M.2 |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash) |
Graphics
| On-board graphics card | Yes |
|---|---|
| Discrete graphics card | Yes |
| Discrete graphics card model | NVIDIA GeForce RTX 3060 |
| On-board graphics card model | Intel® UHD Graphics |
| Discrete graphics card memory | 6 GB |
| Discrete graphics memory type | GDDR6 |
| Fabricante de GPU (unidad de procesamiento gráfico) integrada | Intel |
Audio
| Audio chip | Realtek ALC3281 |
|---|---|
| Number of built-in speakers | 2 |
| Speaker power | 2 W |
| Built-in microphone | Yes |
| Number of microphones | 2 |
Camera
| Front camera | Yes |
|---|---|
| Front camera resolution (numeric) | 0,92 MP |
| Front camera resolution | 1280 x 720 pixels |
| Front camera HD type | HD |
| Video capturing speed | 30 fps |
| Infrared (IR) camera | Yes |
Network
| Mobile network connection | No |
|---|---|
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Wi-Fi standards | Wi-Fi 6 (802.11ax) |
| Wi-Fi data rate (max) | 2400 Mbit/s |
| Antenna type | 2x2 |
| WLAN controller model | Killer Wireless-AX 1675w |
| WLAN controller manufacturer | Killer |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,1000,2500,100 Mbit/s |
| Bluetooth | Yes |
| Bluetooth version | 5.2 |
Ports & interfaces
| USB 2.0 ports quantity | 0 |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| HDMI ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI version | 2.1 |
| Mini DisplayPorts quantity | 1 |
| Número de puertos Thunderbolt 4 | 1 |
| Intel® Thunderbolt 4 | Yes |
| Combo headphone/mic port | Yes |
| USB Type-C DisplayPort Alternate Mode | Yes |
| PowerShare | Yes |
| Number of USB ports with PowerShare support | 2 |
Performance
| Motherboard chipset | Intel HM570 |
|---|
Keyboard
| Numeric keypad | No |
|---|---|
| Pointing device | Touchpad |
| Keyboard backlit | Yes |
| Keyboard backlit color | RGB |
Software
| Operating system installed | Windows 11 Home |
|---|---|
| Operating system architecture | 64-bit |
Battery
| Battery capacity | 87 Wh |
|---|---|
| Battery technology | Lithium-Ion (Li-Ion) |
| Number of battery cells | 6 |
| Battery voltage | 11,4 V |
| Removable battery | No |
| Battery recharge time | 3 h |
| Battery weight | 11.6 oz (330 g) |
Power
| USB Power Delivery | Yes |
|---|---|
| AC adapter frequency | 50/60 Hz |
| AC adapter input voltage | 100 - 240 V |
| AC adapter output voltage | 19.5 V |
| DC-in jack | Yes |
Security
| Windows Hello | Yes |
|---|---|
| Password protection | Yes |
Operational conditions
| Operating temperature (T-T) | 0 - 35 °C |
|---|---|
| Storage temperature (T-T) | -40 - 65 °C |
| Operating relative humidity (H-H) | 10 - 90 % |
| Storage relative humidity (H-H) | 0 - 95 % |
| Operating altitude | -15,2 - 3048 m |
| Non-operating altitude | -15,2 - 10668 m |
| Operating shock | 3.9 oz (110 G) |
| Non-operating shock | 5.6 oz (160 G) |
| Operating vibration | 0 oz (0,66 G) |
| Non-operating vibration | 0 oz (1,3 G) |
Weight & dimensions
| Weight | 7.1 lbs (3,2 kg) |
|---|---|
| Width | 15.7 " (399,2 mm) |
| Depth | 11.8 " (299,5 mm) |
| Height | 0.8 " (20,9 mm) |
Packaging content
| Cables included | AC |
|---|
Frequently asked questions
Is the Alienware x17 R1 J22Y5 good for gaming?
You can game on it, though this laptop was not built for it: it carries the dedicated NVIDIA GeForce RTX 3060. Its card's page shows what level it handles current games at.
What is the screen of the Alienware x17 R1 J22Y5 like?
It carries a 17.3" 1920x1080 WVA 360Hz 300 nits 100% sRGB display.
Which processor and graphics card does the Alienware x17 R1 J22Y5 have?
It runs on the Intel Core i7-11800H processor with the NVIDIA GeForce RTX 3060 graphics. Their pages carry their benchmarks, ranking position and alternatives.
Can the RAM of the Alienware x17 R1 J22Y5 be upgraded?
Yes: it has 2 memory slots and takes up to 64 GB according to the manufacturer (it ships with 16GB).
Which operating system does the Alienware x17 R1 J22Y5 come with?
It comes with Windows 11 Home preinstalled.
Which ports does the Alienware x17 R1 J22Y5 have?
According to its spec sheet: 1 × Thunderbolt 4, 1 × USB-C, 2 × USB-A, 1 × HDMI, Ethernet (RJ-45), card reader, headphone jack (3.5 mm).
Does the Alienware x17 R1 J22Y5 have a backlit keyboard?
Yes, according to its spec sheet the keyboard is backlit.
Does the Alienware x17 R1 J22Y5 have a touch screen?
No, according to its spec sheet the screen is not a touch screen.
How much does the Alienware x17 R1 J22Y5 weigh?
It weighs 3,2 kg: one of the heavy ones, more of a desk machine than a daily commuter.
When was the Alienware x17 R1 J22Y5 released?
Its release date is April 2022, 4 years ago.
