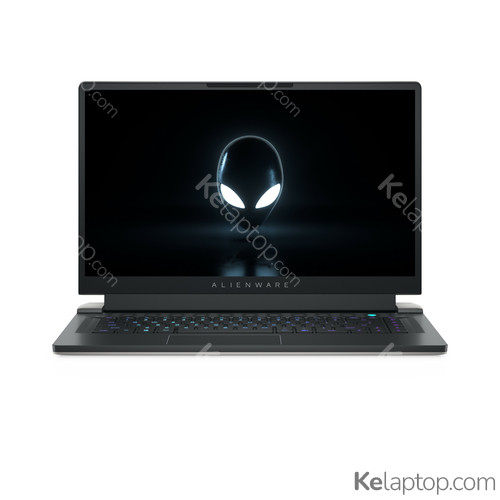

Alienware x15 R1 AWX15R1-7972WHT-PUS
Specs
Prices
Main specs
| Processor | |
|---|---|
| Screen | 15.6" 1920x1080 WVA 360Hz 300 nits 100% sRGB |
| Hard drive | 1TB SSD M.2 |
| RAM | 16GB DDR4-SDRAM |
| Operating system | Windows 11 Home |
| Graphics card | NVIDIA GeForce RTX 3070 8GB GDDR6 |
Alternatives with equal or higher power at a similar or lower price
From Alienware
Full specifications of Alienware x15 R1 AWX15R1-7972WHT-PUS
| Reference / Part Number | AWX15R1-7972WHT-PUS |
|---|---|
| Release date | May 2023, 3 years ago |
Design
| Product type | Laptop |
|---|---|
| Product colour | Silver |
| Form factor | Clamshell |
| Colour name | Lunar Light |
| Market positioning | Gaming |
Image gallery
Screen
| Display diagonal | 39,6 cm |
|---|---|
| Display resolution | 1920 x 1080 pixels |
| Touchscreen | No |
| HD type | Full HD |
| Panel type | WVA |
| LED backlight | Yes |
| Native aspect ratio | 16:9 |
| Anti-glare screen | Yes |
| Display brightness | 300 cd/m² |
| Pixel density | 141 ppi |
| RGB colour space | sRGB |
| Colour gamut | 100 % |
| Maximum refresh rate | 360 Hz |
| Contrast ratio (typical) | 1000:1 |
Processor
| Processor family | Intel® Core™ i7 |
|---|---|
| Processor manufacturer | Intel |
| Processor model | i7-11800H |
| Processor generation | 11th gen Intel® Core™ i7 |
| Processor cores | 8 |
| Processor boost frequency | 4,6 GHz |
| Processor cache | 24 MB |
Memory
| Internal memory | 16 GB |
|---|---|
| Maximum internal memory | 16 GB |
| Internal memory type | DDR4-SDRAM |
| Memory clock speed | 3200 MHz |
| Memory form factor | On-board |
Storage
| Total storage capacity | 1 TB |
|---|---|
| Storage media | SSD |
| Optical drive type | No |
| Total SSDs capacity | 1 TB |
| Number of SSDs installed | 1 |
| SSD capacity | 1 TB |
| SSD interface | PCI Express 3.0 |
| NVMe | Yes |
| SSD form factor | M.2 |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash),MicroSDHC,MicroSDXC |
Graphics
| On-board graphics card | Yes |
|---|---|
| Discrete graphics card | Yes |
| Discrete graphics card model | NVIDIA GeForce RTX 3070 |
| On-board graphics card model | Intel® UHD Graphics |
| Discrete graphics card memory | 8 GB |
| Discrete graphics memory type | GDDR6 |
Audio
| Audio chip | Realtek ALC3281 |
|---|---|
| Number of built-in speakers | 2 |
| Speaker power | 2 W |
| Built-in microphone | Yes |
| Number of microphones | 2 |
Camera
| Front camera | Yes |
|---|---|
| Front camera resolution (numeric) | 0,92 MP |
| Front camera resolution | 1280 x 720 pixels |
| Front camera HD type | HD |
| Video capturing speed | 30 fps |
Network
| Mobile network connection | No |
|---|---|
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Wi-Fi standards | Wi-Fi 6 (802.11ax) |
| Wi-Fi data rate (max) | 2400 Mbit/s |
| Antenna type | 2x2 |
| WLAN controller model | Killer Wireless-AX 1675x |
| WLAN controller manufacturer | Killer |
| Ethernet LAN | No |
| Bluetooth | Yes |
Ports & interfaces
| USB 2.0 ports quantity | 0 |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| HDMI ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| HDMI version | 2.1 |
| Thunderbolt 4 ports quantity | 1 |
| Intel® Thunderbolt 4 | Yes |
| Combo headphone/mic port | Yes |
| USB Type-C DisplayPort Alternate Mode | Yes |
| PowerShare | Yes |
| Number of USB ports with PowerShare support | 1 |
Keyboard
| Numeric keypad | No |
|---|---|
| Pointing device | Touchpad |
| Keyboard backlit | Yes |
| Keyboard backlit colour | RGB |
Software
| Operating system installed | Windows 11 Home |
|---|---|
| Operating system architecture | 64-bit |
Battery
| Battery capacity | 87 Wh |
|---|---|
| Battery technology | Lithium-Ion (Li-Ion) |
| Number of battery cells | 6 |
| Battery voltage | 11,4 V |
| Removable battery | No |
| Battery recharge time | 3 h |
| Fast charging | Yes |
| Battery weight | 330 g |
Power
| AC adapter power | 240 W |
|---|---|
| AC adapter frequency | 50 - 60 Hz |
| AC adapter input voltage | 100 - 240 V |
| AC adapter output current | 12,31 A |
| AC adapter output voltage | 19.5 V |
| DC-in jack | Yes |
| USB Power Delivery (USB PD) | Yes |
Security
| Password protection | Yes |
|---|
Operational conditions
| Operating temperature (T-T) | 0 - 35 °C |
|---|---|
| Storage temperature (T-T) | -40 - 65 °C |
| Operating relative humidity (H-H) | 10 - 90 % |
| Storage relative humidity (H-H) | 0 - 95 % |
| Operating altitude | 0 - 3048 m |
| Non-operating altitude | 0 - 10668 m |
| Operating shock | 140 G |
| Non-operating shock | 160 G |
| Operating vibration | 0,66 G |
| Non-operating vibration | 1,3 G |
Weight & dimensions
| Weight | 2,36 kg |
|---|---|
| Width | 359,7 mm |
| Depth | 277,3 mm |
| Height (front) | 1,25 cm |
| Height (rear) | 1,59 cm |
Packaging content
| Cables included | AC |
|---|
Frequently asked questions
Is the Alienware x15 R1 AWX15R1-7972WHT-PUS good for gaming?
You can game on it, though this laptop was not built for it: it carries the dedicated NVIDIA GeForce RTX 3070. Its card's page shows what level it handles current games at.
What is the screen of the Alienware x15 R1 AWX15R1-7972WHT-PUS like?
It carries a 15.6" 1920x1080 WVA 360Hz 300 nits 100% sRGB display.
Which processor and graphics card does the Alienware x15 R1 AWX15R1-7972WHT-PUS have?
It runs on the Intel Core i7-11800H processor with the NVIDIA GeForce RTX 3070 graphics. Their pages carry their benchmarks, ranking position and alternatives.
Which operating system does the Alienware x15 R1 AWX15R1-7972WHT-PUS come with?
It comes with Windows 11 Home preinstalled.
Which ports does the Alienware x15 R1 AWX15R1-7972WHT-PUS have?
According to its spec sheet: 1 × Thunderbolt 4, 1 × USB-C, 1 × USB-A, 1 × HDMI, card reader, headphone jack (3.5 mm).
Does the Alienware x15 R1 AWX15R1-7972WHT-PUS have a backlit keyboard?
Yes, according to its spec sheet the keyboard is backlit.
Does the Alienware x15 R1 AWX15R1-7972WHT-PUS have a touch screen?
No, according to its spec sheet the screen is not a touch screen.
How much does the Alienware x15 R1 AWX15R1-7972WHT-PUS weigh?
It weighs 2,36 kg: one of the heavy ones, more of a desk machine than a daily commuter.
When was the Alienware x15 R1 AWX15R1-7972WHT-PUS released?
Its release date is May 2023, 3 years ago.
