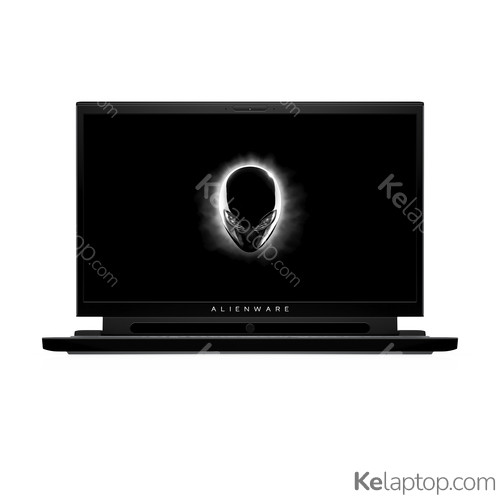

Alienware m15 R2 AWYA15-7947BLK-PUS
Specs
Prices
Main specs
| Processor | Intel Core i7-9750H 2,6GHz |
|---|---|
| Screen | 15.6" 1920x1080 144Hz 300 nits |
| Hard drive | 512GB SSD M.2 |
| RAM | 16GB DDR4-SDRAM |
| Operating system | Windows 10 Home |
| Graphics card | NVIDIA GeForce RTX 2060 6GB GDDR6 |
Alternatives with equal or higher power at a similar or lower price
From Alienware
From other brands
- 1
Acer Nitro 5 AN515-58-73RS
$9991058 - 2
MSI Gaming GF GF66 11UE-031 Katana
$999.991057 - 3
Acer Nitro V 15 ANV15-52-58E2
$998.991057 - 4
MSI Gaming GF GF66 11UE 617 Katana
$9991056 - 5
MSI Thin A15 B7UC-473US
$9691054 - 6
MSI Katana GF66 GF661090
$9751054 - 7
MSI Gaming GF GF63 11UC-263 Thin
$999853 - 8
MSI Gaming GF GF63 Thin 11UC-1276US
$999.997.253 - 9
Acer Nitro 5 AN515-54-70KK
$948.88553
Full specifications of Alienware m15 R2 AWYA15-7947BLK-PUS
| Reference / Part Number | AWYA15-7947BLK-PUS |
|---|---|
| Release date | September 2019, 7 years ago |
Design
| Product type | Laptop |
|---|---|
| Product color | Black |
| Form factor | Clamshell |
| Market positioning | Gaming |
Image gallery
Screen
| Display diagonal | 15.6 " (39,6 cm) |
|---|---|
| Display resolution | 1920 x 1080 pixels |
| Touchscreen | No |
| HD type | Full HD |
| LED backlight | Yes |
| Native aspect ratio | 16:9 |
| Display brightness | 300 cd/m² |
| Pixel pitch | 0,179 x 0,179 mm |
| Pixel density | 141 ppi |
| Pantalla dual | No |
| Display response rise/fall | 19 ms |
| Maximum refresh rate | 144 Hz |
Processor
| Processor family | Intel® Core™ i7 |
|---|---|
| Processor manufacturer | Intel |
| Processor model | i7-9750H |
| Processor frequency | 2,6 GHz |
| Generación del procesador | Intel Core i7-9xxx |
| Processor cores | 6 |
| Processor threads | 12 |
| Processor boost frequency | 4,5 GHz |
| System bus rate | 8 GT/s |
| Processor cache | 12 MB |
| Processor cache type | Smart Cache |
| Processor socket | BGA 1440 |
| Processor lithography | 14 nm |
| Processor operating modes | 64-bit |
| Processor codename | Coffee Lake |
| Thermal Design Power (TDP) | 45 W |
| Configurable TDP-down | 35 W |
| Tjunction | 100 °C |
| Maximum number of PCI Express lanes | 16 |
| PCI Express slots version | 3.0 |
| PCI Express configurations | 1x16,2x8,1x8+2x4 |
Memory
| Internal memory | 16 GB |
|---|---|
| Maximum internal memory | 16 GB |
| Internal memory type | DDR4-SDRAM |
| Memory clock speed | 2666 MHz |
| Memory form factor | On-board |
| Memory layout (slots x size) | 2 x 8 GB |
Storage
| Total storage capacity | 512 GB |
|---|---|
| Storage media | SSD |
| Optical drive type | No |
| Total SSDs capacity | 512 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 512 GB |
| SSD interface | PCI Express |
| SSD form factor | M.2 |
| Card reader integrated | No |
Graphics
| On-board graphics card | Yes |
|---|---|
| Discrete graphics card | Yes |
| Discrete graphics card model | NVIDIA® GeForce RTX™ 2060 |
| On-board graphics card model | Intel® UHD Graphics 630 |
| Discrete graphics card memory | 6 GB |
| Discrete graphics memory type | GDDR6 |
| On-board graphics card base frequency | 350 MHz |
| On-board graphics card dynamic frequency (max) | 1150 MHz |
| Maximum on-board graphics card memory | 64 GB |
| On-board graphics card DirectX version | 12.0 |
| On-board graphics card OpenGL version | 4.5 |
| On-board graphics card ID | 0x3E9B |
| Number of discrete graphics cards installed | 1 |
| NVIDIA GameWorks VR | Yes |
| CUDA | Yes |
| CUDA cores | 1920 |
Audio
| Audio chip | Realtek ALC3281-CG |
|---|---|
| Number of built-in speakers | 2 |
| Speaker power | 2 W |
| Built-in microphone | Yes |
Camera
| Front camera | Yes |
|---|---|
| Front camera resolution (numeric) | 0,92 MP |
| Front camera resolution | 1280 x 720 pixels |
| Front camera signal format | 720p |
| Front camera HD type | HD |
| Video capturing speed | 30 fps |
Network
| Wi-Fi | Yes |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 1000,2500 Mbit/s |
| Bluetooth | Yes |
Ports & interfaces
| USB 2.0 ports quantity | 0 |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI version | 2.0 |
| DisplayPorts quantity | 0 |
| Mini DisplayPorts quantity | 1 |
| Thunderbolt 3 ports quantity | 1 |
| Combo headphone/mic port | Yes |
| Alienware graphics amplifier port | Yes |
| PowerShare | Yes |
| Number of USB ports with PowerShare support | 1 |
Performance
| Virtual Reality (VR) ready | Yes |
|---|---|
| Motherboard chipset | Intel® HM370 |
Keyboard
| Numeric keypad | No |
|---|---|
| Pointing device | Touchpad |
| Keyboard backlit | Yes |
| Keyboard backlit color | Various |
| Windows keys | Yes |
Software
| Operating system installed | Windows 10 Home |
|---|---|
| Operating system architecture | 64-bit |
Processor special features
| Intel® My WiFi Technology (Intel® MWT) | Yes |
|---|---|
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Enhanced Intel SpeedStep Technology | Yes |
| Thunderbolt™ 3 Technology | Yes |
| Intel® Clear Video HD Technology (Intel® CVT HD) | Yes |
| Intel Clear Video Technology | Yes |
| Intel® InTru™ 3D Technology | Yes |
| Intel® Quick Sync Video Technology | Yes |
| Intel Flex Memory Access | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel Trusted Execution Technology | No |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel® Secure Key | Yes |
| Intel TSX-NI | No |
| Intel Stable Image Platform Program (SIPP) | No |
| Intel® OS Guard | Yes |
| Intel Software Guard Extensions (Intel SGX) | Yes |
| Intel 64 | Yes |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Thermal Monitoring Technologies | Yes |
| Processor package size | 42 x 28 mm |
| Supported instruction sets | SSE4.1,SSE4.2,AVX 2.0 |
| CPU configuration (max) | 1 |
| Embedded options available | No |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Processor ARK ID | 191045 |
Battery
| Number of battery cells | 6 |
|---|---|
| Battery voltage | 11,4 V |
| Battery recharge time | 4 h |
| Battery weight | 11.3 oz (320 g) |
Power
| AC adapter frequency | 50 - 60 Hz |
|---|---|
| AC adapter input voltage | 100 - 240 V |
| AC adapter output voltage | 19.5 V |
| DC-in jack | Yes |
Security
| Cable lock slot | Yes |
|---|---|
| Cable lock slot type | Noble |
| Password protection | Yes |
Operational conditions
| Operating temperature (T-T) | 0 - 35 °C |
|---|---|
| Storage temperature (T-T) | -40 - 65 °C |
| Operating relative humidity (H-H) | 10 - 90 % |
| Storage relative humidity (H-H) | 0 - 95 % |
| Operating altitude | -15,2 - 3048 m |
| Non-operating altitude | -15,2 - 10668 m |
| Operating shock | 3.9 oz (110 G) |
| Non-operating shock | 5.6 oz (160 G) |
| Operating vibration | 0 oz (0,66 G) |
| Non-operating vibration | 0 oz (1,3 G) |
Weight & dimensions
| Weight | 4.8 lbs (2,16 kg) |
|---|---|
| Width | 14.2 " (360,5 mm) |
| Depth | 10.9 " (276 mm) |
| Height (front) | 0.7 " (1,79 cm) |
| Height (rear) | 0.8 " (1,95 cm) |
Packaging content
| AC adapter included | Yes |
|---|---|
| Manual | Yes |
| Power cord included | Yes |
Other features
| Maximum internal memory (64-bit) | 16 GB |
|---|
Frequently asked questions
Is the Alienware m15 R2 AWYA15-7947BLK-PUS good for gaming?
You can game on it, though this laptop was not built for it: it carries the dedicated NVIDIA GeForce RTX 2060. Its card's page shows what level it handles current games at.
What is the screen of the Alienware m15 R2 AWYA15-7947BLK-PUS like?
It carries a 15.6" 1920x1080 144Hz 300 nits display.
Which processor and graphics card does the Alienware m15 R2 AWYA15-7947BLK-PUS have?
It runs on the Intel Core i7-9750H processor with the NVIDIA GeForce RTX 2060 graphics. Their pages carry their benchmarks, ranking position and alternatives.
Which operating system does the Alienware m15 R2 AWYA15-7947BLK-PUS come with?
It comes with Windows 10 Home preinstalled.
Which ports does the Alienware m15 R2 AWYA15-7947BLK-PUS have?
According to its spec sheet: 1 × Thunderbolt 3, 3 × USB-A, 1 × HDMI, Ethernet (RJ-45), headphone jack (3.5 mm).
Does the Alienware m15 R2 AWYA15-7947BLK-PUS have a backlit keyboard?
Yes, according to its spec sheet the keyboard is backlit.
Does the Alienware m15 R2 AWYA15-7947BLK-PUS have a touch screen?
No, according to its spec sheet the screen is not a touch screen.
How much does the Alienware m15 R2 AWYA15-7947BLK-PUS weigh?
It weighs 2,16 kg, a normal weight for its size: easy enough to move around.
When was the Alienware m15 R2 AWYA15-7947BLK-PUS released?
Its release date is September 2019, 7 years ago.
