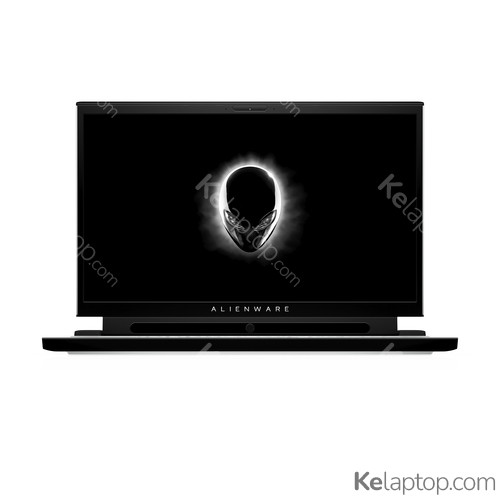

Alienware m15 R2 2K23M
Specs
Prices
Main specs
| Processor | Intel Core i7-9750H 2,6GHz |
|---|---|
| Screen | 15.6" 3840x2160 OLED 60Hz 400 nits |
| Hard drive | 1TB SSD M.2 |
| RAM | 16GB DDR4-SDRAM |
| Operating system | Windows 10 Pro |
| Graphics card | NVIDIA GeForce RTX 2070 Max-Q 8GB GDDR6 |
| Other | Keyboard Nordic. |
Alternatives with equal or higher power at a similar or lower price
From Alienware
Full specifications of Alienware m15 R2 2K23M
| Reference / Part Number | 2K23M |
|---|---|
| Release date | September 2019, 7 years ago |
Design
| Product type | Laptop |
|---|---|
| Product color | Black,White |
| Form factor | Clamshell |
| Color name | Lunar Light |
| Market positioning | Gaming |
Image gallery
Screen
| Display diagonal | 15.6 " (39,6 cm) |
|---|---|
| Display resolution | 3840 x 2160 pixels |
| Touchscreen | No |
| HD type | 4K Ultra HD |
| Panel type | OLED |
| Display brightness | 400 cd/m² |
| Pixel pitch | 0,0896 x 0,0896 mm |
| Pixel density | 282 ppi |
| Pantalla dual | No |
| Display response rise/fall | 1 ms |
| Maximum refresh rate | 60 Hz |
Processor
| Processor family | Intel® Core™ i7 |
|---|---|
| Processor manufacturer | Intel |
| Processor model | i7-9750H |
| Processor frequency | 2,6 GHz |
| Generación del procesador | Intel Core i7-9xxx |
| Processor cores | 6 |
| Processor threads | 12 |
| Processor boost frequency | 4,5 GHz |
| System bus rate | 8 GT/s |
| Processor cache | 12 MB |
| Processor cache type | Smart Cache |
| Processor socket | BGA 1440 |
| Processor lithography | 14 nm |
| Processor operating modes | 64-bit |
| Processor codename | Coffee Lake |
| Thermal Design Power (TDP) | 45 W |
| Configurable TDP-down | 35 W |
| Tjunction | 100 °C |
| Maximum number of PCI Express lanes | 16 |
| PCI Express slots version | 3.0 |
| PCI Express configurations | 1x16,2x8,1x8+2x4 |
Memory
| Internal memory | 16 GB |
|---|---|
| Maximum internal memory | 16 GB |
| Internal memory type | DDR4-SDRAM |
| Memory clock speed | 2666 MHz |
| Memory form factor | On-board |
| Memory layout (slots x size) | 2 x 8 GB |
Storage
| Total storage capacity | 1 TB |
|---|---|
| Storage media | SSD |
| Optical drive type | No |
| Total SSDs capacity | 1 TB |
| Number of SSDs installed | 2 |
| SSD capacity | 512 GB |
| SSD interface | PCI Express |
| SSD form factor | M.2 |
| Card reader integrated | No |
Graphics
| On-board graphics card | Yes |
|---|---|
| Discrete graphics card | Yes |
| Discrete graphics card model | NVIDIA® GeForce RTX™ 2070 Max-Q |
| On-board graphics card model | Intel® UHD Graphics 630 |
| Discrete graphics card memory | 8 GB |
| Discrete graphics memory type | GDDR6 |
| On-board graphics card base frequency | 350 MHz |
| On-board graphics card dynamic frequency (max) | 1150 MHz |
| Maximum on-board graphics card memory | 64 GB |
| On-board graphics card DirectX version | 12.0 |
| On-board graphics card OpenGL version | 4.5 |
| On-board graphics card ID | 0x3E9B |
| NVIDIA Max-Q | Yes |
Audio
| Audio chip | Realtek ALC3281-CG |
|---|---|
| Number of built-in speakers | 2 |
| Speaker power | 2 W |
| Built-in microphone | Yes |
Camera
| Front camera | Yes |
|---|---|
| Front camera resolution (numeric) | 0,92 MP |
| Front camera resolution | 1280 x 720 pixels |
| Front camera signal format | 720p |
| Front camera HD type | HD |
| Video capturing speed | 30 fps |
Network
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
|---|---|
| Wi-Fi | Yes |
| Wi-Fi standards | Wi-Fi 5 (802.11ac) |
| Antenna type | 2x2 |
| WLAN controller model | Intel Dual Band Wireless-AC 8265 |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 1000,2500 Mbit/s |
| Bluetooth | Yes |
| Bluetooth version | 4.2 |
| MIMO | Yes |
| MIMO type | Multi User MIMO |
Ports & interfaces
| USB 2.0 ports quantity | 0 |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI version | 2.0 |
| DisplayPorts quantity | 0 |
| Mini DisplayPorts quantity | 1 |
| Thunderbolt 3 ports quantity | 1 |
| Combo headphone/mic port | Yes |
| Alienware graphics amplifier port | Yes |
| PowerShare | Yes |
| Number of USB ports with PowerShare support | 1 |
Performance
| Virtual Reality (VR) ready | Yes |
|---|
Keyboard
| Numeric keypad | No |
|---|---|
| Pointing device | Touchpad |
| Keyboard language | Nordic |
| Keyboard backlit | Yes |
| Keyboard backlit color | Various |
| Windows keys | Yes |
Software
| Operating system installed | Windows 10 Pro |
|---|---|
| Operating system architecture | 64-bit |
| Bundled software | Financial Tracker & Retail Information |
Processor special features
| Intel® My WiFi Technology (Intel® MWT) | Yes |
|---|---|
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel® Clear Video HD Technology (Intel® CVT HD) | Yes |
| Intel Clear Video Technology | Yes |
| Intel® InTru™ 3D Technology | Yes |
| Intel® Quick Sync Video Technology | Yes |
| Intel Flex Memory Access | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel Trusted Execution Technology | No |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel® Secure Key | Yes |
| Intel TSX-NI | No |
| Intel Stable Image Platform Program (SIPP) | No |
| Intel® OS Guard | Yes |
| Intel Software Guard Extensions (Intel SGX) | Yes |
| Intel 64 | Yes |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Thermal Monitoring Technologies | Yes |
| Processor package size | 42 x 28 mm |
| Supported instruction sets | SSE4.1,SSE4.2,AVX 2.0 |
| CPU configuration (max) | 1 |
| Embedded options available | No |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Processor ARK ID | 191045 |
Battery
| Battery capacity | 76 Wh |
|---|---|
| Battery technology | Lithium Polymer (LiPo) |
| Number of battery cells | 6 |
| Battery voltage | 11,4 V |
| Battery recharge time | 4 h |
| Battery weight | 11.3 oz (320 g) |
Power
| AC adapter power | 240 W |
|---|---|
| AC adapter frequency | 50 - 60 Hz |
| AC adapter input voltage | 100 - 240 V |
| AC adapter output current | 12,31 A |
| AC adapter output voltage | 19.5 V |
| DC-in jack | Yes |
Security
| Password protection | Yes |
|---|
Operational conditions
| Operating temperature (T-T) | 0 - 35 °C |
|---|---|
| Storage temperature (T-T) | -40 - 65 °C |
| Operating relative humidity (H-H) | 10 - 90 % |
| Storage relative humidity (H-H) | 0 - 95 % |
| Operating altitude | -15,2 - 3048 m |
| Non-operating altitude | -15,2 - 10668 m |
| Operating shock | 3.9 oz (110 G) |
| Non-operating shock | 5.6 oz (160 G) |
| Operating vibration | 0 oz (0,66 G) |
| Non-operating vibration | 0 oz (1,3 G) |
Weight & dimensions
| Weight | 4.8 lbs (2,16 kg) |
|---|---|
| Width | 14.2 " (360,5 mm) |
| Depth | 10.9 " (276 mm) |
| Height (front) | 0.7 " (1,79 cm) |
| Height (rear) | 0.8 " (1,95 cm) |
Packaging data
| Package width | 16.1 " (408 mm) |
|---|---|
| Package depth | 17.9 " (455 mm) |
| Package height | 4.6 " (117 mm) |
| Package weight | 10.5 lbs (4,75 kg) |
| Package material | Corrugated cardboard,Polypropylene (PP) |
Recycling data
| Paper molded pulp content per package | 0 oz (0 g) |
|---|---|
| Bamboo molded pulp content per package | 0 oz (0 g) |
| Wheat straw molded pulp content per package | 0 oz (0 g) |
| Grey board content per package | 0 oz (0 g) |
| Corrugated cardboard content per package | 3 lbs (1,34 kg) |
| Corrugated cardboard content per shipping (inner) case | 33.3 oz (945 g) |
| Corrugated cardboard content per box for accessories | 7.1 oz (200 g) |
| Corrugated cardboard content per sleeve for accessories | 6.8 oz (193 g) |
| Polyethylene terephthalate (PET) content per package | 0 oz (0 g) |
| High-density polyethylene (HDPE) content per package | 0 oz (0 g) |
| Low-density polyethylene (LDPE) content per package | 0 oz (0 g) |
| Polypropylene (PP) content per package | 0.7 oz (19 g) |
| Polystyrene (PS) content per package | 0 oz (0 g) |
| Other materials content per package | 4.1 oz (117 g) |
Packaging content
| AC adapter included | Yes |
|---|---|
| Manual | Yes |
| Power cord included | Yes |
Logistics data
| Quantity per intermodal container (20ft) | 800 pc(s) |
|---|---|
| Quantity per intermodal container (40ft) | 1680 pc(s) |
| Pallet width | 39.4 " (100 cm) |
| Pallet length | 47.2 " (120 cm) |
| Pallet weight | 436.5 lbs (198 kg) |
| Pallet volume weight | 165.3 lbs (75 kg) |
| Number of layers per pallet | 2 pc(s) |
| Quantity per pallet layer | 20 pc(s) |
| Quantity per pallet | 40 pc(s) |
| Maximum number of stacking cartons | 4 pc(s) |
Other features
| Maximum internal memory (64-bit) | 16 GB |
|---|---|
| EPEAT rating | 90,77 % |
| Peso volumétrico del paquete | 3.63 |
Frequently asked questions
Is the Alienware m15 R2 2K23M good for gaming?
You can game on it, though this laptop was not built for it: it carries the dedicated NVIDIA GeForce RTX 2070 Max-Q. Its card's page shows what level it handles current games at.
What is the screen of the Alienware m15 R2 2K23M like?
It carries a 15.6" 3840x2160 OLED 60Hz 400 nits display.
Which processor and graphics card does the Alienware m15 R2 2K23M have?
It runs on the Intel Core i7-9750H processor with the NVIDIA GeForce RTX 2070 Max-Q graphics. Their pages carry their benchmarks, ranking position and alternatives.
Which operating system does the Alienware m15 R2 2K23M come with?
It comes with Windows 10 Pro preinstalled.
Which ports does the Alienware m15 R2 2K23M have?
According to its spec sheet: 1 × Thunderbolt 3, 3 × USB-A, 1 × HDMI, Ethernet (RJ-45), headphone jack (3.5 mm).
Does the Alienware m15 R2 2K23M have a backlit keyboard?
Yes, according to its spec sheet the keyboard is backlit.
Does the Alienware m15 R2 2K23M have a touch screen?
No, according to its spec sheet the screen is not a touch screen.
How much does the Alienware m15 R2 2K23M weigh?
It weighs 2,16 kg, a normal weight for its size: easy enough to move around.
When was the Alienware m15 R2 2K23M released?
Its release date is September 2019, 7 years ago.
