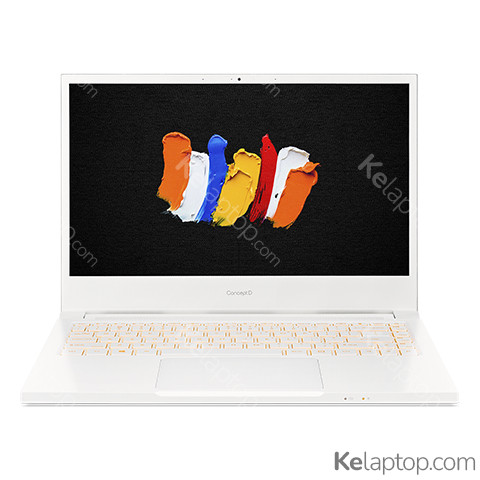

Acer ConceptD 3 CN314-72P-767X
Specs
Prices
Main specs
| Processor | Intel Core i7-10750H 2,6GHz |
|---|---|
| Screen | 14" 1920x1080 IPS |
| Hard drive | 512GB SSD |
| RAM | 16GB DDR4-SDRAM |
| Operating system | Windows 10 Pro |
| Graphics card | NVIDIA Quadro T1000 Max-Q 4GB GDDR5 |
| Other | Keyboard French. |
Alternatives with equal or higher power at a similar or lower price
From Acer
From other brands
Full specifications of Acer ConceptD 3 CN314-72P-767X
| Reference / Part Number | NX.C5VEF.002 |
|---|---|
| Release date | August 2020, 6 years ago |
Design
| Product type | Laptop |
|---|---|
| Product colour | White |
| Form factor | Clamshell |
Image gallery
Screen
| Display diagonal | 35,6 cm |
|---|---|
| Display resolution | 1920 x 1080 pixels |
| Touchscreen | No |
| HD type | Full HD |
| Panel type | IPS |
| LED backlight | Yes |
| Native aspect ratio | 16:9 |
Processor
| Processor family | Intel® Core™ i7 |
|---|---|
| Processor manufacturer | Intel |
| Processor model | i7-10750H |
| Processor frequency | 2,6 GHz |
| Processor generation | 10th gen Intel® Core™ i7 |
| Processor boost frequency | 5 GHz |
| Processor threads | 12 |
| System bus rate | 8 GT/s |
| Processor cores | 6 |
| Processor cache | 12 MB |
| Processor cache type | Smart Cache |
| Processor socket | BGA 1440 |
| Processor lithography | 14 nm |
| Processor operating modes | 64-bit |
| Processor codename | Comet Lake |
| Thermal Design Power (TDP) | 45 W |
| Configurable TDP-down | 35 W |
| Tjunction | 100 °C |
| Maximum number of PCI Express lanes | 16 |
| PCI Express slots version | 3.0 |
| PCI Express configurations | 1x16,2x8,1x8+2x4 |
Memory
| Internal memory | 16 GB |
|---|---|
| Internal memory type | DDR4-SDRAM |
Storage
| Total storage capacity | 512 GB |
|---|---|
| Storage media | SSD |
| Optical drive type | No |
| Total SSDs capacity | 512 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 512 GB |
| SSD interface | PCI Express |
| Card reader integrated | No |
Graphics
| On-board graphics card | Yes |
|---|---|
| Discrete graphics card | Yes |
| Discrete graphics card model | NVIDIA Quadro T1000 Max-Q |
| On-board graphics card model | Intel® UHD Graphics |
| On-board GPU manufacturer | Intel |
| On-board graphics card base frequency | 350 MHz |
| On-board graphics card dynamic frequency (max) | 1150 MHz |
| On-board graphics card DirectX version | 12.0 |
| On-board graphics card OpenGL version | 4.5 |
| On-board graphics card ID | 0x9BC4 |
| Discrete graphics card memory | 4 GB |
| Discrete graphics memory type | GDDR5 |
Audio
| Built-in microphone | Yes |
|---|---|
| Number of microphones | 2 |
Camera
| Front camera | Yes |
|---|---|
| Front camera resolution | 1280 x 720 pixels |
| Front camera HD type | HD |
Network
| Mobile network connection | No |
|---|---|
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Wi-Fi standards | 802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n),Wi-Fi 5 (802.11ac),Wi-Fi 6 (802.11ax) |
| Ethernet LAN | No |
| Bluetooth | Yes |
Ports & interfaces
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
|---|---|
| HDMI ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| Mini DisplayPorts quantity | 1 |
| Headphone outputs | 1 |
| Combo headphone/mic port | Yes |
Performance
| Accelerometer | Yes |
|---|
Keyboard
| Numeric keypad | No |
|---|---|
| Pointing device | Touchpad |
| Keyboard language | French |
| Keyboard backlit | Yes |
Software
| Operating system installed | Windows 10 Pro |
|---|---|
| Operating system architecture | 64-bit |
Processor special features
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
|---|---|
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel® Quick Sync Video Technology | Yes |
| Intel Flex Memory Access | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel Trusted Execution Technology | No |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel® Secure Key | Yes |
| Intel Stable Image Platform Program (SIPP) | No |
| Intel® OS Guard | Yes |
| Intel Software Guard Extensions (Intel SGX) | Yes |
| Intel 64 | Yes |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Thermal Monitoring Technologies | Yes |
| Processor package size | 42 x 28 mm |
| Supported instruction sets | SSE4.1,SSE4.2,AVX 2.0 |
| CPU configuration (max) | 1 |
| Embedded options available | No |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Processor ARK ID | 201837 |
Battery
| Battery capacity | 57,5 Wh |
|---|---|
| Battery technology | Lithium-Ion (Li-Ion) |
| Number of battery cells | 4 |
| Battery life (max) | 15 h |
Power
| AC adapter power | 135 W |
|---|
Security
| Cable lock slot | Yes |
|---|---|
| Cable lock slot type | Kensington |
| Fingerprint reader | Yes |
| Trusted Platform Module (TPM) | Yes |
| Password protection | Yes |
Weight & dimensions
| Weight | 1,5 kg |
|---|---|
| Width | 326,7 mm |
| Depth | 229 mm |
| Height | 17,9 mm |
Frequently asked questions
Is the Acer ConceptD 3 CN314-72P-767X good for gaming?
You can game on it, though this laptop was not built for it: it carries the dedicated NVIDIA Quadro T1000 Max-Q. Its card's page shows what level it handles current games at.
How long does the battery of the Acer ConceptD 3 CN314-72P-767X last?
The manufacturer declares up to 15 h of battery life. Real duration depends on brightness, workload and battery health.
What is the screen of the Acer ConceptD 3 CN314-72P-767X like?
It carries a 14" 1920x1080 IPS display.
Which processor and graphics card does the Acer ConceptD 3 CN314-72P-767X have?
It runs on the Intel Core i7-10750H processor with the NVIDIA Quadro T1000 Max-Q graphics. Their pages carry their benchmarks, ranking position and alternatives.
Which operating system does the Acer ConceptD 3 CN314-72P-767X come with?
It comes with Windows 10 Pro preinstalled.
Which ports does the Acer ConceptD 3 CN314-72P-767X have?
According to its spec sheet: 1 × USB-C, 2 × USB-A, 1 × HDMI, headphone jack (3.5 mm).
Does the Acer ConceptD 3 CN314-72P-767X have a backlit keyboard?
Yes, according to its spec sheet the keyboard is backlit.
Does the Acer ConceptD 3 CN314-72P-767X have a touch screen?
No, according to its spec sheet the screen is not a touch screen.
How much does the Acer ConceptD 3 CN314-72P-767X weigh?
It weighs 1,5 kg: one of the light ones, easy to carry every day.
When was the Acer ConceptD 3 CN314-72P-767X released?
Its release date is August 2020, 6 years ago.
