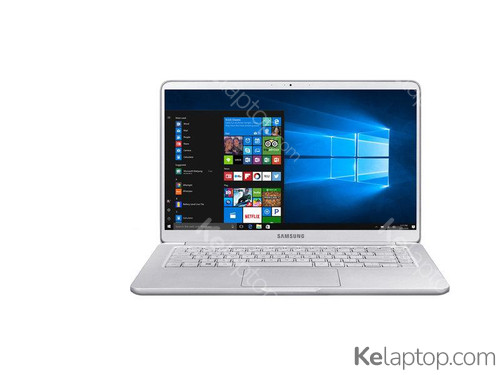

Samsung NP900X5N
Specs
Prices
Main specs
| Processor | Intel Core i7 i7-7500U 2,7GHz |
|---|---|
| Screen | 15" 1920x1080 350 nits |
| Hard drive | 256GB SSD |
| RAM | 16GB DDR4-SDRAM |
| Operating system | Windows 10 Home |
| Graphics card | NVIDIA GeForce 940MX |
Alternatives with equal or higher power at a similar or lower price
From Samsung
From other brands
Full specifications of Samsung NP900X5N
| Reference / Part Number | NP900X5N-X01US |
|---|---|
| Release date | May 2017, 9 years ago |
Design
| Product type | Laptop |
|---|---|
| Product colour | Titanium |
| Form factor | Clamshell |
Image gallery
Screen
| Display diagonal | 38,1 cm |
|---|---|
| Display resolution | 1920 x 1080 pixels |
| Touchscreen | No |
| HD type | Full HD |
| LED backlight | Yes |
| Native aspect ratio | 16:9 |
| Display brightness | 350 cd/m² |
Processor
| Processor family | Intel® Core™ i7 |
|---|---|
| Processor manufacturer | Intel |
| Processor model | i7-7500U |
| Processor frequency | 2,7 GHz |
| Processor generation | 7th gen Intel® Core™ i7 |
| Processor cores | 2 |
| Processor threads | 4 |
| Processor boost frequency | 3,5 GHz |
| System bus rate | 4 GT/s |
| Processor cache | 4 MB |
| Processor cache type | Smart Cache |
| Processor socket | BGA 1356 |
| Processor lithography | 14 nm |
| Processor operating modes | 64-bit |
| Processor codename | Kaby Lake |
| Bus type | OPI |
| Stepping | H0 |
| Thermal Design Power (TDP) | 15 W |
| Configurable TDP-up frequency | 2,9 GHz |
| Configurable TDP-up | 25 W |
| Configurable TDP-down | 7,5 W |
| Configurable TDP-down frequency | 0,8 GHz |
| Tjunction | 100 °C |
| Maximum number of PCI Express lanes | 12 |
| PCI Express slots version | 3.0 |
| PCI Express configurations | 1x2+2x1,1x4,2x2,4x1 |
| ECC supported by processor | No |
Memory
| Internal memory | 16 GB |
|---|---|
| Maximum internal memory | 16 GB |
| Internal memory type | DDR4-SDRAM |
| Memory form factor | On-board |
Storage
| Total storage capacity | 256 GB |
|---|---|
| Storage media | SSD |
| Optical drive type | No |
| Number of SSDs installed | 1 |
| SSD capacity | 256 GB |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash) |
Graphics
| On-board graphics card | Yes |
|---|---|
| Discrete graphics card | Yes |
| Discrete graphics card model | NVIDIA® GeForce® 940MX |
| On-board graphics card model | Intel® HD Graphics 620 |
| On-board graphics card family | Intel® HD Graphics |
| On-board graphics card base frequency | 300 MHz |
| On-board graphics card dynamic frequency (max) | 1050 MHz |
| Maximum on-board graphics card memory | 32 GB |
| On-board graphics card DirectX version | 12.0 |
| On-board graphics card OpenGL version | 4.4 |
| On-board graphics card ID | 0x5916 |
| Number of discrete graphics cards installed | 1 |
Audio
| Number of built-in speakers | 2 |
|---|---|
| Speaker power | 1,5 W |
| Built-in microphone | Yes |
Camera
| Front camera | Yes |
|---|
Network
| Wi-Fi | Yes |
|---|---|
| Wi-Fi standards | Wi-Fi 5 (802.11ac) |
| Ethernet LAN | No |
| Bluetooth | Yes |
| Bluetooth version | 4.1 |
Ports & interfaces
| USB 2.0 ports quantity | 1 |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 0 |
| DisplayPorts quantity | 0 |
| DVI port | No |
| VGA (D-Sub) ports quantity | 0 |
| Thunderbolt ports quantity | 0 |
| Thunderbolt 3 ports quantity | 1 |
| Combo headphone/mic port | Yes |
| Docking connector | No |
| USB Sleep-and-Charge | Yes |
Keyboard
| Pointing device | Touchpad |
|---|---|
| Keyboard backlit | Yes |
| Island-style keyboard | Yes |
| Spill-resistant keyboard | Yes |
| Keyboard number of keys | 85 |
Software
| Operating system installed | Windows 10 Home |
|---|---|
| Bundled software | Samsung Recovery, Samsung Settings, Samsung SideSync, Samsung Update, Simple Sharing, PC Message, PC Gallary, WiFi Transfer, WiFi Camera |
Processor special features
| Intel® Wireless Display (Intel® WiDi) | Yes |
|---|---|
| Intel® My WiFi Technology (Intel® MWT) | Yes |
| Intel® Smart Response Technology | Yes |
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Intel® Small Business Advantage (Intel® SBA) | Yes |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel® Clear Video HD Technology (Intel® CVT HD) | Yes |
| Intel Clear Video Technology | Yes |
| Intel® InTru™ 3D Technology | Yes |
| Intel® Insider™ | Yes |
| Intel® Quick Sync Video Technology | Yes |
| Intel Flex Memory Access | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel Trusted Execution Technology | No |
| Intel Enhanced Halt State | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel® Secure Key | Yes |
| Intel TSX-NI | No |
| Intel Stable Image Platform Program (SIPP) | No |
| Intel® OS Guard | Yes |
| Intel Software Guard Extensions (Intel SGX) | Yes |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | Yes |
| Intel 64 | Yes |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Thermal Monitoring Technologies | Yes |
| Processor package size | 42 x 24 mm |
| Supported instruction sets | AVX 2.0,SSE4.1,SSE4.2 |
| Processor code | SR2ZV |
| CPU configuration (max) | 1 |
| Embedded options available | No |
| Graphics & IMC lithography | 14 nm |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel Identity Protection Technology version | 1.00 |
| Intel Smart Response Technology version | 1.00 |
| Intel Stable Image Platform Program (SIPP) version | 0.00 |
| Intel Secure Key Technology version | 1.00 |
| Intel TSX-NI version | 0.00 |
| Intel Virtualization Technology (VT-x) | Yes |
| Processor ARK ID | 95451 |
| Conflict-Free processor | Yes |
Battery
| Battery capacity | 66 Wh |
|---|---|
| Battery life (max) | 15 h |
Power
| AC adapter power | 65 W |
|---|---|
| DC-in jack | Yes |
Security
| Fingerprint reader | Yes |
|---|---|
| Trusted Platform Module (TPM) | Yes |
| Password protection | Yes |
| Password protection type | BIOS,HDD |
Sustainability
| Sustainability certificates | EPEAT Silver,ENERGY STAR |
|---|
Weight & dimensions
| Weight | 1,24 kg |
|---|---|
| Width | 348 mm |
| Depth | 229,4 mm |
| Height | 15,5 mm |
Packaging content
| AC adapter included | Yes |
|---|---|
| Cables included | AC |
Frequently asked questions
Is the Samsung NP900X5N good for gaming?
You can game on it, though this laptop was not built for it: it carries the dedicated NVIDIA GeForce 940MX. Its card's page shows what level it handles current games at.
How long does the battery of the Samsung NP900X5N last?
The manufacturer declares up to 15 h of battery life. Real duration depends on brightness, workload and battery health.
What is the screen of the Samsung NP900X5N like?
It carries a 15" 1920x1080 350 nits display.
Which processor and graphics card does the Samsung NP900X5N have?
It runs on the Intel Core i7 i7-7500U processor with the NVIDIA GeForce 940MX graphics. Their pages carry their benchmarks, ranking position and alternatives.
Which operating system does the Samsung NP900X5N come with?
It comes with Windows 10 Home preinstalled.
Which ports does the Samsung NP900X5N have?
According to its spec sheet: 1 × Thunderbolt 3, 2 × USB-A, 1 × HDMI, card reader, headphone jack (3.5 mm).
Does the Samsung NP900X5N have a backlit keyboard?
Yes, according to its spec sheet the keyboard is backlit.
Does the Samsung NP900X5N have a touch screen?
No, according to its spec sheet the screen is not a touch screen.
How much does the Samsung NP900X5N weigh?
It weighs 1,24 kg: one of the light ones, easy to carry every day.
When was the Samsung NP900X5N released?
Its release date is May 2017, 9 years ago.
