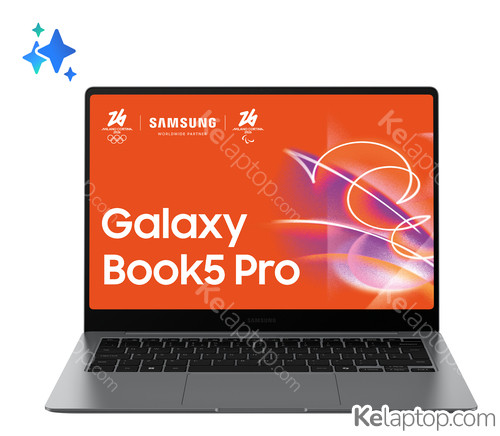

Samsung Galaxy Book5 Pro NP940XHA-KG2IT
Specs
Prices
Local stores
Main specs
| Processor | |
|---|---|
| Screen | 14" 2880x1800 AMOLED 120Hz 400 nits |
| Hard drive | 512GB SSD M.2 |
| RAM | 16GB LPDDR5x-SDRAM |
| Operating system | Windows 11 Home |
| Graphics card |
Other configurations of this model
| Score | Power | Price ▲ | Processor | Graphics card | Screen | RAM | Hard drive | Operating system | Keyboard | Charger included |
|---|---|---|---|---|---|---|---|---|---|---|
| 10 | 52 | €1027.99 | Intel Core Ultra 5 226V | Intel Arc Graphics 130V | 14" | 16GB | 512GB | Windows 11 Home | Yes | |
| 8.9 | 49 | €1298.15 | Intel Core Ultra 5 226V | Intel Arc Graphics 130V | 14" | 16GB | 256GB | Windows 11 Pro | UK English | Yes |
| 9.2 | 54 | €1336 | Intel Core Ultra 5 226V | Intel Arc Graphics 130V | 14" | 16GB | 1TB | Windows 11 Home | Yes | |
| 9 | 55 | €1699 | Intel Core Ultra 7 256V | Intel Arc Graphics 140V | 14" | 16GB | 1TB | Windows 11 Home | Yes | |
| 8.6 | 52 | €1701.02 | Intel Core Ultra 5 226V | Intel Arc Graphics 130V | 14" | 16GB | 512GB | Windows 11 Pro | Spanish | Yes |
Full specifications of Samsung Galaxy Book5 Pro NP940XHA-KG2IT
| Reference / Part Number | NP940XHA-KG2IT |
|---|---|
| Release date | January 2025, 1 year ago |
Design
| Product type | Laptop |
|---|---|
| Product colour | Grey |
| Form factor | Clamshell |
| Stylus pen support | No |
Image gallery
Screen
| Display diagonal | 35,6 cm |
|---|---|
| Display resolution | 2880 x 1800 pixels |
| Touchscreen | Yes |
| HD type | WQXGA+ |
| Panel type | AMOLED |
| Native aspect ratio | 16:10 |
| Display brightness | 400 cd/m² |
| Maximum display brightness (HDR) | 500 cd/m² |
| Maximum refresh rate | 120 Hz |
Processor
| Processor family | Intel Core Ultra 7 |
|---|---|
| Processor manufacturer | Intel |
| Processor model | 256V |
| Processor generation | Intel Core Ultra (Series 2) |
| Processor cores | 8 |
| Processor threads | 8 |
| Processor boost frequency | 4,8 GHz |
| Performance cores | 4 |
| Low Power Efficient-cores | 4 |
| Performance-core Max Turbo Frequency | 4,8 GHz |
| Low Power Efficient-core Max Turbo Frequency | 3,7 GHz |
| Performance-core base frequency | 2,2 GHz |
| Low Power Efficient-core Base Frequency | 2,2 MHz |
| Processor cache | 12 MB |
| Processor cache type | Smart Cache |
| Tjunction | 100 °C |
| Processor base power | 17 W |
| Maximum turbo power | 37 W |
Neural processor unit (NPU)
| Neural processor unit (NPU) | Intel AI Boost |
|---|---|
| Sparsity support | Yes |
| Windows Studio effects support | Yes |
| AI software frameworks supported by NPU | DirectML,ONNX RT,OpenVINO,WebNN,Windows ML |
| NPU performance up to | 47 TOPs |
Memory
| Internal memory | 16 GB |
|---|---|
| Maximum internal memory | 16 GB |
| Internal memory type | LPDDR5x-SDRAM |
| Memory clock speed | 8533 MHz |
Storage
| Total storage capacity | 512 GB |
|---|---|
| Storage media | SSD |
| Optical drive type | No |
| Total SSDs capacity | 512 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 512 GB |
| SSD interface | PCI Express 4.0 |
| SSD form factor | M.2 |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash),MicroSDHC,MicroSDXC |
Graphics
| On-board graphics card | Yes |
|---|---|
| Discrete graphics card | No |
| On-board graphics card model | Intel Arc Graphics 140V |
| On-board graphics card family | Intel Arc Graphics |
| On-board graphics card DirectX version | 12.2 |
| On-board graphics card OpenGL version | 4.6 |
| On-board graphics card 8K support | Yes |
Audio
| Number of built-in speakers | 4 |
|---|---|
| Built-in subwoofer | Yes |
| Built-in microphone | Yes |
| Number of microphones | 2 |
Camera
| Front camera | Yes |
|---|
Network
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
|---|---|
| Wi-Fi standards | 802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n),Wi-Fi 5 (802.11ac),Wi-Fi 6 (802.11ax),Wi-Fi 6E (802.11ax),Wi-Fi 7 (802.11be) |
| Antenna type | 2x2 |
| Ethernet LAN | Yes |
| Bluetooth | Yes |
| Bluetooth version | 5.4 |
Ports & interfaces
| HDMI ports quantity | 1 |
|---|---|
| HDMI version | 2.1 |
| Thunderbolt 4 ports quantity | 2 |
| Headphone outputs | 1 |
Performance
| Repairability index | 8.7 |
|---|
Keyboard
| Numeric keypad | Yes |
|---|---|
| Pointing device | Touchpad |
| Keyboard backlit | Yes |
Software
| Operating system installed | Windows 11 Home |
|---|
Processor special features
| Intel Trusted Execution Technology | Yes |
|---|---|
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel® Secure Key | Yes |
| Intel® OS Guard | Yes |
| Execute Disable Bit | Yes |
| Supported instruction sets | AVX 2.0,SSE4.1,SSE4.2 |
| CPU configuration (max) | 1 |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® Smart Sound Technology | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
Battery
| Battery capacity | 62,2 Wh |
|---|---|
| Battery technology | Lithium-Ion (Li-Ion) |
| Number of battery cells | 4 |
| Battery capacity | 4023 mAh |
| Battery voltage | 15,44 V |
| Battery life (max) | 21 h |
| Battery recharge time | 1,5 h |
Power
| AC adapter power | 65 W |
|---|
Security
| Trusted Platform Module (TPM) | Yes |
|---|---|
| Trusted Platform Module (TPM) version | 2.0 |
Weight & dimensions
| Weight | 1,23 kg |
|---|---|
| Width | 312,3 mm |
| Depth | 223,8 mm |
| Height | 11,6 mm |
Packaging data
| Package width | 396,3 mm |
|---|---|
| Package depth | 234,9 mm |
| Package height | 43,1 mm |
Packaging content
| AC adapter included | Yes |
|---|
Alternatives with equal or higher power at a similar or lower price
Frequently asked questions
Is the Samsung Galaxy Book5 Pro NP940XHA-KG2IT good for gaming?
This laptop was not built for gaming: it relies on the integrated Intel Arc Graphics 140V. Its card's page shows what level it handles current games at.
How long does the battery of the Samsung Galaxy Book5 Pro NP940XHA-KG2IT last?
The manufacturer declares up to 21 h of battery life. Real duration depends on brightness, workload and battery health.
What is the screen of the Samsung Galaxy Book5 Pro NP940XHA-KG2IT like?
It carries a 14" 2880x1800 AMOLED 120Hz 400 nits display.
Which processor and graphics card does the Samsung Galaxy Book5 Pro NP940XHA-KG2IT have?
It runs on the Intel Core Ultra 7 256V processor with the Intel Arc Graphics 140V graphics. Their pages carry their benchmarks, ranking position and alternatives.
Which operating system does the Samsung Galaxy Book5 Pro NP940XHA-KG2IT come with?
It comes with Windows 11 Home preinstalled.
Which ports does the Samsung Galaxy Book5 Pro NP940XHA-KG2IT have?
According to its spec sheet: 2 × Thunderbolt 4, 1 × HDMI, Ethernet (RJ-45), card reader.
Does the Samsung Galaxy Book5 Pro NP940XHA-KG2IT have a backlit keyboard?
Yes, according to its spec sheet the keyboard is backlit.
Does the Samsung Galaxy Book5 Pro NP940XHA-KG2IT have a touch screen?
Yes, according to its spec sheet the screen is a touch screen.
How much does the Samsung Galaxy Book5 Pro NP940XHA-KG2IT weigh?
It weighs 1,23 kg: one of the light ones, easy to carry every day.
When was the Samsung Galaxy Book5 Pro NP940XHA-KG2IT released?
Its release date is January 2025, 1 year ago.
