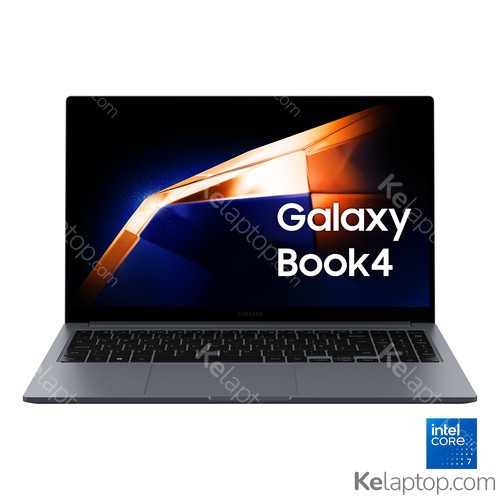

Samsung Galaxy Book4 NP754XGL-XG3IT
Specs
Prices
Main specs
| Processor | |
|---|---|
| Screen | 15.6" 1920x1080 60Hz |
| Hard drive | 1TB SSD M.2 |
| RAM | 16GB LPDDR4x-SDRAM |
| Operating system | Windows 11 Pro |
| Graphics card | NVIDIA GeForce MX570 4GB GDDR6 |
Other configurations of this model
Full specifications of Samsung Galaxy Book4 NP754XGL-XG3IT
| Reference / Part Number | NP754XGL-XG3IT |
|---|---|
| Release date | March 2024, 2 years ago |
Design
| Product type | Laptop |
|---|---|
| Product colour | Grey |
| Form factor | Clamshell |
| Colour name | Moonstone Gray |
| Original brand name | Samsung |
Image gallery
Screen
| Display diagonal | 39,6 cm |
|---|---|
| Display resolution | 1920 x 1080 pixels |
| Touchscreen | No |
| HD type | Full HD |
| LED backlight | Yes |
| Native aspect ratio | 16:9 |
| Anti-glare screen | Yes |
| Display diagonal (metric) | 39,6 cm |
| Maximum refresh rate | 60 Hz |
Processor
| Processor family | Intel Core 7 |
|---|---|
| Processor manufacturer | Intel |
| Processor model | 150U |
| Processor generation | Intel Core (Series 1) |
| Processor cores | 10 |
| Processor boost frequency | 5,4 GHz |
| Performance cores | 2 |
| Efficient cores | 8 |
| Performance-core Max Turbo Frequency | 5,4 GHz |
| Efficient-core Max Turbo Frequency | 4 GHz |
| Efficient-core base frequency | 1,2 GHz |
| Performance-core boost frequency | 1,8 GHz |
| Processor cache | 12 MB |
| Processor cache type | Smart Cache |
| Processor base power | 15 W |
| Maximum turbo power | 55 W |
Memory
| Internal memory | 16 GB |
|---|---|
| Maximum internal memory | 16 GB |
| Internal memory type | LPDDR4x-SDRAM |
| Memory clock speed | 4266 MHz |
| Memory form factor | On-board |
Storage
| Total storage capacity | 1 TB |
|---|---|
| Storage media | SSD |
| Optical drive type | No |
| Total SSDs capacity | 1 TB |
| Number of SSDs installed | 1 |
| SSD capacity | 1 TB |
| SSD interface | PCI Express 4.0 |
| NVMe | Yes |
| SSD form factor | M.2 |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash),MicroSDHC,MicroSDXC |
Graphics
| On-board graphics card | Yes |
|---|---|
| Discrete graphics card | Yes |
| Discrete graphics card model | NVIDIA GeForce MX570 |
| On-board graphics card model | Intel Iris Xe Graphics |
| Discrete GPU manufacturer | NVIDIA |
| Discrete graphics card memory | 4 GB |
| Discrete graphics memory type | GDDR6 |
| On-board GPU manufacturer | Intel |
| On-board graphics card family | Intel Iris Xe Graphics |
| On-board graphics card 4K support | Yes |
| On-board graphics card 6K support | Yes |
| Graphics card Open GL support | Yes |
Audio
| Number of built-in speakers | 2 |
|---|---|
| Speaker power | 2 W |
| Built-in microphone | Yes |
| Number of microphones | 2 |
Camera
| Front camera | Yes |
|---|---|
| Front camera resolution | 1280 x 720 pixels |
| Front camera HD type | HD |
| Video capturing speed | 30 fps |
Network
| Mobile network connection | No |
|---|---|
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Wi-Fi standards | 802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n),Wi-Fi 5 (802.11ac),Wi-Fi 6 (802.11ax) |
| Antenna type | 2x2 |
| WLAN controller model | Intel Wi-Fi 6 AX201 |
| WLAN controller manufacturer | Intel |
| Ethernet LAN | Yes |
| Bluetooth | Yes |
| Bluetooth version | 5.2 |
Ports & interfaces
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
|---|---|
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI version | 1.4b |
| Headphone outputs | 1 |
Performance
| Hall sensor | Yes |
|---|
Keyboard
| Numeric keypad | Yes |
|---|---|
| Pointing device | Touchpad |
| Keyboard backlit | Yes |
Software
| Operating system installed | Windows 11 Pro |
|---|
Battery
| Battery capacity | 54 Wh |
|---|---|
| Battery technology | Lithium-Ion (Li-Ion) |
| Number of battery cells | 4 |
| Battery capacity | 3530 mAh |
| Battery voltage | 15,4 V |
| Continuous video playback time | 15 h |
| Battery recharge time | 2 h |
Power
| AC adapter power | 65 W |
|---|
Security
| Cable lock slot | Yes |
|---|---|
| Cable lock slot type | Kensington |
| Fingerprint reader | Yes |
| Trusted Platform Module (TPM) | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
Weight & dimensions
| Weight | 1,57 kg |
|---|---|
| Width | 356,6 mm |
| Depth | 229,2 mm |
| Height | 15,4 mm |
Packaging data
| Package width | 501 mm |
|---|---|
| Package depth | 298 mm |
| Package height | 67 mm |
Packaging content
| Cables included | USB Type-C |
|---|
Alternatives with equal or higher power at a similar or lower price
Frequently asked questions
Is the Samsung Galaxy Book4 NP754XGL-XG3IT good for gaming?
You can game on it, though this laptop was not built for it: it carries the dedicated NVIDIA GeForce MX570. Its card's page shows what level it handles current games at.
What is the screen of the Samsung Galaxy Book4 NP754XGL-XG3IT like?
It carries a 15.6" 1920x1080 60Hz display.
Which processor and graphics card does the Samsung Galaxy Book4 NP754XGL-XG3IT have?
It runs on the Intel Core 7 150U processor with the NVIDIA GeForce MX570 graphics. Their pages carry their benchmarks, ranking position and alternatives.
Which operating system does the Samsung Galaxy Book4 NP754XGL-XG3IT come with?
It comes with Windows 11 Pro preinstalled.
Which ports does the Samsung Galaxy Book4 NP754XGL-XG3IT have?
According to its spec sheet: 2 × USB-A, 1 × HDMI, Ethernet (RJ-45), card reader.
Does the Samsung Galaxy Book4 NP754XGL-XG3IT have a backlit keyboard?
Yes, according to its spec sheet the keyboard is backlit.
Does the Samsung Galaxy Book4 NP754XGL-XG3IT have a touch screen?
No, according to its spec sheet the screen is not a touch screen.
How much does the Samsung Galaxy Book4 NP754XGL-XG3IT weigh?
It weighs 1,57 kg, a normal weight for its size: easy enough to move around.
When was the Samsung Galaxy Book4 NP754XGL-XG3IT released?
Its release date is March 2024, 2 years ago.
