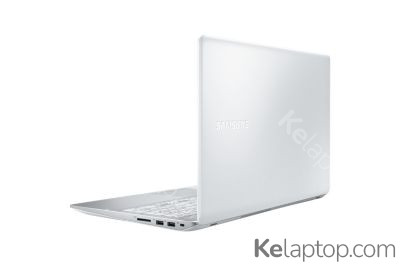

Samsung 5 NP500R4K
Specs
Prices
Main specs
| Processor | Intel Core i5 i5-5200U 2,2GHz |
|---|---|
| Screen | 14" 1366x768 |
| Hard drive | 256GB SSD |
| RAM | 8GB |
| Operating system | Windows 10 |
| Graphics card | Intel HD Graphics 5500 |
Alternatives with equal or higher power at a similar or lower price
From Samsung
Full specifications of Samsung 5 NP500R4K
| Reference / Part Number | NP500R4K-X08CN |
|---|---|
| Release date | January 2018, 8 years ago |
Design
| Product type | Laptop |
|---|---|
| Product colour | White |
| Form factor | Clamshell |
Image gallery
Screen
| Display diagonal | 35,6 cm |
|---|---|
| Display resolution | 1366 x 768 pixels |
| Touchscreen | No |
| HD type | HD |
| LED backlight | Yes |
Processor
| Processor family | Intel® Core™ i5 |
|---|---|
| Processor manufacturer | Intel |
| Processor model | i5-5200U |
| Processor frequency | 2,2 GHz |
| Processor generation | 5th gen Intel® Core™ i5 |
| Processor cores | 2 |
| Processor threads | 4 |
| Processor boost frequency | 2,7 GHz |
| System bus rate | 5 GT/s |
| Processor cache | 3 MB |
| Processor cache type | Smart Cache |
| Processor socket | BGA 1168 |
| Processor lithography | 14 nm |
| Processor operating modes | 32-bit,64-bit |
| Processor series | Intel Core i5-5200 Mobile series |
| Processor codename | Broadwell |
| Bus type | DMI2 |
| Stepping | F0 |
| Thermal Design Power (TDP) | 15 W |
| Configurable TDP-down | 7,5 W |
| Configurable TDP-down frequency | 0,6 GHz |
| Tjunction | 105 °C |
| Maximum number of PCI Express lanes | 12 |
| PCI Express slots version | 2.0 |
| PCI Express configurations | 4x1,2x4 |
Memory
| Internal memory | 8 GB |
|---|
Storage
| Total storage capacity | 256 GB |
|---|---|
| Storage media | SSD |
| Number of SSDs installed | 1 |
| SSD capacity | 256 GB |
| Card reader integrated | Yes |
| Compatible memory cards | SD,SDHC,SDXC |
Graphics
| On-board graphics card | Yes |
|---|---|
| On-board graphics card model | Intel® HD Graphics 5500 |
| On-board graphics card base frequency | 300 MHz |
| On-board graphics card dynamic frequency (max) | 900 MHz |
| Maximum on-board graphics card memory | 16 GB |
| On-board graphics card DirectX version | 11.2 |
| On-board graphics card ID | 0x1616 |
Audio
| Number of built-in speakers | 2 |
|---|---|
| Built-in microphone | Yes |
Camera
| Front camera | Yes |
|---|
Network
| Wi-Fi | Yes |
|---|---|
| Wi-Fi standards | Wi-Fi 5 (802.11ac) |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Bluetooth | Yes |
Ports & interfaces
| USB 2.0 ports quantity | 2 |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| HDMI ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 1 |
| DisplayPorts quantity | 0 |
| VGA (D-Sub) ports quantity | 1 |
| Thunderbolt 3 ports quantity | 0 |
| Combo headphone/mic port | Yes |
Keyboard
| Numeric keypad | No |
|---|
Software
| Operating system installed | Windows 10 |
|---|
Processor special features
| Intel® Wireless Display (Intel® WiDi) | Yes |
|---|---|
| Intel® Smart Response Technology | Yes |
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Intel® Small Business Advantage (Intel® SBA) | Yes |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel® Clear Video HD Technology (Intel® CVT HD) | Yes |
| Intel Clear Video Technology | Yes |
| Intel® InTru™ 3D Technology | Yes |
| Intel® Insider™ | Yes |
| Intel® Quick Sync Video Technology | Yes |
| Intel Flex Memory Access | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel Enhanced Halt State | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel® Secure Key | Yes |
| Intel® OS Guard | Yes |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | Yes |
| Intel 64 | Yes |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Thermal Monitoring Technologies | Yes |
| Processor package size | 40 x 24 x 1.3 mm |
| Supported instruction sets | AVX 2.0,SSE4.1,SSE4.2 |
| Processor code | SR23Y |
| CPU configuration (max) | 1 |
| Embedded options available | No |
| Graphics & IMC lithography | 14 nm |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel Identity Protection Technology version | 1.00 |
| Intel Smart Response Technology version | 1.00 |
| Intel Secure Key Technology version | 1.00 |
| Intel Small Business Advantage (SBA) version | 1.00 |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel FDI Technology | Yes |
| Intel Fast Memory Access | Yes |
| Processor ARK ID | 85212 |
| Conflict-Free processor | Yes |
Power
| DC-in jack | Yes |
|---|
Weight & dimensions
| Weight | 1,65 kg |
|---|---|
| Width | 336 mm |
| Depth | 230,5 mm |
| Height | 20,9 mm |
Frequently asked questions
Is the Samsung 5 NP500R4K good for gaming?
This laptop was not built for gaming: it relies on the integrated Intel HD Graphics 5500. Its card's page shows what level it handles current games at.
What is the screen of the Samsung 5 NP500R4K like?
It carries a 14" 1366x768 display.
Which processor and graphics card does the Samsung 5 NP500R4K have?
It runs on the Intel Core i5 i5-5200U processor with the Intel HD Graphics 5500 graphics. Their pages carry their benchmarks, ranking position and alternatives.
Which operating system does the Samsung 5 NP500R4K come with?
It comes with Windows 10 preinstalled.
Which ports does the Samsung 5 NP500R4K have?
According to its spec sheet: 1 × USB-A, 1 × HDMI, Ethernet (RJ-45), card reader, headphone jack (3.5 mm).
Does the Samsung 5 NP500R4K have a touch screen?
No, according to its spec sheet the screen is not a touch screen.
How much does the Samsung 5 NP500R4K weigh?
It weighs 1,65 kg, a normal weight for its size: easy enough to move around.
When was the Samsung 5 NP500R4K released?
Its release date is January 2018, 8 years ago.
