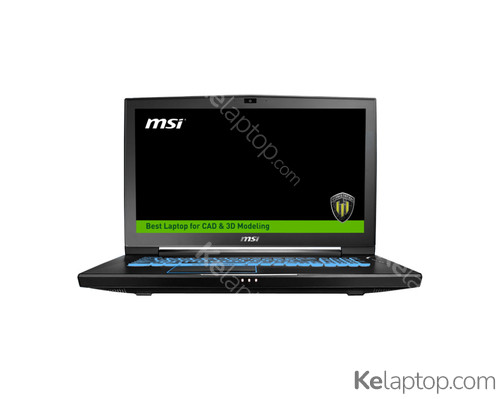

MSI Workstation WT73 WT73VR 7RM-877CA
Specs
Prices
Main specs
| Processor | Intel Core i7 i7-7820HK 2,9GHz |
|---|---|
| Screen | 17.3" 1920x1080 |
| Hard drive | 1,51TB HDD+SSD |
| RAM | 32GB DDR4-SDRAM |
| Operating system | Windows 10 Pro |
| Graphics card | NVIDIA Quadro P5000 16GB GDDR5 |
Alternatives with equal or higher power at a similar or lower price
Full specifications of MSI Workstation WT73 WT73VR 7RM-877CA
| Reference / Part Number | WT73VR 7RM-877CA |
|---|---|
| Also sold as | 9S7-17A131-1028 |
| Release date | March 2018, 8 years ago |
Design
| Product type | Mobile workstation |
|---|---|
| Product colour | Black |
| Form factor | Clamshell |
Image gallery
Screen
| Display diagonal | 43,9 cm |
|---|---|
| Display resolution | 1920 x 1080 pixels |
| Touchscreen | No |
| HD type | Full HD |
| LED backlight | Yes |
| Native aspect ratio | 16:9 |
| Dual-screen | No |
Processor
| Processor family | Intel® Core™ i7 |
|---|---|
| Processor manufacturer | Intel |
| Processor model | i7-7820HK |
| Processor frequency | 2,9 GHz |
| Processor generation | 7th gen Intel® Core™ i7 |
| Processor cores | 4 |
| Processor threads | 8 |
| Processor boost frequency | 3,9 GHz |
| System bus rate | 8 GT/s |
| Processor cache | 8 MB |
| Processor cache type | Smart Cache |
| Processor lithography | 14 nm |
| Processor operating modes | 64-bit |
| Processor series | Intel Core i7-7800 Mobile Series |
| Processor codename | Kaby Lake |
| Bus type | DMI3 |
| Thermal Design Power (TDP) | 45 W |
| Configurable TDP-down | 35 W |
| Tjunction | 100 °C |
| Maximum number of PCI Express lanes | 16 |
| PCI Express slots version | 3.0 |
| PCI Express configurations | 1x16,1x8,2x4,2x8 |
| ECC supported by processor | No |
Memory
| Internal memory | 32 GB |
|---|---|
| Maximum internal memory | 64 GB |
| Internal memory type | DDR4-SDRAM |
| Memory slots | 4x SO-DIMM |
Storage
| Total storage capacity | 1,51 TB |
|---|---|
| Storage media | HDD+SSD |
| Optical drive type | No |
| Number of HDDs installed | 1 |
| HDD capacity | 1 TB |
| SSD capacity | 512 GB |
| Card reader integrated | Yes |
| Compatible memory cards | SD,SDHC,SDXC |
Graphics
| On-board graphics card | Yes |
|---|---|
| Discrete graphics card | Yes |
| Discrete graphics card model | NVIDIA® Quadro® P5000 |
| On-board graphics card model | Intel® HD Graphics 630 |
| Discrete graphics card memory | 16 GB |
| Discrete graphics memory type | GDDR5 |
| On-board graphics card base frequency | 350 MHz |
| On-board graphics card dynamic frequency (max) | 1100 MHz |
| Maximum on-board graphics card memory | 64 GB |
| On-board graphics card DirectX version | 12.0 |
| On-board graphics card OpenGL version | 4.4 |
| On-board graphics card ID | 0x591B |
Audio
| Number of built-in speakers | 2 |
|---|---|
| Speaker power | 6 W |
| Built-in subwoofer | Yes |
| Built-in microphone | Yes |
Camera
| Front camera | Yes |
|---|---|
| Front camera resolution | 1920 x 1080 pixels |
| Video capturing speed | 30 fps |
Network
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
|---|---|
| Wi-Fi | Yes |
| Wi-Fi standards | Wi-Fi 5 (802.11ac) |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Bluetooth | Yes |
| Bluetooth version | 4.2 |
Ports & interfaces
| USB 2.0 ports quantity | 0 |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 5 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| HDMI ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| DisplayPorts quantity | 0 |
| Mini DisplayPorts quantity | 1 |
| DVI port | No |
| VGA (D-Sub) ports quantity | 0 |
| Thunderbolt ports quantity | 0 |
| Thunderbolt 3 ports quantity | 0 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| Docking connector | No |
Performance
| Motherboard chipset | Intel® CM238 |
|---|
Keyboard
| Numeric keypad | Yes |
|---|---|
| Pointing device | Touchpad |
| Keyboard backlit | Yes |
| Windows keys | Yes |
Software
| Operating system installed | Windows 10 Pro |
|---|---|
| Operating system architecture | 64-bit |
Processor special features
| Intel® Wireless Display (Intel® WiDi) | Yes |
|---|---|
| Intel® My WiFi Technology (Intel® MWT) | Yes |
| Intel® Smart Response Technology | Yes |
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel HD Graphics | Yes |
| Intel® Clear Video HD Technology (Intel® CVT HD) | Yes |
| Intel Clear Video Technology | Yes |
| Intel® InTru™ 3D Technology | Yes |
| Intel® Quick Sync Video Technology | Yes |
| Intel Flex Memory Access | Yes |
| Intel® Smart Cache | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel Trusted Execution Technology | No |
| Intel Enhanced Halt State | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel® Secure Key | Yes |
| Intel TSX-NI | Yes |
| Intel Stable Image Platform Program (SIPP) | No |
| Intel® OS Guard | Yes |
| Intel Software Guard Extensions (Intel SGX) | Yes |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | Yes |
| Intel 64 | Yes |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Thermal Monitoring Technologies | Yes |
| Processor package size | 42 x 28 mm |
| Supported instruction sets | AVX 2.0,SSE4.1,SSE4.2 |
| CPU configuration (max) | 1 |
| Embedded options available | No |
| Graphics & IMC lithography | 14 nm |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel Identity Protection Technology version | 1.00 |
| Intel Smart Response Technology version | 1.00 |
| Intel Stable Image Platform Program (SIPP) version | 0.00 |
| Intel Secure Key Technology version | 1.00 |
| Intel Small Business Advantage (SBA) version | 1.00 |
| Intel TSX-NI version | 1.00 |
| Intel Virtualization Technology (VT-x) | Yes |
| Processor ARK ID | 97464 |
| Conflict-Free processor | Yes |
Battery
| Battery capacity | 75 Wh |
|---|---|
| Battery technology | Lithium-Ion (Li-Ion) |
| Number of battery cells | 8 |
Power
| AC adapter power | 230 W |
|---|---|
| DC-in jack | Yes |
Weight & dimensions
| Weight | 4,14 kg |
|---|---|
| Width | 428 mm |
| Depth | 287 mm |
| Height (front) | 2,4 cm |
| Height (rear) | 4,9 cm |
Packaging content
| AC adapter included | Yes |
|---|
Other features
| 3D | No |
|---|
Frequently asked questions
Is the MSI Workstation WT73 WT73VR 7RM-877CA good for gaming?
You can game on it, though this laptop was not built for it: it carries the dedicated NVIDIA Quadro P5000. Its card's page shows what level it handles current games at.
What is the screen of the MSI Workstation WT73 WT73VR 7RM-877CA like?
It carries a 17.3" 1920x1080 display.
Which processor and graphics card does the MSI Workstation WT73 WT73VR 7RM-877CA have?
It runs on the Intel Core i7 i7-7820HK processor with the NVIDIA Quadro P5000 graphics. Their pages carry their benchmarks, ranking position and alternatives.
Can the RAM of the MSI Workstation WT73 WT73VR 7RM-877CA be upgraded?
Yes: it has 4 memory slots and takes up to 64 GB according to the manufacturer (it ships with 32GB).
Which operating system does the MSI Workstation WT73 WT73VR 7RM-877CA come with?
It comes with Windows 10 Pro preinstalled.
Which ports does the MSI Workstation WT73 WT73VR 7RM-877CA have?
According to its spec sheet: 1 × USB-C, 5 × USB-A, 1 × HDMI, Ethernet (RJ-45), card reader.
Does the MSI Workstation WT73 WT73VR 7RM-877CA have a backlit keyboard?
Yes, according to its spec sheet the keyboard is backlit.
Does the MSI Workstation WT73 WT73VR 7RM-877CA have a touch screen?
No, according to its spec sheet the screen is not a touch screen.
How much does the MSI Workstation WT73 WT73VR 7RM-877CA weigh?
It weighs 4,14 kg: one of the heavy ones, more of a desk machine than a daily commuter.
When was the MSI Workstation WT73 WT73VR 7RM-877CA released?
Its release date is March 2018, 8 years ago.
