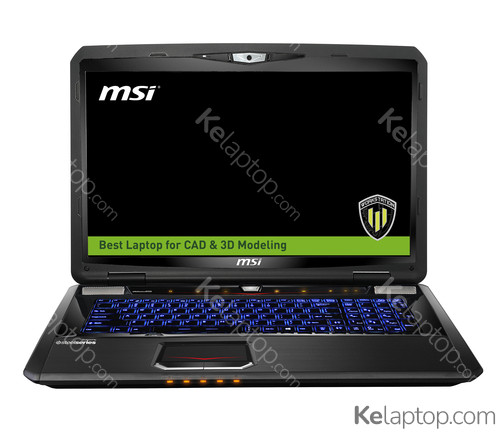

MSI Workstation WT70 2OL-2285FR
Specs
Prices
Main specs
| Processor | Intel Core i7 i7-4810MQ 2,8GHz |
|---|---|
| Screen | 17.3" 1920x1080 300 nits |
| Hard drive | 1,13TB HDD+SSD |
| RAM | 16GB DDR3L-SDRAM |
| Operating system | Windows 7 Professional |
| Graphics card | NVIDIA Quadro K4100M 4GB GDDR5 |
Alternatives with equal or higher power at a similar or lower price
From other brands
Full specifications of MSI Workstation WT70 2OL-2285FR
| Reference / Part Number | 9S7-176342-2496 |
|---|---|
| Release date | October 2017, 9 years ago |
Design
| Product type | Mobile workstation |
|---|---|
| Product colour | Black |
| Form factor | Clamshell |
Image gallery
Screen
| Display diagonal | 43,9 cm |
|---|---|
| Display resolution | 1920 x 1080 pixels |
| Touchscreen | No |
| HD type | Full HD |
| LED backlight | Yes |
| Native aspect ratio | 16:9 |
| Display surface | Matt |
| Display brightness | 300 cd/m² |
| Pixel pitch | 0,199 x 0,199 mm |
| Dual-screen | No |
| Display response rise/fall | 8 ms |
Processor
| Processor family | Intel® Core™ i7 |
|---|---|
| Processor manufacturer | Intel |
| Processor model | i7-4810MQ |
| Processor frequency | 2,8 GHz |
| Processor generation | 4th gen Intel® Core™ i7 |
| Processor cores | 4 |
| Processor threads | 8 |
| Processor boost frequency | 3,8 GHz |
| System bus rate | 5 GT/s |
| Processor cache | 6 MB |
| Processor cache type | Smart Cache |
| Processor lithography | 22 nm |
| Processor operating modes | 64-bit |
| Processor series | Intel Core i7-4800 Mobile series |
| Processor codename | Haswell |
| Bus type | DMI2 |
| Thermal Design Power (TDP) | 47 W |
| Tjunction | 100 °C |
| Maximum number of PCI Express lanes | 16 |
| PCI Express slots version | 3.0 |
| PCI Express configurations | 1x16,2x8,1x8+2x4 |
| ECC supported by processor | No |
Memory
| Internal memory | 16 GB |
|---|---|
| Maximum internal memory | 32 GB |
| Internal memory type | DDR3L-SDRAM |
| Memory clock speed | 1600 MHz |
| Memory form factor | SO-DIMM |
| Memory slots | 4x SO-DIMM |
Storage
| Total storage capacity | 1,13 TB |
|---|---|
| Storage media | HDD+SSD |
| Optical drive type | DVD Super Multi |
| Number of HDDs installed | 1 |
| HDD capacity | 1 TB |
| HDD interface | SATA |
| HDD speed | 7200 RPM |
| SSD capacity | 128 GB |
| Card reader integrated | Yes |
| Compatible memory cards | SD,SDHC,SDXC |
Graphics
| On-board graphics card | Yes |
|---|---|
| Discrete graphics card | Yes |
| Discrete graphics card model | NVIDIA® Quadro® K4100M |
| On-board graphics card model | Intel® HD Graphics 4600 |
| Discrete graphics card memory | 4 GB |
| Discrete graphics memory type | GDDR5 |
| On-board graphics card base frequency | 400 MHz |
| On-board graphics card dynamic frequency (max) | 1300 MHz |
| Maximum on-board graphics card memory | 1,74 GB |
| On-board graphics card DirectX version | 11.1 |
| On-board graphics card ID | 0x416 |
Audio
| Number of built-in speakers | 2 |
|---|---|
| Speakers manufacturer | Dynaudio |
| Built-in subwoofer | Yes |
| Built-in microphone | Yes |
Camera
| Front camera | Yes |
|---|---|
| Front camera resolution | 1280 x 720 pixels |
| Video capturing speed | 30 fps |
Network
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
|---|---|
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a,Wi-Fi 5 (802.11ac),802.11b,802.11g,Wi-Fi 4 (802.11n) |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,1000,100 Mbit/s |
| Bluetooth | Yes |
| Bluetooth version | 4.0 |
Ports & interfaces
| USB 2.0 ports quantity | 2 |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI version | 1.4 |
| DisplayPorts quantity | 0 |
| Mini DisplayPorts quantity | 1 |
| DVI port | No |
| VGA (D-Sub) ports quantity | 1 |
| Thunderbolt ports quantity | 0 |
| Headphone outputs | 1 |
| S/PDIF out port | Yes |
| Microphone in | Yes |
| Line-in | Yes |
| Docking connector | No |
| ExpressCard slot | No |
| CardBus PCMCIA slots quantity | 0 |
| CardBus PCMCIA slot type | No |
| SmartCard slot | No |
Performance
| Motherboard chipset | Intel® HM87 |
|---|
Keyboard
| Numeric keypad | Yes |
|---|---|
| Pointing device | Touchpad |
| Windows keys | Yes |
Software
| Operating system installed | Windows 7 Professional |
|---|---|
| Operating system architecture | 64-bit |
Processor special features
| Intel® Wireless Display (Intel® WiDi) | Yes |
|---|---|
| Intel® Anti-Theft Technology (Intel® AT) | Yes |
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel® Clear Video HD Technology (Intel® CVT HD) | Yes |
| Intel® InTru™ 3D Technology | Yes |
| Intel® Insider™ | Yes |
| Intel® Quick Sync Video Technology | Yes |
| Intel QuickPath Interconnect | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel Trusted Execution Technology | Yes |
| Intel Enhanced Halt State | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Demand Based Switching | Yes |
| Intel® Secure Key | Yes |
| Intel TSX-NI | No |
| Intel 64 | Yes |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Thermal Monitoring Technologies | Yes |
| Processor package size | 37.5 x 37.5 x 4.7 mm |
| Supported instruction sets | AVX 2.0 |
| CPU configuration (max) | 1 |
| Embedded options available | No |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel Identity Protection Technology version | 1.00 |
| Intel Secure Key Technology version | 1.00 |
| Intel TSX-NI version | 0.00 |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel FDI Technology | Yes |
| Processor ARK ID | 78937 |
| Conflict-Free processor | Yes |
Battery
| Battery technology | Lithium-Ion (Li-Ion) |
|---|---|
| Number of battery cells | 9 |
Power
| AC adapter power | 180 W |
|---|---|
| AC adapter frequency | 50 - 60 Hz |
| DC-in jack | Yes |
Security
| Cable lock slot | No |
|---|
Weight & dimensions
| Weight | 3,9 kg |
|---|---|
| Width | 428 mm |
| Depth | 288 mm |
| Height | 55 mm |
Packaging content
| AC adapter included | Yes |
|---|---|
| Manual | Yes |
Other features
| LightScribe | No |
|---|---|
| 3D | No |
Frequently asked questions
Is the MSI Workstation WT70 2OL-2285FR good for gaming?
You can game on it, though this laptop was not built for it: it carries the dedicated NVIDIA Quadro K4100M. Its card's page shows what level it handles current games at.
What is the screen of the MSI Workstation WT70 2OL-2285FR like?
It carries a 17.3" 1920x1080 300 nits display.
Which processor and graphics card does the MSI Workstation WT70 2OL-2285FR have?
It runs on the Intel Core i7 i7-4810MQ processor with the NVIDIA Quadro K4100M graphics. Their pages carry their benchmarks, ranking position and alternatives.
Can the RAM of the MSI Workstation WT70 2OL-2285FR be upgraded?
Yes: it has 4 memory slots and takes up to 32 GB according to the manufacturer (it ships with 16GB).
Which operating system does the MSI Workstation WT70 2OL-2285FR come with?
It comes with Windows 7 Professional preinstalled.
Which ports does the MSI Workstation WT70 2OL-2285FR have?
According to its spec sheet: 3 × USB-A, 1 × HDMI, Ethernet (RJ-45), card reader.
Does the MSI Workstation WT70 2OL-2285FR have a touch screen?
No, according to its spec sheet the screen is not a touch screen.
How much does the MSI Workstation WT70 2OL-2285FR weigh?
It weighs 3,9 kg: one of the heavy ones, more of a desk machine than a daily commuter.
When was the MSI Workstation WT70 2OL-2285FR released?
Its release date is October 2017, 9 years ago.
