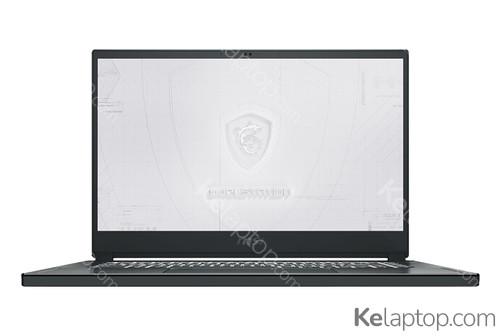

MSI Workstation WS66 10TM-043FR
Specs
Prices
Main specs
| Processor | Intel Core i9-10980HK 2,4GHz |
|---|---|
| Screen | 15.6" 3840x2160 100% Adobe RGB |
| Hard drive | 1TB SSD |
| RAM | 32GB DDR4-SDRAM |
| Operating system | Windows 10 Pro |
| Graphics card | NVIDIA Quadro RTX 5000 Max-Q 16GB GDDR6 |
Alternatives with equal or higher power at a similar or lower price
From other brands
Full specifications of MSI Workstation WS66 10TM-043FR
| Reference / Part Number | 9S7-16V215-043 |
|---|---|
| Release date | October 2020, 6 years ago |
Design
| Product type | Mobile workstation |
|---|---|
| Product color | Black |
| Form factor | Clamshell |
| Market positioning | Work |
| Original brand name | MSI |
Image gallery
Screen
| Display diagonal | 15.6 " (39,6 cm) |
|---|---|
| Display resolution | 3840 x 2160 pixels |
| Touchscreen | No |
| HD type | 4K Ultra HD |
| Native aspect ratio | 16:9 |
| Display diagonal (metric) | 15.6 " (39,6 cm) |
| RGB color space | Adobe RGB |
| Color gamut | 100 % |
Processor
| Processor family | Intel® Core™ i9 |
|---|---|
| Processor manufacturer | Intel |
| Processor model | i9-10980HK |
| Processor frequency | 2,4 GHz |
| Generación del procesador | Intel Core i9-10xxx |
| Processor boost frequency | 5,3 GHz |
| Processor cores | 8 |
| Processor cache | 16 MB |
| Processor cache type | Smart Cache |
| Configurable TDP-up frequency | 3,1 GHz |
| Configurable TDP-up | 65 W |
Memory
| Internal memory | 32 GB |
|---|---|
| Maximum internal memory | 64 GB |
| Internal memory type | DDR4-SDRAM |
| Memory clock speed | 2666 MHz |
| Memory form factor | SO-DIMM |
| Memory layout (slots x size) | 2 x 16 GB |
| Memory slots | 2x SO-DIMM |
Storage
| Total storage capacity | 1 TB |
|---|---|
| Storage media | SSD |
| Optical drive type | No |
| Total SSDs capacity | 1 TB |
| Number of SSDs installed | 1 |
| SSD capacity | 1 TB |
| SSD interface | NVMe,PCI Express |
| NVMe | Yes |
| Card reader integrated | Yes |
| Compatible memory cards | SD,SDHC,SDXC |
Graphics
| On-board graphics card | Yes |
|---|---|
| Discrete graphics card | Yes |
| Discrete graphics card model | NVIDIA Quadro RTX 5000 Max-Q |
| On-board graphics card model | Intel® UHD Graphics |
| Discrete GPU manufacturer | NVIDIA |
| Fabricante de GPU (unidad de procesamiento gráfico) integrada | Intel |
| On-board graphics card family | Intel® UHD Graphics |
| Discrete graphics card memory | 16 GB |
| Discrete graphics memory type | GDDR6 |
| NVIDIA Max-Q | Yes |
Audio
| Number of built-in speakers | 2 |
|---|---|
| Speaker power | 4 W |
| Built-in microphone | Yes |
Camera
| Front camera | Yes |
|---|---|
| Front camera resolution | 1280 x 720 pixels |
| Front camera HD type | HD |
| Video capturing speed | 30 fps |
| Infrared (IR) camera | Yes |
Network
| Mobile network connection | No |
|---|---|
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Wi-Fi standards | 802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n),Wi-Fi 5 (802.11ac),Wi-Fi 6 (802.11ax) |
| Antenna type | 1x1 |
| WLAN controller model | Intel Wi-Fi 6 AX201 |
| WLAN controller manufacturer | Intel |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000,2500 Mbit/s |
| Bluetooth | Yes |
| Bluetooth version | 5.1 |
Ports & interfaces
| HDMI ports quantity | 1 |
|---|---|
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI version | 2.0 |
| Thunderbolt 3 ports quantity | 1 |
| Combo headphone/mic port | Yes |
| USB Power Delivery | Yes |
Keyboard
| Numeric keypad | No |
|---|---|
| Pointing device | Touchpad |
| Keyboard backlit | Yes |
| Keyboard backlit color | White |
Software
| Operating system installed | Windows 10 Pro |
|---|
Processor special features
| Enhanced Intel SpeedStep Technology | Yes |
|---|---|
| Intel Flex Memory Access | Yes |
| Intel Trusted Execution Technology | No |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Stable Image Platform Program (SIPP) | No |
| Intel Software Guard Extensions (Intel SGX) | Yes |
| Intel 64 | Yes |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| CPU configuration (max) | 1 |
| Embedded options available | No |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
Battery
| Battery capacity | 99,9 Wh |
|---|---|
| Battery technology | Lithium Polymer (LiPo) |
| Number of battery cells | 4 |
| Battery capacity | 6250 mAh |
Power
| AC adapter power | 230 W |
|---|
Security
| Fingerprint reader | Yes |
|---|
Weight & dimensions
| Weight | 4.6 lbs (2,1 kg) |
|---|---|
| Width | 14.1 " (358 mm) |
| Depth | 9.8 " (248 mm) |
| Height | 0.8 " (19,8 mm) |
Packaging content
| Cables included | AC |
|---|
Frequently asked questions
Is the MSI Workstation WS66 10TM-043FR good for gaming?
You can game on it, though this laptop was not built for it: it carries the dedicated NVIDIA Quadro RTX 5000 Max-Q. Its card's page shows what level it handles current games at.
What is the screen of the MSI Workstation WS66 10TM-043FR like?
It carries a 15.6" 3840x2160 100% Adobe RGB display.
Which processor and graphics card does the MSI Workstation WS66 10TM-043FR have?
It runs on the Intel Core i9-10980HK processor with the NVIDIA Quadro RTX 5000 Max-Q graphics. Their pages carry their benchmarks, ranking position and alternatives.
Can the RAM of the MSI Workstation WS66 10TM-043FR be upgraded?
Yes: it has 2 memory slots and takes up to 64 GB according to the manufacturer (it ships with 32GB).
Which operating system does the MSI Workstation WS66 10TM-043FR come with?
It comes with Windows 10 Pro preinstalled.
Which ports does the MSI Workstation WS66 10TM-043FR have?
According to its spec sheet: 1 × Thunderbolt 3, 1 × USB-C, 1 × USB-A, 1 × HDMI, Ethernet (RJ-45), card reader, headphone jack (3.5 mm).
Does the MSI Workstation WS66 10TM-043FR have a backlit keyboard?
Yes, according to its spec sheet the keyboard is backlit.
Does the MSI Workstation WS66 10TM-043FR have a touch screen?
No, according to its spec sheet the screen is not a touch screen.
How much does the MSI Workstation WS66 10TM-043FR weigh?
It weighs 2,1 kg, a normal weight for its size: easy enough to move around.
When was the MSI Workstation WS66 10TM-043FR released?
Its release date is October 2020, 6 years ago.
