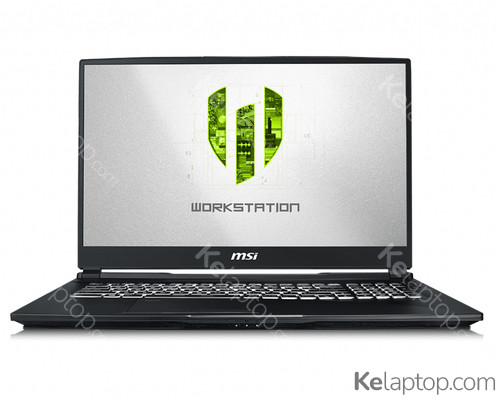

MSI Workstation WE75 9TK-875
Specs
Prices
Main specs
| Processor | Intel Xeon E-2176M 2,7GHz |
|---|---|
| Screen | 17.3" 1920x1080 60Hz |
| Hard drive | 512GB SSD M.2 |
| RAM | 32GB DDR4-SDRAM |
| Operating system | Windows 10 Pro |
| Graphics card | NVIDIA Quadro RTX 3000 6GB GDDR6 |
Alternatives with equal or higher power at a similar or lower price
From other brands
Full specifications of MSI Workstation WE75 9TK-875
| Reference / Part Number | WE75 9TK-875 |
|---|---|
| Release date | February 2020, 6 years ago |
Design
| Product type | Mobile workstation |
|---|---|
| Product color | Black |
| Form factor | Clamshell |
Image gallery
Screen
| Display diagonal | 17.3 " (43,9 cm) |
|---|---|
| Display resolution | 1920 x 1080 pixels |
| Touchscreen | No |
| HD type | Full HD |
| LED backlight | Yes |
| Native aspect ratio | 16:9 |
| Maximum refresh rate | 60 Hz |
Processor
| Processor family | Intel® Xeon® |
|---|---|
| Processor manufacturer | Intel |
| Processor model | E-2176M |
| Processor frequency | 2,7 GHz |
| Processor cores | 6 |
| Processor threads | 12 |
| Processor boost frequency | 4,4 GHz |
| System bus rate | 8 GT/s |
| Processor cache | 12 MB |
| Processor cache type | Smart Cache |
| Processor socket | BGA 1440 |
| Processor lithography | 14 nm |
| Processor operating modes | 64-bit |
| Processor codename | Coffee Lake |
| Bus type | DMI |
| Stepping | U0 |
| Thermal Design Power (TDP) | 45 W |
| Configurable TDP-down | 35 W |
| Configurable TDP-down frequency | 2,2 GHz |
| Tjunction | 100 °C |
| Maximum number of PCI Express lanes | 16 |
| PCI Express slots version | 3.0 |
| PCI Express configurations | 1x16,1x8+2x4,2x8 |
Memory
| Internal memory | 32 GB |
|---|---|
| Maximum internal memory | 64 GB |
| Internal memory type | DDR4-SDRAM |
| Memory clock speed | 2666 MHz |
| Memory form factor | SO-DIMM |
| Memory layout (slots x size) | 2 x 16 GB |
| Memory slots | 2x SO-DIMM |
Storage
| Total storage capacity | 512 GB |
|---|---|
| Storage media | SSD |
| Optical drive type | No |
| Total SSDs capacity | 512 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 512 GB |
| SSD interface | PCI Express 3.0 |
| SSD form factor | M.2 |
| Card reader integrated | Yes |
| Compatible memory cards | SD,SDHC,SDXC |
Graphics
| On-board graphics card | Yes |
|---|---|
| Discrete graphics card | Yes |
| Discrete graphics card model | NVIDIA Quadro RTX 3000 |
| On-board graphics card model | Intel UHD Graphics P630 |
| Discrete graphics card memory | 6 GB |
| Discrete graphics memory type | GDDR6 |
| On-board graphics card base frequency | 350 MHz |
| On-board graphics card dynamic frequency (max) | 1200 MHz |
| Maximum on-board graphics card memory | 64 GB |
| On-board graphics card DirectX version | 12.0 |
| On-board graphics card OpenGL version | 4.5 |
| On-board graphics card ID | 0x3E9B |
| CUDA | Yes |
Audio
| Number of built-in speakers | 2 |
|---|---|
| Speaker power | 3 W |
| Built-in microphone | Yes |
Camera
| Front camera | Yes |
|---|---|
| Front camera HD type | HD |
| Video capturing speed | 30 fps |
Network
| Mobile network connection | No |
|---|---|
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Wi-Fi standards | 802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n),Wi-Fi 5 (802.11ac) |
| Antenna type | 2x2 |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Bluetooth | Yes |
| Bluetooth version | 5.0 |
Ports & interfaces
| USB 2.0 ports quantity | 0 |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| HDMI ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| DisplayPorts quantity | 0 |
| Headphone outputs | 1 |
| Microphone in | Yes |
Keyboard
| Numeric keypad | Yes |
|---|---|
| Pointing device | Touchpad |
| Keyboard backlit | Yes |
| Keyboard backlit color | White |
Software
| Operating system installed | Windows 10 Pro |
|---|---|
| Operating system architecture | 64-bit |
Processor special features
| Intel® My WiFi Technology (Intel® MWT) | Yes |
|---|---|
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel® Clear Video HD Technology (Intel® CVT HD) | Yes |
| Intel Clear Video Technology | Yes |
| Intel® InTru™ 3D Technology | Yes |
| Intel® Quick Sync Video Technology | Yes |
| Intel Flex Memory Access | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel Trusted Execution Technology | Yes |
| Intel Enhanced Halt State | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel® Secure Key | Yes |
| Intel TSX-NI | Yes |
| Intel Stable Image Platform Program (SIPP) | Yes |
| Intel® OS Guard | Yes |
| Intel Software Guard Extensions (Intel SGX) | Yes |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | Yes |
| Intel 64 | Yes |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Thermal Monitoring Technologies | Yes |
| Processor package size | 42 x 28 mm |
| Supported instruction sets | AVX 2.0,SSE4.1,SSE4.2 |
| Processor code | SR3YX |
| CPU configuration (max) | 1 |
| Embedded options available | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel Identity Protection Technology version | 1.00 |
| Intel Stable Image Platform Program (SIPP) version | 1.00 |
| Intel Secure Key Technology version | 1.00 |
| Intel TSX-NI version | 1.00 |
| Intel Virtualization Technology (VT-x) | Yes |
| Processor ARK ID | 134867 |
Battery
| Battery capacity | 51 Wh |
|---|---|
| Battery technology | Lithium-Ion (Li-Ion) |
| Number of battery cells | 6 |
Power
| AC adapter power | 180 W |
|---|---|
| DC-in jack | Yes |
Weight & dimensions
| Weight | 5.7 lbs (2,6 kg) |
|---|---|
| Width | 15.6 " (397 mm) |
| Depth | 10.6 " (268,5 mm) |
| Height | 1.1 " (27,5 mm) |
Frequently asked questions
Is the MSI Workstation WE75 9TK-875 good for gaming?
You can game on it, though this laptop was not built for it: it carries the dedicated NVIDIA Quadro RTX 3000. Its card's page shows what level it handles current games at.
What is the screen of the MSI Workstation WE75 9TK-875 like?
It carries a 17.3" 1920x1080 60Hz display.
Which processor and graphics card does the MSI Workstation WE75 9TK-875 have?
It runs on the Intel Xeon E-2176M processor with the NVIDIA Quadro RTX 3000 graphics. Their pages carry their benchmarks, ranking position and alternatives.
Can the RAM of the MSI Workstation WE75 9TK-875 be upgraded?
Yes: it has 2 memory slots and takes up to 64 GB according to the manufacturer (it ships with 32GB).
Which operating system does the MSI Workstation WE75 9TK-875 come with?
It comes with Windows 10 Pro preinstalled.
Which ports does the MSI Workstation WE75 9TK-875 have?
According to its spec sheet: 1 × USB-C, 3 × USB-A, 1 × HDMI, Ethernet (RJ-45), card reader.
Does the MSI Workstation WE75 9TK-875 have a backlit keyboard?
Yes, according to its spec sheet the keyboard is backlit.
Does the MSI Workstation WE75 9TK-875 have a touch screen?
No, according to its spec sheet the screen is not a touch screen.
How much does the MSI Workstation WE75 9TK-875 weigh?
It weighs 2,6 kg: one of the heavy ones, more of a desk machine than a daily commuter.
When was the MSI Workstation WE75 9TK-875 released?
Its release date is February 2020, 6 years ago.
