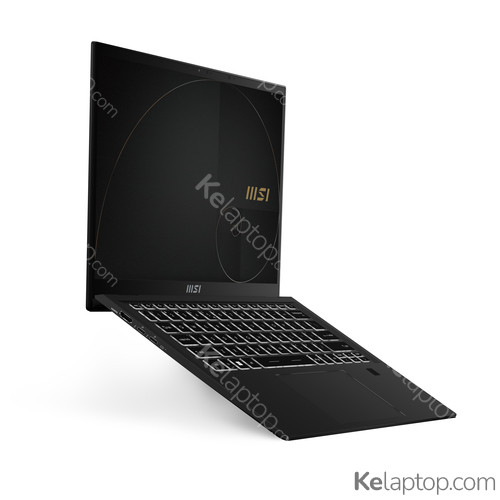

MSI Summit E14 Evo A12M-046UK
Specs
Prices
Main specs
| Processor | |
|---|---|
| Screen | 14" 1920x1200 60Hz 100% sRGB |
| Hard drive | 512GB SSD |
| RAM | 16GB LPDDR5-SDRAM |
| Operating system | Windows 11 Home |
| Graphics card |
Alternatives with equal or higher power at a similar or lower price
From other brands
Full specifications of MSI Summit E14 Evo A12M-046UK
| Reference / Part Number | SUMMIT E14EVO A12M-046UK |
|---|---|
| Release date | November 2022, 3 years ago |
Design
| Product type | Laptop |
|---|---|
| Product colour | Black |
| Form factor | Clamshell |
| Original brand name | MSI |
Image gallery
Screen
| Display diagonal | 35,6 cm |
|---|---|
| Display resolution | 1920 x 1200 pixels |
| Touchscreen | No |
| HD type | Full HD+ |
| Native aspect ratio | 16:10 |
| Display diagonal (metric) | 35,6 cm |
| RGB colour space | sRGB |
| Colour gamut | 100 % |
| Maximum refresh rate | 60 Hz |
Processor
| Processor family | Intel® Core™ i5 |
|---|---|
| Processor manufacturer | Intel |
| Processor model | i5-1240P |
| Processor generation | 12th gen Intel® Core™ i5 |
| Processor boost frequency | 4,4 GHz |
| Processor cores | 12 |
| Processor cache | 12 MB |
| Processor cache type | Smart Cache |
| Motherboard chipset | Intel SoC |
| Configurable TDP-down | 20 W |
Memory
| Internal memory | 16 GB |
|---|---|
| Maximum internal memory | 16 GB |
| Internal memory type | LPDDR5-SDRAM |
| Memory form factor | On-board |
Storage
| Total storage capacity | 512 GB |
|---|---|
| Storage media | SSD |
| Optical drive type | No |
| Total SSDs capacity | 512 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 512 GB |
| SSD interface | PCI Express 4.0 |
| NVMe | Yes |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash) |
Graphics
| On-board graphics card | Yes |
|---|---|
| Discrete graphics card | No |
| Discrete graphics card model | Not available |
| On-board graphics card model | Intel Iris Xe Graphics |
| On-board GPU manufacturer | Intel |
| On-board graphics card family | Intel Iris Xe Graphics |
| On-board graphics card 4K support | Yes |
| On-board graphics card 6K support | Yes |
| Graphics card Open GL support | Yes |
Audio
| Number of built-in speakers | 2 |
|---|---|
| Speaker power | 2 W |
Camera
| Front camera | Yes |
|---|---|
| Front camera resolution | 1920 x 1080 pixels |
| Front camera HD type | Full HD |
| Video capturing speed | 30 fps |
Network
| Mobile network connection | No |
|---|---|
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Wi-Fi standards | Wi-Fi 6E (802.11ax) |
| WLAN controller model | Killer Wi-Fi 6E AX1675 |
| WLAN controller manufacturer | Killer |
| Ethernet LAN | No |
| Bluetooth | Yes |
Ports & interfaces
| HDMI ports quantity | 1 |
|---|---|
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| HDMI version | 2.0 |
| Thunderbolt 4 ports quantity | 2 |
| Intel® Thunderbolt 4 | Yes |
| Combo headphone/mic port | Yes |
| USB Power Delivery | Yes |
Keyboard
| Numeric keypad | No |
|---|---|
| Pointing device | Touchpad |
| Keyboard backlit | Yes |
| Keyboard backlit colour | White |
Software
| Operating system installed | Windows 11 Home |
|---|
Processor special features
| Intel® Evo™ Platform Verified | Yes |
|---|---|
| Intel Flex Memory Access | Yes |
| Intel Trusted Execution Technology | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Execute Disable Bit | Yes |
| CPU configuration (max) | 1 |
| Embedded options available | No |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
Battery
| Battery capacity | 72 Wh |
|---|---|
| Battery technology | Lithium Polymer (LiPo) |
| Number of battery cells | 4 |
Weight & dimensions
| Weight | 1,6 kg |
|---|---|
| Width | 314 mm |
| Depth | 227,5 mm |
| Height | 17,9 mm |
Packaging data
| Package width | 502 mm |
|---|---|
| Package depth | 90 mm |
| Package height | 328 mm |
| Package volume | 14400 cm³ |
Frequently asked questions
Is the MSI Summit E14 Evo A12M-046UK good for gaming?
This laptop was not built for gaming: it relies on the integrated Intel Iris Xe Graphics. Its card's page shows what level it handles current games at.
What is the screen of the MSI Summit E14 Evo A12M-046UK like?
It carries a 14" 1920x1200 60Hz 100% sRGB display.
Which processor and graphics card does the MSI Summit E14 Evo A12M-046UK have?
It runs on the Intel Core i5-1240P processor with the Intel Iris Xe Graphics graphics. Their pages carry their benchmarks, ranking position and alternatives.
Which operating system does the MSI Summit E14 Evo A12M-046UK come with?
It comes with Windows 11 Home preinstalled.
Which ports does the MSI Summit E14 Evo A12M-046UK have?
According to its spec sheet: 2 × Thunderbolt 4, 1 × USB-A, 1 × HDMI, card reader, headphone jack (3.5 mm).
Does the MSI Summit E14 Evo A12M-046UK have a backlit keyboard?
Yes, according to its spec sheet the keyboard is backlit.
Does the MSI Summit E14 Evo A12M-046UK have a touch screen?
No, according to its spec sheet the screen is not a touch screen.
How much does the MSI Summit E14 Evo A12M-046UK weigh?
It weighs 1,6 kg, a normal weight for its size: easy enough to move around.
When was the MSI Summit E14 Evo A12M-046UK released?
Its release date is November 2022, 3 years ago.
