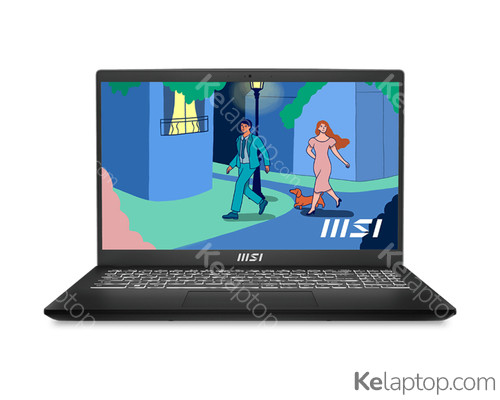

MSI Modern 15 B7M-223US
Specs
Prices
Main specs
| Processor | AMD Ryzen 7 7730U 2GHz |
|---|---|
| Screen | 15.6" 1920x1080 IPS 60Hz 45% NTSC |
| Hard drive | 1TB SSD M.2 |
| RAM | 16GB DDR4-SDRAM |
| Operating system | Windows 11 Pro |
| Graphics card |
Alternatives with equal or higher power at a similar or lower price
From other brands
Full specifications of MSI Modern 15 B7M-223US
| Reference / Part Number | MODERN1513223 |
|---|---|
| Release date | March 2023, 3 years ago |
Design
| Product type | Laptop |
|---|---|
| Product colour | Black |
| Form factor | Clamshell |
| Market positioning | Everyday |
Image gallery
Screen
| Display diagonal | 39,6 cm |
|---|---|
| Display resolution | 1920 x 1080 pixels |
| Touchscreen | No |
| HD type | Full HD |
| Panel type | IPS |
| Native aspect ratio | 16:9 |
| RGB colour space | NTSC |
| Colour gamut | 45 % |
| Maximum refresh rate | 60 Hz |
Processor
| Processor family | AMD Ryzen™ 7 |
|---|---|
| Processor manufacturer | AMD |
| Processor model | 7730U |
| Processor frequency | 2 GHz |
| Processor generation | AMD Ryzen 7000 Series |
| Processor cores | 8 |
| Processor boost frequency | 4,5 GHz |
| Processor cache | 20 MB |
| Processor cache type | L2 & L3 |
| Processor base power | 15 W |
Memory
| Internal memory | 16 GB |
|---|---|
| Internal memory type | DDR4-SDRAM |
| Memory clock speed | 3200 MHz |
| Memory form factor | On-board |
Storage
| Total storage capacity | 1 TB |
|---|---|
| Storage media | SSD |
| Optical drive type | No |
| Total SSDs capacity | 1 TB |
| Number of SSDs installed | 1 |
| SSD capacity | 1 TB |
| SSD interface | M.2 |
| NVMe | Yes |
| SSD form factor | M.2 |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash) |
Graphics
| On-board graphics card | Yes |
|---|---|
| Discrete graphics card | No |
| Discrete graphics card model | Not available |
| On-board graphics card model | AMD Radeon Graphics |
| On-board GPU manufacturer | AMD |
Audio
| Number of built-in speakers | 2 |
|---|---|
| Speaker power | 2 W |
Camera
| Front camera | Yes |
|---|---|
| Front camera HD type | HD |
Network
| Mobile network connection | No |
|---|---|
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Wi-Fi standards | Wi-Fi 6E (802.11ax) |
| Antenna type | 2x2 |
| WLAN controller model | RZ608 |
| WLAN controller manufacturer | AMD |
| Bluetooth | Yes |
| Bluetooth version | 5.2 |
Ports & interfaces
| USB 2.0 ports quantity | 2 |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| HDMI ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| HDMI version | 1.4 |
| Combo headphone/mic port | Yes |
| USB Type-C DisplayPort Alternate Mode | Yes |
Keyboard
| Numeric keypad | Yes |
|---|---|
| Pointing device | Touchpad |
| Keyboard backlit | Yes |
| Keyboard backlit colour | White |
Software
| Operating system installed | Windows 11 Pro |
|---|
Battery
| Battery capacity | 39,3 Wh |
|---|---|
| Battery technology | Lithium Polymer (LiPo) |
| Number of battery cells | 3 |
Power
| USB Power Delivery (USB PD) | Yes |
|---|---|
| AC adapter power | 65 W |
| DC-in jack | Yes |
Weight & dimensions
| Weight | 1,75 kg |
|---|---|
| Width | 360 mm |
| Depth | 241 mm |
| Height | 20 mm |
Frequently asked questions
Is the MSI Modern 15 B7M-223US good for gaming?
This laptop was not built for gaming: it relies on the integrated AMD Radeon Graphics · AMD Ryzen 7 7730U. Its card's page shows what level it handles current games at.
What is the screen of the MSI Modern 15 B7M-223US like?
It carries a 15.6" 1920x1080 IPS 60Hz 45% NTSC display.
Which processor and graphics card does the MSI Modern 15 B7M-223US have?
It runs on the AMD Ryzen 7 7730U processor with the AMD Radeon Graphics · AMD Ryzen 7 7730U graphics. Their pages carry their benchmarks, ranking position and alternatives.
Which operating system does the MSI Modern 15 B7M-223US come with?
It comes with Windows 11 Pro preinstalled.
Which ports does the MSI Modern 15 B7M-223US have?
According to its spec sheet: 1 × USB-C, 1 × USB-A, 1 × HDMI, card reader, headphone jack (3.5 mm).
Does the MSI Modern 15 B7M-223US have a backlit keyboard?
Yes, according to its spec sheet the keyboard is backlit.
Does the MSI Modern 15 B7M-223US have a touch screen?
No, according to its spec sheet the screen is not a touch screen.
How much does the MSI Modern 15 B7M-223US weigh?
It weighs 1,75 kg, a normal weight for its size: easy enough to move around.
When was the MSI Modern 15 B7M-223US released?
Its release date is March 2023, 3 years ago.
