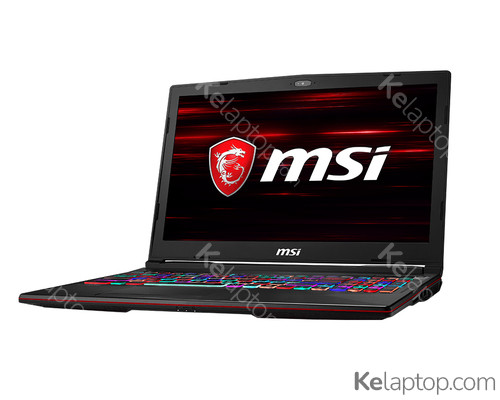

MSI Gaming GL GL63 8SDK
Specs
Prices
Main specs
| Processor | Intel Core i7 i7-8750H 2,2GHz |
|---|---|
| Screen | 15.6" 1920x1080 IPS |
| Hard drive | 256GB SSD M.2 |
| RAM | 16GB DDR4-SDRAM |
| Operating system | Windows 10 Home |
| Graphics card | NVIDIA GeForce GTX 1660 Ti 6GB GDDR6 |
Alternatives with equal or higher power at a similar or lower price
From other brands
Full specifications of MSI Gaming GL GL63 8SDK
| Reference / Part Number | GL63 8SDK-489MX |
|---|---|
| Release date | June 2019, 7 years ago |
Design
| Product type | Laptop |
|---|---|
| Product color | Black |
| Form factor | Clamshell |
| Market positioning | Gaming |
Image gallery
Screen
| Display diagonal | 15.6 " (39,6 cm) |
|---|---|
| Display resolution | 1920 x 1080 pixels |
| Touchscreen | No |
| HD type | Full HD |
| Panel type | IPS |
| LED backlight | Yes |
| Native aspect ratio | 16:9 |
| Pantalla dual | No |
Processor
| Processor family | Intel® Core™ i7 |
|---|---|
| Processor manufacturer | Intel |
| Processor model | i7-8750H |
| Processor frequency | 2,2 GHz |
| Generación del procesador | Intel Core i7-8xxx |
| Processor cores | 6 |
| Processor threads | 12 |
| Processor boost frequency | 4,1 GHz |
| System bus rate | 8 GT/s |
| Processor cache | 9 MB |
| Processor cache type | Smart Cache |
| Processor socket | BGA 1440 |
| Processor lithography | 14 nm |
| Processor operating modes | 64-bit |
| Processor codename | Coffee Lake |
| Bus type | DMI |
| Stepping | U0 |
| Thermal Design Power (TDP) | 45 W |
| Configurable TDP-down | 35 W |
| Configurable TDP-down frequency | 1,7 GHz |
| Tjunction | 100 °C |
| Maximum number of PCI Express lanes | 16 |
| PCI Express slots version | 3.0 |
| PCI Express configurations | 1x16,1x8+2x4,2x8 |
Memory
| Internal memory | 16 GB |
|---|---|
| Maximum internal memory | 32 GB |
| Internal memory type | DDR4-SDRAM |
| Memory clock speed | 2666 MHz |
| Memory form factor | SO-DIMM |
| Memory layout (slots x size) | 2 x 8 GB |
| Memory slots | 2x SO-DIMM |
Storage
| Total storage capacity | 256 GB |
|---|---|
| Storage media | SSD |
| Optical drive type | No |
| Total SSDs capacity | 256 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 256 GB |
| SSD interface | PCI Express 3.0 |
| SSD form factor | M.2 |
| Card reader integrated | Yes |
| Compatible memory cards | SD,SDHC,SDXC |
Graphics
| On-board graphics card | Yes |
|---|---|
| Discrete graphics card | Yes |
| Discrete graphics card model | NVIDIA® GeForce® GTX 1660 Ti |
| On-board graphics card model | Intel® UHD Graphics 630 |
| Discrete graphics card memory | 6 GB |
| Discrete graphics memory type | GDDR6 |
| On-board graphics card family | Intel® UHD Graphics |
| On-board graphics card base frequency | 350 MHz |
| On-board graphics card dynamic frequency (max) | 1100 MHz |
| Maximum on-board graphics card memory | 64 GB |
| On-board graphics card DirectX version | 12.0 |
| On-board graphics card 4K support | Yes |
| On-board graphics card OpenGL version | 4.5 |
| On-board graphics card ID | 0x3E9B |
| Number of discrete graphics cards supported | 1 |
| Number of discrete graphics cards installed | 1 |
Audio
| Number of built-in speakers | 2 |
|---|---|
| Speaker power | 3 W |
| Built-in microphone | Yes |
Camera
| Front camera | Yes |
|---|---|
| Front camera resolution | 1280 x 720 pixels |
| Front camera signal format | 720p |
| Front camera HD type | HD |
| Video capturing speed | 30 fps |
Network
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
|---|---|
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n),Wi-Fi 5 (802.11ac) |
| Antenna type | 2x2 |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Bluetooth | Yes |
| Bluetooth version | 5.0 |
Ports & interfaces
| USB 2.0 ports quantity | 0 |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| HDMI ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| DisplayPorts quantity | 0 |
| Mini DisplayPorts quantity | 1 |
| Thunderbolt 3 ports quantity | 0 |
| Headphone outputs | 1 |
| S/PDIF out port | Yes |
| Microphone in | Yes |
Keyboard
| Numeric keypad | Yes |
|---|---|
| Pointing device | Touchpad |
| Keyboard backlit | Yes |
| Keyboard backlit color | Various |
| Island-style keyboard | Yes |
| Full-size keyboard | Yes |
| Windows keys | Yes |
Software
| Operating system installed | Windows 10 Home |
|---|---|
| Operating system architecture | 64-bit |
Processor special features
| Intel® My WiFi Technology (Intel® MWT) | Yes |
|---|---|
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel® Clear Video HD Technology (Intel® CVT HD) | Yes |
| Intel Clear Video Technology | Yes |
| Intel® InTru™ 3D Technology | Yes |
| Intel® Quick Sync Video Technology | Yes |
| Intel Flex Memory Access | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel Trusted Execution Technology | No |
| Intel Enhanced Halt State | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel® Secure Key | Yes |
| Intel TSX-NI | No |
| Intel Stable Image Platform Program (SIPP) | No |
| Intel® OS Guard | Yes |
| Intel Software Guard Extensions (Intel SGX) | Yes |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | Yes |
| Intel 64 | Yes |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Thermal Monitoring Technologies | Yes |
| Processor package size | 42 x 28 mm |
| Supported instruction sets | AVX 2.0,SSE4.1,SSE4.2 |
| Processor code | SR3YY |
| CPU configuration (max) | 1 |
| Embedded options available | No |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel Identity Protection Technology version | 1.00 |
| Intel Stable Image Platform Program (SIPP) version | 0.00 |
| Intel Secure Key Technology version | 1.00 |
| Intel TSX-NI version | 0.00 |
| Intel Virtualization Technology (VT-x) | Yes |
| Processor ARK ID | 134906 |
Battery
| Battery capacity | 51 Wh |
|---|---|
| Battery technology | Lithium-Ion (Li-Ion) |
| Number of battery cells | 3 |
Power
| AC adapter power | 120 W |
|---|---|
| DC-in jack | Yes |
Weight & dimensions
| Weight | 5.1 lbs (2,3 kg) |
|---|---|
| Width | 15.1 " (383 mm) |
| Depth | 10.2 " (260 mm) |
| Height | 1.2 " (29,5 mm) |
Packaging content
| AC adapter included | Yes |
|---|---|
| Bag included | Yes |
| Manual | Yes |
| Warranty card | Yes |
| Power cord included | Yes |
Other features
| Maximum internal memory (64-bit) | 32 GB |
|---|---|
| Memory upgrade note | Additional memory sold separately |
Frequently asked questions
Is the MSI Gaming GL GL63 8SDK good for gaming?
You can game on it, though this laptop was not built for it: it carries the dedicated NVIDIA GeForce GTX 1660 Ti. Its card's page shows what level it handles current games at.
What is the screen of the MSI Gaming GL GL63 8SDK like?
It carries a 15.6" 1920x1080 IPS display.
Which processor and graphics card does the MSI Gaming GL GL63 8SDK have?
It runs on the Intel Core i7 i7-8750H processor with the NVIDIA GeForce GTX 1660 Ti graphics. Their pages carry their benchmarks, ranking position and alternatives.
Can the RAM of the MSI Gaming GL GL63 8SDK be upgraded?
Yes: it has 2 memory slots and takes up to 32 GB according to the manufacturer (it ships with 16GB).
Which operating system does the MSI Gaming GL GL63 8SDK come with?
It comes with Windows 10 Home preinstalled.
Which ports does the MSI Gaming GL GL63 8SDK have?
According to its spec sheet: 1 × USB-C, 3 × USB-A, 1 × HDMI, Ethernet (RJ-45), card reader.
Does the MSI Gaming GL GL63 8SDK have a backlit keyboard?
Yes, according to its spec sheet the keyboard is backlit.
Does the MSI Gaming GL GL63 8SDK have a touch screen?
No, according to its spec sheet the screen is not a touch screen.
How much does the MSI Gaming GL GL63 8SDK weigh?
It weighs 2,3 kg, a normal weight for its size: easy enough to move around.
When was the MSI Gaming GL GL63 8SDK released?
Its release date is June 2019, 7 years ago.
