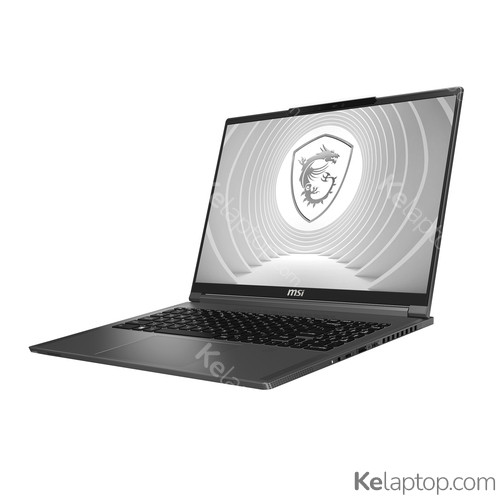

MSI CreatorPro 16 AI Studio A1VMG-066
Specs
Prices
Main specs
| Processor | |
|---|---|
| Screen | 16" 3840x2400 Mini LED 120Hz 100% DCI-P3 |
| Hard drive | 2TB SSD M.2 |
| RAM | 64GB DDR5-SDRAM |
| Operating system | Windows 11 Pro |
| Graphics card | NVIDIA RTX 5000 Ada 16GB GDDR6 |
Alternatives with equal or better features at a better price
Full specifications of MSI CreatorPro 16 AI Studio A1VMG-066
Reference / Part Number
CREATORPRO 16 AI STUDIO A1VMG-066
Release date
June 2024, 2 years ago
Design
| Product type | Mobile workstation |
|---|---|
| Product color | Black |
| Form factor | Clamshell |
| Original brand name | MSI |
Image gallery
Screen
| Display diagonal | 16 " (40,6 cm) |
|---|---|
| Display resolution | 3840 x 2400 pixels |
| Touchscreen | No |
| HD type | WQUXGA |
| Panel type | Mini LED |
| Native aspect ratio | 16:10 |
| Anti-glare screen | Yes |
| RGB color space | DCI-P3 |
| Color gamut | 100 % |
| Maximum refresh rate | 120 Hz |
| High Dynamic Range (HDR) supported | Yes |
| High Dynamic Range (HDR) technology | DisplayHDR 1000 |
Processor
| Processor family | Intel Core Ultra 9 |
|---|---|
| Processor manufacturer | Intel |
| Processor model | 185H |
| Generación del procesador | Intel Core Ultra (Series 1) |
| Processor cores | 16 |
| Processor boost frequency | 5,1 GHz |
| Núcleos de rendimiento | 6 |
| Núcleos de eficiencia | 8 |
| Frecuencia turbo máxima del núcleo de rendimiento | 5.1 |
| Frecuencia turbo máxima del núcleo de eficiencia | 3.8 |
| Frecuencia base de núcleo de rendimiento | 2.3 |
| Frecuencia base de núcleo eficiente | 1.8 |
| Processor cache | 24 MB |
| Processor cache type | Smart Cache |
| Potencia base del procesador | 45 |
| Potencia turbo máxima | 115 |
Unidad de procesamiento neuronal (NPU)
| Unidad de procesamiento neuronal (NPU) | Intel AI Boost |
|---|---|
| Máxima frecuencia del núcleo NPU | 1.4 |
| Soporte de dispersión | Yes |
| Soporte de efectos de Windows Studio | Yes |
| Soporte de tipos de datos de IA en el núcleo NPU | FP16,FP32,Int8 |
| Entornos de trabajo de software de IA compatibles con el núcleo NPU | DirectML,ONNX RT,OpenVINO,Windows ML |
Memory
| Internal memory | 64 GB |
|---|---|
| Maximum internal memory | 96 GB |
| Internal memory type | DDR5-SDRAM |
| Memory clock speed | 5600 MHz |
| Memory form factor | SO-DIMM |
| Memory layout (slots x size) | 2 x 32 GB |
| Memory slots | 2x SO-DIMM |
Storage
| Total storage capacity | 2 TB |
|---|---|
| Storage media | SSD |
| Optical drive type | No |
| Total SSDs capacity | 2 TB |
| Number of SSDs installed | 1 |
| SSD capacity | 2 TB |
| SSD interface | PCI Express 4.0 |
| NVMe | Yes |
| SSD form factor | M.2 |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash) |
Graphics
| On-board graphics card | Yes |
|---|---|
| Discrete graphics card | Yes |
| Discrete graphics card model | NVIDIA RTX 5000 Ada |
| On-board graphics card model | Intel Arc Graphics |
| Discrete GPU manufacturer | NVIDIA |
| Discrete graphics card memory | 16 GB |
| Discrete graphics memory type | GDDR6 |
| Fabricante de GPU (unidad de procesamiento gráfico) integrada | Intel |
| On-board graphics card family | Intel Arc Graphics |
Audio
| Number of built-in speakers | 6 |
|---|---|
| Speaker power | 2 W |
Camera
| Front camera | Yes |
|---|---|
| Front camera HD type | Full HD |
| Video capturing speed | 30 fps |
| Infrared (IR) camera | Yes |
| Privacy camera | Yes |
| Privacy type | Privacy shutter |
Network
| Mobile network connection | No |
|---|---|
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| Wi-Fi standards | Wi-Fi 7 (802.11be) |
| WLAN controller model | Killer Wi-Fi 7 BE1750 |
| WLAN controller manufacturer | Killer |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000,2500 Mbit/s |
| Bluetooth | Yes |
| Bluetooth version | 5.4 |
Ports & interfaces
| USB 2.0 ports quantity | 0 |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| HDMI ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI version | 2.1 |
| Número de puertos Thunderbolt 4 | 1 |
| Intel® Thunderbolt 4 | Yes |
| USB Type-C DisplayPort Alternate Mode | Yes |
Keyboard
| Numeric keypad | Yes |
|---|---|
| Pointing device | Touchpad |
| Keyboard backlit | Yes |
| Keyboard backlit color | White |
| Tecla Copilot | Yes |
Software
| Operating system installed | Windows 11 Pro |
|---|
Battery
| Battery capacity | 99,9 Wh |
|---|---|
| Number of battery cells | 4 |
Power
| AC adapter power | 240 W |
|---|---|
| USB Power Delivery | Yes |
Security
| Cable lock slot | Yes |
|---|---|
| Cable lock slot type | Kensington |
| Fingerprint reader | Yes |
| Trusted Platform Module (TPM) | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
Weight & dimensions
| Weight | 4.4 lbs (1,99 kg) |
|---|---|
| Width | 14 " (355,8 mm) |
| Depth | 10.2 " (259,7 mm) |
| Height | 0.8 " (19,9 mm) |
Packaging content
| AC adapter included | Yes |
|---|
Frequently asked questions
Is the MSI CreatorPro 16 AI Studio A1VMG-066 good for gaming?
You can game on it, though this laptop was not built for it: it carries the dedicated NVIDIA RTX 5000 Ada. Its card's page shows what level it handles current games at.
What is the screen of the MSI CreatorPro 16 AI Studio A1VMG-066 like?
It carries a 16" 3840x2400 Mini LED 120Hz 100% DCI-P3 display.
Which processor and graphics card does the MSI CreatorPro 16 AI Studio A1VMG-066 have?
It runs on the Intel Core Ultra 9 185H processor with the NVIDIA RTX 5000 Ada graphics. Their pages carry their benchmarks, ranking position and alternatives.
Can the RAM of the MSI CreatorPro 16 AI Studio A1VMG-066 be upgraded?
Yes: it has 2 memory slots and takes up to 96 GB according to the manufacturer (it ships with 64GB).
Which operating system does the MSI CreatorPro 16 AI Studio A1VMG-066 come with?
It comes with Windows 11 Pro preinstalled.
Which ports does the MSI CreatorPro 16 AI Studio A1VMG-066 have?
According to its spec sheet: 1 × Thunderbolt 4, 1 × USB-C, 1 × USB-A, 1 × HDMI, Ethernet (RJ-45), card reader.
Does the MSI CreatorPro 16 AI Studio A1VMG-066 have a backlit keyboard?
Yes, according to its spec sheet the keyboard is backlit.
Does the MSI CreatorPro 16 AI Studio A1VMG-066 have a touch screen?
No, according to its spec sheet the screen is not a touch screen.
How much does the MSI CreatorPro 16 AI Studio A1VMG-066 weigh?
It weighs 1,99 kg, a normal weight for its size: easy enough to move around.
When was the MSI CreatorPro 16 AI Studio A1VMG-066 released?
Its release date is June 2024, 2 years ago.
