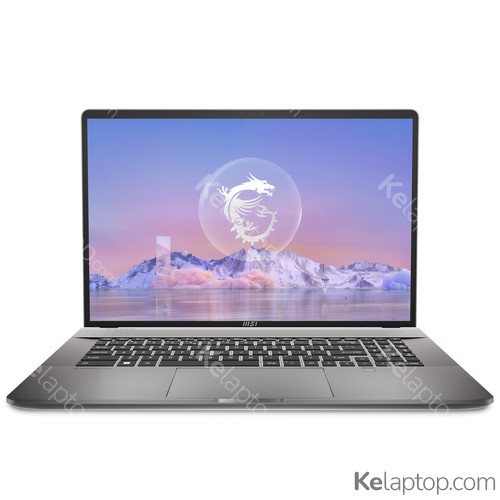

MSI Creator Z17 HX STUDIO A13VFT-213UK
Specs
Prices
Main specs
| Processor | |
|---|---|
| Screen | 17" 2560x1600 165Hz 100% DCI-P3 |
| Hard drive | 2TB SSD |
| RAM | 64GB DDR5-SDRAM |
| Operating system | Windows 11 Pro |
| Graphics card | NVIDIA GeForce RTX 4060 8GB GDDR6 |
Alternatives with equal or higher power at a similar or lower price
From other brands
Full specifications of MSI Creator Z17 HX STUDIO A13VFT-213UK
| Reference / Part Number | CREATOR Z17HXSTUDIO A13VFT-213UK |
|---|---|
| Release date | May 2023, 3 years ago |
Design
| Product type | Laptop |
|---|---|
| Product colour | Grey |
| Form factor | Clamshell |
| Colour name | Lunar Gray |
Image gallery
Screen
| Display diagonal | 43,2 cm |
|---|---|
| Display resolution | 2560 x 1600 pixels |
| Touchscreen | Yes |
| HD type | Quad HD+ |
| Native aspect ratio | 16:10 |
| RGB colour space | DCI-P3 |
| Colour gamut | 100 % |
| Maximum refresh rate | 165 Hz |
Processor
| Processor family | Intel® Core™ i7 |
|---|---|
| Processor manufacturer | Intel |
| Processor model | i7-13850HX |
| Processor generation | 13th gen Intel® Core™ i7 |
| Processor cores | 20 |
| Processor boost frequency | 5,3 GHz |
| Performance cores | 8 |
| Efficient cores | 12 |
| Performance-core Max Turbo Frequency | 5,3 GHz |
| Efficient-core Max Turbo Frequency | 3,8 GHz |
| Processor cache | 30 MB |
| Processor cache type | Smart Cache |
| Processor base power | 55 W |
| Maximum turbo power | 157 W |
Memory
| Internal memory | 64 GB |
|---|---|
| Maximum internal memory | 64 GB |
| Internal memory type | DDR5-SDRAM |
| Memory clock speed | 5600 MHz |
| Memory form factor | SO-DIMM |
| Memory layout (slots x size) | 2 x 32 GB |
| Memory slots | 2x SO-DIMM |
Storage
| Total storage capacity | 2 TB |
|---|---|
| Storage media | SSD |
| Optical drive type | No |
| Total SSDs capacity | 2 TB |
| Number of SSDs installed | 1 |
| SSD capacity | 2 TB |
| SSD interface | PCI Express 4.0 |
| NVMe | Yes |
| Card reader integrated | Yes |
| Compatible memory cards | SD |
Graphics
| On-board graphics card | Yes |
|---|---|
| Discrete graphics card | Yes |
| Discrete graphics card model | NVIDIA GeForce RTX 4060 |
| On-board graphics card model | Intel® UHD Graphics |
| Discrete GPU manufacturer | NVIDIA |
| Discrete graphics card memory | 8 GB |
| Discrete graphics memory type | GDDR6 |
| On-board GPU manufacturer | Intel |
| On-board graphics card family | Intel® UHD Graphics |
Audio
| Number of built-in speakers | 4 |
|---|---|
| Speaker power | 2 W |
Camera
| Front camera | Yes |
|---|---|
| Front camera HD type | Full HD |
| Video capturing speed | 30 fps |
| Infrared (IR) camera | Yes |
Network
| Mobile network connection | No |
|---|---|
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Wi-Fi standards | Wi-Fi 6E (802.11ax) |
| WLAN controller model | Intel Wi-Fi 6E AX211 |
| WLAN controller manufacturer | Intel |
| Bluetooth | Yes |
| Bluetooth version | 5.3 |
Ports & interfaces
| USB 2.0 ports quantity | 0 |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| HDMI ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| HDMI version | 2.1 |
| Thunderbolt 4 ports quantity | 2 |
| Intel® Thunderbolt 4 | Yes |
| Combo headphone/mic port | Yes |
| USB Type-C DisplayPort Alternate Mode | Yes |
Performance
| Motherboard chipset | Intel HM770 |
|---|---|
| Ambient light sensor | Yes |
Keyboard
| Numeric keypad | Yes |
|---|---|
| Pointing device | Touchpad |
| Keyboard backlit | Yes |
| Keyboard backlit colour | RGB |
| Keyboard backlit zone | Per-key RGB |
Software
| Operating system installed | Windows 11 Pro |
|---|
Battery
| Battery capacity | 90 Wh |
|---|---|
| Number of battery cells | 4 |
Power
| AC adapter power | 280 W |
|---|---|
| USB Power Delivery (USB PD) | Yes |
Security
| Fingerprint reader | Yes |
|---|
Weight & dimensions
| Weight | 2,5 kg |
|---|---|
| Width | 382 mm |
| Depth | 260 mm |
| Height | 19 mm |
Packaging data
| Package width | 512 mm |
|---|---|
| Package depth | 83 mm |
| Package height | 358 mm |
Packaging content
| AC adapter included | Yes |
|---|
Frequently asked questions
Is the MSI Creator Z17 HX STUDIO A13VFT-213UK good for gaming?
You can game on it, though this laptop was not built for it: it carries the dedicated NVIDIA GeForce RTX 4060. Its card's page shows what level it handles current games at.
What is the screen of the MSI Creator Z17 HX STUDIO A13VFT-213UK like?
It carries a 17" 2560x1600 165Hz 100% DCI-P3 display.
Which processor and graphics card does the MSI Creator Z17 HX STUDIO A13VFT-213UK have?
It runs on the Intel Core i7-13850HX processor with the NVIDIA GeForce RTX 4060 graphics. Their pages carry their benchmarks, ranking position and alternatives.
Can the RAM of the MSI Creator Z17 HX STUDIO A13VFT-213UK be upgraded?
It has 2 memory slots, but it already ships with the maximum it takes (64 GB).
Which operating system does the MSI Creator Z17 HX STUDIO A13VFT-213UK come with?
It comes with Windows 11 Pro preinstalled.
Which ports does the MSI Creator Z17 HX STUDIO A13VFT-213UK have?
According to its spec sheet: 2 × Thunderbolt 4, 1 × USB-A, 1 × HDMI, card reader, headphone jack (3.5 mm).
Does the MSI Creator Z17 HX STUDIO A13VFT-213UK have a backlit keyboard?
Yes, according to its spec sheet the keyboard is backlit.
Does the MSI Creator Z17 HX STUDIO A13VFT-213UK have a touch screen?
Yes, according to its spec sheet the screen is a touch screen.
How much does the MSI Creator Z17 HX STUDIO A13VFT-213UK weigh?
It weighs 2,5 kg: one of the heavy ones, more of a desk machine than a daily commuter.
When was the MSI Creator Z17 HX STUDIO A13VFT-213UK released?
Its release date is May 2023, 3 years ago.
