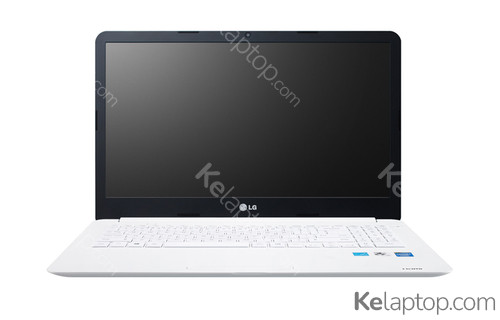

LG U series 15UD340-MX3FK
Specs
Prices
Main specs
| Processor | Intel Pentium N3540 2,16GHz |
|---|---|
| Screen | 15.6" 1920x1080 IPS |
| Hard drive | 500GB HDD |
| RAM | 4GB DDR3L-SDRAM |
| Operating system | No OS installed |
| Graphics card | Intel HD Graphics |
Alternatives with equal or higher power at a similar or lower price
Full specifications of LG U series 15UD340-MX3FK
| Reference / Part Number | 15UD340-MX3FK |
|---|---|
| Release date | June 2017, 9 years ago |
Design
| Product type | Laptop |
|---|---|
| Product colour | White |
| Form factor | Clamshell |
Image gallery
Screen
| Display diagonal | 39,6 cm |
|---|---|
| Display resolution | 1920 x 1080 pixels |
| Touchscreen | No |
| HD type | Full HD |
| Panel type | IPS |
| LED backlight | Yes |
| Native aspect ratio | 16:9 |
| Dual-screen | No |
Processor
| Processor family | Intel® Pentium® |
|---|---|
| Processor manufacturer | Intel |
| Processor model | N3540 |
| Processor frequency | 2,16 GHz |
| Processor cores | 4 |
| Processor threads | 4 |
| Processor boost frequency | 2,66 GHz |
| Processor cache | 2 MB |
| Processor cache type | L2 |
| Processor socket | BGA 1170 |
| Processor lithography | 22 nm |
| Processor operating modes | 32-bit,64-bit |
| Processor series | Intel Pentium N3000 series for Mobile |
| Processor codename | Bay Trail |
| FSB Parity | No |
| Stepping | C0 |
| Thermal Design Power (TDP) | 7,5 W |
| Scenario Design Power (SDP) | 4,5 W |
| Tjunction | 100 °C |
| Maximum number of PCI Express lanes | 4 |
| PCI Express slots version | 2.0 |
| PCI Express configurations | 1x4 |
| ECC supported by processor | No |
Memory
| Internal memory | 4 GB |
|---|---|
| Maximum internal memory | 8 GB |
| Internal memory type | DDR3L-SDRAM |
Storage
| Total storage capacity | 500 GB |
|---|---|
| Storage media | HDD |
| Optical drive type | No |
| Number of HDDs installed | 1 |
| HDD capacity | 500 GB |
| HDD interface | SATA III |
| Card reader integrated | Yes |
| Compatible memory cards | MMC,SD,SDHC,SDXC |
Graphics
| On-board graphics card | Yes |
|---|---|
| Discrete graphics card | No |
| Discrete graphics card model | Not available |
| On-board graphics card model | Intel® HD Graphics |
| On-board graphics card family | Intel® HD Graphics |
| On-board graphics card base frequency | 313 MHz |
| On-board graphics card burst frequency | 896 MHz |
| On-board graphics card dynamic frequency (max) | 896 MHz |
| On-board graphics card DirectX version | 11.2 |
Audio
| Audio system | High Definition Audio |
|---|---|
| Number of built-in speakers | 2 |
| Speaker power | 3 W |
| Built-in microphone | Yes |
Camera
| Front camera | Yes |
|---|---|
| Front camera resolution (numeric) | 1,3 MP |
Network
| Wi-Fi | Yes |
|---|---|
| Wi-Fi standards | Wi-Fi 5 (802.11ac) |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Bluetooth | Yes |
| Bluetooth version | 4.0 |
| Bluetooth Low Energy (BLE) | Yes |
Ports & interfaces
| USB 2.0 ports quantity | 2 |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| DisplayPorts quantity | 0 |
| DVI port | No |
| VGA (D-Sub) ports quantity | 0 |
| Thunderbolt ports quantity | 0 |
| Headphone outputs | 1 |
| S/PDIF out port | No |
| Microphone in | No |
| Docking connector | No |
| ExpressCard slot | No |
| CardBus PCMCIA slots quantity | 0 |
| CardBus PCMCIA slot type | No |
| SmartCard slot | No |
| Total number of SATA connectors | 2 |
Keyboard
| Numeric keypad | Yes |
|---|---|
| Pointing device | Touchpad |
| Windows keys | Yes |
Software
| Operating system installed | No |
|---|
Processor special features
| Intel® Wireless Display (Intel® WiDi) | Yes |
|---|---|
| Intel® My WiFi Technology (Intel® MWT) | No |
| Intel Smart Connect Technology | Yes |
| Intel® Anti-Theft Technology (Intel® AT) | No |
| Intel® Identity Protection Technology (Intel® IPT) | No |
| Intel® Hyper Threading Technology (Intel® HT Technology) | No |
| Intel® Turbo Boost Technology | No |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel® Clear Video HD Technology (Intel® CVT HD) | No |
| Intel Clear Video Technology | No |
| Intel® InTru™ 3D Technology | No |
| Intel® Insider™ | No |
| Intel® Quick Sync Video Technology | Yes |
| Intel Flex Memory Access | No |
| Intel® AES New Instructions (Intel® AES-NI) | No |
| Intel Trusted Execution Technology | No |
| Intel Enhanced Halt State | Yes |
| Intel VT-x with Extended Page Tables (EPT) | No |
| Intel Demand Based Switching | No |
| Intel® Secure Key | Yes |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | No |
| Intel 64 | Yes |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Thermal Monitoring Technologies | No |
| Processor package size | 25 x 27 mm |
| Processor code | SR1YW |
| CPU configuration (max) | 1 |
| Embedded options available | No |
| Graphics & IMC lithography | 22 nm |
| Intel Virtualization Technology for Directed I/O (VT-d) | No |
| Intel Smart Connect Technology version | 1.00 |
| Intel Identity Protection Technology version | 0.00 |
| Intel Secure Key Technology version | 1.00 |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Dual Display Capable Technology | No |
| Intel FDI Technology | No |
| Intel Rapid Storage Technology | No |
| Intel Fast Memory Access | No |
| Processor ARK ID | 82105 |
| Conflict-Free processor | Yes |
Battery
| Battery technology | Lithium Polymer (LiPo) |
|---|
Power
| AC adapter power | 40 W |
|---|---|
| AC adapter input voltage | 110 - 220 V |
| DC-in jack | Yes |
Security
| Cable lock slot | Yes |
|---|---|
| Cable lock slot type | Kensington |
Weight & dimensions
| Weight | 1,7 kg |
|---|---|
| Width | 373,8 mm |
| Depth | 253 mm |
| Height | 19,9 mm |
Packaging content
| AC adapter included | Yes |
|---|
Other features
| LightScribe | No |
|---|---|
| 3D | No |
| Intel® Virtualization Technology (Intel® VT) | VT-x |
Frequently asked questions
Is the LG U series 15UD340-MX3FK good for gaming?
This laptop was not built for gaming: it relies on the integrated Intel HD Graphics. Its card's page shows what level it handles current games at.
What is the screen of the LG U series 15UD340-MX3FK like?
It carries a 15.6" 1920x1080 IPS display.
Which processor and graphics card does the LG U series 15UD340-MX3FK have?
It runs on the Intel Pentium N3540 processor with the Intel HD Graphics graphics. Their pages carry their benchmarks, ranking position and alternatives.
Which operating system does the LG U series 15UD340-MX3FK come with?
It comes with no operating system installed: the price does not include a license and you will have to install one yourself.
Which ports does the LG U series 15UD340-MX3FK have?
According to its spec sheet: 1 × USB-A, 1 × HDMI, Ethernet (RJ-45), card reader.
Does the LG U series 15UD340-MX3FK have a touch screen?
No, according to its spec sheet the screen is not a touch screen.
How much does the LG U series 15UD340-MX3FK weigh?
It weighs 1,7 kg, a normal weight for its size: easy enough to move around.
When was the LG U series 15UD340-MX3FK released?
Its release date is June 2017, 9 years ago.
