LG Gram 17Z90N-N.APS9U1
Specs
Prices
Main specs
| Processor | Intel Core i7-1065G7 1,3GHz |
|---|---|
| Screen | 17" 2560x1600 IPS |
| Hard drive | 1TB SSD M.2 |
| RAM | 16GB DDR4-SDRAM |
| Operating system | Windows 10 Pro |
| Graphics card |
Alternatives with equal or higher power at a similar or lower price
Full specifications of LG Gram 17Z90N-N.APS9U1
| Reference / Part Number | 17Z90N-N.APS9U1 |
|---|---|
| Release date | May 2020, 6 years ago |
Design
| Product type | Laptop |
|---|---|
| Product colour | Silver |
| Form factor | Clamshell |
| Colour name | Dark Silver |
| Housing material | Magnesium |

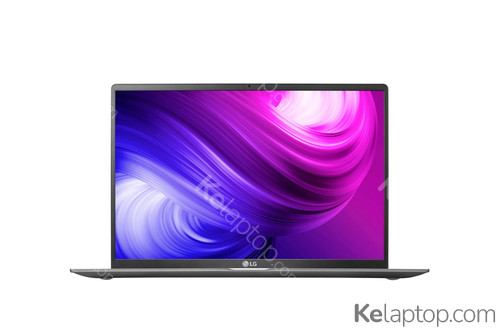

Image gallery
Screen
| Display diagonal | 43,2 cm |
|---|---|
| Display resolution | 2560 x 1600 pixels |
| Touchscreen | No |
| Panel type | IPS |
Processor
| Processor family | Intel® Core™ i7 |
|---|---|
| Processor manufacturer | Intel |
| Processor model | i7-1065G7 |
| Processor frequency | 1,3 GHz |
| Processor generation | 10th gen Intel® Core™ i7 |
| Processor boost frequency | 3,9 GHz |
| Processor threads | 8 |
| System bus rate | 4 GT/s |
| Processor cores | 4 |
| Processor cache | 8 MB |
| Processor cache type | Smart Cache |
| Processor socket | BGA 1526 |
| Processor lithography | 10 nm |
| Processor operating modes | 64-bit |
| Thermal Design Power (TDP) | 15 W |
| Configurable TDP-up frequency | 1,5 GHz |
| Configurable TDP-up | 25 W |
| Configurable TDP-down | 12 W |
| Configurable TDP-down frequency | 1 GHz |
| Tjunction | 100 °C |
| PCI Express slots version | 3.0 |
Memory
| Internal memory | 16 GB |
|---|---|
| Internal memory type | DDR4-SDRAM |
| Memory clock speed | 3200 MHz |
| Memory form factor | On-board + SO-DIMM |
Storage
| Total storage capacity | 1 TB |
|---|---|
| Storage media | SSD |
| Total SSDs capacity | 1 TB |
| Number of SSDs installed | 2 |
| SSD capacity | 512 GB |
| SSD interface | NVMe |
| NVMe | Yes |
| SSD form factor | M.2 |
Graphics
| On-board graphics card | Yes |
|---|---|
| Discrete graphics card | No |
| On-board graphics card model | Intel Iris Plus Graphics |
| On-board GPU manufacturer | Intel |
| On-board graphics card family | Intel Iris Plus Graphics |
| On-board graphics card base frequency | 300 MHz |
| On-board graphics card dynamic frequency (max) | 1100 MHz |
| On-board graphics card DirectX version | 12.0 |
| On-board graphics card OpenGL version | 4.5 |
| On-board graphics card ID | 0x8A52 |
Audio
| Number of built-in speakers | 2 |
|---|---|
| Speaker power | 1,5 W |
Camera
| Front camera | Yes |
|---|
Network
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
|---|---|
| Wi-Fi standards | Wi-Fi 6 (802.11ax) |
| Bluetooth | Yes |
| Bluetooth version | 5.0 |
Ports & interfaces
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| HDMI ports quantity | 1 |
| Thunderbolt version | 3 |
| Thunderbolt ports quantity | 1 |
| Headphone outputs | 1 |
Keyboard
| Numeric keypad | Yes |
|---|---|
| Pointing device | Clickpad |
| Keyboard backlit | Yes |
Software
| Operating system installed | Windows 10 Pro |
|---|---|
| Operating system architecture | 64-bit |
Processor special features
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
|---|---|
| Intel® Turbo Boost Technology | 2.0 |
| Intel® Quick Sync Video Technology | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel Trusted Execution Technology | No |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel® Secure Key | Yes |
| Intel TSX-NI | No |
| Intel Stable Image Platform Program (SIPP) | No |
| Intel® OS Guard | Yes |
| Intel Software Guard Extensions (Intel SGX) | Yes |
| Intel 64 | Yes |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Thermal Monitoring Technologies | Yes |
| Processor package size | 50 x 25 mm |
| Supported instruction sets | SSE4.1,SSE4.2,AVX 2.0,AVX-512 |
| CPU configuration (max) | 1 |
| Embedded options available | No |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Processor ARK ID | 196597 |
Battery
| Battery capacity | 80 Wh |
|---|---|
| Battery technology | Lithium-Ion (Li-Ion) |
| Number of battery cells | 2 |
| Battery voltage | 7,74 V |
| Battery life (max) | 17 h |
| Battery weight | 282 g |
Security
| Fingerprint reader | Yes |
|---|---|
| Trusted Platform Module (TPM) | Yes |
Weight & dimensions
| Weight | 1,35 kg |
|---|---|
| Width | 381 mm |
| Depth | 262 mm |
| Height | 17,8 mm |
Packaging data
| Package width | 495 mm |
|---|---|
| Package depth | 61 mm |
| Package height | 312 mm |
| Package weight | 2,63 kg |
Frequently asked questions
Is the LG Gram 17Z90N-N.APS9U1 good for gaming?
This laptop was not built for gaming: it relies on the integrated Intel Iris Plus Graphics. Its card's page shows what level it handles current games at.
How long does the battery of the LG Gram 17Z90N-N.APS9U1 last?
The manufacturer declares up to 17 h of battery life. Real duration depends on brightness, workload and battery health.
What is the screen of the LG Gram 17Z90N-N.APS9U1 like?
It carries a 17" 2560x1600 IPS display.
Which processor and graphics card does the LG Gram 17Z90N-N.APS9U1 have?
It runs on the Intel Core i7-1065G7 processor with the Intel Iris Plus Graphics graphics. Their pages carry their benchmarks, ranking position and alternatives.
Which operating system does the LG Gram 17Z90N-N.APS9U1 come with?
It comes with Windows 10 Pro preinstalled.
Which ports does the LG Gram 17Z90N-N.APS9U1 have?
According to its spec sheet: 1 × USB-C, 3 × USB-A, 1 × HDMI.
Does the LG Gram 17Z90N-N.APS9U1 have a backlit keyboard?
Yes, according to its spec sheet the keyboard is backlit.
Does the LG Gram 17Z90N-N.APS9U1 have a touch screen?
No, according to its spec sheet the screen is not a touch screen.
What material is the LG Gram 17Z90N-N.APS9U1 made of?
Its housing is made of Magnesium.
How much does the LG Gram 17Z90N-N.APS9U1 weigh?
It weighs 1,35 kg: one of the light ones, easy to carry every day.
When was the LG Gram 17Z90N-N.APS9U1 released?
Its release date is May 2020, 6 years ago.
