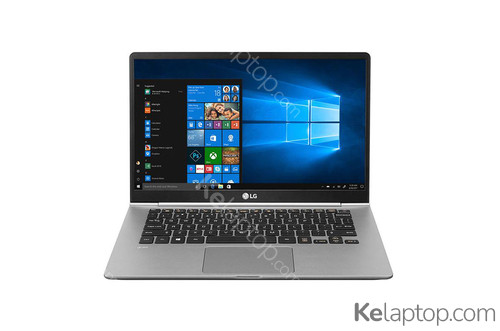

LG Gram 14Z980
Price and specs

Reference

14Z980-A.AAS7U1

Release date

10-2019, 4 years ago

Product type

Notebook

Product color

Silver

Form factor

Clamshell

Color name

Dark Silver

Display diagonal

14 " (35,6 cm)

Display resolution

1920 x 1080 pixels

Touchscreen

No

Panel type

IPS

HD type

Full HD

Native aspect ratio

16:9

Pantalla dual

No

Processor family

8th gen Intel® Core™ i7

Processor manufacturer

Intel

Processor model

i7-8550U

Processor frequency

1,8 GHz

Processor cores

4

Processor boost frequency

4 GHz

Processor threads

8

System bus rate

4 GT/s

Processor cache

8 MB

Processor socket

BGA 1356

Processor lithography

14 nm

Processor operating modes

64-bit

Processor codename

Kaby Lake R

Bus type

OPI

Stepping

Y0

Thermal Design Power (TDP)

15 W

Configurable TDP-up frequency

2 GHz

Configurable TDP-up

25 W

Configurable TDP-down

10 W

Configurable TDP-down frequency

0,8 GHz

Tjunction

100 °C

Maximum number of PCI Express lanes

12

PCI Express slots version

3.0

PCI Express configurations

1x2+2x1,1x4,2x2,4x1

Internal memory

8 GB

Internal memory type

DDR4-SDRAM

Memory clock speed

2400 MHz

Memory layout (slots x size)

1 x 8 GB

Total storage capacity

512 GB

Storage media

SSD

Optical drive type

No

Card reader integrated

Yes

Number of SSDs installed

1

SSD capacity

512 GB

SSD interface

Serial ATA

On-board graphics card

Yes

Discrete graphics card

No

Discrete graphics card model

Not available

On-board graphics card model

Intel® UHD Graphics 620

On-board graphics card base frequency

300 MHz

On-board graphics card dynamic frequency (max)

1150 MHz

Maximum on-board graphics card memory

32 GB

On-board graphics card DirectX version

12.0

On-board graphics card OpenGL version

4.4

On-board graphics card ID

0x5917

Number of built-in speakers

2

Speaker power

1,5 W

Built-in microphone

Yes

Front camera

Yes

Bluetooth

Yes

Top Wi-Fi standard

Wi-Fi 5 (802.11ac)

Wi-Fi standards

Wi-Fi 5 (802.11ac)

Ethernet LAN

Yes

Wi-Fi

Yes

Antenna type

2x2

Ethernet LAN data rates

10,100 Mbit/s

Bluetooth version

4.1

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

2

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

1

HDMI ports quantity

1

Headphone outputs

1

Charging port type

DC-in jack

Numeric keypad

No

Operating system installed

Windows 10 Home

Operating system architecture

64-bit

Intel® My WiFi Technology (Intel® MWT)

Yes

Intel® Smart Response Technology

Yes

Intel® Identity Protection Technology (Intel® IPT)

Yes

Intel® Hyper Threading Technology (Intel® HT Technology)

Yes

Intel® Turbo Boost Technology

2.0

Enhanced Intel SpeedStep Technology

Yes

Intel® Clear Video HD Technology (Intel® CVT HD)

Yes

Intel Clear Video Technology

Yes

Intel® InTru™ 3D Technology

Yes

Intel® Quick Sync Video Technology

Yes

Intel Flex Memory Access

Yes

Intel® AES New Instructions (Intel® AES-NI)

Yes

Intel Trusted Execution Technology

No

Intel Enhanced Halt State

Yes

Intel VT-x with Extended Page Tables (EPT)

Yes

Intel® Secure Key

Yes

Intel TSX-NI

No

Intel® OS Guard

Yes

Intel Software Guard Extensions (Intel SGX)

Yes

Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)

Yes

Intel 64

Yes

Execute Disable Bit

Yes

Idle States

Yes

Thermal Monitoring Technologies

Yes

Processor package size

42 X 24 mm

Supported instruction sets

AVX 2.0,SSE4.1,SSE4.2

CPU configuration (max)

1

Embedded options available

No

Intel Virtualization Technology for Directed I/O (VT-d)

Yes

Intel Identity Protection Technology version

1.00

Intel Smart Response Technology version

1.00

Intel Secure Key Technology version

1.00

Intel TSX-NI version

0.00

Intel Virtualization Technology (VT-x)

Yes

Processor ARK ID

122589

Conflict-Free processor

Yes

Battery capacity (Watt-hours)

72 Wh

Number of battery cells

4

Battery voltage

7,7 V

Battery life (max)

17,5 h

Battery weight

9.5 oz (269,4 g)

Weight

35.1 oz (994 g)

Width

12.7 " (322,6 mm)

Depth

8.3 " (210,8 mm)

Height

0.6 " (15,2 mm)

Package width

17.1 " (434 mm)

Package depth

10.2 " (259 mm)

Package height

2.4 " (61 mm)

Package weight

3.8 lbs (1,72 kg)
