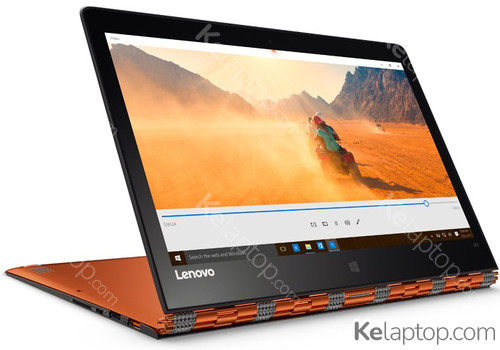

Lenovo Yoga 900 80UE008JMX
Specs
Prices
Main specs
| Processor | Intel Core i7 i7-6560U 2,2GHz |
|---|---|
| Screen | 13.3" 3200x1800 IPS 300 nits |
| Hard drive | 512GB SSD |
| RAM | 16GB LPDDR3-SDRAM |
| Operating system | Windows 10 Home |
| Graphics card | Intel Iris Graphics 540 |
Alternatives with equal or higher power at a similar or lower price
From Lenovo
From other brands
- 1
HP OmniBook 3 AI 14-ht0009nsx
€4991041 - 2
HP None DQ8R5EA
€4991040 - 3
HP OmniBook 3 16-bu0007nsx
€4391039 - 4
HP OmniBook 3 16-bu0077ns
€469.31039 - 5
HP OmniBook 3 16-bu0078ns
€478.981039 - 6
HP OmniBook 3 16-bu0043ns
€4791039 - 7
HP OmniBook 3 16-bu0036ns
€4991039 - 8
HP OmniBook 3 AI 14-ht0013nsx
€469.911038 - 9
HP 250R 15.6 inch G10 D31VVAT
€4909.438 - 10
HP OmniBook 3 AI 14-ht0001nsx
€487.99938
Full specifications of Lenovo Yoga 900 80UE008JMX
| Reference / Part Number | 80UE008JMX |
|---|---|
| Release date | December 2017, 8 years ago |
Design
| Product type | Hybrid (2-in-1) |
|---|---|
| Product colour | Orange |
| Form factor | Convertible (Folder) |
| Colour name | Clementine orange |
Image gallery
Screen
| Display diagonal | 33,8 cm |
|---|---|
| Display resolution | 3200 x 1800 pixels |
| Touchscreen | Yes |
| Touchscreen type | Capacitive |
| HD type | Quad HD+ |
| Touch technology | Multi-touch |
| Panel type | IPS |
| LED backlight | Yes |
| Native aspect ratio | 16:9 |
| Screen shape | Flat |
| Display brightness | 300 cd/m² |
| Contrast ratio (typical) | 400:1 |
Processor
| Processor family | Intel® Core™ i7 |
|---|---|
| Processor manufacturer | Intel |
| Processor model | i7-6560U |
| Processor frequency | 2,2 GHz |
| Processor generation | 6th gen Intel® Core™ i7 |
| Processor cores | 2 |
| Processor threads | 4 |
| Processor boost frequency | 3,2 GHz |
| System bus rate | 4 GT/s |
| Processor cache | 4 MB |
| Processor cache type | Smart Cache |
| Processor lithography | 14 nm |
| Processor operating modes | 64-bit |
| Processor series | Intel Core i7-6500 Mobile Series |
| Processor codename | Skylake |
| Bus type | OPI |
| Thermal Design Power (TDP) | 15 W |
| Configurable TDP-down | 9,5 W |
| Tjunction | 100 °C |
| Maximum number of PCI Express lanes | 12 |
| PCI Express slots version | 3.0 |
| PCI Express configurations | 1x2,1x4,2x2,2x1,4x1 |
| ECC supported by processor | No |
Memory
| Internal memory | 16 GB |
|---|---|
| Maximum internal memory | 16 GB |
| Internal memory type | LPDDR3-SDRAM |
| Memory clock speed | 1600 MHz |
| Memory form factor | On-board |
Storage
| Total storage capacity | 512 GB |
|---|---|
| Storage media | SSD |
| Optical drive type | No |
| Number of SSDs installed | 1 |
| SSD capacity | 512 GB |
| Card reader integrated | Yes |
| Compatible memory cards | MMC,SD,SDHC,SDXC |
Graphics
| On-board graphics card | Yes |
|---|---|
| On-board graphics card model | Intel® Iris™ Graphics 540 |
| On-board GPU manufacturer | Intel |
| On-board graphics card family | Intel® HD Graphics |
| On-board graphics card base frequency | 300 MHz |
| On-board graphics card dynamic frequency (max) | 1050 MHz |
| Maximum on-board graphics card memory | 32 GB |
| On-board graphics card DirectX version | 12.0 |
| On-board graphics card OpenGL version | 4.4 |
| On-board graphics card ID | 0x1926 |
Audio
| Number of built-in speakers | 2 |
|---|---|
| Speakers manufacturer | JBL |
| Speaker power | 2 W |
| Built-in microphone | Yes |
| Audio decoders | Dolby Audio Premium |
Camera
| Front camera | Yes |
|---|---|
| Front camera resolution (numeric) | 1 MP |
| Front camera resolution | 1280 x 720 pixels |
| Front camera signal format | 720p |
Network
| Wi-Fi | Yes |
|---|---|
| Wi-Fi standards | 802.11a,Wi-Fi 5 (802.11ac),802.11b,802.11g,Wi-Fi 4 (802.11n) |
| Ethernet LAN | No |
| Bluetooth | Yes |
| Bluetooth version | 4.1 |
Ports & interfaces
| USB 2.0 ports quantity | 1 |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| HDMI ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 0 |
| DisplayPorts quantity | 0 |
| DVI port | No |
| VGA (D-Sub) ports quantity | 0 |
| Thunderbolt ports quantity | 0 |
| Thunderbolt 3 ports quantity | 0 |
| Headphone outputs | 0 |
| Microphone in | No |
| Combo headphone/mic port | Yes |
| CardBus PCMCIA slots quantity | 0 |
| CardBus PCMCIA slot type | No |
| SmartCard slot | No |
Performance
| Motherboard chipset | Intel SoC |
|---|
Keyboard
| Numeric keypad | No |
|---|---|
| Pointing device | Touchpad |
| Keyboard backlit | Yes |
| Full-size keyboard | No |
| Windows keys | Yes |
Software
| Operating system installed | Windows 10 Home |
|---|---|
| Operating system architecture | 64-bit |
| Trial software | McAfee LiveSafe, Microsoft Office |
| Bundled software | Lenovo Companion Lenovo Photo Master Lenovo Solution Center Lenovo SHAREit Lenovo REACHit |
Processor special features
| Intel® My WiFi Technology (Intel® MWT) | Yes |
|---|---|
| Intel® Smart Response Technology | Yes |
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel® Clear Video HD Technology (Intel® CVT HD) | Yes |
| Intel Clear Video Technology | Yes |
| Intel® InTru™ 3D Technology | Yes |
| Intel® Quick Sync Video Technology | Yes |
| Intel Flex Memory Access | Yes |
| Intel® Smart Cache | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel Trusted Execution Technology | No |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel® Secure Key | Yes |
| Intel TSX-NI | No |
| Intel Stable Image Platform Program (SIPP) | No |
| Intel® OS Guard | Yes |
| Intel Software Guard Extensions (Intel SGX) | Yes |
| Intel 64 | Yes |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Thermal Monitoring Technologies | Yes |
| Processor package size | 42 x 24 x 1.3 mm |
| Supported instruction sets | AVX 2.0,SSE4.1,SSE4.2 |
| CPU configuration (max) | 1 |
| Embedded options available | No |
| Graphics & IMC lithography | 14 nm |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Processor ARK ID | 91163 |
| Conflict-Free processor | Yes |
Battery
| Battery capacity | 66 Wh |
|---|---|
| Battery technology | Lithium Polymer (LiPo) |
| Number of battery cells | 4 |
| Battery life (max) | 9 h |
Power
| AC adapter power | 65 W |
|---|---|
| AC adapter frequency | 50 - 60 Hz |
| AC adapter input voltage | 100 - 240 V |
| DC-in jack | Yes |
Security
| Password protection | Yes |
|---|---|
| Password protection type | HDD,Power on,Supervisor |
Certificates
| Compliance certificates | RoHS |
|---|
Sustainability
| Sustainability certificates | ENERGY STAR |
|---|
Weight & dimensions
| Weight | 1,29 kg |
|---|---|
| Width | 324 mm |
| Depth | 225 mm |
| Height | 14,9 mm |
Packaging content
| AC adapter included | Yes |
|---|---|
| Manual | Yes |
| Quick start guide | Yes |
| Power cord included | Yes |
Other features
| Maximum internal memory (64-bit) | 16 GB |
|---|
Frequently asked questions
Is the Lenovo Yoga 900 80UE008JMX good for gaming?
This laptop was not built for gaming: it relies on the integrated Intel Iris Graphics 540. Its card's page shows what level it handles current games at.
How long does the battery of the Lenovo Yoga 900 80UE008JMX last?
The manufacturer declares up to 9 h of battery life. Real duration depends on brightness, workload and battery health.
What is the screen of the Lenovo Yoga 900 80UE008JMX like?
It carries a 13.3" 3200x1800 IPS 300 nits display.
Which processor and graphics card does the Lenovo Yoga 900 80UE008JMX have?
It runs on the Intel Core i7 i7-6560U processor with the Intel Iris Graphics 540 graphics. Their pages carry their benchmarks, ranking position and alternatives.
Which operating system does the Lenovo Yoga 900 80UE008JMX come with?
It comes with Windows 10 Home preinstalled.
Which ports does the Lenovo Yoga 900 80UE008JMX have?
According to its spec sheet: 1 × USB-C, 2 × USB-A, card reader, headphone jack (3.5 mm).
Does the Lenovo Yoga 900 80UE008JMX have a backlit keyboard?
Yes, according to its spec sheet the keyboard is backlit.
Does the Lenovo Yoga 900 80UE008JMX have a touch screen?
Yes, according to its spec sheet the screen is a touch screen.
How much does the Lenovo Yoga 900 80UE008JMX weigh?
It weighs 1,29 kg: one of the light ones, easy to carry every day.
When was the Lenovo Yoga 900 80UE008JMX released?
Its release date is December 2017, 8 years ago.
