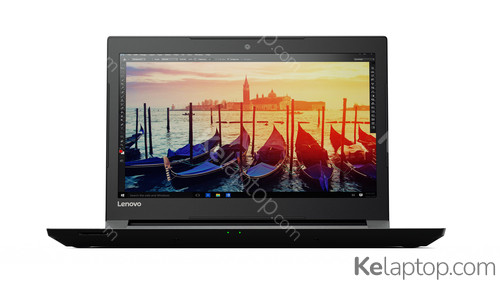

Lenovo V310 80T20060CD
Specs
Prices
Main specs
| Processor | Intel Core i5 i5-7200U 2,5GHz |
|---|---|
| Screen | 14" 1920x1080 220 nits |
| Hard drive | 628GB HDD+SSD |
| RAM | 4GB DDR4-SDRAM |
| Operating system | Windows 10 Home |
| Graphics card |
|
Full specifications of Lenovo V310 80T20060CD
| Reference / Part Number | 80T20060CD |
|---|---|
| Release date | January 2018, 8 years ago |
Design
| Product type | Laptop |
|---|---|
| Product colour | Black |
| Form factor | Clamshell |
Image gallery
Screen
| Display diagonal | 35,6 cm |
|---|---|
| Display resolution | 1920 x 1080 pixels |
| Touchscreen | No |
| HD type | Full HD |
| LED backlight | Yes |
| Native aspect ratio | 16:9 |
| Display brightness | 220 cd/m² |
Processor
| Processor family | Intel® Core™ i5 |
|---|---|
| Processor manufacturer | Intel |
| Processor model | i5-7200U |
| Processor frequency | 2,5 GHz |
| Processor generation | 7th gen Intel® Core™ i5 |
| Processor cores | 2 |
| Processor threads | 4 |
| Processor boost frequency | 3,1 GHz |
| System bus rate | 4 GT/s |
| Processor cache | 3 MB |
| Processor cache type | Smart Cache |
| Processor socket | BGA 1356 |
| Processor lithography | 14 nm |
| Processor operating modes | 64-bit |
| Processor codename | Kaby Lake |
| Bus type | OPI |
| Stepping | H0 |
| Thermal Design Power (TDP) | 15 W |
| Configurable TDP-up frequency | 2,7 GHz |
| Configurable TDP-up | 25 W |
| Configurable TDP-down | 7,5 W |
| Configurable TDP-down frequency | 0,8 GHz |
| Tjunction | 100 °C |
| Maximum number of PCI Express lanes | 12 |
| PCI Express slots version | 3.0 |
| PCI Express configurations | 1x2+2x1,1x4,2x2,4x1 |
| ECC supported by processor | No |
Memory
| Internal memory | 4 GB |
|---|---|
| Maximum internal memory | 16 GB |
| Internal memory type | DDR4-SDRAM |
| Memory clock speed | 2133 MHz |
| Memory slots | 1x SO-DIMM |
Storage
| Total storage capacity | 628 GB |
|---|---|
| Storage media | HDD+SSD |
| Number of HDDs installed | 1 |
| HDD capacity | 500 GB |
| HDD interface | SATA III |
| HDD size | 2.5 " |
| Number of SSDs installed | 1 |
| SSD capacity | 128 GB |
| Card reader integrated | Yes |
| Compatible memory cards | MMC,SD,SDHC,SDXC |
Graphics
| On-board graphics card | Yes |
|---|---|
| Discrete graphics card | Yes |
| On-board graphics card model | Intel® HD Graphics 620 |
| On-board graphics card family | Intel® HD Graphics |
| On-board graphics card base frequency | 300 MHz |
| On-board graphics card dynamic frequency (max) | 1000 MHz |
| Maximum on-board graphics card memory | 32 GB |
| On-board graphics card DirectX version | 12.0 |
| On-board graphics card OpenGL version | 4.4 |
| On-board graphics card ID | 0x5916 |
Audio
| Number of built-in speakers | 2 |
|---|---|
| Speaker power | 1,5 W |
| Built-in microphone | Yes |
Camera
| Front camera | Yes |
|---|
Network
| Wi-Fi | Yes |
|---|---|
| Wi-Fi standards | Wi-Fi 5 (802.11ac) |
| Ethernet LAN | Yes |
| Bluetooth | Yes |
| Bluetooth version | 4.1 |
Ports & interfaces
| USB 2.0 ports quantity | 1 |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| HDMI ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 1 |
| DisplayPorts quantity | 0 |
| DVI port | No |
| VGA (D-Sub) ports quantity | 1 |
| Thunderbolt ports quantity | 0 |
| Thunderbolt 3 ports quantity | 0 |
| Combo headphone/mic port | Yes |
Keyboard
| Numeric keypad | No |
|---|---|
| Pointing device | Touchpad |
| Windows keys | Yes |
Software
| Operating system installed | Windows 10 Home |
|---|---|
| Operating system architecture | 64-bit |
Processor special features
| Intel® Wireless Display (Intel® WiDi) | Yes |
|---|---|
| Intel® My WiFi Technology (Intel® MWT) | Yes |
| Intel® Smart Response Technology | Yes |
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Intel® Small Business Advantage (Intel® SBA) | Yes |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel® Clear Video HD Technology (Intel® CVT HD) | Yes |
| Intel Clear Video Technology | Yes |
| Intel® InTru™ 3D Technology | Yes |
| Intel® Insider™ | Yes |
| Intel® Quick Sync Video Technology | Yes |
| Intel Flex Memory Access | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel Trusted Execution Technology | No |
| Intel Enhanced Halt State | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel® Secure Key | Yes |
| Intel TSX-NI | No |
| Intel Stable Image Platform Program (SIPP) | No |
| Intel® OS Guard | Yes |
| Intel Software Guard Extensions (Intel SGX) | Yes |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | Yes |
| Intel 64 | Yes |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Thermal Monitoring Technologies | Yes |
| Processor package size | 42 x 24 mm |
| Supported instruction sets | AVX 2.0,SSE4.1,SSE4.2 |
| Processor code | SR2ZU |
| CPU configuration (max) | 1 |
| Embedded options available | No |
| Graphics & IMC lithography | 14 nm |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel Identity Protection Technology version | 1.00 |
| Intel Smart Response Technology version | 1.00 |
| Intel Stable Image Platform Program (SIPP) version | 0.00 |
| Intel Secure Key Technology version | 1.00 |
| Intel TSX-NI version | 0.00 |
| Intel Virtualization Technology (VT-x) | Yes |
| Processor ARK ID | 95443 |
| Conflict-Free processor | Yes |
Power
| DC-in jack | Yes |
|---|
Security
| Cable lock slot | Yes |
|---|---|
| Fingerprint reader | Yes |
Weight & dimensions
| Weight | 1,6 kg |
|---|---|
| Width | 343 mm |
| Depth | 247 mm |
| Height | 22,7 mm |
Packaging content
| AC adapter included | Yes |
|---|---|
| Manual | Yes |
Other features
| 3D | No |
|---|---|
| Maximum internal memory (64-bit) | 16 GB |
Frequently asked questions
What is the screen of the Lenovo V310 80T20060CD like?
It carries a 14" 1920x1080 220 nits display.
Can the RAM of the Lenovo V310 80T20060CD be upgraded?
Yes: it has 1 memory slot and takes up to 16 GB according to the manufacturer (it ships with 4GB).
Which operating system does the Lenovo V310 80T20060CD come with?
It comes with Windows 10 Home preinstalled.
Which ports does the Lenovo V310 80T20060CD have?
According to its spec sheet: 2 × USB-A, 1 × HDMI, Ethernet (RJ-45), card reader, headphone jack (3.5 mm).
Does the Lenovo V310 80T20060CD have a touch screen?
No, according to its spec sheet the screen is not a touch screen.
How much does the Lenovo V310 80T20060CD weigh?
It weighs 1,6 kg, a normal weight for its size: easy enough to move around.
When was the Lenovo V310 80T20060CD released?
Its release date is January 2018, 8 years ago.
