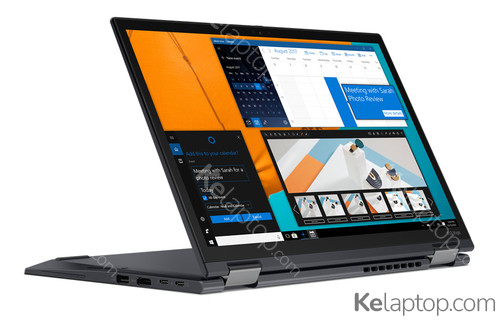

Lenovo ThinkPad X X13 Yoga 20W8S0KD00
Specs
Prices
Main specs
| Processor | |
|---|---|
| Screen | 13.3" 1920x1200 IPS 300 nits 100% sRGB |
| Hard drive | 512GB SSD M.2 |
| RAM | 16GB LPDDR4x-SDRAM |
| Operating system | Windows 11 Pro |
| Graphics card | |
| Other | Keyboard US English. |
Alternatives with equal or higher power at a similar or lower price
From Lenovo
Full specifications of Lenovo ThinkPad X X13 Yoga 20W8S0KD00
| Reference / Part Number | 20W8S0KD00 |
|---|---|
| Release date | June 2023, 3 years ago |
Design
| Product type | Hybrid (2-in-1) |
|---|---|
| Product colour | Black |
| Form factor | Convertible (Folder) |
Image gallery
Screen
| Display diagonal | 33,8 cm |
|---|---|
| Display resolution | 1920 x 1200 pixels |
| Touchscreen | Yes |
| HD type | WUXGA |
| Panel type | IPS |
| LED backlight | Yes |
| Native aspect ratio | 16:10 |
| Display brightness | 300 cd/m² |
| RGB colour space | sRGB |
| Colour gamut | 100 % |
| Contrast ratio (typical) | 1000:1 |
Processor
| Processor family | Intel® Core™ i5 |
|---|---|
| Processor manufacturer | Intel |
| Processor model | i5-1145G7 |
| Processor generation | 11th gen Intel® Core™ i5 |
| Processor cores | 4 |
| Processor boost frequency | 4,4 GHz |
| Processor cache | 8 MB |
| Processor cache type | Smart Cache |
Memory
| Internal memory | 16 GB |
|---|---|
| Maximum internal memory | 16 GB |
| Internal memory type | LPDDR4x-SDRAM |
| Memory clock speed | 4266 MHz |
| Memory form factor | On-board |
| Memory channels | Dual-channel |
Storage
| Total storage capacity | 512 GB |
|---|---|
| Storage media | SSD |
| Optical drive type | No |
| Total SSDs capacity | 512 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 512 GB |
| SSD interface | PCI Express |
| NVMe | Yes |
| SSD form factor | M.2 |
| Card reader integrated | No |
Graphics
| On-board graphics card | Yes |
|---|---|
| Discrete graphics card | No |
| Discrete graphics card model | Not available |
| On-board graphics card model | Intel Iris Xe Graphics |
| On-board GPU manufacturer | Intel |
| On-board graphics card family | Intel Iris Xe Graphics |
Audio
| Audio chip | Realtek ALC3286 |
|---|---|
| Audio system | Dolby Audio |
| Number of built-in speakers | 2 |
| Speaker power | 2 W |
| Built-in microphone | Yes |
| Number of microphones | 2 |
Camera
| Front camera | Yes |
|---|---|
| Front camera resolution | 1280 x 720 pixels |
| Front camera HD type | HD |
| Infrared (IR) camera | Yes |
| Privacy camera | Yes |
| Privacy type | Privacy shutter |
Network
| Mobile network connection | Yes |
|---|---|
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Mobile network generation | 4G |
| 4G standard | LTE |
| Wi-Fi standards | Wi-Fi 6 (802.11ax) |
| Antenna type | 2x2 |
| WLAN controller model | Intel Wi-Fi 6 AX201 |
| WLAN controller manufacturer | Intel |
| Ethernet LAN | No |
| Bluetooth | Yes |
| Bluetooth version | 5.1 |
| WWAN | Installed |
| WWAN controller | Quectel EM120R-GL |
Ports & interfaces
| USB 2.0 ports quantity | 0 |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| HDMI ports quantity | 1 |
| HDMI version | 2.0 |
| Thunderbolt 4 ports quantity | 2 |
| Intel® Thunderbolt 4 | Yes |
| Combo headphone/mic port | Yes |
| USB Type-C DisplayPort Alternate Mode | Yes |
| USB Sleep-and-Charge | Yes |
| USB Sleep-and-Charge ports | 1 |
Performance
| Motherboard chipset | Intel SoC |
|---|---|
| Accelerometer | Yes |
| Proximity sensor | Yes |
| Gyroscope | Yes |
Keyboard
| Numeric keypad | No |
|---|---|
| Pointing device | ThinkPad UltraNav |
| Keyboard backlit | Yes |
| Spill-resistant keyboard | Yes |
| Keyboard language | US English |
Software
| Operating system installed | Windows 11 Pro |
|---|---|
| Operating system architecture | 64-bit |
Battery
| Battery capacity | 52,8 Wh |
|---|---|
| Battery technology | Lithium Polymer (LiPo) |
| Battery life (max) | 12,2 h |
Power
| USB Power Delivery (USB PD) | Yes |
|---|
Security
| Cable lock slot | Yes |
|---|---|
| Cable lock slot type | Kensington |
| Fingerprint reader | Yes |
| Trusted Platform Module (TPM) | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
| Password protection | Yes |
| Password protection type | Power on,Supervisor |
Operational conditions
| Operating temperature (T-T) | 5 - 35 °C |
|---|---|
| Storage temperature (T-T) | 5 - 43 °C |
| Operating relative humidity (H-H) | 8 - 95 % |
| Storage relative humidity (H-H) | 5 - 95 % |
| Maximum shipping altitude | 3048 m |
Certificates
| Certification | ENERGY STAR 8.0, TCO, EPEAT Gold, RoHS, Intel Evo |
|---|
Weight & dimensions
| Weight | 1,2 kg |
|---|---|
| Width | 305 mm |
| Depth | 213,9 mm |
| Height | 15,4 mm |
Packaging content
| Stylus pen | Yes |
|---|
Frequently asked questions
Is the Lenovo ThinkPad X X13 Yoga 20W8S0KD00 good for gaming?
This laptop was not built for gaming: it relies on the integrated Intel Iris Xe Graphics. Its card's page shows what level it handles current games at.
How long does the battery of the Lenovo ThinkPad X X13 Yoga 20W8S0KD00 last?
The manufacturer declares up to 12,2 h of battery life. Real duration depends on brightness, workload and battery health.
What is the screen of the Lenovo ThinkPad X X13 Yoga 20W8S0KD00 like?
It carries a 13.3" 1920x1200 IPS 300 nits 100% sRGB display.
Which processor and graphics card does the Lenovo ThinkPad X X13 Yoga 20W8S0KD00 have?
It runs on the Intel Core i5-1145G7 processor with the Intel Iris Xe Graphics graphics. Their pages carry their benchmarks, ranking position and alternatives.
Which operating system does the Lenovo ThinkPad X X13 Yoga 20W8S0KD00 come with?
It comes with Windows 11 Pro preinstalled.
Which ports does the Lenovo ThinkPad X X13 Yoga 20W8S0KD00 have?
According to its spec sheet: 2 × Thunderbolt 4, 2 × USB-A, 1 × HDMI, headphone jack (3.5 mm).
Does the Lenovo ThinkPad X X13 Yoga 20W8S0KD00 have a backlit keyboard?
Yes, according to its spec sheet the keyboard is backlit.
Does the Lenovo ThinkPad X X13 Yoga 20W8S0KD00 have a touch screen?
Yes, according to its spec sheet the screen is a touch screen.
How much does the Lenovo ThinkPad X X13 Yoga 20W8S0KD00 weigh?
It weighs 1,2 kg: one of the light ones, easy to carry every day.
When was the Lenovo ThinkPad X X13 Yoga 20W8S0KD00 released?
Its release date is June 2023, 3 years ago.
