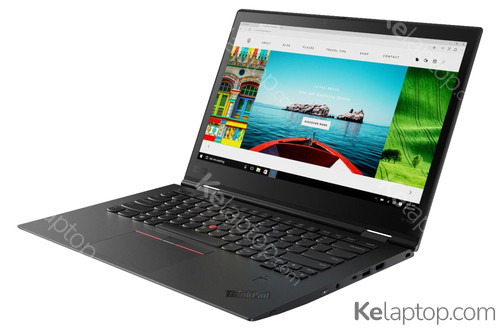

Lenovo ThinkPad X X1 Yoga (3rd Gen) 20LD0034ZA
Specs
Prices
Main specs
| Processor | Intel Core i7-8550U 1,8GHz |
|---|---|
| Screen | 14" 2560x1440 IPS 300 nits |
| Hard drive | 512GB SSD M.2 |
| RAM | 16GB LPDDR3-SDRAM |
| Operating system | Windows 10 Pro |
| Graphics card | Intel UHD Graphics 620 |
Alternatives with equal or higher power at a similar or lower price
From other brands
- 1
ASUS Vivobook 15 F1504VA-BQ252 90NB13Y1-M01H80
€654.71046 - 2
Acer Aspire Go 15 AG15-72P-79N5
€683.861045 - 3
ASUS Vivobook 15 F1504VA-BQ159 90NB13Y1-M01150
€618.761045 - 4
Acer Swift 3 SF314-43-R9A0
€696.951044 - 5
DELL Inspiron 3530 JP8DX
€670.191044 - 6
ASUS Vivobook 15 X1504ZA-NJ1167W
€6999.143 - 7
ASUS Vivobook 15 X1504ZA-NJ1429W
€6999.143
Full specifications of Lenovo ThinkPad X X1 Yoga (3rd Gen) 20LD0034ZA
| Reference / Part Number | 20LD0034ZA |
|---|---|
| Release date | December 2019, 6 years ago |
Design
| Product type | Hybrid (2-in-1) |
|---|---|
| Product colour | Black |
| Form factor | Convertible (Folder) |
Image gallery
Screen
| Display diagonal | 35,6 cm |
|---|---|
| Display resolution | 2560 x 1440 pixels |
| Touchscreen | Yes |
| Touchscreen type | Capacitive |
| HD type | Quad HD |
| Touch technology | Multi-touch |
| Panel type | IPS |
| LED backlight | Yes |
| Native aspect ratio | 16:9 |
| Display brightness | 300 cd/m² |
Processor
| Processor family | Intel® Core™ i7 |
|---|---|
| Processor manufacturer | Intel |
| Processor model | i7-8550U |
| Processor frequency | 1,8 GHz |
| Processor generation | 8th gen Intel® Core™ i7 |
| Processor cores | 4 |
| Processor threads | 8 |
| Processor boost frequency | 4 GHz |
| System bus rate | 4 GT/s |
| Processor cache | 8 MB |
| Processor cache type | Smart Cache |
| Processor socket | BGA 1356 |
| Processor lithography | 14 nm |
| Processor operating modes | 64-bit |
| Processor codename | Kaby Lake R |
| Bus type | OPI |
| Stepping | Y0 |
| Thermal Design Power (TDP) | 15 W |
| Configurable TDP-up frequency | 2 GHz |
| Configurable TDP-up | 25 W |
| Configurable TDP-down | 10 W |
| Configurable TDP-down frequency | 0,8 GHz |
| Tjunction | 100 °C |
| Maximum number of PCI Express lanes | 12 |
| PCI Express slots version | 3.0 |
| PCI Express configurations | 1x2+2x1,1x4,2x2,4x1 |
| ECC supported by processor | No |
Memory
| Internal memory | 16 GB |
|---|---|
| Maximum internal memory | 16 GB |
| Internal memory type | LPDDR3-SDRAM |
| Memory clock speed | 2133 MHz |
| Memory form factor | On-board |
Storage
| Total storage capacity | 512 GB |
|---|---|
| Storage media | SSD |
| Optical drive type | No |
| Total SSDs capacity | 512 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 512 GB |
| SSD interface | PCI Express |
| SSD form factor | M.2 |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash) |
Graphics
| On-board graphics card | Yes |
|---|---|
| Discrete graphics card | No |
| Discrete graphics card model | Not available |
| On-board graphics card model | Intel® UHD Graphics 620 |
| On-board graphics card family | Intel® UHD Graphics |
| On-board graphics card base frequency | 300 MHz |
| On-board graphics card dynamic frequency (max) | 1150 MHz |
| Maximum on-board graphics card memory | 32 GB |
| On-board graphics card DirectX version | 12.0 |
| On-board graphics card OpenGL version | 4.4 |
| On-board graphics card ID | 0x5917 |
Audio
| Audio system | Dolby Audio Premium |
|---|---|
| Number of built-in speakers | 2 |
| Speaker power | 1 W |
| Built-in subwoofer | No |
| Built-in microphone | Yes |
Camera
| Front camera | Yes |
|---|---|
| Front camera signal format | 720p |
| Front camera HD type | HD |
| Auto focus | No |
Network
| Mobile network connection | Yes |
|---|---|
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Mobile network generation | 4G |
| 2G standards | EDGE,GPRS,GSM |
| 3G standards | DC-HSDPA,HSPA,HSUPA,UMTS |
| 4G standard | LTE |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a,Wi-Fi 5 (802.11ac),802.11b,802.11g,Wi-Fi 4 (802.11n) |
| Antenna type | 2x2 |
| WLAN controller model | Intel Dual Band Wireless-AC 8265 |
| Ethernet LAN | No |
| Bluetooth | Yes |
| Bluetooth version | 4.2 |
| WWAN | Installed |
Ports & interfaces
| USB 2.0 ports quantity | 0 |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| HDMI ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 2 |
| HDMI version | 1.4 |
| DisplayPorts quantity | 0 |
| Thunderbolt 3 ports quantity | 0 |
| Headphone outputs | 1 |
| Microphone in | No |
| Combo headphone/mic port | Yes |
| USB Sleep-and-Charge | Yes |
| USB Sleep-and-Charge ports | 1 |
Performance
| Ambient light sensor | Yes |
|---|---|
| Accelerometer | Yes |
Keyboard
| Numeric keypad | No |
|---|---|
| Pointing device | ThinkPad UltraNav |
| Keyboard backlit | Yes |
| Spill-resistant keyboard | Yes |
| Windows keys | Yes |
Software
| Operating system installed | Windows 10 Pro |
|---|---|
| Operating system architecture | 64-bit |
Processor special features
| Intel® My WiFi Technology (Intel® MWT) | Yes |
|---|---|
| Intel® Smart Response Technology | Yes |
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel® Clear Video HD Technology (Intel® CVT HD) | Yes |
| Intel Clear Video Technology | Yes |
| Intel® InTru™ 3D Technology | Yes |
| Intel® Quick Sync Video Technology | Yes |
| Intel Flex Memory Access | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel Trusted Execution Technology | No |
| Intel Enhanced Halt State | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel® Secure Key | Yes |
| Intel TSX-NI | No |
| Intel® OS Guard | Yes |
| Intel Software Guard Extensions (Intel SGX) | Yes |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | Yes |
| Intel 64 | Yes |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Thermal Monitoring Technologies | Yes |
| Processor package size | 42 x 24 mm |
| Supported instruction sets | AVX 2.0,SSE4.1,SSE4.2 |
| Processor code | SR3LA |
| CPU configuration (max) | 1 |
| Embedded options available | No |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel Identity Protection Technology version | 1.00 |
| Intel Smart Response Technology version | 1.00 |
| Intel Secure Key Technology version | 1.00 |
| Intel TSX-NI version | 0.00 |
| Intel Virtualization Technology (VT-x) | Yes |
| Processor ARK ID | 122589 |
| Conflict-Free processor | Yes |
Battery
| Battery capacity | 54 Wh |
|---|---|
| Battery technology | Lithium-Ion (Li-Ion) |
| Fast charging | Yes |
Power
| AC adapter power | 65 W |
|---|---|
| AC adapter frequency | 50 - 60 Hz |
| AC adapter input voltage | 100 - 240 V |
Security
| Cable lock slot | Yes |
|---|---|
| Fingerprint reader | Yes |
| Trusted Platform Module (TPM) | Yes |
| Password protection | Yes |
| Password protection type | HDD,Power on,Supervisor |
Certificates
| Compliance certificates | RoHS |
|---|---|
| Certification | MIL-STD-810G |
Sustainability
| Sustainability certificates | ENERGY STAR |
|---|
Weight & dimensions
| Weight | 1,4 kg |
|---|---|
| Width | 333 mm |
| Depth | 229 mm |
| Height | 17,1 mm |
Packaging content
| AC adapter included | Yes |
|---|---|
| Manual | Yes |
| Warranty card | Yes |
Other features
| LightScribe | No |
|---|---|
| 3D | No |
| SIM card support | No |
Frequently asked questions
Is the Lenovo ThinkPad X X1 Yoga (3rd Gen) 20LD0034ZA good for gaming?
This laptop was not built for gaming: it relies on the integrated Intel UHD Graphics 620. Its card's page shows what level it handles current games at.
What is the screen of the Lenovo ThinkPad X X1 Yoga (3rd Gen) 20LD0034ZA like?
It carries a 14" 2560x1440 IPS 300 nits display.
Which processor and graphics card does the Lenovo ThinkPad X X1 Yoga (3rd Gen) 20LD0034ZA have?
It runs on the Intel Core i7-8550U processor with the Intel UHD Graphics 620 graphics. Their pages carry their benchmarks, ranking position and alternatives.
Which operating system does the Lenovo ThinkPad X X1 Yoga (3rd Gen) 20LD0034ZA come with?
It comes with Windows 10 Pro preinstalled.
Which ports does the Lenovo ThinkPad X X1 Yoga (3rd Gen) 20LD0034ZA have?
According to its spec sheet: 2 × USB-C, 2 × USB-A, 1 × HDMI, card reader, headphone jack (3.5 mm).
Does the Lenovo ThinkPad X X1 Yoga (3rd Gen) 20LD0034ZA have a backlit keyboard?
Yes, according to its spec sheet the keyboard is backlit.
Does the Lenovo ThinkPad X X1 Yoga (3rd Gen) 20LD0034ZA have a touch screen?
Yes, according to its spec sheet the screen is a touch screen.
How much does the Lenovo ThinkPad X X1 Yoga (3rd Gen) 20LD0034ZA weigh?
It weighs 1,4 kg: one of the light ones, easy to carry every day.
When was the Lenovo ThinkPad X X1 Yoga (3rd Gen) 20LD0034ZA released?
Its release date is December 2019, 6 years ago.
