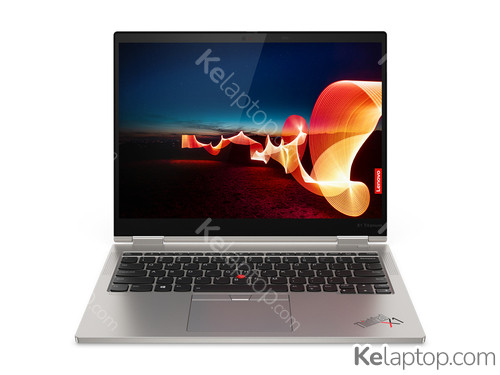

Lenovo ThinkPad X X1 Titanium Yoga 20QBS0TB00
Specs
Prices
Main specs
| Processor | Intel Core i7 i7-1160G7 2,1GHz |
|---|---|
| Screen | 13.5" 2256x1504 IPS 450 nits 72% NTSC |
| Hard drive | 512GB SSD M.2 |
| RAM | 16GB LPDDR4x-SDRAM |
| Operating system | Windows 11 Pro |
| Graphics card | |
| Other | Keyboard US English. |
Alternatives with equal or higher power at a similar or lower price
From Lenovo
- 1
Lenovo IdeaPad Slim 3 15Q8X10 Copilot+ 83N30009US
$6191047 - 2
Lenovo IdeaPad Slim 3 15Q8X10 Copilot+ 83N3003GUS
$6599.747 - 3
Lenovo IdeaPad 5 2-in-1 16IRU9 83DU0006US
$660.989.648 - 4
Lenovo IdeaPad Slim 5 16IRL8 82XF001TUS
$699.999.446 - 5
Lenovo Yoga 6 13ALC6 82ND0002US
$699.999.345 - 6
Lenovo IdeaPad Slim 3 15ABR8 82XM00LMUS
$6669.245
Full specifications of Lenovo ThinkPad X X1 Titanium Yoga 20QBS0TB00
| Reference / Part Number | 20QBS0TB00 |
|---|---|
| Release date | May 2023, 3 years ago |
Design
| Product type | Hybrid (2-in-1) |
|---|---|
| Product color | Titanium |
| Form factor | Convertible (Folder) |
Image gallery
Screen
| Display diagonal | 13.5 " (34,3 cm) |
|---|---|
| Display resolution | 2256 x 1504 pixels |
| Touchscreen | Yes |
| HD type | Quad HD |
| Panel type | IPS |
| LED backlight | Yes |
| Native aspect ratio | 3:2 |
| Display brightness | 450 cd/m² |
| RGB color space | NTSC |
| Color gamut | 72 % |
| Contrast ratio (typical) | 1200:1 |
| High Dynamic Range (HDR) technology | Dolby Vision |
Processor
| Processor family | Intel® Core™ i7 |
|---|---|
| Processor manufacturer | Intel |
| Processor model | i7-1160G7 |
| Processor frequency | 2,1 GHz |
| Generación del procesador | Intel Core i7-11xxx |
| Processor cores | 4 |
| Processor boost frequency | 4,4 GHz |
| Processor cache | 12 MB |
| Processor cache type | Smart Cache |
| Configurable TDP-up frequency | 2,1 GHz |
| Configurable TDP-up | 15 W |
| Configurable TDP-down | 7 W |
| Configurable TDP-down frequency | 0,9 GHz |
Memory
| Internal memory | 16 GB |
|---|---|
| Maximum internal memory | 16 GB |
| Internal memory type | LPDDR4x-SDRAM |
| Memory clock speed | 4266 MHz |
| Memory form factor | On-board |
Storage
| Total storage capacity | 512 GB |
|---|---|
| Storage media | SSD |
| Optical drive type | No |
| Total SSDs capacity | 512 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 512 GB |
| SSD interface | PCI Express |
| NVMe | Yes |
| SSD form factor | M.2 |
| Card reader integrated | No |
Graphics
| On-board graphics card | Yes |
|---|---|
| Discrete graphics card | No |
| Discrete graphics card model | Not available |
| On-board graphics card model | Intel Iris Xe Graphics |
Audio
| Audio chip | Realtek ALC3286 |
|---|---|
| Audio system | Dolby Atmos |
| Number of built-in speakers | 2 |
| Speaker power | 2 W |
| Built-in microphone | Yes |
| Number of microphones | 4 |
Camera
| Front camera | Yes |
|---|---|
| Front camera resolution | 1280 x 720 pixels |
| Front camera HD type | HD |
| Infrared (IR) camera | Yes |
| Privacy camera | Yes |
| Privacy type | Privacy shutter |
Network
| Mobile network connection | Yes |
|---|---|
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Mobile network generation | 5G |
| Wi-Fi standards | Wi-Fi 6 (802.11ax) |
| Antenna type | 2x2 |
| WLAN controller model | Intel Wi-Fi 6 AX201 |
| WLAN controller manufacturer | Intel |
| Bluetooth | Yes |
| Bluetooth version | 5.1 |
| WWAN | Installed |
| WWAN controller | Snapdragon X55 |
Puertos e Interfaces
| Número de puertos Thunderbolt 4 | 2 |
|---|---|
| Intel® Thunderbolt 4 | Yes |
| Combo headphone/mic port | Yes |
| USB Type-C DisplayPort Alternate Mode | Yes |
| USB Power Delivery | Yes |
Performance
| Motherboard chipset | Intel SoC |
|---|---|
| Accelerometer | Yes |
| Gyroscope | Yes |
Keyboard
| Numeric keypad | No |
|---|---|
| Pointing device | ThinkPad UltraNav |
| Keyboard language | US English |
| Keyboard backlit | Yes |
| Spill-resistant keyboard | Yes |
Software
| Operating system installed | Windows 11 Pro |
|---|---|
| Operating system architecture | 64-bit |
| Recovery operating system | Windows 10 Pro |
Processor special features
| CPU configuration (max) | 1 |
|---|
Battery
| Battery capacity | 44,5 Wh |
|---|---|
| Battery technology | Lithium Polymer (LiPo) |
| Battery life (max) | 11,7 h |
Power
| AC adapter power | 65 W |
|---|
Security
| Cable lock slot | Yes |
|---|---|
| Cable lock slot type | Kensington |
| Fingerprint reader | Yes |
| Smart card reader | No |
| Trusted Platform Module (TPM) | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
| Password protection | Yes |
| Password protection type | HDD,Power on,Supervisor |
Operational conditions
| Operating temperature (T-T) | 5 - 35 °C |
|---|---|
| Storage temperature (T-T) | 5 - 43 °C |
| Operating relative humidity (H-H) | 8 - 95 % |
| Storage relative humidity (H-H) | 5 - 95 % |
| Maximum shipping altitude | 3048 m |
Aprobaciones reguladoras
| Certificados de conformidad | RoHS |
|---|---|
| Certification | MIL-STD-810H |
Sustainability
| Sustainability certificates | ENERGY STAR,EPEAT Gold,TCO |
|---|
Weight & dimensions
| Weight | 2.6 lbs (1,18 kg) |
|---|---|
| Width | 11.7 " (297,5 mm) |
| Depth | 9.2 " (232,7 mm) |
| Height | 0.5 " (11,5 mm) |
Frequently asked questions
Is the Lenovo ThinkPad X X1 Titanium Yoga 20QBS0TB00 good for gaming?
This laptop was not built for gaming: it relies on the integrated Intel Iris Xe Graphics. Its card's page shows what level it handles current games at.
How long does the battery of the Lenovo ThinkPad X X1 Titanium Yoga 20QBS0TB00 last?
The manufacturer declares up to 11,7 h of battery life. Real duration depends on brightness, workload and battery health.
What is the screen of the Lenovo ThinkPad X X1 Titanium Yoga 20QBS0TB00 like?
It carries a 13.5" 2256x1504 IPS 450 nits 72% NTSC display.
Which processor and graphics card does the Lenovo ThinkPad X X1 Titanium Yoga 20QBS0TB00 have?
It runs on the Intel Core i7 i7-1160G7 processor with the Intel Iris Xe Graphics graphics. Their pages carry their benchmarks, ranking position and alternatives.
Which operating system does the Lenovo ThinkPad X X1 Titanium Yoga 20QBS0TB00 come with?
It comes with Windows 11 Pro preinstalled.
Which ports does the Lenovo ThinkPad X X1 Titanium Yoga 20QBS0TB00 have?
According to its spec sheet: 2 × Thunderbolt 4, headphone jack (3.5 mm).
Does the Lenovo ThinkPad X X1 Titanium Yoga 20QBS0TB00 have a backlit keyboard?
Yes, according to its spec sheet the keyboard is backlit.
Does the Lenovo ThinkPad X X1 Titanium Yoga 20QBS0TB00 have a touch screen?
Yes, according to its spec sheet the screen is a touch screen.
How much does the Lenovo ThinkPad X X1 Titanium Yoga 20QBS0TB00 weigh?
It weighs 1,18 kg: one of the light ones, easy to carry every day.
When was the Lenovo ThinkPad X X1 Titanium Yoga 20QBS0TB00 released?
Its release date is May 2023, 3 years ago.
