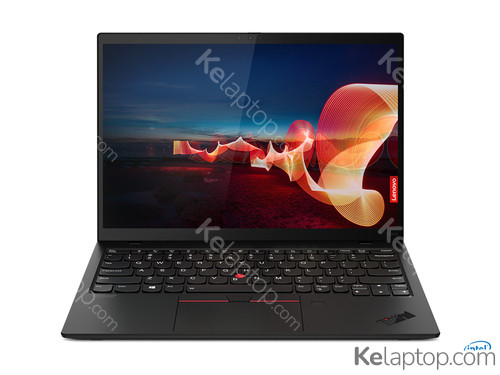

Lenovo ThinkPad X X1 Nano 20UNS0C500
Specs
Prices
Main specs
| Processor | Intel Core i5-1130G7 1,8GHz |
|---|---|
| Screen | 13" 2160x1350 IPS 450 nits 100% sRGB |
| Hard drive | 512GB SSD M.2 |
| RAM | 16GB LPDDR4x-SDRAM |
| Operating system | Windows 11 Home |
| Graphics card | |
| Other | Keyboard Japanese. |
Alternatives with equal or higher power at a similar or lower price
From Lenovo
From other brands
Full specifications of Lenovo ThinkPad X X1 Nano 20UNS0C500
| Reference / Part Number | 20UNS0C500 |
|---|---|
| Release date | July 2023, 3 years ago |
Design
| Product type | Laptop |
|---|---|
| Product colour | Black |
| Form factor | Clamshell |
Image gallery
Screen
| Display diagonal | 33 cm |
|---|---|
| Display resolution | 2160 x 1350 pixels |
| Touchscreen | No |
| HD type | 2K Ultra HD |
| Panel type | IPS |
| LED backlight | Yes |
| Native aspect ratio | 16:10 |
| Anti-glare screen | Yes |
| Display brightness | 450 cd/m² |
| RGB colour space | sRGB |
| Colour gamut | 100 % |
| Contrast ratio (typical) | 1000:1 |
Processor
| Processor family | Intel® Core™ i5 |
|---|---|
| Processor manufacturer | Intel |
| Processor model | i5-1130G7 |
| Processor frequency | 1,8 GHz |
| Processor generation | 11th gen Intel® Core™ i5 |
| Processor cores | 4 |
| Processor boost frequency | 4 GHz |
| Processor cache | 8 MB |
| Processor cache type | Smart Cache |
| Configurable TDP-up frequency | 1,8 GHz |
| Configurable TDP-up | 15 W |
| Configurable TDP-down | 7 W |
| Configurable TDP-down frequency | 0,8 GHz |
Memory
| Internal memory | 16 GB |
|---|---|
| Maximum internal memory | 16 GB |
| Internal memory type | LPDDR4x-SDRAM |
| Memory clock speed | 4266 MHz |
| Memory form factor | On-board |
| Memory channels | Dual-channel |
Storage
| Total storage capacity | 512 GB |
|---|---|
| Storage media | SSD |
| Optical drive type | No |
| Total SSDs capacity | 512 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 512 GB |
| SSD interface | PCI Express |
| NVMe | Yes |
| SSD form factor | M.2 |
| Card reader integrated | No |
Graphics
| On-board graphics card | Yes |
|---|---|
| Discrete graphics card | No |
| Discrete graphics card model | Not available |
| On-board graphics card model | Intel Iris Xe Graphics |
Audio
| Audio chip | Realtek ALC3306 |
|---|---|
| Audio system | Dolby Atmos |
| Number of built-in speakers | 4 |
| Built-in microphone | Yes |
| Number of microphones | 4 |
Camera
| Front camera | Yes |
|---|---|
| Front camera resolution | 1280 x 720 pixels |
| Front camera HD type | HD |
| Infrared (IR) camera | Yes |
| Privacy camera | Yes |
| Privacy type | Privacy shutter |
Network
| Mobile network connection | Yes |
|---|---|
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Mobile network generation | 4G |
| 4G standard | LTE |
| Wi-Fi standards | Wi-Fi 6 (802.11ax) |
| Antenna type | 2x2 |
| WLAN controller model | Intel Wi-Fi 6 AX201 |
| WLAN controller manufacturer | Intel |
| Ethernet LAN | No |
| Bluetooth | Yes |
| Bluetooth version | 5.1 |
| WWAN | Installed |
| WWAN controller | Fibocom L850-GL |
Ports & interfaces
| USB 2.0 ports quantity | 0 |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| HDMI ports quantity | 0 |
| Thunderbolt 4 ports quantity | 2 |
| Intel® Thunderbolt 4 | Yes |
| Combo headphone/mic port | Yes |
| USB Type-C DisplayPort Alternate Mode | Yes |
Performance
| Motherboard chipset | Intel SoC |
|---|
Keyboard
| Numeric keypad | No |
|---|---|
| Pointing device | ThinkPad UltraNav |
| Keyboard backlit | Yes |
| Spill-resistant keyboard | Yes |
| Keyboard language | Japanese |
Software
| Operating system installed | Windows 11 Home |
|---|---|
| Operating system architecture | 64-bit |
Processor special features
| CPU configuration (max) | 1 |
|---|
Battery
| Battery capacity | 42,4 Wh |
|---|---|
| Battery technology | Lithium Polymer (LiPo) |
| Fast charging | Yes |
Power
| AC adapter power | 65 W |
|---|---|
| USB Power Delivery (USB PD) | Yes |
Security
| Fingerprint reader | Yes |
|---|---|
| Smart card reader | No |
| Trusted Platform Module (TPM) | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
| Password protection | Yes |
| Password protection type | Power on,Supervisor,HDD |
Operational conditions
| Operating temperature (T-T) | 5 - 35 °C |
|---|---|
| Storage temperature (T-T) | 5 - 43 °C |
| Operating relative humidity (H-H) | 8 - 95 % |
| Storage relative humidity (H-H) | 5 - 95 % |
| Maximum shipping altitude | 3048 m |
Certificates
| Compliance certificates | RoHS |
|---|---|
| Certification | MIL-STD-810H |
Sustainability
| Sustainability certificates | ENERGY STAR,EPEAT Gold,TCO |
|---|
Weight & dimensions
| Weight | 939 g |
|---|---|
| Width | 292,8 mm |
| Depth | 207,7 mm |
| Height (front) | 1,39 cm |
| Height (rear) | 1,67 cm |
Frequently asked questions
Is the Lenovo ThinkPad X X1 Nano 20UNS0C500 good for gaming?
This laptop was not built for gaming: it relies on the integrated Intel Iris Xe Graphics. Its card's page shows what level it handles current games at.
What is the screen of the Lenovo ThinkPad X X1 Nano 20UNS0C500 like?
It carries a 13" 2160x1350 IPS 450 nits 100% sRGB display.
Which processor and graphics card does the Lenovo ThinkPad X X1 Nano 20UNS0C500 have?
It runs on the Intel Core i5-1130G7 processor with the Intel Iris Xe Graphics graphics. Their pages carry their benchmarks, ranking position and alternatives.
Which operating system does the Lenovo ThinkPad X X1 Nano 20UNS0C500 come with?
It comes with Windows 11 Home preinstalled.
Which ports does the Lenovo ThinkPad X X1 Nano 20UNS0C500 have?
According to its spec sheet: 2 × Thunderbolt 4, headphone jack (3.5 mm).
Does the Lenovo ThinkPad X X1 Nano 20UNS0C500 have a backlit keyboard?
Yes, according to its spec sheet the keyboard is backlit.
Does the Lenovo ThinkPad X X1 Nano 20UNS0C500 have a touch screen?
No, according to its spec sheet the screen is not a touch screen.
How much does the Lenovo ThinkPad X X1 Nano 20UNS0C500 weigh?
It weighs 939 g.
When was the Lenovo ThinkPad X X1 Nano 20UNS0C500 released?
Its release date is July 2023, 3 years ago.
