+18

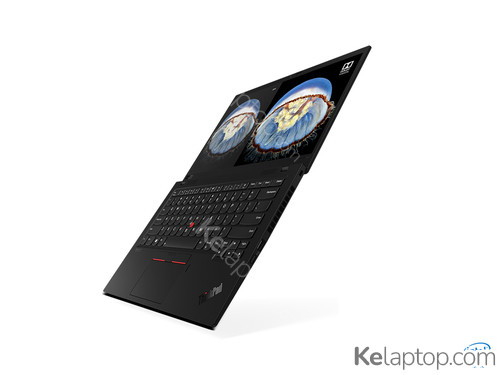

Lenovo ThinkPad X X1 Carbon Gen 8 20U90048MH
Specs
Prices
Main specs
| Processor | Intel Core i5-10210U 1,6GHz |
|---|---|
| Screen | 14" 1920x1080 IPS 400 nits |
| Hard drive | 256GB SSD M.2 |
| RAM | 16GB LPDDR3-SDRAM |
| Operating system | Windows 10 Pro |
| Graphics card | |
| Other | Keyboard English. |
Alternatives with equal or higher power at a similar or lower price
From other brands
- 1
HP OmniBook 3 AI 14-ht0009nsx
€4991041 - 2
HP None DQ8R5EA
€4491040 - 3
HP OmniBook 3 16-bu0007nsx
€4391039 - 4
HP OmniBook 3 16-bu0043ns
€4591039 - 5
HP OmniBook 3 16-bu0078ns
€4861039 - 6
HP OmniBook 3 16-bu0036ns
€4991039 - 7
HP OmniBook 3 16-by0036ns
€4491035 - 8
HP 250R 15.6 inch G10 D31VVAT
€4909.438 - 9
HP OmniBook 3 AI 14-ht0013nsx
€469.91938 - 10
HP OmniBook 3 AI 14-ht0001nsx
€487.99938
Full specifications of Lenovo ThinkPad X X1 Carbon Gen 8 20U90048MH
| Reference / Part Number | 20U90048MH |
|---|---|
| Release date | April 2022, 4 years ago |
Design
| Product type | Laptop |
|---|---|
| Product colour | Black |
| Form factor | Clamshell |
| Colour name | Black, Paint |
| Housing material | Carbon fibre,Magnesium |
Image gallery
Screen
| Display diagonal | 35,6 cm |
|---|---|
| Display resolution | 1920 x 1080 pixels |
| Touchscreen | No |
| HD type | Full HD |
| Panel type | IPS |
| Native aspect ratio | 16:9 |
| Anti-glare screen | No |
| Display brightness | 400 cd/m² |
Processor
| Processor family | Intel® Core™ i5 |
|---|---|
| Processor manufacturer | Intel |
| Processor model | i5-10210U |
| Processor frequency | 1,6 GHz |
| Processor generation | 10th gen Intel® Core™ i5 |
| Processor cores | 4 |
| Processor boost frequency | 4,2 GHz |
| Processor cache | 6 MB |
| Configurable TDP-up frequency | 2,1 GHz |
| Configurable TDP-up | 25 W |
| Configurable TDP-down | 10 W |
| Configurable TDP-down frequency | 0,8 GHz |
Memory
| Internal memory | 16 GB |
|---|---|
| Maximum internal memory | 16 GB |
| Internal memory type | LPDDR3-SDRAM |
| Memory form factor | On-board |
| Memory channels | Dual-channel |
Storage
| Total storage capacity | 256 GB |
|---|---|
| Storage media | SSD |
| Optical drive type | No |
| Total SSDs capacity | 256 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 256 GB |
| SSD form factor | M.2 |
| Card reader integrated | No |
Graphics
| On-board graphics card | Yes |
|---|---|
| Discrete graphics card | No |
| Discrete graphics card model | Not available |
| On-board graphics card model | Intel® UHD Graphics |
Audio
| Audio system | Dolby Atmos |
|---|---|
| Number of built-in speakers | 4 |
| Built-in microphone | Yes |
| Number of microphones | 4 |
Camera
| Front camera | Yes |
|---|---|
| Infrared (IR) camera | Yes |
| Privacy camera | Yes |
| Privacy type | Privacy shutter |
Network
| Mobile network connection | No |
|---|---|
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Wi-Fi standards | Wi-Fi 6 (802.11ax) |
| Antenna type | 2x2 |
| WLAN controller model | Intel Wi-Fi 6 AX201 |
| WLAN controller manufacturer | Intel |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 100,1000 Mbit/s |
| Bluetooth | Yes |
| Bluetooth version | 5.2 |
| Near Field Communication (NFC) | Yes |
| WWAN | Installed |
Ports & interfaces
| USB 2.0 ports quantity | 0 |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| HDMI ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI version | 1.4b |
| Headphone outputs | 1 |
| Combo headphone/mic port | Yes |
| USB Sleep-and-Charge | Yes |
| USB Sleep-and-Charge ports | 1 |
Performance
| Motherboard chipset | Intel SoC |
|---|
Keyboard
| Numeric keypad | No |
|---|---|
| Pointing device | ThinkPad UltraNav |
| Keyboard backlit | Yes |
| Spill-resistant keyboard | Yes |
| Keyboard layout | QWERTY |
| Keyboard language | English |
Software
| Operating system installed | Windows 10 Pro |
|---|---|
| Operating system architecture | 64-bit |
| Windows 11 free upgrade | No |
Processor special features
| Enhanced Intel SpeedStep Technology | Yes |
|---|---|
| Intel Clear Video Technology | Yes |
| Intel Flex Memory Access | Yes |
| Intel Trusted Execution Technology | No |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel TSX-NI | No |
| Intel Stable Image Platform Program (SIPP) | No |
| Intel Software Guard Extensions (Intel SGX) | Yes |
| Intel 64 | Yes |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| CPU configuration (max) | 1 |
| Embedded options available | No |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
Battery
| Battery capacity | 51 Wh |
|---|---|
| Battery technology | Lithium Polymer (LiPo) |
Power
| AC adapter power | 65 W |
|---|---|
| USB Power Delivery (USB PD) | Yes |
Security
| Cable lock slot | Yes |
|---|---|
| Cable lock slot type | Kensington |
| Fingerprint reader | Yes |
| Trusted Platform Module (TPM) | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
| Password protection | Yes |
| Password protection type | HDD,Power on,Supervisor |
Operational conditions
| Operating temperature (T-T) | 5 - 35 °C |
|---|---|
| Storage temperature (T-T) | 5 - 43 °C |
| Operating relative humidity (H-H) | 8 - 95 % |
| Storage relative humidity (H-H) | 5 - 95 % |
Certificates
| Compliance certificates | RoHS |
|---|
Sustainability
| Sustainability certificates | ENERGY STAR,EPEAT Gold,TCO |
|---|
Weight & dimensions
| Weight | 1,09 kg |
|---|---|
| Width | 323 mm |
| Depth | 217 mm |
| Height | 14,9 mm |
Frequently asked questions
Is the Lenovo ThinkPad X X1 Carbon Gen 8 20U90048MH good for gaming?
This laptop was not built for gaming: it relies on the integrated Intel UHD Graphics. Its card's page shows what level it handles current games at.
What is the screen of the Lenovo ThinkPad X X1 Carbon Gen 8 20U90048MH like?
It carries a 14" 1920x1080 IPS 400 nits display.
Which processor and graphics card does the Lenovo ThinkPad X X1 Carbon Gen 8 20U90048MH have?
It runs on the Intel Core i5-10210U processor with the Intel UHD Graphics graphics. Their pages carry their benchmarks, ranking position and alternatives.
Which operating system does the Lenovo ThinkPad X X1 Carbon Gen 8 20U90048MH come with?
It comes with Windows 10 Pro preinstalled.
Which ports does the Lenovo ThinkPad X X1 Carbon Gen 8 20U90048MH have?
According to its spec sheet: 2 × USB-C, 2 × USB-A, 1 × HDMI, Ethernet (RJ-45), headphone jack (3.5 mm).
Does the Lenovo ThinkPad X X1 Carbon Gen 8 20U90048MH have a backlit keyboard?
Yes, according to its spec sheet the keyboard is backlit.
Does the Lenovo ThinkPad X X1 Carbon Gen 8 20U90048MH have a touch screen?
No, according to its spec sheet the screen is not a touch screen.
What material is the Lenovo ThinkPad X X1 Carbon Gen 8 20U90048MH made of?
Its housing is made of Carbon fibre,Magnesium.
How much does the Lenovo ThinkPad X X1 Carbon Gen 8 20U90048MH weigh?
It weighs 1,09 kg: one of the light ones, easy to carry every day.
When was the Lenovo ThinkPad X X1 Carbon Gen 8 20U90048MH released?
Its release date is April 2022, 4 years ago.
