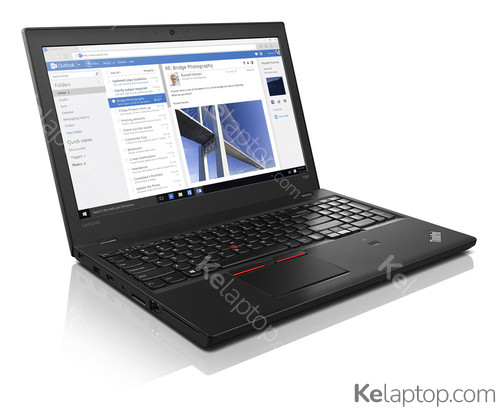

Lenovo ThinkPad T T560 20FJS53W02
Specs
Prices
Main specs
| Processor | Intel Core i5 i5-6300U 2,4GHz |
|---|---|
| Screen | 15.6" 1920x1080 IPS 250 nits |
| Hard drive | 256GB SSD |
| RAM | 8GB DDR3L-SDRAM |
| Operating system | Windows 10 Pro |
| Graphics card | Intel HD Graphics 520 |
Alternatives with equal or higher power at a similar or lower price
From Lenovo
From other brands
- 1
Acer Aspire Go 15 AG15-21P-R0RR
$389.991032 - 2
Acer Spin 5 SP513-54N-58XD
$399.951031 - 3
Acer Aspire 3 A315-24P-R7VH
$368531 - 4
ASUS Vivobook 14 X1404VA-I38128
$3884.930 - 5
ASUS Vivobook Go 15 E1504FA-AS33
$3964.930 - 6
Acer TravelMate Spin B3 TMB312RN-31-C86V
$317.84.929 - 7
Acer Aspire 3 A315-56-594W
$3954.929 - 8
Acer Aspire 3 A314-36P-3772
$3704.830 - 9
ASUS Vivobook 15 F1504ZA-AS34
$3974.829 - 10
ASUS Vivobook 14 F1402ZA-AB31
$3994.527
Full specifications of Lenovo ThinkPad T T560 20FJS53W02
| Reference / Part Number | 20FJS53W02 |
|---|---|
| Also sold as | 20FJS18V0R, 20FJS53X01, 20FJS53W01, 20FJS53W06, 20FJS53W05, 20FJS53X00, 20FJS53X04, 20FJS53X05, 20FJS53X07, 20FJS53W00, 20FJS53W04, 20FJS53W08, 20FJS53X02, 20FJS18V00, 20FJS53W07, 20FJS1880B |
| Release date | November 2017, 8 years ago |
Design
| Product type | Laptop |
|---|---|
| Product color | Black |
| Form factor | Clamshell |
| Housing material | Glass fibre,Plastic |
| Market positioning | Business |
Image gallery
Screen
| Display diagonal | 15.6 " (39,6 cm) |
|---|---|
| Display resolution | 1920 x 1080 pixels |
| Touchscreen | No |
| HD type | Full HD |
| Panel type | IPS |
| LED backlight | Yes |
| Native aspect ratio | 16:9 |
| Display surface | Matt |
| Screen shape | Flat |
| Display brightness | 250 cd/m² |
| Contrast ratio (typical) | 600:1 |
Processor
| Processor family | Intel® Core™ i5 |
|---|---|
| Processor manufacturer | Intel |
| Processor model | i5-6300U |
| Processor frequency | 2,4 GHz |
| Generación del procesador | Intel Core i5-6xxx |
| Processor cores | 2 |
| Processor threads | 4 |
| Processor boost frequency | 3 GHz |
| System bus rate | 4 GT/s |
| Processor cache | 3 MB |
| Processor cache type | Smart Cache |
| Processor socket | LGA 1356 (Socket B2) |
| Processor lithography | 14 nm |
| Processor operating modes | 64-bit |
| Processor series | Intel Core i5-6300 Mobile series |
| Processor codename | Skylake |
| Bus type | QPI |
| Stepping | D1 |
| Thermal Design Power (TDP) | 15 W |
| Configurable TDP-up frequency | 2,5 GHz |
| Configurable TDP-up | 25 W |
| Configurable TDP-down | 7,5 W |
| Configurable TDP-down frequency | 0,8 GHz |
| Tjunction | 100 °C |
| Maximum number of PCI Express lanes | 12 |
| PCI Express slots version | 3.0 |
| PCI Express configurations | 1x4,4x1 |
| ECC supported by processor | No |
Memory
| Internal memory | 8 GB |
|---|---|
| Maximum internal memory | 32 GB |
| Internal memory type | DDR3L-SDRAM |
| Memory clock speed | 1600 MHz |
| Memory form factor | SO-DIMM |
| Memory slots | 2x SO-DIMM |
Storage
| Total storage capacity | 256 GB |
|---|---|
| Storage media | SSD |
| Optical drive type | No |
| Number of SSDs installed | 1 |
| SSD capacity | 256 GB |
| Card reader integrated | Yes |
| Compatible memory cards | MMC,SD,SDHC,SDXC |
Graphics
| On-board graphics card | Yes |
|---|---|
| Discrete graphics card | No |
| Discrete graphics card model | Not available |
| On-board graphics card model | Intel® HD Graphics 520 |
| On-board graphics card family | Intel® HD Graphics |
| On-board graphics card base frequency | 300 MHz |
| On-board graphics card dynamic frequency (max) | 1000 MHz |
| Maximum on-board graphics card memory | 1,74 GB |
| On-board graphics card DirectX version | 12.0 |
| On-board graphics card OpenGL version | 4.4 |
| On-board graphics card ID | 1916 |
Audio
| Audio chip | Realtek ALC3245 |
|---|---|
| Number of built-in speakers | 2 |
| Speaker power | 1 W |
| Built-in microphone | Yes |
Camera
| Front camera | Yes |
|---|---|
| Front camera signal format | 720p |
Network
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
|---|---|
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a,Wi-Fi 5 (802.11ac),802.11b,802.11g,Wi-Fi 4 (802.11n) |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Bluetooth | Yes |
| Bluetooth version | 4.1 |
Ports & interfaces
| USB 2.0 ports quantity | 0 |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| HDMI ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 1 |
| DisplayPorts quantity | 0 |
| Mini DisplayPorts quantity | 1 |
| DVI port | No |
| VGA (D-Sub) ports quantity | 0 |
| Thunderbolt ports quantity | 0 |
| Thunderbolt 3 ports quantity | 0 |
| Combo headphone/mic port | Yes |
| Docking connector | Yes |
| USB Sleep-and-Charge | Yes |
| USB Sleep-and-Charge ports | 1 |
Performance
| Motherboard chipset | Intel SoC |
|---|
Keyboard
| Numeric keypad | Yes |
|---|---|
| Pointing device | ThinkPad UltraNav |
| Keyboard backlit | Yes |
| Island-style keyboard | Yes |
| Spill-resistant keyboard | Yes |
| Full-size keyboard | Yes |
| Windows keys | Yes |
Software
| Operating system installed | Windows 10 Pro |
|---|---|
| Operating system architecture | 64-bit |
Processor special features
| Intel® Wireless Display (Intel® WiDi) | Yes |
|---|---|
| Intel® My WiFi Technology (Intel® MWT) | Yes |
| Intel® Smart Response Technology | Yes |
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Intel® Small Business Advantage (Intel® SBA) | Yes |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel® Clear Video HD Technology (Intel® CVT HD) | Yes |
| Intel Clear Video Technology | Yes |
| Intel® InTru™ 3D Technology | Yes |
| Intel® Insider™ | Yes |
| Intel® Quick Sync Video Technology | Yes |
| Intel Flex Memory Access | Yes |
| Intel® Smart Cache | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel Trusted Execution Technology | Yes |
| Intel Enhanced Halt State | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel® Secure Key | Yes |
| Intel TSX-NI | Yes |
| Intel Stable Image Platform Program (SIPP) | Yes |
| Intel® OS Guard | Yes |
| Intel Software Guard Extensions (Intel SGX) | Yes |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | Yes |
| Intel 64 | Yes |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Thermal Monitoring Technologies | Yes |
| Processor package size | 42 X 24 mm |
| Supported instruction sets | SSE4.1,SSE4.2,AVX 2.0 |
| Processor code | SR2F0 |
| CPU configuration (max) | 1 |
| Embedded options available | Yes |
| Graphics & IMC lithography | 14 nm |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel Identity Protection Technology version | 1.00 |
| Intel Smart Response Technology version | 1.00 |
| Intel Stable Image Platform Program (SIPP) version | 1.00 |
| Intel Secure Key Technology version | 1.00 |
| Intel Small Business Advantage (SBA) version | 1.00 |
| Intel TSX-NI version | 1.00 |
| Intel Virtualization Technology (VT-x) | Yes |
| Processor ARK ID | 88190 |
| Conflict-Free processor | Yes |
Power
| AC adapter power | 45 W |
|---|---|
| AC adapter frequency | 50 - 60 Hz |
| AC adapter input voltage | 100 - 240 V |
| DC-in jack | Yes |
Security
| Cable lock slot | Yes |
|---|---|
| Cable lock slot type | Kensington |
| Trusted Platform Module (TPM) | Yes |
| Password protection | Yes |
| Password protection type | HDD,Power on,Supervisor |
Aprobaciones reguladoras
| Certificados de conformidad | RoHS |
|---|
Sustainability
| Sustainability certificates | ENERGY STAR |
|---|
Weight & dimensions
| Weight | 5.2 lbs (2,35 kg) |
|---|---|
| Width | 15 " (380,6 mm) |
| Depth | 10.2 " (258,2 mm) |
| Height | 0.9 " (22,4 mm) |
Packaging content
| AC adapter included | Yes |
|---|---|
| Manual | Yes |
| Quick start guide | Yes |
| Warranty card | Yes |
| Power cord included | Yes |
Other features
| LightScribe | No |
|---|---|
| Maximum internal memory (64-bit) | 32 GB |
Frequently asked questions
Is the Lenovo ThinkPad T T560 20FJS53W02 good for gaming?
This laptop was not built for gaming: it relies on the integrated Intel HD Graphics 520. Its card's page shows what level it handles current games at.
What is the screen of the Lenovo ThinkPad T T560 20FJS53W02 like?
It carries a 15.6" 1920x1080 IPS 250 nits display.
Which processor and graphics card does the Lenovo ThinkPad T T560 20FJS53W02 have?
It runs on the Intel Core i5 i5-6300U processor with the Intel HD Graphics 520 graphics. Their pages carry their benchmarks, ranking position and alternatives.
Can the RAM of the Lenovo ThinkPad T T560 20FJS53W02 be upgraded?
Yes: it has 2 memory slots and takes up to 32 GB according to the manufacturer (it ships with 8GB).
Which operating system does the Lenovo ThinkPad T T560 20FJS53W02 come with?
It comes with Windows 10 Pro preinstalled.
Which ports does the Lenovo ThinkPad T T560 20FJS53W02 have?
According to its spec sheet: 3 × USB-A, 1 × HDMI, Ethernet (RJ-45), card reader, headphone jack (3.5 mm).
Does the Lenovo ThinkPad T T560 20FJS53W02 have a backlit keyboard?
Yes, according to its spec sheet the keyboard is backlit.
Does the Lenovo ThinkPad T T560 20FJS53W02 have a touch screen?
No, according to its spec sheet the screen is not a touch screen.
What material is the Lenovo ThinkPad T T560 20FJS53W02 made of?
Its housing is made of Glass fibre,Plastic.
How much does the Lenovo ThinkPad T T560 20FJS53W02 weigh?
It weighs 2,35 kg: one of the heavy ones, more of a desk machine than a daily commuter.
When was the Lenovo ThinkPad T T560 20FJS53W02 released?
Its release date is November 2017, 8 years ago.
