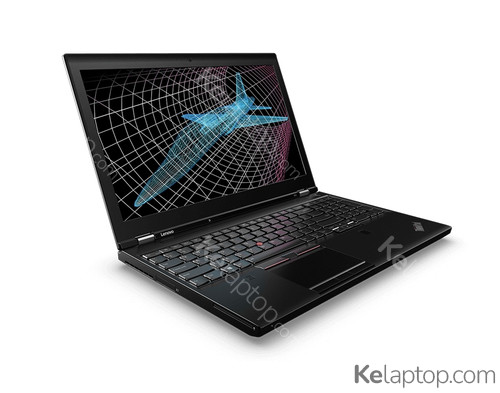

Lenovo ThinkPad P P51 20HH003XUS
Specs
Prices
Main specs
| Processor | Intel Xeon E3 v6 E3-1505MV6 3GHz |
|---|---|
| Screen | 15.6" 1920x1080 IPS 250 nits |
| Hard drive | 1TB SSD M.2 |
| RAM | 16GB DDR4-SDRAM |
| Operating system | Windows 10 Pro |
| Graphics card | NVIDIA Quadro M2200 4GB GDDR5 |
Alternatives with equal or higher power at a similar or lower price
From other brands
Full specifications of Lenovo ThinkPad P P51 20HH003XUS
| Reference / Part Number | 20HH003XUS |
|---|---|
| Release date | February 2018, 8 years ago |
Design
| Product type | Mobile workstation |
|---|---|
| Product colour | Black |
| Form factor | Clamshell |
| Housing material | Aluminium,Glass-reinforced plastic (GRP),Magnesium |
| Market positioning | High performance |
Image gallery
Screen
| Display diagonal | 39,6 cm |
|---|---|
| Display resolution | 1920 x 1080 pixels |
| Touchscreen | No |
| HD type | Full HD |
| Panel type | IPS |
| LED backlight | Yes |
| Native aspect ratio | 16:9 |
| Display surface | Matt |
| Display brightness | 250 cd/m² |
| Contrast ratio (typical) | 700:1 |
Processor
| Processor family | Intel® Xeon® E3 v6 |
|---|---|
| Processor manufacturer | Intel |
| Processor model | E3-1505MV6 |
| Processor frequency | 3 GHz |
| Processor cores | 4 |
| Processor threads | 8 |
| Processor boost frequency | 4 GHz |
| System bus rate | 8 GT/s |
| Processor cache | 8 MB |
| Processor cache type | Smart Cache |
| Processor socket | BGA 1440 |
| Processor lithography | 14 nm |
| Processor operating modes | 64-bit |
| Processor codename | Kaby Lake |
| Bus type | DMI3 |
| Stepping | B0 |
| Thermal Design Power (TDP) | 45 W |
| Configurable TDP-down | 35 W |
| Tjunction | 100 °C |
| Maximum number of PCI Express lanes | 16 |
| PCI Express slots version | 3.0 |
| PCI Express configurations | 1x16,1x8+2x4,2x8 |
| ECC supported by processor | Yes |
Memory
| Internal memory | 16 GB |
|---|---|
| Maximum internal memory | 64 GB |
| Internal memory type | DDR4-SDRAM |
| Memory clock speed | 2400 MHz |
| Memory form factor | SO-DIMM |
| Memory layout (slots x size) | 2 x 8 GB |
| Memory slots | 4x SO-DIMM |
| ECC | No |
Storage
| Total storage capacity | 1 TB |
|---|---|
| Storage media | SSD |
| Optical drive type | No |
| Number of HDDs installed | 0 |
| Number of SSDs installed | 1 |
| SSD capacity | 1 TB |
| SSD interface | M.2 |
| SSD form factor | M.2 |
| Card reader integrated | Yes |
| Compatible memory cards | MMC,SD,SDHC,SDXC |
Graphics
| On-board graphics card | Yes |
|---|---|
| Discrete graphics card | Yes |
| Discrete graphics card model | NVIDIA® Quadro® M2200 |
| On-board graphics card model | Intel® HD Graphics P630 |
| Discrete graphics card memory | 4 GB |
| Discrete graphics memory type | GDDR5 |
| On-board graphics card family | Intel® HD Graphics |
| On-board graphics card base frequency | 350 MHz |
| On-board graphics card dynamic frequency (max) | 1100 MHz |
| Maximum on-board graphics card memory | 1,7 GB |
| On-board graphics card DirectX version | 12.0 |
| On-board graphics card OpenGL version | 4.4 |
| On-board graphics card ID | 0x591D |
| Number of discrete graphics cards installed | 1 |
| Maximum resolution | 3840 x 2160 pixels |
Audio
| Audio chip | Realtek ALC3268 |
|---|---|
| Number of built-in speakers | 2 |
| Speaker power | 2 W |
| Built-in microphone | Yes |
| Number of microphones | 2 |
Camera
| Front camera | Yes |
|---|---|
| Front camera resolution | 1280 x 720 pixels |
| Front camera signal format | 720p |
| Front camera HD type | HD |
Network
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
|---|---|
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a,Wi-Fi 5 (802.11ac),802.11b,802.11g,Wi-Fi 4 (802.11n) |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Bluetooth | Yes |
| Bluetooth version | 4.1 |
| Near Field Communication (NFC) | No |
Ports & interfaces
| USB 2.0 ports quantity | 0 |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| HDMI ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI version | 1.4b |
| DisplayPorts quantity | 0 |
| Mini DisplayPorts quantity | 1 |
| DVI port | No |
| VGA (D-Sub) ports quantity | 0 |
| Thunderbolt ports quantity | 0 |
| Thunderbolt 3 ports quantity | 1 |
| Headphone outputs | 1 |
| Microphone in | No |
| Combo headphone/mic port | Yes |
| Docking connector | Yes |
| ExpressCard slot | Yes |
| USB Sleep-and-Charge | Yes |
| USB Sleep-and-Charge ports | 1 |
Performance
| Motherboard chipset | Intel® CM238 |
|---|
Keyboard
| Numeric keypad | Yes |
|---|---|
| Pointing device | ThinkPad UltraNav |
| Keyboard backlit | Yes |
| Spill-resistant keyboard | Yes |
| Full-size keyboard | Yes |
| Windows keys | Yes |
Software
| Operating system installed | Windows 10 Pro |
|---|---|
| Operating system architecture | 64-bit |
Processor special features
| Intel® My WiFi Technology (Intel® MWT) | Yes |
|---|---|
| Intel® Smart Response Technology | Yes |
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel HD Graphics | Yes |
| Intel® Clear Video HD Technology (Intel® CVT HD) | Yes |
| Intel Clear Video Technology | Yes |
| Intel® InTru™ 3D Technology | Yes |
| Intel® Quick Sync Video Technology | Yes |
| Intel Flex Memory Access | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel Trusted Execution Technology | Yes |
| Intel Enhanced Halt State | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel® Secure Key | Yes |
| Intel TSX-NI | Yes |
| Intel Stable Image Platform Program (SIPP) | Yes |
| Intel® OS Guard | Yes |
| Intel Software Guard Extensions (Intel SGX) | Yes |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | Yes |
| Intel 64 | Yes |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Thermal Monitoring Technologies | Yes |
| Processor package size | 42 x 28 mm |
| Supported instruction sets | AVX 2.0,SSE4.1,SSE4.2 |
| Processor code | SR32K |
| CPU configuration (max) | 1 |
| Embedded options available | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel Identity Protection Technology version | 1.00 |
| Intel Smart Response Technology version | 1.00 |
| Intel Stable Image Platform Program (SIPP) version | 1.00 |
| Intel Secure Key Technology version | 1.00 |
| Intel TSX-NI version | 1.00 |
| Intel Virtualization Technology (VT-x) | Yes |
| Processor ARK ID | 97463 |
| Conflict-Free processor | Yes |
Battery
| Battery capacity | 90 Wh |
|---|---|
| Battery technology | Lithium Polymer (LiPo) |
| Number of battery cells | 6 |
Power
| AC adapter power | 170 W |
|---|---|
| AC adapter frequency | 50 - 60 Hz |
| AC adapter input voltage | 100 - 240 V |
Security
| Cable lock slot | Yes |
|---|---|
| Fingerprint reader | Yes |
| Trusted Platform Module (TPM) | Yes |
| Password protection | Yes |
| Password protection type | HDD,Supervisor |
Certificates
| Compliance certificates | RoHS |
|---|---|
| Certification | GREENGUARD |
Sustainability
| Sustainability certificates | EPEAT Gold,ENERGY STAR |
|---|
Weight & dimensions
| Width | 377,4 mm |
|---|---|
| Depth | 252,3 mm |
| Height (front) | 2,45 cm |
| Height (rear) | 2,59 cm |
Packaging content
| AC adapter included | Yes |
|---|---|
| Manual | Yes |
| Power cord included | Yes |
Other features
| DisplayPort version | 1.2 |
|---|---|
| Maximum internal memory (64-bit) | 64 GB |
Frequently asked questions
Is the Lenovo ThinkPad P P51 20HH003XUS good for gaming?
You can game on it, though this laptop was not built for it: it carries the dedicated NVIDIA Quadro M2200. Its card's page shows what level it handles current games at.
What is the screen of the Lenovo ThinkPad P P51 20HH003XUS like?
It carries a 15.6" 1920x1080 IPS 250 nits display.
Which processor and graphics card does the Lenovo ThinkPad P P51 20HH003XUS have?
It runs on the Intel Xeon E3 v6 E3-1505MV6 processor with the NVIDIA Quadro M2200 graphics. Their pages carry their benchmarks, ranking position and alternatives.
Can the RAM of the Lenovo ThinkPad P P51 20HH003XUS be upgraded?
Yes: it has 4 memory slots and takes up to 64 GB according to the manufacturer (it ships with 16GB).
Which operating system does the Lenovo ThinkPad P P51 20HH003XUS come with?
It comes with Windows 10 Pro preinstalled.
Which ports does the Lenovo ThinkPad P P51 20HH003XUS have?
According to its spec sheet: 1 × Thunderbolt 3, 4 × USB-A, 1 × HDMI, Ethernet (RJ-45), card reader, headphone jack (3.5 mm).
Does the Lenovo ThinkPad P P51 20HH003XUS have a backlit keyboard?
Yes, according to its spec sheet the keyboard is backlit.
Does the Lenovo ThinkPad P P51 20HH003XUS have a touch screen?
No, according to its spec sheet the screen is not a touch screen.
What material is the Lenovo ThinkPad P P51 20HH003XUS made of?
Its housing is made of Aluminium,Glass-reinforced plastic (GRP),Magnesium.
When was the Lenovo ThinkPad P P51 20HH003XUS released?
Its release date is February 2018, 8 years ago.
