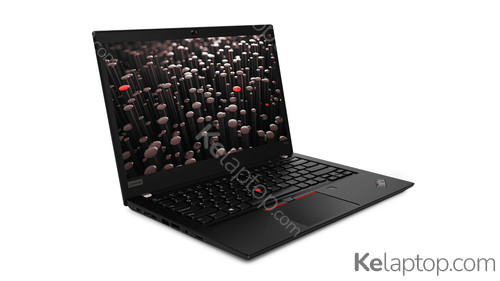

Lenovo ThinkPad P P43s 20RH002LMX
Specs
Prices
Main specs
| Processor | Intel Core i7-8565U 1,8GHz |
|---|---|
| Screen | 14" 1920x1080 IPS 400 nits 72% |
| Hard drive | 1TB SSD M.2 |
| RAM | 32GB DDR4-SDRAM |
| Operating system | Windows 10 Pro |
| Graphics card | NVIDIA Quadro P520 2GB GDDR5 |
Alternatives with equal or higher power at a similar or lower price
From other brands
Full specifications of Lenovo ThinkPad P P43s 20RH002LMX
| Reference / Part Number | 20RH002LMX |
|---|---|
| Release date | December 2020, 5 years ago |
Design
| Product type | Mobile workstation |
|---|---|
| Product colour | Black |
| Form factor | Clamshell |
Image gallery
Screen
| Display diagonal | 35,6 cm |
|---|---|
| Display resolution | 1920 x 1080 pixels |
| Touchscreen | No |
| HD type | Full HD |
| Panel type | IPS |
| LED backlight | Yes |
| Native aspect ratio | 16:9 |
| Display brightness | 400 cd/m² |
| Colour gamut | 72 % |
| Contrast ratio (typical) | 800:1 |
Processor
| Processor family | Intel® Core™ i7 |
|---|---|
| Processor manufacturer | Intel |
| Processor model | i7-8565U |
| Processor frequency | 1,8 GHz |
| Processor generation | 8th gen Intel® Core™ i7 |
| Processor cores | 4 |
| Processor boost frequency | 4,6 GHz |
| Processor cache | 8 MB |
| Processor cache type | Smart Cache |
| Bus type | OPI |
| Configurable TDP-up frequency | 2 GHz |
| Configurable TDP-up | 25 W |
| Configurable TDP-down | 10 W |
| Configurable TDP-down frequency | 0,8 GHz |
Memory
| Internal memory | 32 GB |
|---|---|
| Maximum internal memory | 48 GB |
| Internal memory type | DDR4-SDRAM |
| Memory clock speed | 2400 MHz |
| Memory form factor | On-board + SO-DIMM |
| Memory layout (slots x size) | 1 x 16 GB |
| Memory slots | 1x SO-DIMM |
Storage
| Total storage capacity | 1 TB |
|---|---|
| Storage media | SSD |
| Optical drive type | No |
| Total SSDs capacity | 1 TB |
| Number of SSDs installed | 1 |
| SSD capacity | 1 TB |
| SSD interface | PCI Express |
| SSD form factor | M.2 |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash) |
Graphics
| On-board graphics card | Yes |
|---|---|
| Discrete graphics card | Yes |
| Discrete graphics card model | NVIDIA Quadro P520 |
| On-board graphics card model | Intel® UHD Graphics |
| Discrete graphics card memory | 2 GB |
| Discrete graphics memory type | GDDR5 |
Audio
| Audio chip | Realtek ALC3287 |
|---|---|
| Audio system | Dolby Audio Premium |
| Number of built-in speakers | 2 |
| Speaker power | 2 W |
| Built-in microphone | Yes |
| Number of microphones | 2 |
Camera
| Front camera | Yes |
|---|---|
| Front camera HD type | HD |
Network
| Mobile network connection | No |
|---|---|
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Wi-Fi standards | 802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n),Wi-Fi 5 (802.11ac) |
| Antenna type | 2x2 |
| WLAN controller model | Intel Dual Band Wireless-AC 9560 |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Bluetooth | Yes |
| Bluetooth version | 5.1 |
Ports & interfaces
| USB 2.0 ports quantity | 0 |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| HDMI ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI version | 1.4b |
| DisplayPorts quantity | 0 |
| VGA (D-Sub) ports quantity | 0 |
| Combo headphone/mic port | Yes |
| USB Type-C DisplayPort Alternate Mode | Yes |
| USB Sleep-and-Charge | Yes |
| USB Sleep-and-Charge ports | 1 |
Performance
| Motherboard chipset | Intel SoC |
|---|
Keyboard
| Numeric keypad | No |
|---|---|
| Pointing device | ThinkPad UltraNav |
| Keyboard backlit | Yes |
| Spill-resistant keyboard | Yes |
| Full-size keyboard | Yes |
Software
| Operating system installed | Windows 10 Pro |
|---|---|
| Operating system architecture | 64-bit |
Processor special features
| Enhanced Intel SpeedStep Technology | Yes |
|---|---|
| Intel Clear Video Technology | Yes |
| Intel Flex Memory Access | Yes |
| Intel Trusted Execution Technology | No |
| Intel Enhanced Halt State | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel TSX-NI | No |
| Intel Software Guard Extensions (Intel SGX) | Yes |
| Intel 64 | Yes |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| CPU configuration (max) | 1 |
| Embedded options available | No |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel Identity Protection Technology version | 1.00 |
| Intel Smart Response Technology version | 1.00 |
| Intel Secure Key Technology version | 1.00 |
| Intel TSX-NI version | 0.00 |
| Intel Virtualization Technology (VT-x) | Yes |
Battery
| Battery capacity | 50 Wh |
|---|---|
| Battery technology | Lithium Polymer (LiPo) |
| Battery life (max) | 14,7 h |
| Fast charging | Yes |
Power
| USB Type-C charging port | Yes |
|---|---|
| AC adapter power | 65 W |
| USB Power Delivery (USB PD) | Yes |
Security
| Cable lock slot | Yes |
|---|---|
| Cable lock slot type | Kensington |
| Fingerprint reader | Yes |
| Smart card reader | Yes |
| Trusted Platform Module (TPM) | Yes |
| Password protection | Yes |
| Password protection type | HDD,Power on,Supervisor |
Weight & dimensions
| Weight | 1,49 kg |
|---|---|
| Width | 329 mm |
| Depth | 227 mm |
| Height | 17,9 mm |
Frequently asked questions
Is the Lenovo ThinkPad P P43s 20RH002LMX good for gaming?
You can game on it, though this laptop was not built for it: it carries the dedicated NVIDIA Quadro P520. Its card's page shows what level it handles current games at.
How long does the battery of the Lenovo ThinkPad P P43s 20RH002LMX last?
The manufacturer declares up to 14,7 h of battery life. Real duration depends on brightness, workload and battery health.
What is the screen of the Lenovo ThinkPad P P43s 20RH002LMX like?
It carries a 14" 1920x1080 IPS 400 nits 72% display.
Which processor and graphics card does the Lenovo ThinkPad P P43s 20RH002LMX have?
It runs on the Intel Core i7-8565U processor with the NVIDIA Quadro P520 graphics. Their pages carry their benchmarks, ranking position and alternatives.
Can the RAM of the Lenovo ThinkPad P P43s 20RH002LMX be upgraded?
Yes: it has 1 memory slot and takes up to 48 GB according to the manufacturer (it ships with 32GB).
Which operating system does the Lenovo ThinkPad P P43s 20RH002LMX come with?
It comes with Windows 10 Pro preinstalled.
Which ports does the Lenovo ThinkPad P P43s 20RH002LMX have?
According to its spec sheet: 2 × USB-C, 2 × USB-A, 1 × HDMI, Ethernet (RJ-45), card reader, headphone jack (3.5 mm).
Does the Lenovo ThinkPad P P43s 20RH002LMX have a backlit keyboard?
Yes, according to its spec sheet the keyboard is backlit.
Does the Lenovo ThinkPad P P43s 20RH002LMX have a touch screen?
No, according to its spec sheet the screen is not a touch screen.
How much does the Lenovo ThinkPad P P43s 20RH002LMX weigh?
It weighs 1,49 kg: one of the light ones, easy to carry every day.
When was the Lenovo ThinkPad P P43s 20RH002LMX released?
Its release date is December 2020, 5 years ago.
