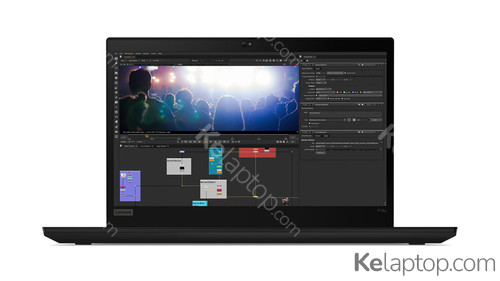

Lenovo ThinkPad P P14s 20S5S00L00
Specs
Prices
Main specs
| Processor | Intel Core i7-10510U 1,8GHz |
|---|---|
| Screen | 14" 1920x1080 IPS 250 nits |
| Hard drive | 512GB SSD M.2 |
| RAM | 16GB DDR4-SDRAM |
| Operating system | Windows 10 Pro |
| Graphics card | NVIDIA Quadro P520 2GB GDDR5 |
Alternatives with equal or higher power at a similar or lower price
From other brands
Full specifications of Lenovo ThinkPad P P14s 20S5S00L00
| Reference / Part Number | 20S5S00L00 |
|---|---|
| Release date | September 2020, 6 years ago |
Design
| Product type | Mobile workstation |
|---|---|
| Product color | Black |
| Form factor | Clamshell |
Image gallery
Screen
| Display diagonal | 14 " (35,6 cm) |
|---|---|
| Display resolution | 1920 x 1080 pixels |
| Touchscreen | No |
| HD type | Full HD |
| Panel type | IPS |
| LED backlight | Yes |
| Native aspect ratio | 16:9 |
| Display brightness | 250 cd/m² |
| Contrast ratio (typical) | 700:1 |
Processor
| Processor family | Intel® Core™ i7 |
|---|---|
| Processor manufacturer | Intel |
| Processor model | i7-10510U |
| Processor frequency | 1,8 GHz |
| Generación del procesador | Intel Core i7-10xxx |
| Processor cores | 4 |
| Processor threads | 8 |
| Processor boost frequency | 4,9 GHz |
| System bus rate | 4 GT/s |
| Processor cache | 8 MB |
| Processor cache type | Smart Cache |
| Processor socket | BGA 1528 |
| Processor lithography | 14 nm |
| Processor operating modes | 64-bit |
| Processor codename | Comet Lake |
| Thermal Design Power (TDP) | 15 W |
| Configurable TDP-up frequency | 2,3 GHz |
| Configurable TDP-up | 25 W |
| Configurable TDP-down | 10 W |
| Configurable TDP-down frequency | 0,8 GHz |
| Tjunction | 100 °C |
| Maximum number of PCI Express lanes | 16 |
| PCI Express slots version | 3.0 |
| PCI Express configurations | 1x4,2x2,1x2+2x1,4x1 |
Memory
| Internal memory | 16 GB |
|---|---|
| Maximum internal memory | 40 GB |
| Internal memory type | DDR4-SDRAM |
| Memory clock speed | 3200 MHz |
| Memory form factor | On-board + SO-DIMM |
| Memory layout (slots x size) | 1 x 8 GB |
| Memory slots | 1x SO-DIMM |
| ECC | No |
Storage
| Total storage capacity | 512 GB |
|---|---|
| Storage media | SSD |
| Optical drive type | No |
| Total SSDs capacity | 512 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 512 GB |
| SSD interface | PCI Express |
| SSD form factor | M.2 |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash) |
Graphics
| On-board graphics card | Yes |
|---|---|
| Discrete graphics card | Yes |
| Discrete graphics card model | NVIDIA Quadro P520 |
| On-board graphics card model | Intel® UHD Graphics |
| Discrete graphics card memory | 2 GB |
| Discrete graphics memory type | GDDR5 |
| On-board graphics card base frequency | 300 MHz |
| On-board graphics card dynamic frequency (max) | 1150 MHz |
| Maximum on-board graphics card memory | 32 GB |
| Number of execution units | 24 |
| On-board graphics card DirectX version | 12.0 |
| On-board graphics card OpenGL version | 4.5 |
| On-board graphics card ID | 0x9B41 |
Audio
| Audio chip | Realtek ALC3287 |
|---|---|
| Audio system | Dolby Audio |
| Number of built-in speakers | 2 |
| Speaker power | 2 W |
| Built-in microphone | Yes |
Camera
| Front camera | Yes |
|---|---|
| Front camera HD type | HD |
| Privacy camera | Yes |
| Privacy type | Privacy shutter |
Network
| Mobile network connection | No |
|---|---|
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Wi-Fi standards | 802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n),Wi-Fi 5 (802.11ac),Wi-Fi 6 (802.11ax) |
| Antenna type | 2x2 |
| WLAN controller model | Intel Wi-Fi 6 AX201 |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Bluetooth | Yes |
| Bluetooth version | 5.1 |
Ports & interfaces
| USB 2.0 ports quantity | 0 |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| HDMI ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI version | 1.4b |
| Thunderbolt 3 ports quantity | 1 |
| Combo headphone/mic port | Yes |
| Docking connector | Yes |
| USB Sleep-and-Charge | Yes |
Keyboard
| Numeric keypad | No |
|---|---|
| Pointing device | ThinkPad UltraNav |
| Keyboard backlit | Yes |
Software
| Operating system installed | Windows 10 Pro |
|---|---|
| Operating system architecture | 64-bit |
Processor special features
| Intel® My WiFi Technology (Intel® MWT) | Yes |
|---|---|
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel® Clear Video HD Technology (Intel® CVT HD) | Yes |
| Intel Clear Video Technology | Yes |
| Intel® Quick Sync Video Technology | Yes |
| Intel Flex Memory Access | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel Trusted Execution Technology | No |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel® Secure Key | Yes |
| Intel TSX-NI | No |
| Intel Stable Image Platform Program (SIPP) | No |
| Intel® OS Guard | Yes |
| Intel Software Guard Extensions (Intel SGX) | Yes |
| Intel 64 | Yes |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Thermal Monitoring Technologies | Yes |
| Processor package size | 46 x 24 mm |
| Supported instruction sets | SSE4.1,SSE4.2,AVX 2.0 |
| CPU configuration (max) | 1 |
| Embedded options available | No |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Processor ARK ID | 196449 |
Battery
| Battery capacity | 50 Wh |
|---|---|
| Battery technology | Lithium Polymer (LiPo) |
| Fast charging | Yes |
Power
| AC adapter power | 65 W |
|---|
Security
| Cable lock slot | Yes |
|---|---|
| Cable lock slot type | Kensington |
| Fingerprint reader | Yes |
| Trusted Platform Module (TPM) | Yes |
| Password protection | Yes |
Aprobaciones reguladoras
| Certificados de conformidad | RoHS |
|---|---|
| Certification | MIL-STD-810G |
Sustainability
| Sustainability certificates | EPEAT Gold,ENERGY STAR |
|---|
Weight & dimensions
| Weight | 3.2 lbs (1,47 kg) |
|---|---|
| Width | 13 " (329 mm) |
| Depth | 8.9 " (227 mm) |
| Height | 0.7 " (17,9 mm) |
Frequently asked questions
Is the Lenovo ThinkPad P P14s 20S5S00L00 good for gaming?
You can game on it, though this laptop was not built for it: it carries the dedicated NVIDIA Quadro P520. Its card's page shows what level it handles current games at.
What is the screen of the Lenovo ThinkPad P P14s 20S5S00L00 like?
It carries a 14" 1920x1080 IPS 250 nits display.
Which processor and graphics card does the Lenovo ThinkPad P P14s 20S5S00L00 have?
It runs on the Intel Core i7-10510U processor with the NVIDIA Quadro P520 graphics. Their pages carry their benchmarks, ranking position and alternatives.
Can the RAM of the Lenovo ThinkPad P P14s 20S5S00L00 be upgraded?
Yes: it has 1 memory slot and takes up to 40 GB according to the manufacturer (it ships with 16GB).
Which operating system does the Lenovo ThinkPad P P14s 20S5S00L00 come with?
It comes with Windows 10 Pro preinstalled.
Which ports does the Lenovo ThinkPad P P14s 20S5S00L00 have?
According to its spec sheet: 1 × Thunderbolt 3, 1 × USB-C, 3 × USB-A, 1 × HDMI, Ethernet (RJ-45), card reader, headphone jack (3.5 mm).
Does the Lenovo ThinkPad P P14s 20S5S00L00 have a backlit keyboard?
Yes, according to its spec sheet the keyboard is backlit.
Does the Lenovo ThinkPad P P14s 20S5S00L00 have a touch screen?
No, according to its spec sheet the screen is not a touch screen.
How much does the Lenovo ThinkPad P P14s 20S5S00L00 weigh?
It weighs 1,47 kg: one of the light ones, easy to carry every day.
When was the Lenovo ThinkPad P P14s 20S5S00L00 released?
Its release date is September 2020, 6 years ago.
