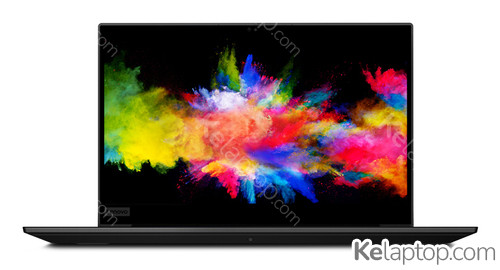

Lenovo ThinkPad P P1 20QTS00Y00
Specs
Prices
Main specs
| Processor | Intel Core i9 i9-9880H 2,3GHz |
|---|---|
| Screen | 15.6" 3840x2160 OLED 400 nits |
| Hard drive | 512GB SSD |
| RAM | 16GB DDR4-SDRAM |
| Operating system | Windows 10 Pro |
| Graphics card |
Other configurations of this model
Full specifications of Lenovo ThinkPad P P1 20QTS00Y00
| Reference / Part Number | 20QTS00Y00 |
|---|---|
| Release date | December 2019, 6 years ago |
Design
| Product type | Mobile workstation |
|---|---|
| Product color | Black |
| Form factor | Clamshell |
Image gallery
Screen
| Display diagonal | 15.6 " (39,6 cm) |
|---|---|
| Display resolution | 3840 x 2160 pixels |
| HD type | 4K Ultra HD |
| Panel type | OLED |
| LED backlight | Yes |
| Native aspect ratio | 16:9 |
| Display surface | Matt |
| Display brightness | 400 cd/m² |
| Pantalla dual | No |
| Contrast ratio (typical) | 100000:1 |
Processor
| Processor family | Intel® Core™ i9 |
|---|---|
| Processor manufacturer | Intel |
| Processor model | i9-9880H |
| Processor frequency | 2,3 GHz |
| Generación del procesador | Intel Core i9-9xxx |
| Processor cores | 8 |
| Processor threads | 16 |
| Processor boost frequency | 4,8 GHz |
| System bus rate | 8 GT/s |
| Processor cache | 16 MB |
| Processor cache type | Smart Cache |
| Processor socket | BGA 1440 |
| Processor lithography | 14 nm |
| Processor operating modes | 64-bit |
| Processor codename | Coffee Lake |
| Thermal Design Power (TDP) | 45 W |
| Configurable TDP-down | 35 W |
| Tjunction | 100 °C |
| Maximum number of PCI Express lanes | 16 |
| PCI Express slots version | 3.0 |
| PCI Express configurations | 1x16,2x8,1x8+2x4 |
Memory
| Internal memory | 16 GB |
|---|---|
| Maximum internal memory | 64 GB |
| Internal memory type | DDR4-SDRAM |
| Memory clock speed | 2666 MHz |
| Memory form factor | SO-DIMM |
| Memory slots | 2x SO-DIMM |
Storage
| Total storage capacity | 512 GB |
|---|---|
| Storage media | SSD |
| Optical drive type | No |
| Total SSDs capacity | 512 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 512 GB |
| Card reader integrated | Yes |
| Compatible memory cards | SD,SDHC,SDXC |
Graphics
| On-board graphics card | Yes |
|---|---|
| Discrete graphics card | Yes |
| Discrete graphics card model | NVIDIA Quadro T2000 |
| On-board graphics card model | Intel® UHD Graphics 630 |
| Discrete graphics card memory | 4 GB |
| On-board graphics card family | Intel® UHD Graphics |
| On-board graphics card base frequency | 350 MHz |
| On-board graphics card dynamic frequency (max) | 1200 MHz |
| Maximum on-board graphics card memory | 64 GB |
| On-board graphics card DirectX version | 12.0 |
| On-board graphics card OpenGL version | 4.5 |
| On-board graphics card ID | 0x3E9B |
| Number of discrete graphics cards installed | 1 |
Audio
| Audio chip | Synaptic CX11880 |
|---|---|
| Audio system | Dolby Audio Premium |
| Number of built-in speakers | 2 |
| Speaker power | 2 W |
| Built-in microphone | Yes |
| Number of microphones | 2 |
Camera
| Front camera | Yes |
|---|---|
| Front camera resolution | 1280 x 720 pixels |
| Front camera signal format | 720p |
| Front camera HD type | HD |
| Infrared (IR) camera | Yes |
| Privacy camera | Yes |
| Privacy type | Privacy shutter |
Network
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
|---|---|
| Wi-Fi | Yes |
| Wi-Fi standards | Wi-Fi 6 (802.11ax) |
| Antenna type | 2x2 |
| Bluetooth | Yes |
| Bluetooth version | 5.0 |
| Near Field Communication (NFC) | No |
| WWAN | Not installed |
Ports & interfaces
| USB 2.0 ports quantity | 0 |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| HDMI ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 2 |
| HDMI version | 2.0 |
| DisplayPorts quantity | 0 |
| Headphone outputs | 1 |
| Combo headphone/mic port | Yes |
| ExpressCard slot | No |
| USB Sleep-and-Charge | Yes |
| USB Sleep-and-Charge ports | 1 |
Performance
| Motherboard chipset | Intel® CM246 |
|---|
Keyboard
| Numeric keypad | No |
|---|---|
| Pointing device | ThinkPad UltraNav |
| Keyboard backlit | Yes |
| Spill-resistant keyboard | Yes |
| Windows keys | Yes |
Software
| Operating system installed | Windows 10 Pro |
|---|---|
| Operating system architecture | 64-bit |
Processor special features
| Intel® My WiFi Technology (Intel® MWT) | Yes |
|---|---|
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel® Clear Video HD Technology (Intel® CVT HD) | Yes |
| Intel Clear Video Technology | Yes |
| Intel® InTru™ 3D Technology | Yes |
| Intel® Quick Sync Video Technology | Yes |
| Intel Flex Memory Access | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel Trusted Execution Technology | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel® Secure Key | Yes |
| Intel TSX-NI | Yes |
| Intel Stable Image Platform Program (SIPP) | Yes |
| Intel® OS Guard | Yes |
| Intel Software Guard Extensions (Intel SGX) | Yes |
| Intel 64 | Yes |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Thermal Monitoring Technologies | Yes |
| Processor package size | 42 x 28 mm |
| Supported instruction sets | SSE4.1,SSE4.2,AVX 2.0 |
| CPU configuration (max) | 1 |
| Embedded options available | No |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Processor ARK ID | 192987 |
Battery
| Battery capacity | 80 Wh |
|---|---|
| Battery technology | Lithium-Ion (Li-Ion) |
| Battery life (max) | 13,8 h |
| Fast charging | Yes |
Power
| AC adapter power | 135 W |
|---|---|
| DC-in jack | Yes |
Security
| Cable lock slot | Yes |
|---|---|
| Fingerprint reader | Yes |
| Trusted Platform Module (TPM) | Yes |
| Password protection | Yes |
| Password protection type | HDD,Power on,Supervisor |
Aprobaciones reguladoras
| Certificados de conformidad | RoHS |
|---|---|
| Certification | MIL-STD-810G |
Sustainability
| Sustainability certificates | EPEAT Silver,ENERGY STAR |
|---|
Weight & dimensions
| Width | 14.2 " (361,8 mm) |
|---|---|
| Depth | 9.7 " (245,7 mm) |
Packaging content
| AC adapter included | Yes |
|---|---|
| Manual | Yes |
| Warranty card | Yes |
| Power cord included | Yes |
Other features
| 3D | No |
|---|---|
| Maximum internal memory (64-bit) | 64 GB |
Alternatives with equal or higher power at a similar or lower price
Frequently asked questions
Is the Lenovo ThinkPad P P1 20QTS00Y00 good for gaming?
You can game on it, though this laptop was not built for it: it carries the dedicated NVIDIA Quadro T2000. Its card's page shows what level it handles current games at.
How long does the battery of the Lenovo ThinkPad P P1 20QTS00Y00 last?
The manufacturer declares up to 13,8 h of battery life. Real duration depends on brightness, workload and battery health.
What is the screen of the Lenovo ThinkPad P P1 20QTS00Y00 like?
It carries a 15.6" 3840x2160 OLED 400 nits display.
Which processor and graphics card does the Lenovo ThinkPad P P1 20QTS00Y00 have?
It runs on the Intel Core i9 i9-9880H processor with the NVIDIA Quadro T2000 graphics. Their pages carry their benchmarks, ranking position and alternatives.
Can the RAM of the Lenovo ThinkPad P P1 20QTS00Y00 be upgraded?
Yes: it has 2 memory slots and takes up to 64 GB according to the manufacturer (it ships with 16GB).
Which operating system does the Lenovo ThinkPad P P1 20QTS00Y00 come with?
It comes with Windows 10 Pro preinstalled.
Which ports does the Lenovo ThinkPad P P1 20QTS00Y00 have?
According to its spec sheet: 2 × USB-C, 2 × USB-A, 1 × HDMI, card reader, headphone jack (3.5 mm).
Does the Lenovo ThinkPad P P1 20QTS00Y00 have a backlit keyboard?
Yes, according to its spec sheet the keyboard is backlit.
When was the Lenovo ThinkPad P P1 20QTS00Y00 released?
Its release date is December 2019, 6 years ago.
