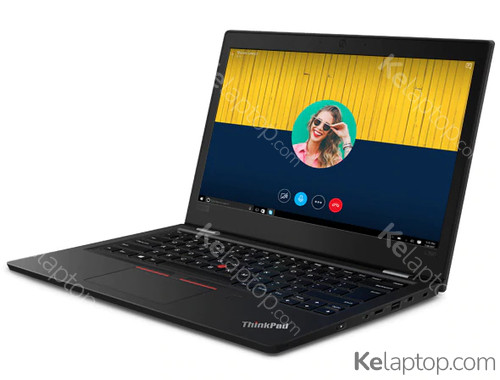

Lenovo ThinkPad L L390 20NS002DBR
Specs
Prices
Main specs
| Processor | Intel Core i5-8365U 1,6GHz |
|---|---|
| Screen | 13.3" 1366x768 TN 250 nits 45% NTSC |
| Hard drive | 256GB SSD M.2 |
| RAM | 8GB DDR4-SDRAM |
| Operating system | Windows 10 Pro |
| Graphics card |
Alternatives with equal or higher power at a similar or lower price
From other brands
Full specifications of Lenovo ThinkPad L L390 20NS002DBR
| Reference / Part Number | 20NS002DBR |
|---|---|
| Release date | June 2021, 5 years ago |
Design
| Product type | Laptop |
|---|---|
| Product colour | Black |
| Form factor | Clamshell |
Image gallery
Screen
| Display diagonal | 33,8 cm |
|---|---|
| Display resolution | 1366 x 768 pixels |
| Touchscreen | No |
| HD type | HD |
| Panel type | TN |
| LED backlight | Yes |
| Native aspect ratio | 16:9 |
| Anti-glare screen | Yes |
| Display brightness | 250 cd/m² |
| RGB colour space | NTSC |
| Colour gamut | 45 % |
| Contrast ratio (typical) | 500:1 |
Processor
| Processor family | Intel® Core™ i5 |
|---|---|
| Processor manufacturer | Intel |
| Processor model | i5-8365U |
| Processor frequency | 1,6 GHz |
| Processor generation | 8th gen Intel® Core™ i5 |
| Processor cores | 4 |
| Processor boost frequency | 4,1 GHz |
| Processor cache | 6 MB |
| Configurable TDP-up frequency | 1,9 GHz |
| Configurable TDP-up | 25 W |
| Configurable TDP-down | 10 W |
| Configurable TDP-down frequency | 0,8 GHz |
Memory
| Internal memory | 8 GB |
|---|---|
| Maximum internal memory | 32 GB |
| Internal memory type | DDR4-SDRAM |
| Memory clock speed | 2400 MHz |
| Memory form factor | SO-DIMM |
| Memory layout (slots x size) | 1 x 8 GB |
| Memory slots | 2x SO-DIMM |
Storage
| Total storage capacity | 256 GB |
|---|---|
| Storage media | SSD |
| Optical drive type | No |
| Total SSDs capacity | 256 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 256 GB |
| SSD interface | NVMe,PCI Express 3.0 |
| NVMe | Yes |
| SSD form factor | M.2 |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash) |
Graphics
| On-board graphics card | Yes |
|---|---|
| Discrete graphics card | No |
| Discrete graphics card model | Not available |
| On-board graphics card model | Intel® UHD Graphics |
Audio
| Audio chip | Realtek ALC3287 |
|---|---|
| Number of built-in speakers | 2 |
| Speaker power | 2 W |
| Built-in microphone | Yes |
Camera
| Front camera | Yes |
|---|---|
| Front camera HD type | HD |
Network
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
|---|---|
| Wi-Fi standards | 802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n),Wi-Fi 5 (802.11ac) |
| Antenna type | 2x2 |
| WLAN controller model | Intel Dual Band Wireless-AC 9560 |
| Bluetooth | Yes |
| Bluetooth version | 5.1 |
| WWAN | Not installed |
Ports & interfaces
| USB 2.0 ports quantity | 0 |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 2 |
| HDMI ports quantity | 1 |
| HDMI version | 1.4b |
| Combo headphone/mic port | Yes |
| USB Sleep-and-Charge | Yes |
| USB Sleep-and-Charge ports | 1 |
Keyboard
| Numeric keypad | No |
|---|---|
| Pointing device | ThinkPad UltraNav |
| Keyboard backlit | No |
| Spill-resistant keyboard | Yes |
Software
| Operating system installed | Windows 10 Pro |
|---|---|
| Operating system architecture | 64-bit |
Processor special features
| Enhanced Intel SpeedStep Technology | Yes |
|---|---|
| Intel Clear Video Technology | Yes |
| Intel Flex Memory Access | Yes |
| Intel Trusted Execution Technology | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel TSX-NI | Yes |
| Intel Stable Image Platform Program (SIPP) | Yes |
| Intel Software Guard Extensions (Intel SGX) | Yes |
| Intel 64 | Yes |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| CPU configuration (max) | 1 |
| Embedded options available | No |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
Battery
| Battery capacity | 45 Wh |
|---|---|
| Battery technology | Lithium Polymer (LiPo) |
| Battery life (max) | 14,61 h |
| Fast charging | Yes |
Power
| AC adapter power | 45 W |
|---|
Security
| Cable lock slot | Yes |
|---|---|
| Cable lock slot type | Kensington |
| Fingerprint reader | Yes |
| Smart card reader | No |
| Trusted Platform Module (TPM) | Yes |
| Password protection | Yes |
| Password protection type | HDD,Power on,Supervisor |
Certificates
| Compliance certificates | RoHS |
|---|
Sustainability
| Sustainability certificates | ENERGY STAR,EPEAT Silver,TCO |
|---|
Weight & dimensions
| Weight | 1,46 kg |
|---|---|
| Width | 321,8 mm |
| Depth | 224,2 mm |
| Height | 18,8 mm |
Frequently asked questions
Is the Lenovo ThinkPad L L390 20NS002DBR good for gaming?
This laptop was not built for gaming: it relies on the integrated Intel UHD Graphics. Its card's page shows what level it handles current games at.
How long does the battery of the Lenovo ThinkPad L L390 20NS002DBR last?
The manufacturer declares up to 14,61 h of battery life. Real duration depends on brightness, workload and battery health.
What is the screen of the Lenovo ThinkPad L L390 20NS002DBR like?
It carries a 13.3" 1366x768 TN 250 nits 45% NTSC display.
Which processor and graphics card does the Lenovo ThinkPad L L390 20NS002DBR have?
It runs on the Intel Core i5-8365U processor with the Intel UHD Graphics graphics. Their pages carry their benchmarks, ranking position and alternatives.
Can the RAM of the Lenovo ThinkPad L L390 20NS002DBR be upgraded?
Yes: it has 2 memory slots and takes up to 32 GB according to the manufacturer (it ships with 8GB).
Which operating system does the Lenovo ThinkPad L L390 20NS002DBR come with?
It comes with Windows 10 Pro preinstalled.
Which ports does the Lenovo ThinkPad L L390 20NS002DBR have?
According to its spec sheet: 2 × USB-C, 2 × USB-A, 1 × HDMI, card reader, headphone jack (3.5 mm).
Does the Lenovo ThinkPad L L390 20NS002DBR have a backlit keyboard?
No, according to its spec sheet the keyboard is not backlit.
Does the Lenovo ThinkPad L L390 20NS002DBR have a touch screen?
No, according to its spec sheet the screen is not a touch screen.
How much does the Lenovo ThinkPad L L390 20NS002DBR weigh?
It weighs 1,46 kg: one of the light ones, easy to carry every day.
When was the Lenovo ThinkPad L L390 20NS002DBR released?
Its release date is June 2021, 5 years ago.
