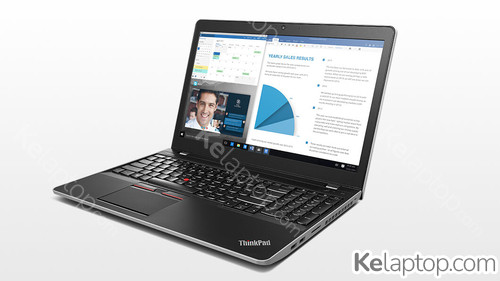

Lenovo ThinkPad E E570p 20JACTO1WWENAU1
Specs
Prices
Main specs
| Processor | Intel Core i7 i7-7700HQ 2,8GHz |
|---|---|
| Screen | 15.6" 1920x1080 IPS 250 nits |
| Hard drive | 1,51TB HDD+SSD |
| RAM | 16GB DDR4-SDRAM |
| Operating system | Windows 10 Home |
| Graphics card | NVIDIA GeForce GTX 1050 Ti 2GB |
Alternatives with equal or higher power at a similar or lower price
From other brands
Full specifications of Lenovo ThinkPad E E570p 20JACTO1WWENAU1
| Reference / Part Number | 20JACTO1WWENAU1 |
|---|---|
| Release date | February 2018, 8 years ago |
Design
| Product type | Laptop |
|---|---|
| Product colour | Silver |
| Form factor | Clamshell |
Image gallery
Screen
| Display diagonal | 39,6 cm |
|---|---|
| Display resolution | 1920 x 1080 pixels |
| Touchscreen | No |
| HD type | Full HD |
| Panel type | IPS |
| LED backlight | Yes |
| Native aspect ratio | 16:9 |
| Display surface | Matt |
| Display brightness | 250 cd/m² |
Processor
| Processor family | Intel® Core™ i7 |
|---|---|
| Processor manufacturer | Intel |
| Processor model | i7-7700HQ |
| Processor frequency | 2,8 GHz |
| Processor generation | 7th gen Intel® Core™ i7 |
| Processor boost frequency | 3,8 GHz |
| Processor threads | 8 |
| System bus rate | 8 GT/s |
| Processor cores | 4 |
| Processor cache | 6 MB |
| Processor cache type | Smart Cache |
| Processor lithography | 14 nm |
| Processor operating modes | 64-bit |
| Processor series | Intel Core i7-7700 Mobile Series |
| Processor codename | Kaby Lake |
| Bus type | DMI3 |
| Thermal Design Power (TDP) | 45 W |
| Configurable TDP-down | 35 W |
| Tjunction | 100 °C |
| Maximum number of PCI Express lanes | 16 |
| PCI Express slots version | 3.0 |
| PCI Express configurations | 1x16,1x8,2x4,2x8 |
| ECC supported by processor | No |
Memory
| Internal memory | 16 GB |
|---|---|
| Maximum internal memory | 32 GB |
| Internal memory type | DDR4-SDRAM |
| Memory clock speed | 2400 MHz |
| Memory form factor | SO-DIMM |
| Memory slots | 2x SO-DIMM |
Storage
| Total storage capacity | 1,51 TB |
|---|---|
| Storage media | HDD+SSD |
| Number of HDDs installed | 1 |
| HDD capacity | 1 TB |
| HDD interface | SATA III |
| HDD speed | 5400 RPM |
| HDD size | 2.5 " |
| Number of SSDs installed | 1 |
| SSD capacity | 512 GB |
| Card reader integrated | Yes |
| Compatible memory cards | MMC,SD,SDHC,SDXC |
Graphics
| On-board graphics card | Yes |
|---|---|
| Discrete graphics card | Yes |
| Discrete graphics card model | NVIDIA® GeForce® GTX 1050 Ti |
| On-board graphics card model | Intel® HD Graphics 630 |
| On-board graphics card family | Intel® HD Graphics |
| On-board graphics card base frequency | 350 MHz |
| On-board graphics card dynamic frequency (max) | 1100 MHz |
| Maximum on-board graphics card memory | 64 GB |
| On-board graphics card DirectX version | 12.0 |
| On-board graphics card OpenGL version | 4.4 |
| On-board graphics card ID | 0x591B |
| Discrete graphics card memory | 2 GB |
Audio
| Number of built-in speakers | 2 |
|---|---|
| Speaker power | 2 W |
| Built-in subwoofer | No |
| Built-in microphone | Yes |
Camera
| Front camera | Yes |
|---|---|
| Front camera resolution | 1280 x 720 pixels |
| Front camera signal format | 720p |
| Front camera HD type | HD |
Network
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
|---|---|
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a,Wi-Fi 5 (802.11ac),802.11b,802.11g,Wi-Fi 4 (802.11n) |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Bluetooth | Yes |
| Bluetooth version | 4.1 |
Ports & interfaces
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
|---|---|
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Combo headphone/mic port | Yes |
Keyboard
| Numeric keypad | Yes |
|---|---|
| Pointing device | ThinkPad UltraNav |
| Keyboard backlit | Yes |
| Spill-resistant keyboard | Yes |
| Windows keys | Yes |
Software
| Operating system installed | Windows 10 Home |
|---|---|
| Operating system architecture | 64-bit |
Processor special features
| Intel® Wireless Display (Intel® WiDi) | Yes |
|---|---|
| Intel® My WiFi Technology (Intel® MWT) | Yes |
| Intel® Smart Response Technology | Yes |
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel® Clear Video HD Technology (Intel® CVT HD) | Yes |
| Intel Clear Video Technology | Yes |
| Intel® InTru™ 3D Technology | Yes |
| Intel® Quick Sync Video Technology | Yes |
| Intel Flex Memory Access | Yes |
| Intel® Smart Cache | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel Trusted Execution Technology | No |
| Intel Enhanced Halt State | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel® Secure Key | Yes |
| Intel TSX-NI | No |
| Intel Stable Image Platform Program (SIPP) | No |
| Intel® OS Guard | Yes |
| Intel Software Guard Extensions (Intel SGX) | Yes |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | Yes |
| Intel 64 | Yes |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Thermal Monitoring Technologies | Yes |
| Processor package size | 42 x 28 mm |
| Supported instruction sets | AVX 2.0,SSE4.1,SSE4.2 |
| CPU configuration (max) | 1 |
| Embedded options available | No |
| Graphics & IMC lithography | 14 nm |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel Identity Protection Technology version | 1.00 |
| Intel Smart Response Technology version | 1.00 |
| Intel Stable Image Platform Program (SIPP) version | 0.00 |
| Intel Secure Key Technology version | 1.00 |
| Intel Small Business Advantage (SBA) version | 1.00 |
| Intel TSX-NI version | 0.00 |
| Intel Virtualization Technology (VT-x) | Yes |
| Processor ARK ID | 97185 |
| Conflict-Free processor | Yes |
Battery
| Battery capacity | 47 Wh |
|---|---|
| Number of battery cells | 6 |
Power
| AC adapter power | 135 W |
|---|
Security
| Trusted Platform Module (TPM) | Yes |
|---|---|
| Password protection | Yes |
Weight & dimensions
| Weight | 2,39 kg |
|---|---|
| Width | 378 mm |
| Depth | 258 mm |
| Height (front) | 2,58 cm |
| Height (rear) | 2,62 cm |
Packaging content
| Manual | Yes |
|---|---|
| Warranty card | Yes |
Other features
| AC adapter included | Yes |
|---|---|
| 3D | No |
| Maximum internal memory (64-bit) | 32 GB |
Frequently asked questions
Is the Lenovo ThinkPad E E570p 20JACTO1WWENAU1 good for gaming?
You can game on it, though this laptop was not built for it: it carries the dedicated NVIDIA GeForce GTX 1050 Ti. Its card's page shows what level it handles current games at.
What is the screen of the Lenovo ThinkPad E E570p 20JACTO1WWENAU1 like?
It carries a 15.6" 1920x1080 IPS 250 nits display.
Which processor and graphics card does the Lenovo ThinkPad E E570p 20JACTO1WWENAU1 have?
It runs on the Intel Core i7 i7-7700HQ processor with the NVIDIA GeForce GTX 1050 Ti graphics. Their pages carry their benchmarks, ranking position and alternatives.
Can the RAM of the Lenovo ThinkPad E E570p 20JACTO1WWENAU1 be upgraded?
Yes: it has 2 memory slots and takes up to 32 GB according to the manufacturer (it ships with 16GB).
Which operating system does the Lenovo ThinkPad E E570p 20JACTO1WWENAU1 come with?
It comes with Windows 10 Home preinstalled.
Which ports does the Lenovo ThinkPad E E570p 20JACTO1WWENAU1 have?
According to its spec sheet: 3 × USB-A, 1 × HDMI, Ethernet (RJ-45), card reader, headphone jack (3.5 mm).
Does the Lenovo ThinkPad E E570p 20JACTO1WWENAU1 have a backlit keyboard?
Yes, according to its spec sheet the keyboard is backlit.
Does the Lenovo ThinkPad E E570p 20JACTO1WWENAU1 have a touch screen?
No, according to its spec sheet the screen is not a touch screen.
How much does the Lenovo ThinkPad E E570p 20JACTO1WWENAU1 weigh?
It weighs 2,39 kg: one of the heavy ones, more of a desk machine than a daily commuter.
When was the Lenovo ThinkPad E E570p 20JACTO1WWENAU1 released?
Its release date is February 2018, 8 years ago.
